Razorweld ViperMIG 180iT MIG/Stick Welder - JVMIG180iT
Part Number:
JVMIG180iT
Ships Free To Lower 48 States
Razorweld ViperMIG 180iT MIG/Stick Welder - JVMIG180iT
Part Number:
JVMIG180iT
DocumentsViperMIG 180iT #JVMIG180iT

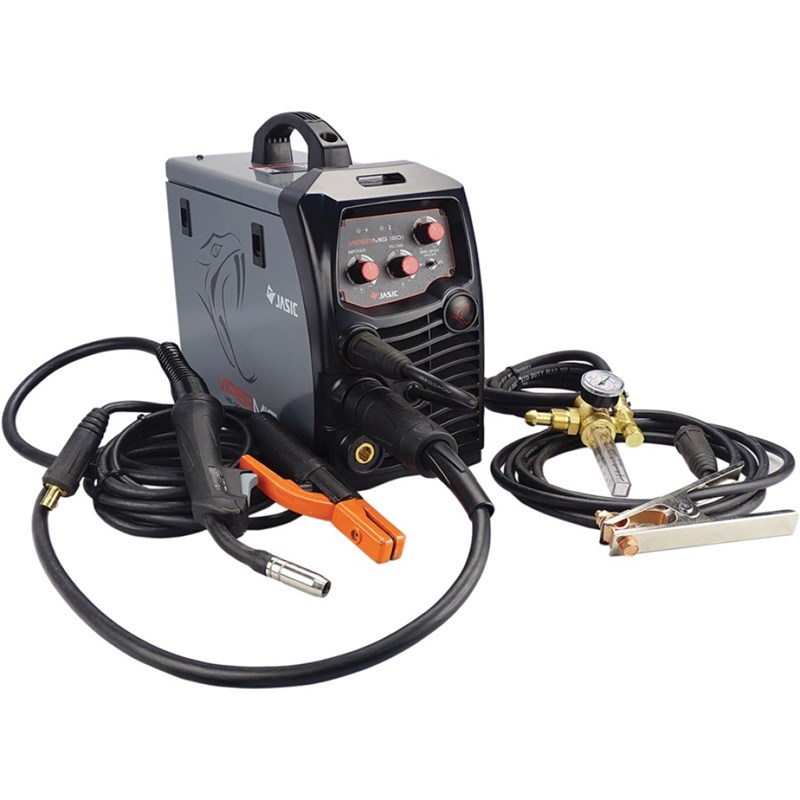

The ViperMIG 180iT is a dual-voltage MIG and Stick welder built for home and workshop use. With support for both gas-shielded and flux-cored welding, it's 100% spool gun compatible and packed with features like burn back control and stepless settings. Rugged, portable, and easy to use.
Highlights
- Dual Voltage Versatility: Operates on both 115V and 230V power for flexible setup in any workshop
- MIG & Stick Welding Modes: Supports both MIG (gas/gasless) and stick welding with excellent results
- Spool Gun Ready: 100% compatible with spool guns for aluminum and soft wire applications
- Simple Controls: Stepless adjustment of voltage and wire feed speed for quick, precise settings
- Burn Back & Wire Inch Features: Built-in burn back control and wire inch function for easy starts and minimal waste
- Compact, DIY-Ready Design: Portable inverter-based build, ideal for home and hobby welders
- Reliable Performance: ARC mode supports a variety of electrodes including stainless and cast iron
What's Included:
- VIPERMIG 180iT Welder
- SB15 MIG Torch
- TWC2 Style MIG Torch
- Arc Lead Set
- Ground Cable
- Regulator
- Power Adaptor
- Operating Manual
| ViperMIG 180iT Specifications | |
|---|---|
| Input Voltage | Single Phase 115V / 230V ±15%, 50/60 Hz |
| No-load Voltage | 53V (230V), 51V (115V) |
| Wire Feeding Speed Range | 79–551 in/min (230V), 79–433 in/min (115V) |
| Welding Wire Diameter | 0.023" / 0.030" / 0.035" / 0.040" |
| MIG Output (230V) | 30A–180A @ 23V |
| MIG Duty Cycle (230V) | 30% @ 180A, 60% @ 127A, 100% @ 99A |
| ARC Output (230V) | 10A–160A @ 26.4V |
| ARC Duty Cycle (230V) | 30% @ 160A, 60% @ 113A, 100% @ 88A |
| MIG Output (115V) | 30A–80A @ 18V |
| MIG Duty Cycle (115V) | 50% @ 80A, 60% @ 70A, 100% @ 63A |
| ARC Output (115V) | 10A–60A @ 22.4V |
| ARC Duty Cycle (115V) | 30% @ 60A, 60% @ 46A, 100% @ 40A |
| Efficiency | 85% (230V), 82% (115V) |
| Power Factor | 0.94 (230V), 0.64 (115V) |
| Protection Class | IP21S |
| Insulation Class | B |
| Cooling | Air cooled |
