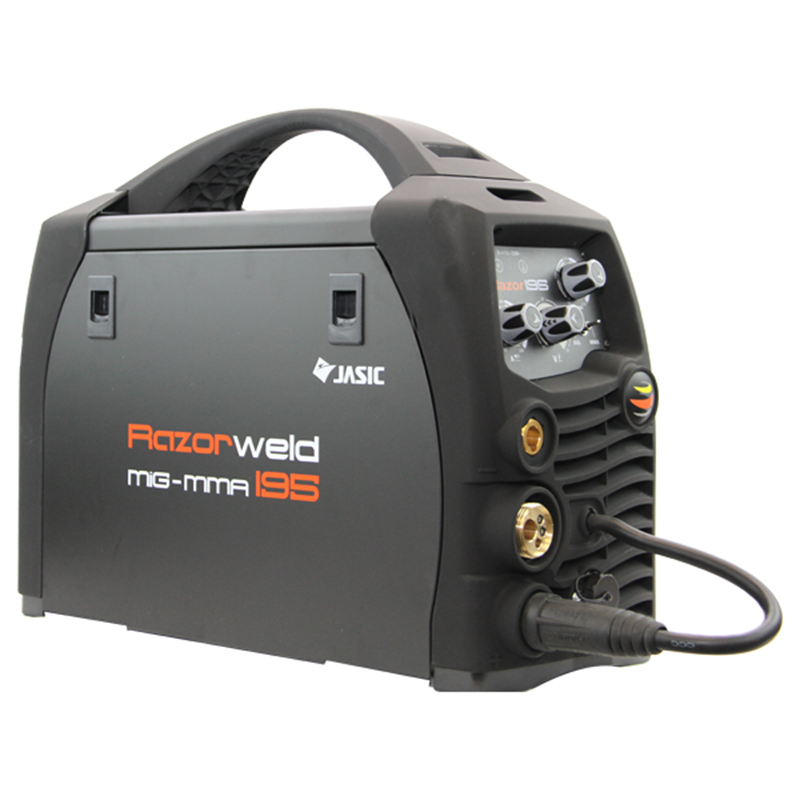

Razorweld 195 #KUMJRRW195T
The RAZORWELD 195 is a powerful yet portable MIG welding machine with ARC and Lift TIG functionality. Featuring dual voltage input, spool gun compatibility, and user-friendly controls, this machine is designed to handle a wide variety of applications—from general fabrication to aluminum welding. Built for durability and performance, the RAZORWELD 195 is a standout tool for serious welders.
Highlights
- Portable Multiprocess Power: MIG, ARC & Lift TIG capability in a compact, inverter-based design
- Gas/Gasless MIG Compatible: Weld with both gas-shielded and flux-cored wires
- Spool Gun Ready: Connect a spool gun easily for aluminum and softer wires
- Easy Setup & Controls: Step-less voltage and wire feed adjustment, burn back, and wire inch functionality
- Dual Voltage Flexibility: Weld anywhere with 115V or 230V power input
- Built for Durability: Designed for contractors, workshops, and industrial use
What's Included:
- RAZORWELD 230di Welder
- TWECO 2 Style 10FT MIG Torch
- WP17V-13FT TIG Torch
- Arc Lead Set
- Ground Cable
- Regulator
- Power Adaptor
- Operating Manual
RAZORWELD 195 Specifications | |
---|---|
Power Supply / Phase | 115/230V – 1 Phase ±15% |
Rated Input Power | 6 kVA |
Ieff (Amps) | 22.5A @ 115V, 21.5A @ 230V |
Imax (Amps) | 38A @ 115V, 36A @ 230V |
Rated Output | 200A / 24.0V MIG, 200A / 28.0V ARC |
Welding Current Range | 30–200A |
Load Voltage | 53V |
Duty Cycle | 35% @ 200A MIG @ 230V 35% @ 200A MMA @ 230V |
Protection Class | IP21S |
Dimensions (L x W x H) | 19.1" x 7.3" x 14.6" |
Weight | 28.4 lbs |
Warranty | 3 Years (Power Source) |
SHIPPING DIMENSIONS |
|
Height: | 14.60 Inches |
Width: | 7.30 Inches |
Length: | 19.10 Inches |
Weight: | 28 Lb(s) 6 Oz |
