Razorweld Razorcut 40 Digital Plasma Cutter - RC40PCi

Part Number: RC40PCi

Features
Specs
Documents
Consumables
FAQS

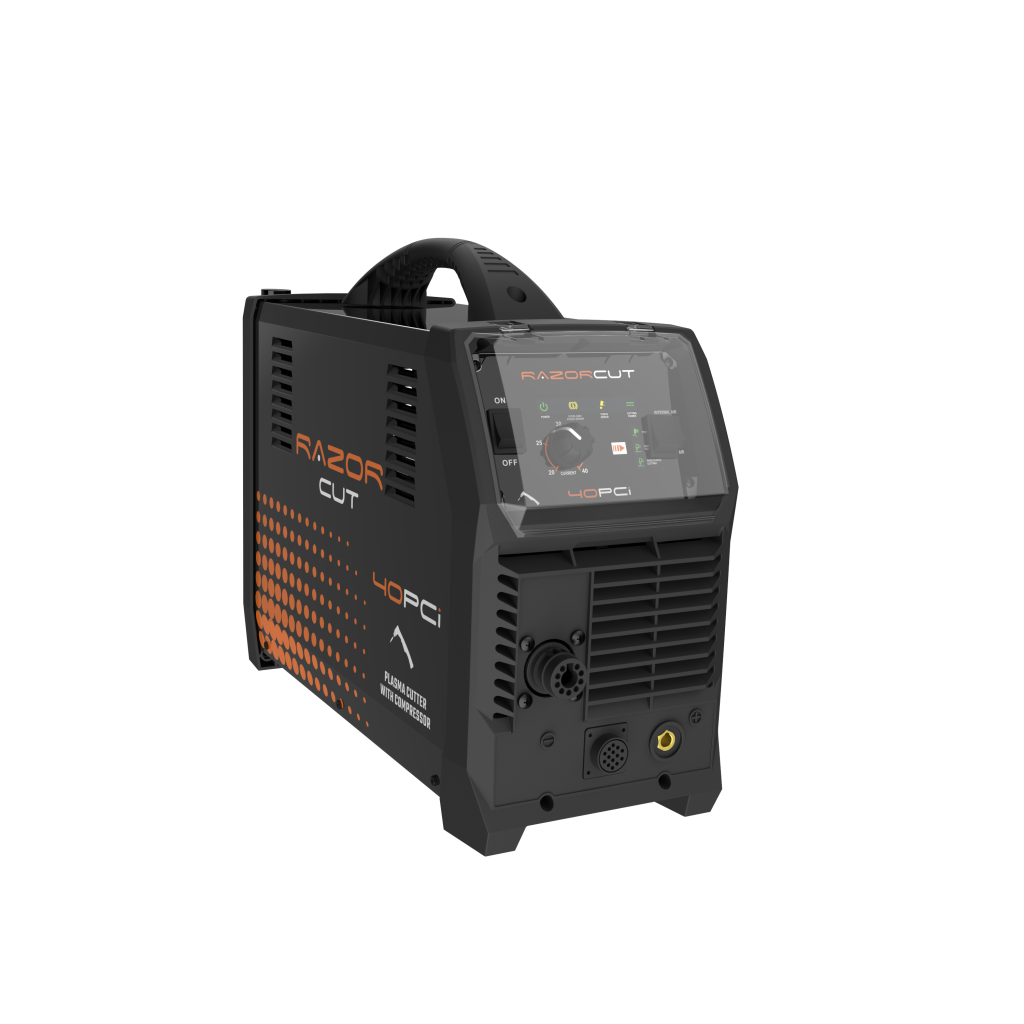

Razorweld Digital Plasma Cutter #RC40PCi

The RAZORCUT 40PCi combines portability with power, featuring an internal air compressor and Pilot Arc Start for superior plasma cutting performance. Capable of cutting up to 3/8" clean and 1/2" severance on mild steel, it's built for both shop and field use. Compatible with CNC tables, external air, and packed with smart features, it’s ready to cut anywhere, anytime.

Highlights

Built-In Compressor: Cuts anywhere with integrated compressor (internal use with 230V input)
External Air Compatible: Use with external compressor for added flexibility
Pilot Arc Start: Clean cuts on painted, rusty, or perforated surfaces
CNC-Ready: Includes CNC port for table connectivity
3/8" Clean Cut Capability: Clean cut through 3/8" mild steel (up to 1/2" severance)
Portable & Powerful: Compact body with 40A output power
Overload Protection: Thermal shutdown keeps machine safe from overheating
Supplied Torch: Comes with high-performance 19.5' J45XC Plasma Torch

What's Included:

RAZORCUT 40PCi Plasma Cutter
19.5FT Plasma Torch
Ground Cable
Power Adaptor
Operating Manual

RAZORCUT 40PCi Specifications
SKU	RC40PCi
Primary Input Voltage	115/230V Single Phase
Rated Input Current	33A
Rated Input Power	7.2 kVA
Rated Output Voltage	96V
No Load Voltage	210V
Air Flow Draw Off	4.25 CFM
Air Flow Pressure	75 psi
Protection Class	IP21
Insulation Class	H
Minimum Generator	10.0 kVA
DINSE Connector	10/25
Standard	CSA
Warranty	3 Years
Dimensions (L x W x H)	24" x 8.5" x 16.5"
Weight	40 lbs
