Lincoln Electric POWER MIG® 256 MIG Welder #K3068-1

Part Numbers: K3068-1

Included with your purchase ():

Lincoln Electric POWER MIG 256 MIG Welder #K3068-1
Lincoln Electric POWER MIG® 256 MIG Weld...
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$4,471.00 + Free Shipping
$4,471.00 + Free Shipping

Welding type:

Mig

Mig

Power supply:

220V Single Phase

220V Single Phase

  • MIG welderMIG Welding
  • 220 volt welder220V Input
  • Single phase welding machineSingle Phase
  • Lincoln Electric hassle-free warrantyHassle-Free Warranty

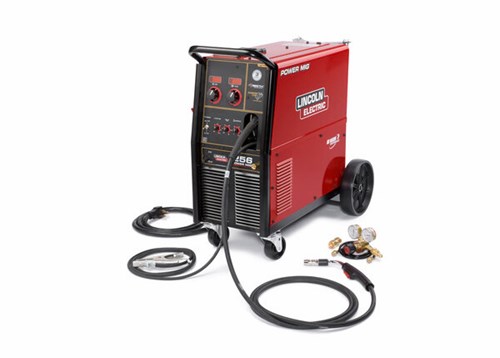

Lincoln POWER MIG® 256 MIG Welder, 220V 1PH #K3068-1

High-Performance MIG Welder

The Lincoln Electric Power MIG 256 MIG Welder is packed with features and designed with the professional welder in mind. Experience increased arc stability, low spatter, and an extensive range for your voltage sweet spot at a given wire feed speed for steel, stainless steel, and aluminum, with Diamond Core Technology. MAXTRAC cast aluminum industrial wire drive gives you various features, from dual-driven rolls to a 100% wire-supported split wire guide system.

Make your adjustments easier with fully digital meters giving you access to real-time information on actual voltage while welding and preset voltage and wire feed speed while setting up. Unbeatable advantages like the Magnum PRO gun and cable (15 ft.) come included. Improved heat dissipation via Copper Plus contact tips gives you increased tip life and the 115V auxiliary receptacle allows you to power auxiliary equipment when the need arises. The Power MIG 256 is great for a variety of work whether it be automotive or general fabrication, it will help you get the job done right.

Features of the POWER MIG 256Lincoln Electric POWER MIG® 256 MIG Welder #K3068-1

The POWER MIG® 256 sets the standard for MIG and flux-cored welding in light industrial job shop fabrication, maintenance or repair work.

  • Diamond Core Technology™ - Delivers a forgiving arc, excellent out-of-position arc stability, low spatter and a wide voltage
    sweet spot at a given wire feed speed for steel, stainless steel or aluminum.
  • MAXTRAC® cast aluminum industrial wire drive - Features dual driven rolls, regulated wire feed speed control, brass-to-brass
    connections and Lincoln’s 100% wire supporting split wire guide system.
  • Digital meters - For set up, meters display your preset voltage and wire feed speed. During welding, actual voltage is displayed.
  • New! Magnum® PRO gun and cable 15 ft. (4.5 m) - Makes it easy to reach your work.
  • Copper Plus® contact tips - Larger tip diameter and mass improves heat dissipation to increase tip life.
  • Add a spool gun - The POWER MIG® 256 is spool gun ready for the premium Magnum® 250LX gun and spool gun capable with the
    Magnum® SG (requires adapter).
  • 115V auxiliary receptacle - (208/230V model only) to power a grinder or other auxiliary equipment in your work area.
  • New! Great value-adding features - Coil Claw™ Cable Management system keeps your workstation organized.
  • Convenient top-mounted gun expendables tray.
  • All metal case front.

NOTE: The POWER MIG® 256 cannot be powered by an engine-driven welder.

Shop all MIG welding machines and welding safety equipment available online from Welders Supply.
Lincoln POWER MIG® 256 #K3068-1 Specifications
Input power

208/230V

56/52A

60 Hz

1-Phase

Output range 30-300A
Rated output 250A/26V/40%
Welding processes

MIG

Flux core

Typical applications Automotive
Brewery
Distillery
General Fabrication
Maintenance & Repair
Repair Welding

SHIPPING DIMENSIONS

Height: 31.80 Inches
Width: 18.90 Inches
Length: 38.80 Inches
Weight: 245 Lb(s) 0 Oz
