3M PAPR Speedglas Adflo 9100FX-Air w/9100XX ADF Part #36-1101-30SW

Part Number: 36-1101-30SW

DISCONTINUED - Shop all 3M Speedglas welding helmets

Out of Stock
  • For use with TIG, MIG & Stick
  • 12-Hour Battery
  • Audible & Visual Safety Alarms

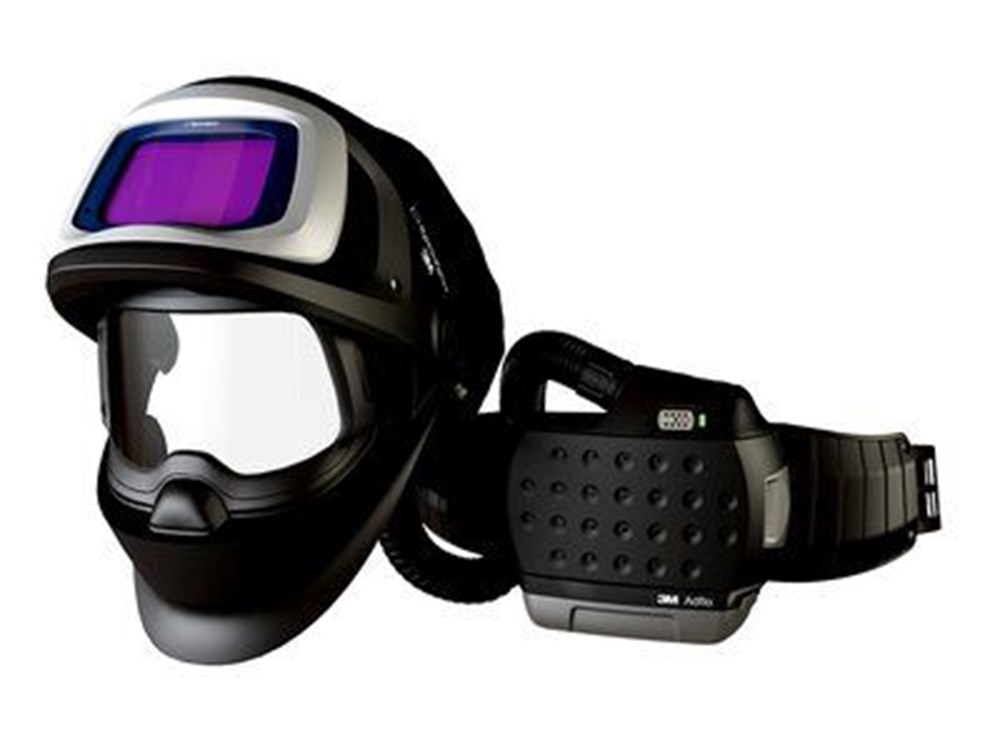

3M™ Adflo™ PAPR with 3M™ Speedglas™ Welding Helmet 9100 FX-Air, 36-1101-30SW, HE filter, Li Ion Batt, ADF 9100XX, 1/C Part #36-1101-30SW

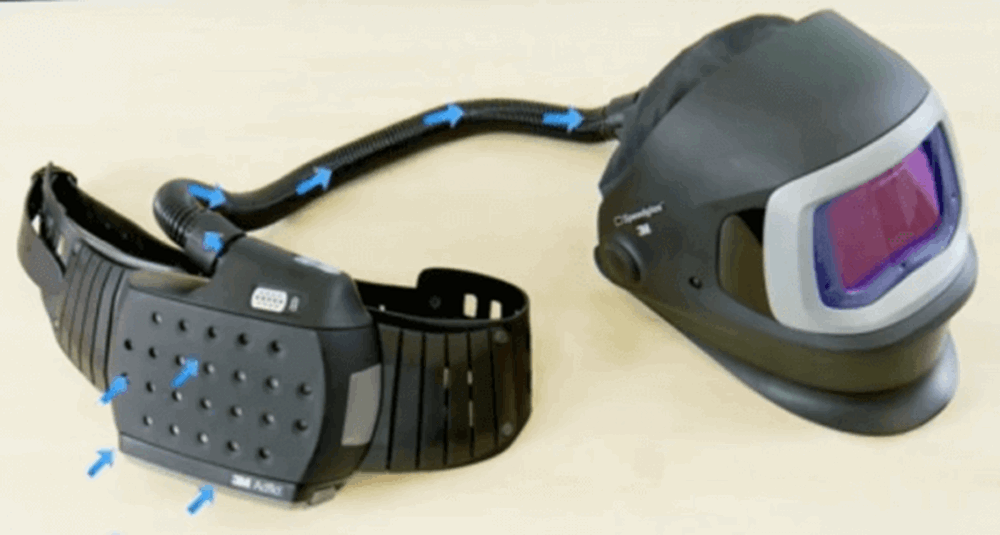

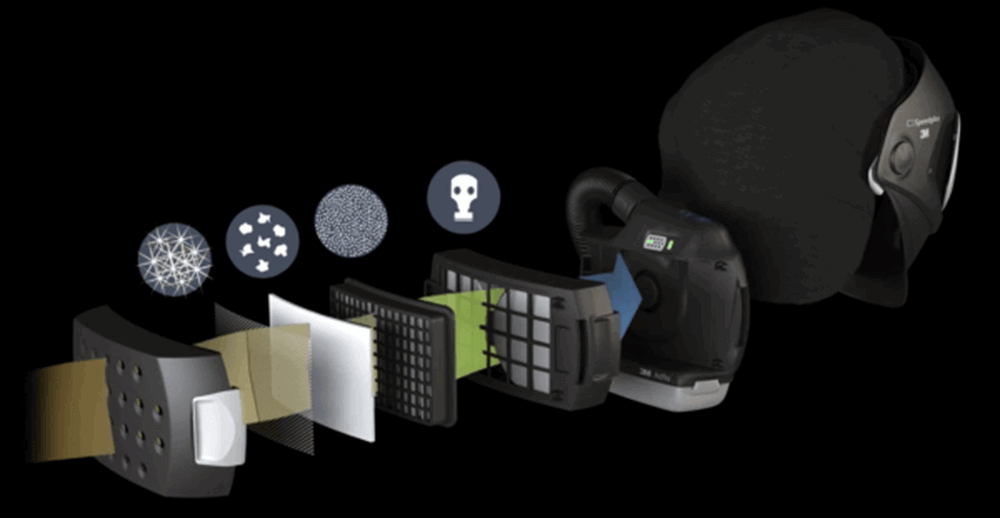

This high efficiency particulate respiratory protection system for welders provides a lightweight, compact design with ergonomic, adjustable head suspension. Flip front welding shield allows for a clear, wide-view protective visor for grinding and setup.3M™ Adflo™ Powered Air Purifying Respirator (PAPR) for welders. Compact, lightweight system with lithium ion battery, high efficiency particulate filter, wide leather belt. The 3M Adflo PAPR has a high-efficiency particulate filter that can be “stacked” onto an optional 3M™ Adflo™ Cartridge (not included) for additional protection against OV/SD/CL/HC vapors. Audible and visual alarms signal low airflow and low battery charge.

Provided for you at a low price at Welders Supply!


  • Flip-up assembly for grinding and prep work
  • 8" x 4.25" clear visor viewing area (approx)
  • Side windows - Shade 5 side filters that increase peripheral vision
  • Ergonomic, adjustable head suspension for increased comfort, helmet stability and weight distribution

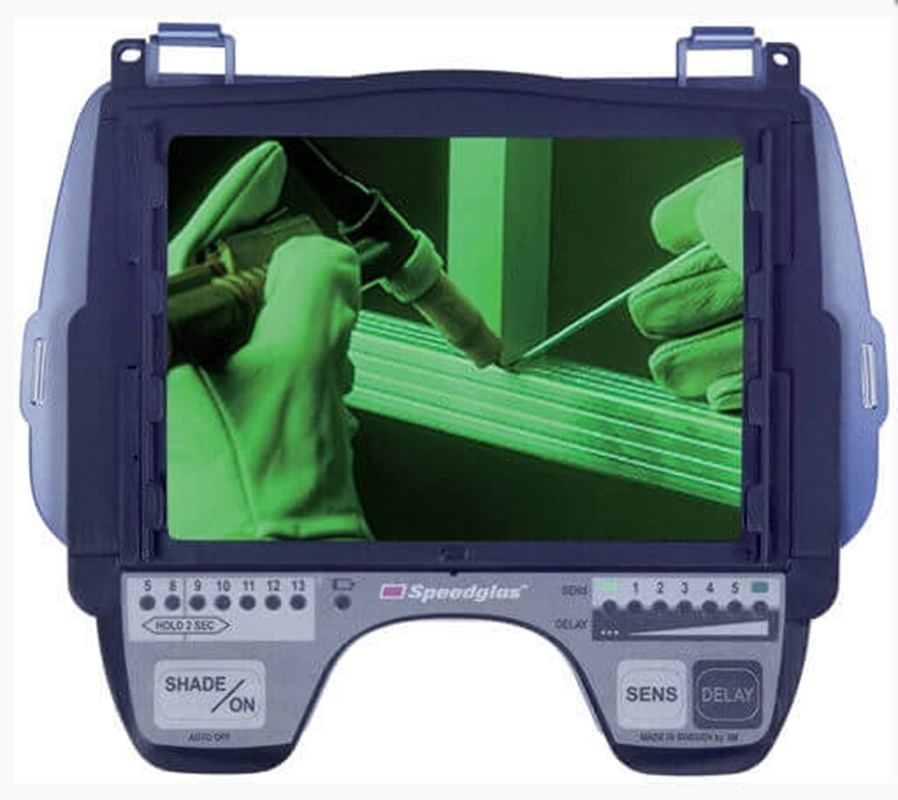

  • 3M™ Speedglas™ Auto-Darkening Filter 9100XX with 2.8" x 4.2" viewing area (approx)
  • Selectable Shades 5, 8-13 and Shade 3 light state; Grinding and Tack modes
  • For use with all Stick, MIG, and TIG welding processes
  • Five-position sensitivity control
  • Adjustable recovery delay
  • NIOSH-approved system; meets ANSI Z87.1-2010, high impact
  • Storage bag, welding cap and starter kit included
Check out our full selection of 3M products and Autodarkening welding helmets for sale online today.

**Please note**

All 3M Helmets are made to order and take 7-10 business days to be shipped out.


Battery Life ADF 2000 hours, PAPR: up to 12 hours
Battery Type ADF: CR2032, PAPR: Lithium-ion
Brand Adflo, Speedglas
Cartridge or Filter Included HE Filter
Dark Shades Shade 5, 8-13
Features Eye & Face Protection, Flip-up solution, Respiratory Protection
Headgear Type Welding Helmet with Respiratory Assembly
Product Series 9100 Series Welding Helmets, Adflo (Powered Air)
Sensitivity 5 Level (TIG>1A & MIG/MAG, Stick)
Standards/Approvals ANSI Z87.1-2010, NIOSH Approved
Visor Type Clear Visor and Auto-Darkening Welding Lens
Welding Process Grinding, Stick, MIG/MAG, TIG >1A, Plasma, Tack Welding

Product Questions and Answers

Q - How long is the run time on the battery? A - A fully charged battery provides 8 to 10 hours of operating time. A dirty particulate filter will reduce the run time.
Q - How long does it take to charge the battery? A - For a full recharge, 6.5 hours, but it will charge to 80% capacity in about 3 hours.

Have a question about this product? Submit your question using the form below
