HOUGEN HMD904 with Swivel Base #0904103

Part Number: 904103
$1,155.00 + Free Shipping

Hougen

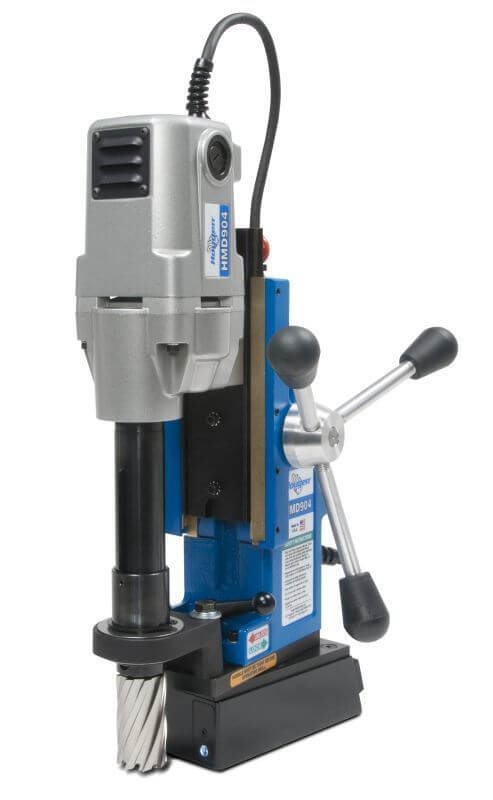

HOUGEN HMD904 with Swivel Base #0904103

Lightweight, compact, versatile, and powerful---this magnetic drill is now better than ever, completely redesigned!

Features:

  • Large 1-1/2" x 2" capacity

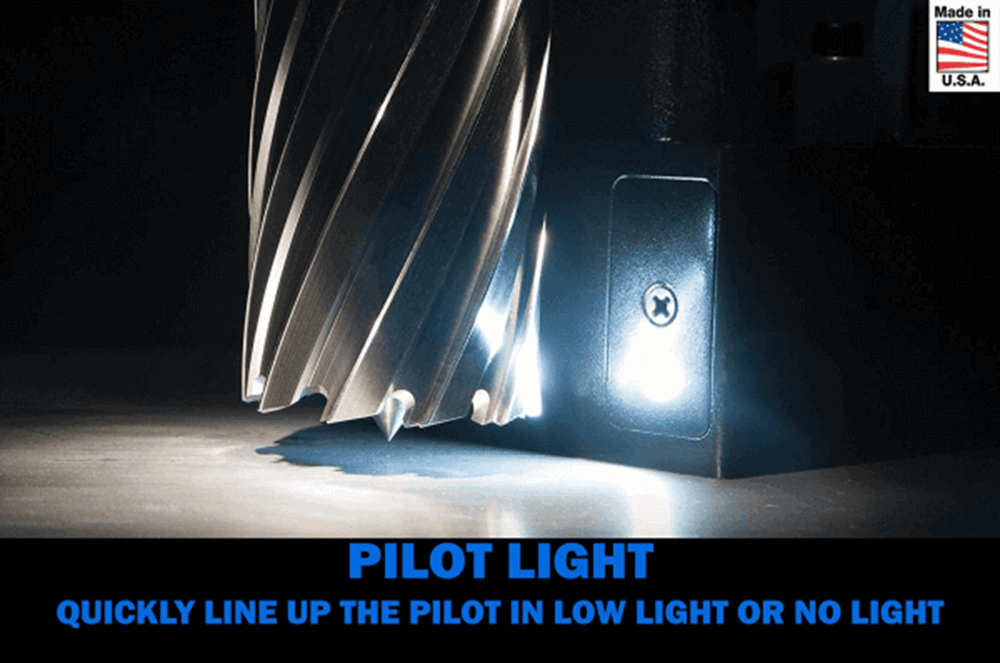

  • NEW - Pilot light - for low light or no light conditions
  • NEW -Two stage magnet - 30% power increase when motor is turned on

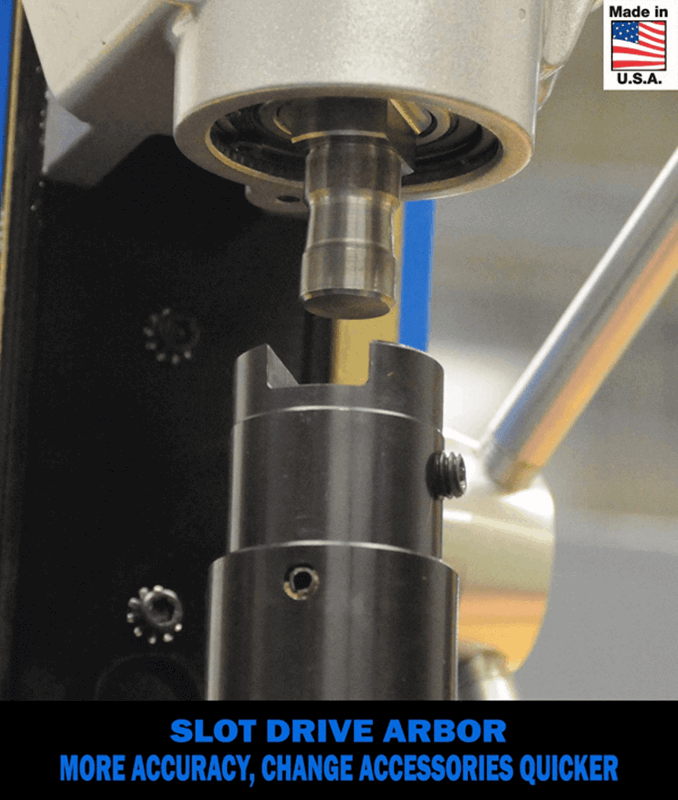

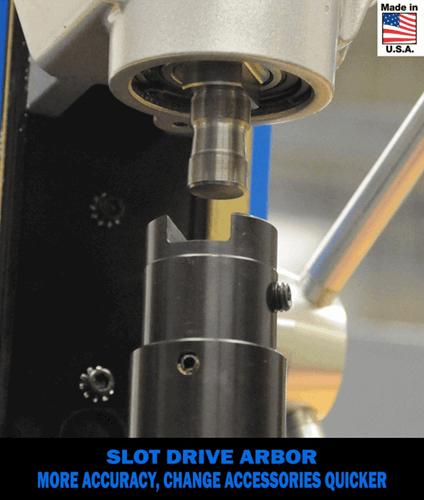

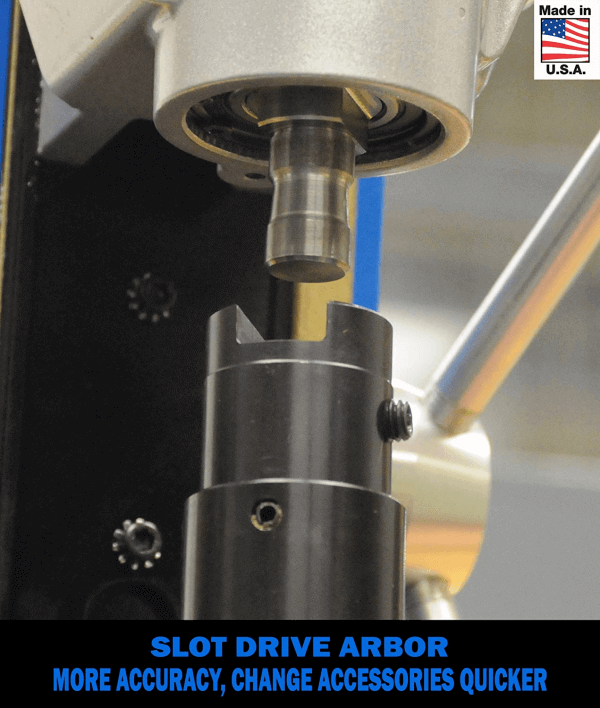

  • NEW - Slot Drive arbor for more accuracy and quicker change out of accessories

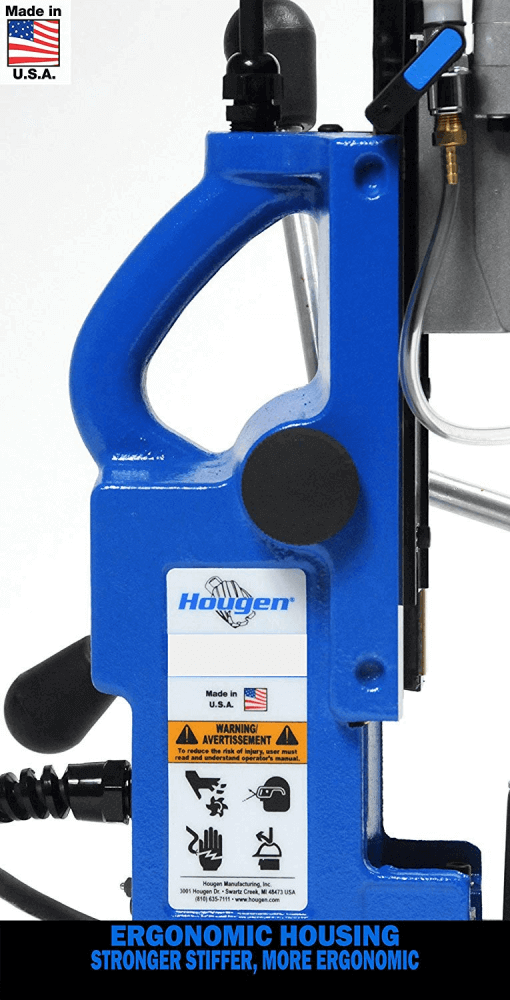

  • NEW - Housing - stronger stiffer, more ergonomic
  • Positive slug ejection
  • Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more...
  • Feed handles quickly change from side to side
  • Lift detector safety system
  • Rear mounted controls
  • Gravity feed coolant system (HMD904 w/ coolant bottle)
  • Carrying case included
  • One year warranty

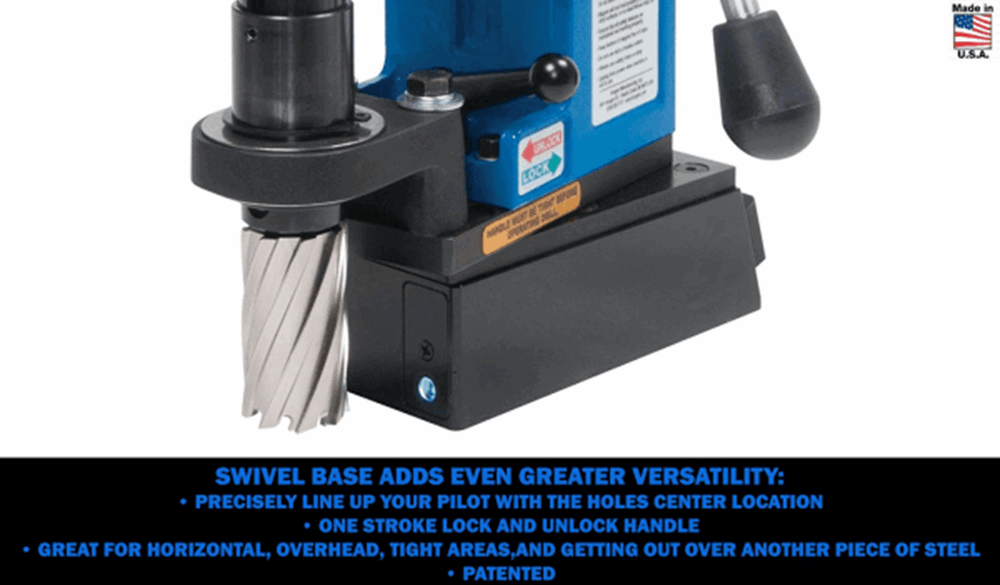

Swivel Base adds even greater versatility!

  • Precisely line up your pilot with the holes center location
  • One stroke lock and unlock handle
  • Great for horizontal, overhead, tight areas, and getting out over another piece of steel
  • Patented
Shop Power Tools from Welders Supply.

HMD904 SPECIFICATIONS

Electrical System 115V, 50/60 Hz - 9A, 1035W
230V, 50/60 Hz - 4.5A, 1035W
Motor 8A (115V), 4 (230V) 450 RPM
Diameter 7/16"- 1-1/2" (12mm - 38mm)
Depth 2" (50mm)
Cutter/Mount "12,000-Series" & Copperhead™ & Fusion™ cutters, 3/4" shank
Dimensions 19-5/8" H x 7-3/4" W x 11-5/8" L
(499mm H x 197mm W x 295mm L)
Swivel Area 1-1/8" W x 1-3/8" L
(28.5mm H x 34.9mm W)



Magnet Base 3-1/8" W x 6-9/16" L (79mm W x 167mm L)
1" Plate (25mm) Dead Lift
1750 lb. (794 kg)
Drillpoint Breakaway
995 lb. (433 kg)
3/8" Plate (9.5mm) 1310 lb. (594 kg) 710 lb. (322 kg)
Magnet (Swivel) 1" Plate (25mm) Dead Lift
1340 lb. (608 kg)
Drillpoint Breakaway
For. 695 lb. (315 kg)
Back 835 lb. (379 kg)
3/8" Plate (9.5mm) 1015 lb. (460 kg) For. 503 lb. (228 kg)
Back 605 (274 kg)
Weight 28.9 lb. (13.1 kg) Shipping 43 lb (19.5 kg)
Weight (Swivel) 31.9 lb. (14.5 kg) Shipping 45 lb (20.4 kg)

Product Questions and Answers


Q - What does it weigh? A - 31.9 lbs with the swivel
Q - Warranty? A - Two-year manufacturer warranty.
