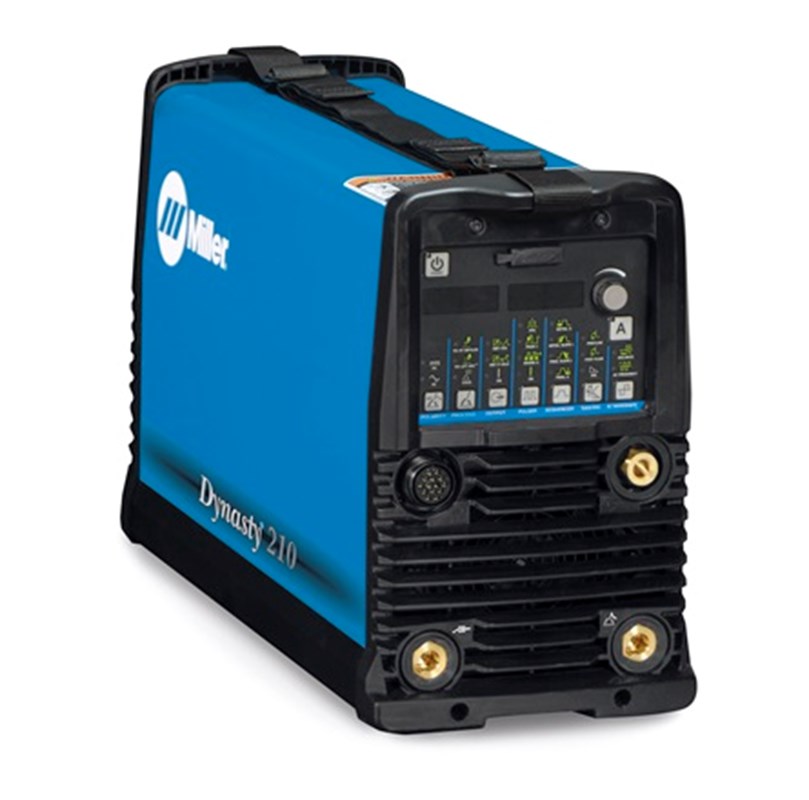

VideoMiller Dynasty 210 DX Complete Package #951668
The Miller Dynasty 210 DX package with Foot Control includes everything you need to start welding, minus welding wire and shielding gas cylinder. The Dynasty 210 DX is an advanced water-cooled TIG welder equipped with the Miller Coolmate 1.3 water cooler. Powered by AC or DC, the Dynasty 210 is capable of pulsed TIG welding up to ¼” thick aluminum and ¼” thick steel. On DC power, it provides an exceptionally smooth and precise arc for welding more exotic metals. Compact and lightweight (just 50 lbs.) it’s easily transported or moved to different locations in your shop.
What's Included
- Dynasty® 210 DX
- Coolmate™ 1.3
- Small Runner Cart
- Weldcraft™ W-250 torch kit and accessories
- Coolant (4 one-gallon bottles of 043810)
- RFCS-14HD remote foot control and receiver (194744)
- Quick Reference Guide
Processes
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
Browse Welders Supply Company’s full selection of Miller welding machines, TIG welders, and other welding equipment available at the best prices online!
Other Versions of the Miller Dynasty 210 DX:
General Specifications |
|
| Title | Dynasty® 210 DX 120-480 V, Foot Control Complete Package |
| Industries Interests | Aerospace Boat / Yacht Construction DIY / Home Hobbyist Farm and Ranch Heavy Equipment Manufacturing High Purity Processing Infrastructure Manufacturing Metal Art / Sculptures Auto / Cycle (Racing, Customizing, Restoring) Railcar Shipbuilding |
| Current Type | AC / DC |
| Input Hz | 50 / 60 Hz |
| Input Phase | 1- and 3-Phase |
| Portability | Running Gear / Cart (Standard) |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Max Open Circuit Voltage | 80 VDC |
| Weldable Metals | Aluminum Mild Steel Specialty Metals Stainless Steel |
| Warranty | Miller's True Blue Warranty |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Material Thickness | Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Aluminum: 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 50.00 Inches |
| Width: | 20.00 Inches |
| Length: | 44.00 Inches |
| Weight: | 240 Lb(s) 0 Oz |
Accessories
Product Questions and Answers
Q - Will the wireless foot pedal on the Dynasty 200 DX work with this?
A - Yes, the Wireless Foot Control System #300429 will work on the 200 DX.
Q - Can you use an air cooled torch with this machine?
A - You would need a 17 Series TIG torch and the Miller TIG Torch Power Adapter (#195378)
How to turn on lockout feature:
- Toggle between the lock off and code off displays.
Press Amperage (A) control to toggle between lock off and code off displays. Toggle control until [CODE][OFF] is displayed.
- Turn encoder to select a lockout code number.
Select a number between 1 and 999. The number will appear on the amperage, right, display.
- Toggle Amperage until [LOCK] is displayed.
Toggle Amperage until [LOCK] is displayed. You may then select a lockout level.
