Magswitch MLAY 1000X3 Lifting Magnet #8100403

$1,487.00
Product Number: 8100403
QTY:
Financing AVAILABLE!

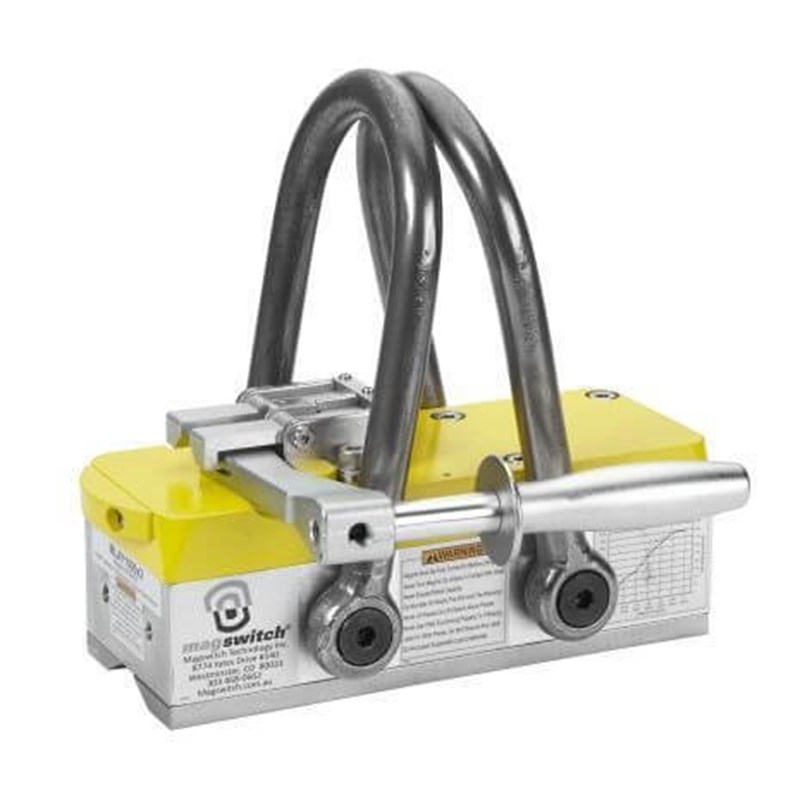

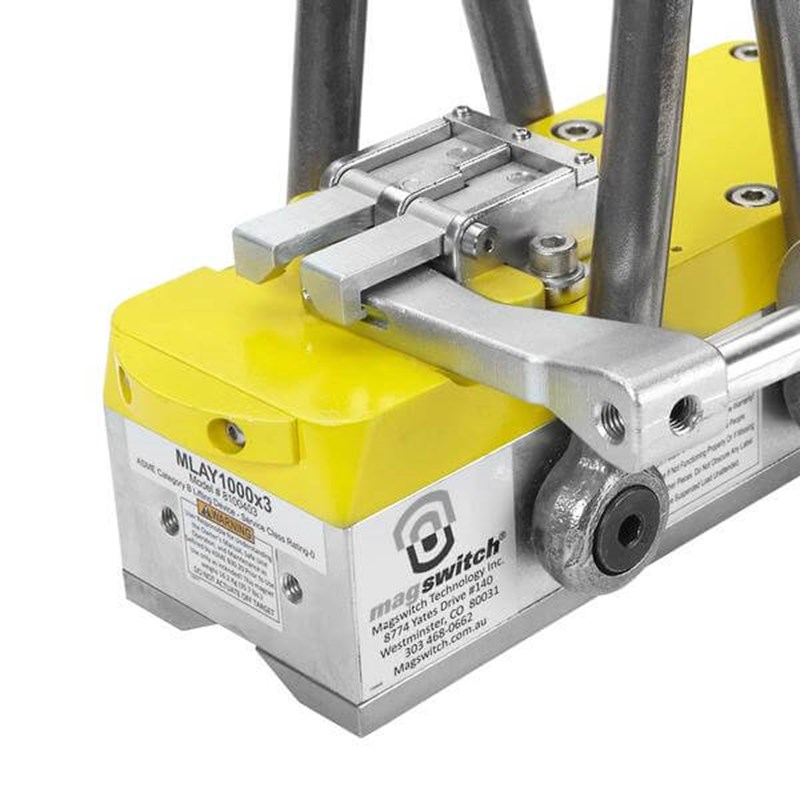

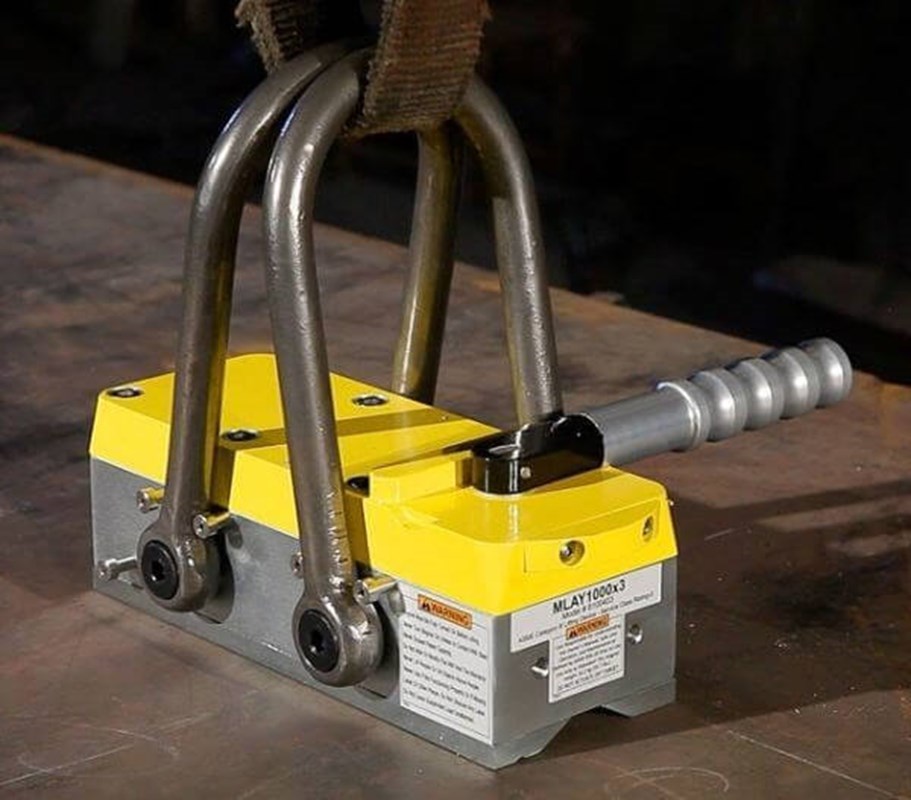

Magswitch MLAY 1000X3 #8100403

The Magswitch MLAY1000x3 lifting magnet is built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in both the On and Off position with a safe working load of 911 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.

Features

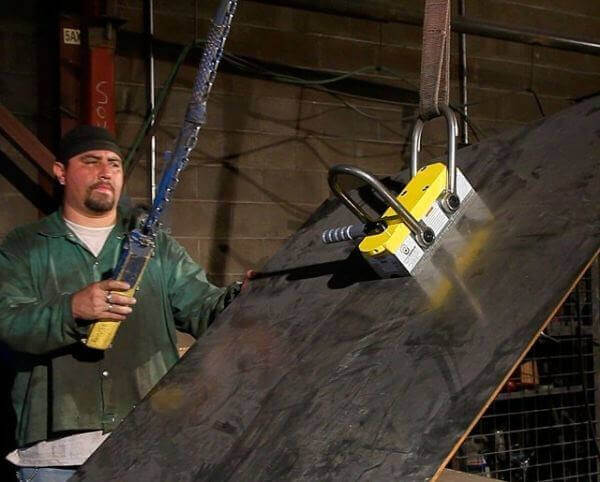

  • Superior hold force on Thin steel (70mm deep field).
  • Compact, light weight and easy actuation.

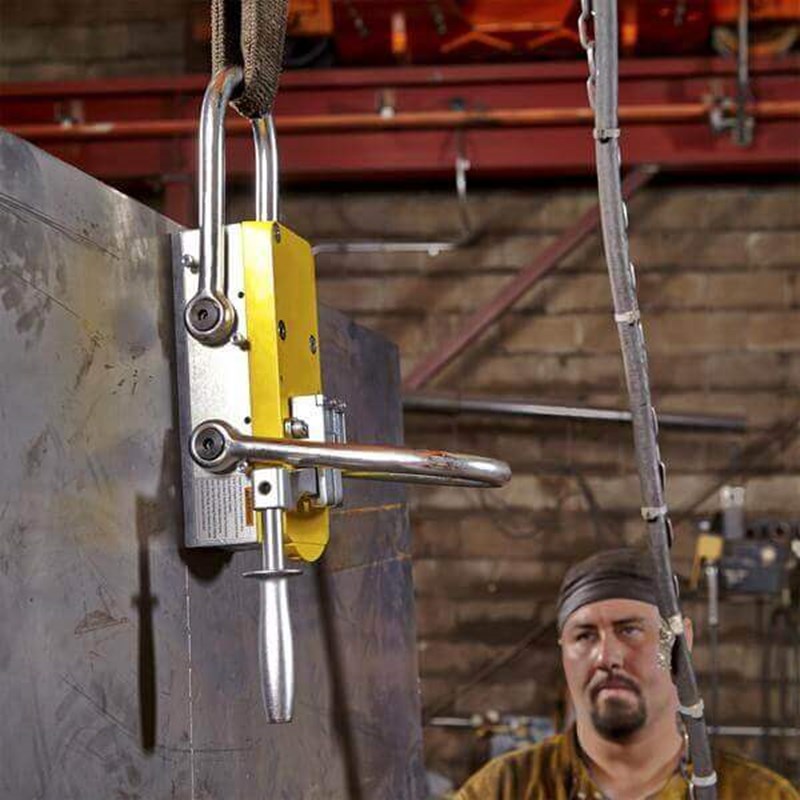

  • Pivoting Hook allows lift from horizontal to vertical.

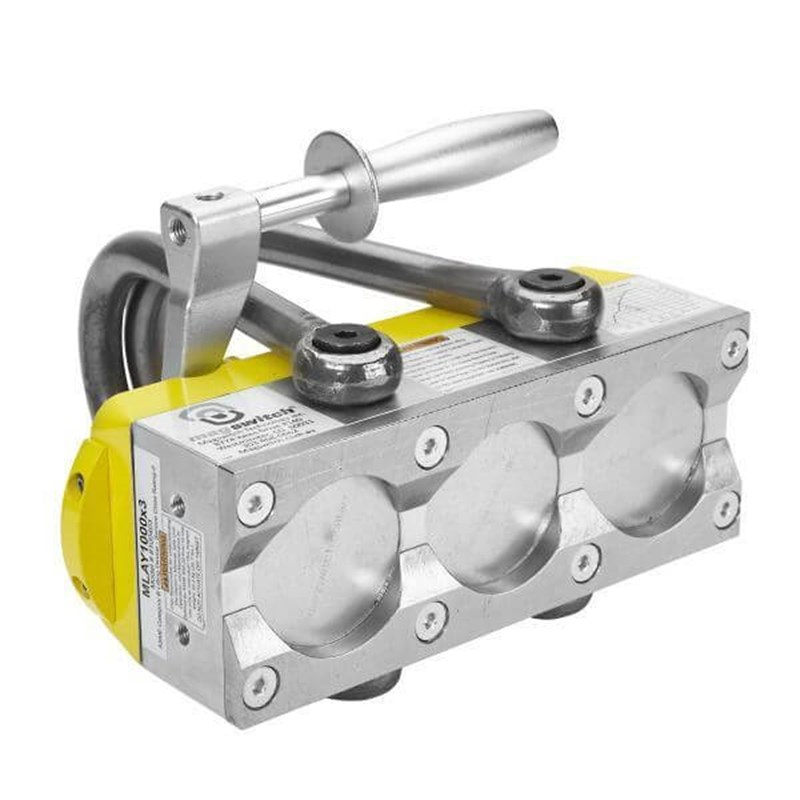

  • Pole Shoes – replaceable for long life, or make custom shoes match to target.
  • Lock on/ off handle.
  • Lifts Flat or Pipe.
  • Superior performance in the presence of air gaps such as rust, paint and uneven surfaces.
  • Better performance on thin steel allows Magswitch to fit the job with a lighter magnet and usually at a better price.



The versatile, compact Magswitch MLAY 1000X3 lift is equipped with Magswitch Technology for a superior hold on thin steel (70mm deep field), rouged steel, even steel with air gaps from rust, paint, or uneven surfaces. Two swiveling hooks allow you to lift from horizontal to vertical, while use of both hooks stabilizes the load to be worked on. The additional locking on/off handle allows the exact height for your desired weld or cut. Replaceable pole shoes for a long service life, and the option to make custom shoes.

Shop all welding magnets, magnetic squares and clamps at Welders Supply.

Watch a video of this product:

Magswitch MLAY 1000x3

Specifications:

Magnet Strength 2733 lbs/1242 kg
Safe Working Load 911 lbs/414 kg
Full Saturation Thickness 3/4” / 12.7mm
Max Safe Shear 198 lbs/90 kg
Min. Thickness for De-Stack 3/4” / 12.7mm
Net Weight 36.5 lbs/16.6 kg
Mounting Thread M8x1.25
Overall Height 10.4in/264.52 mm
Magnetic Pole Footprint 255.0×97.6 mm



Product Questions and Answers


Q - What is a safe working load for this magnet? A - Magswitch says 911 lbs is the safe working load for this.
Q - No power device needed? A - No!
