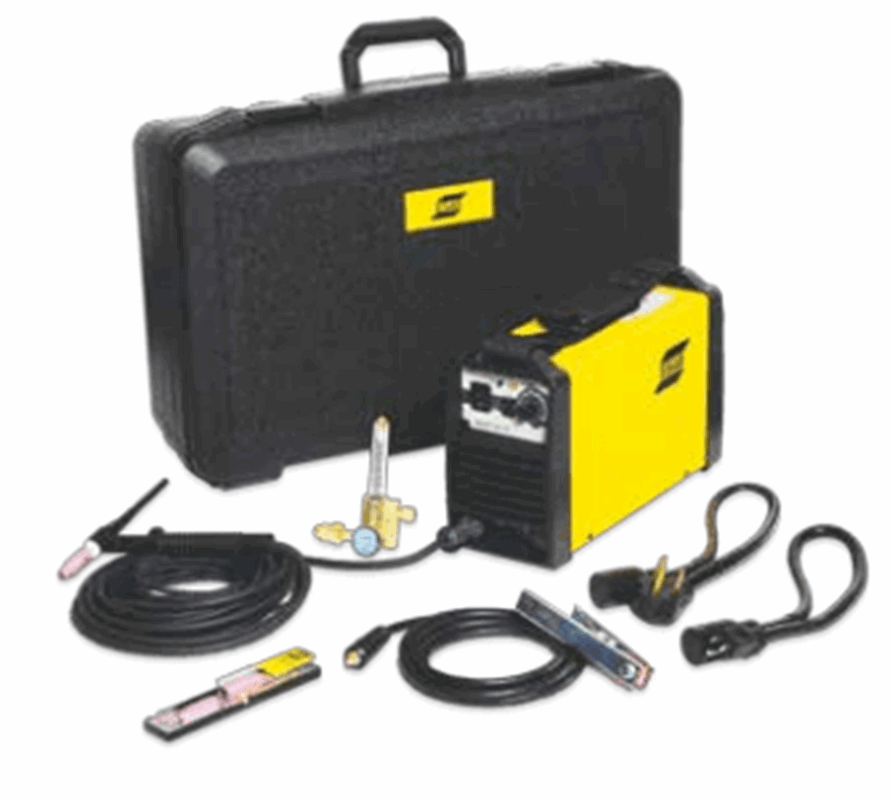

ESAB MiniArc 161LTS MIG Welder w/ Case (115/230V 1PH) #558102202

Part Number: 558102202

Welding type:

TIG

TIG

Stick

Stick

Related Products

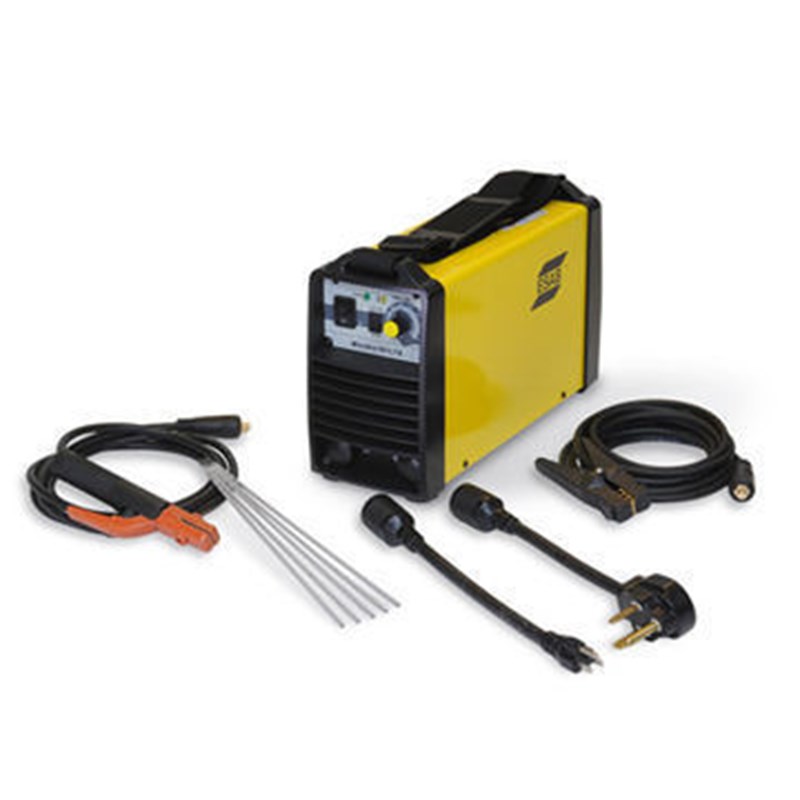

ESAB MiniArc 161LTS, 115/230V, 1ph, GTAW, w/ case #0558102202

  • Automatic Primary Select operates on either 115V or 230V and automatically configures to the primary input supplied
  • Able to use cellulosic 6010 electrodes with ease
  • 13.6 kg (18 lbs.) weight with adjustable shoulder strap and carrying case makes this unit portable and easy to carry directly to the job
  • 5A to 160A current range for DC welding
  • Hot Start, Arc Force and Lift Arc TIG are standard on all models

The ESAB MiniArc welder comes with an adjustable shoulder strap to make carrying this welder around the job site easier than ever. You won’t have to lug or wheel around a big heavy welder with this new lightweight MiniArc design. This arc welder caters to your preference, changing from 115V to 230V based on your settings, and automatically configures to the primary input supplied. Additionally, you get several options on how to start your weld: Hot Start, Arc Force, and Lift Arc TIG come standard on all models. ESAB designs their welders with the customer in mind, all the features on the MiniArc 161LTS are made specifically to make your job easier.

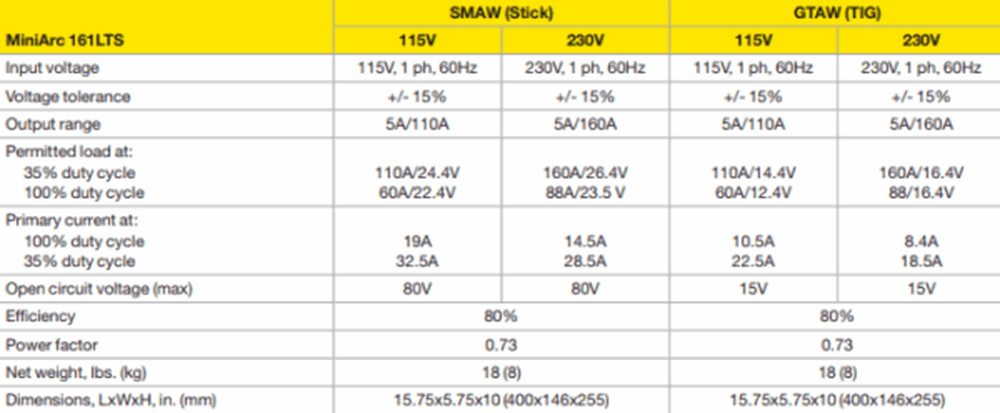

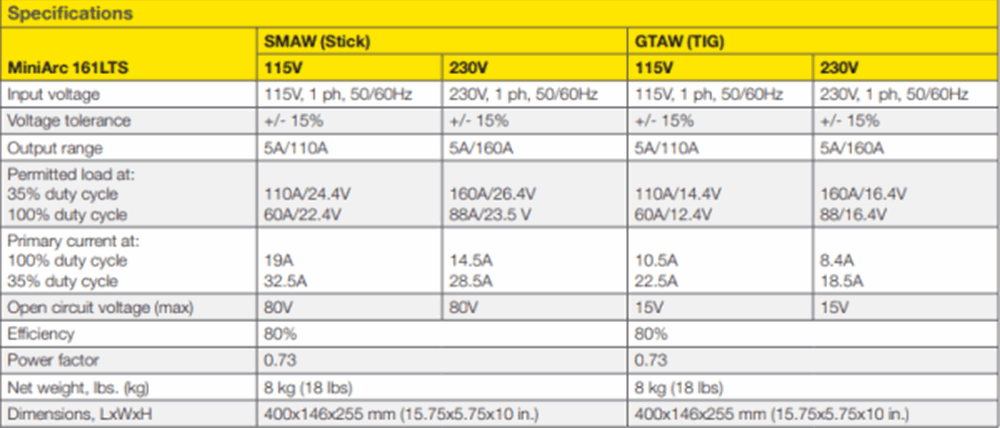

Specifications

MiniArc 161LTS

SMAW (Stick)

GTAW (TIG)

115V

230V

115V

230V

Input Voltage 115V, 1ph, 60Hz 230V, 1ph, 60Hz 115V, 1ph, 60Hz 230V, 1ph, 60Hz
Voltage Tolerance +/- 15% +/- 15% +/- 15% +/- 15%
Output Range 5A/110A 5A/160A 5A/110A 5A/160A

Permitted Load at:

35% duty cycle 110A/24.4V 160A/26.4V 110A/14.4V 160A/16.4V
100% duty cycle 60A/22.4V 88A/23.5V 60A/12.4V 88/16.4V

Primary current at:

100% duty cycle 19A 14.5A 10.5A 8.4A
35% duty cycle 32.5A 28.5A 22.5A 18.5A
Open circuit voltage (max) 80V 80V 15V 15V
Efficiency 80% 80%
Power factor 0.73 0.73
Net weight, lbs. (kg) 18 (8) 18 (8)
Dimensions, LxWxH, in. (mm) 15.75X5.75X10 (400X146X255) 15.75X5.75X10 (400X146X255)

Product Questions and Answers


Q - Can you use cellulosic 6010 electrodes with this? A - Yes.
Q - Does it only run on 115v? A - No, it will run on 115v or 230v and it automatically configures to the input supplied.
