Miller XR-W ALUMA-PRO PLUS 15ft. Water Cooled Push-Pull Mig Welding Gun #301576

Part Number: 301576
UPC: 688515371190
$4,149.00 + Free Shipping $4,149.00*
SAVE $0.00

Material type:



  • MIG Welding

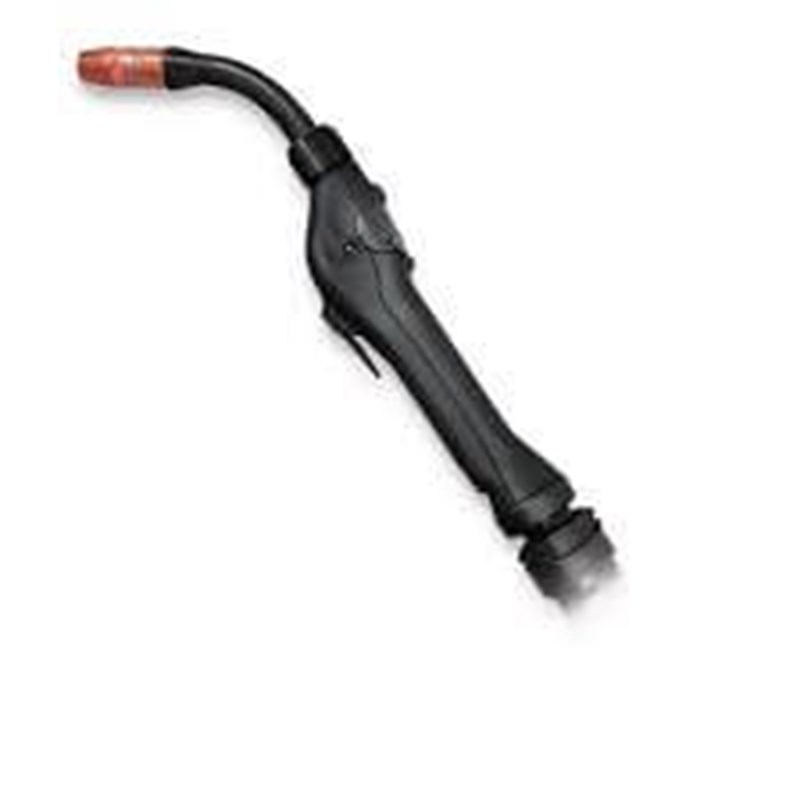

Miller XR-Aluma-Pro™ Plus Push-Pull Gun (15 ft.) #301576

The XR-Aluma-Pro™ is designed for aluminum welding with customizable lengths and reliable wire feeding. Engineered for ease of use and durability, it offers smooth performance and reduced maintenance costs. With a compact design and quick connections for effortless serviceability, it's the ultimate tool for precision welding.

Miller XR-Aluma-Pro™ Features:

  • Versatile Cooling Options: Available in air- or water-cooled versions with various lengths for extended reach and reliable feeding.
  • Precision Aluminum Welding: Aluminum-series-specific tension setting ensures smooth wire feeding with 4000 or 5000 series aluminum wires.
  • Cost-Effective Maintenance: Replaceable feed cable liner reduces parts cost and service time, allowing easy removal and replacement without replacing the entire feed cable.
  • Easy Access and Current Transfer: Easy-to-rotate self-seating head tube provides better access into tight spots while ensuring excellent current transfer.
  • Reduced Wear and Downtime: Isolated common knurled drive roll helps reduce wear, minimizing downtime and costs.
  • Convenient Serviceability: Full-length hook-and-loop seamed leather jacket with integrated strain reliefs offers easy cable maintenance and protection, with quick connections for swift control cable maintenance.


XR-Aluma-Pro™ Plus #301576 Specifications

Welding Current Rating 400 A at 100% duty cycle
Wire Feed Speed 70–900 ipm
(1.8–23 m/min.)

Wire Type and Diameter Capacity

.030–1/16 in. (0.8–1.6 mm)
aluminum wire
Requires wire kit 230708 to
run 1/16 in. (1.6 mm) wire
Height 5 in. (127 mm)
Width 2.5 in. (64 mm)
Depth 17 in. (432 mm)
Net Weight (Gun Only) 2.9 lb. (1.3 kg)

Browse all Miller accessories.


Height: 5.00 Inches
Width: 2.50 Inches
Length: 17.00 Inches
Weight: 2 Lb(s) 8 Oz
