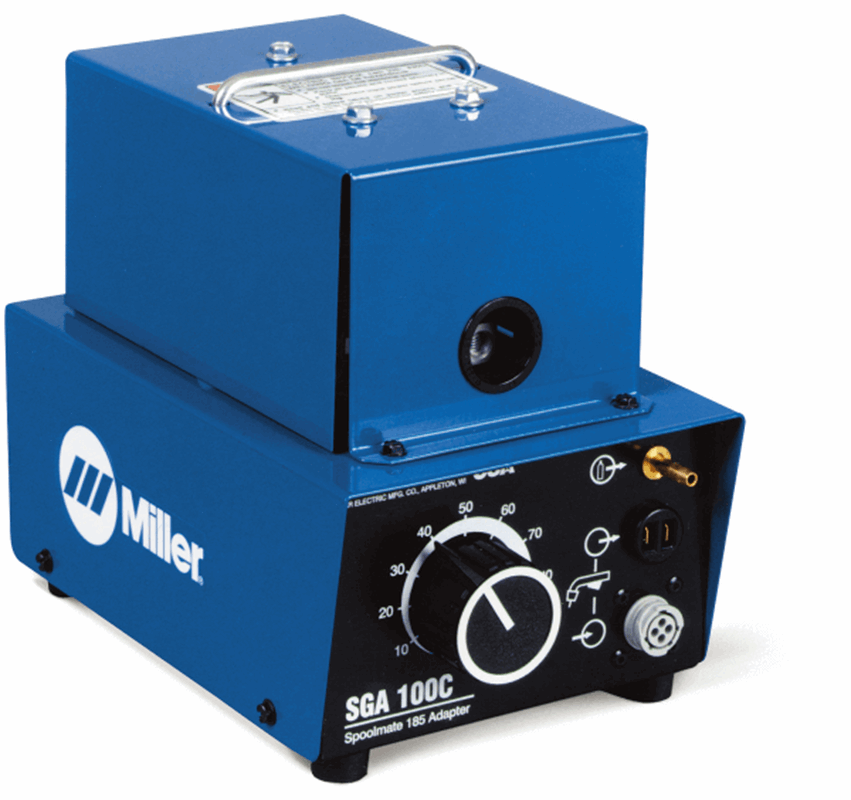

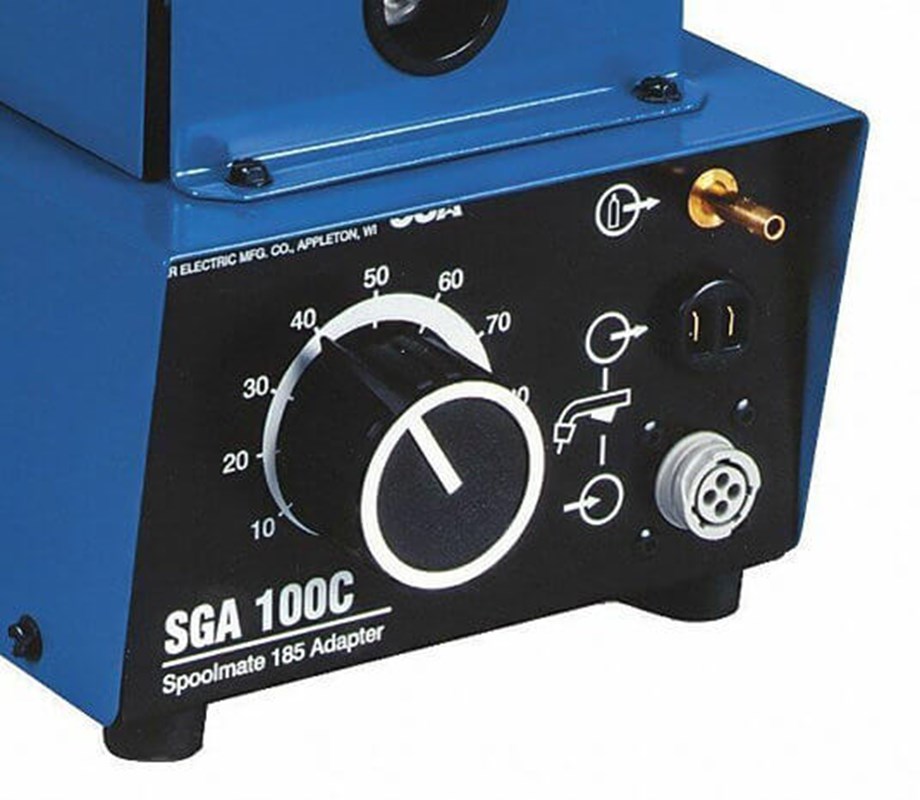

Miller SGA 100C Control with Control Part #043857
Part Number:
043857
UPC:
715959219679

Welding type:

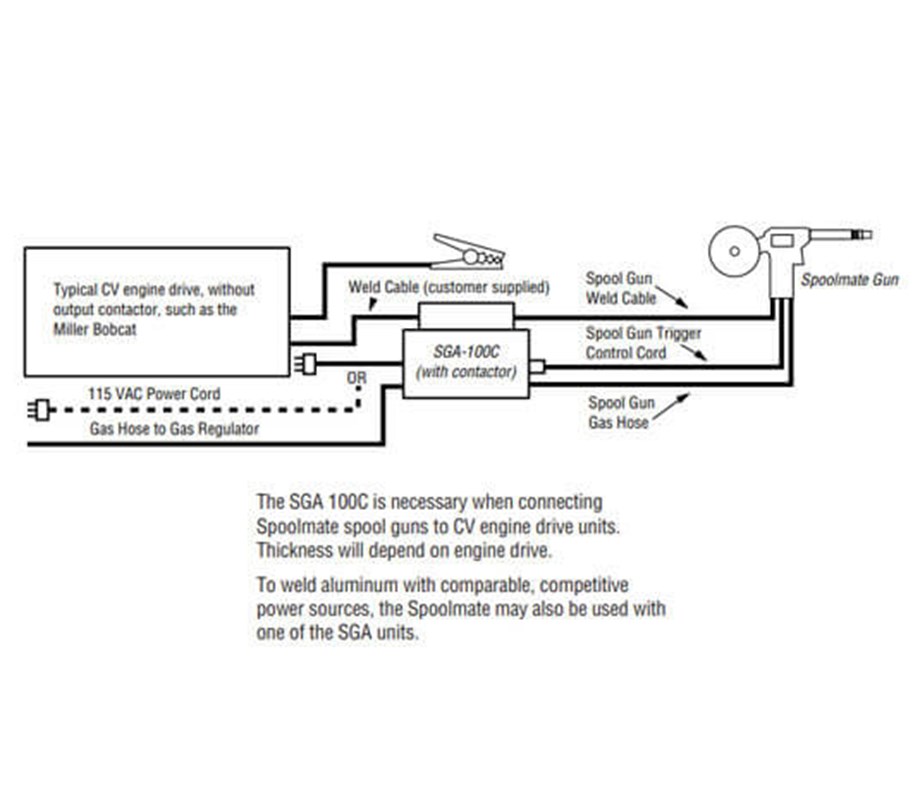

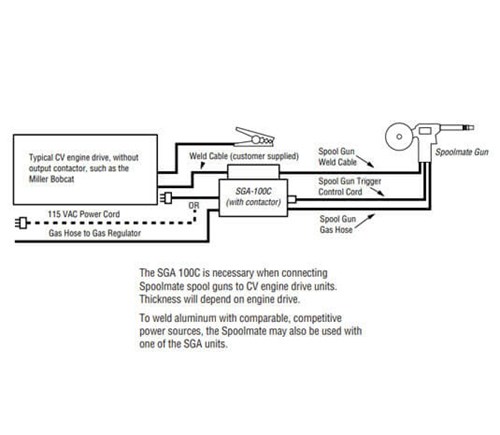

SGA with contactor for MIG welding required to connect Spoolmate spool gun to CV engine drives like Miller’s Bobcat™. Package includes 10 ft (3 m) 115 VAC power cable and plug, 6 ft (1.8 m) interconnecting cable, and 5 ft (1.5 m) gas hose.
Miller SGA 100C Control with Control Part #043857 Specs | |
---|---|
Warranty |
SHIPPING DIMENSIONS |
|
Height: | 9.00 Inches |
Width: | 9.00 Inches |
Length: | 13.00 Inches |
Weight: | 13 Lb(s) 0 Oz |

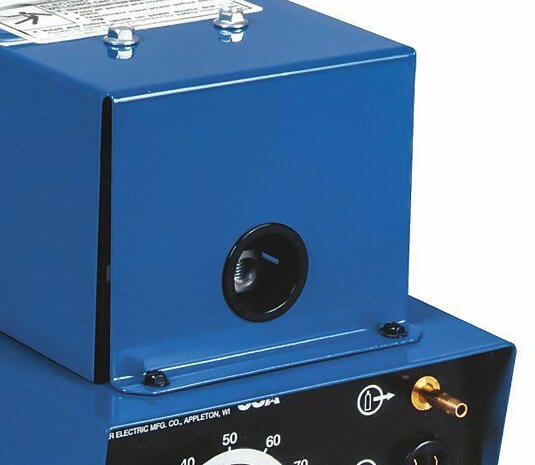

Remove contractor box.
Cut off ring terminal and strip insulation back 1/2 in.
Slide spoolgun weld cable into terminal 1/2 in. Tighten set screw.
Install contactor box back onto SGA 100C control box.
