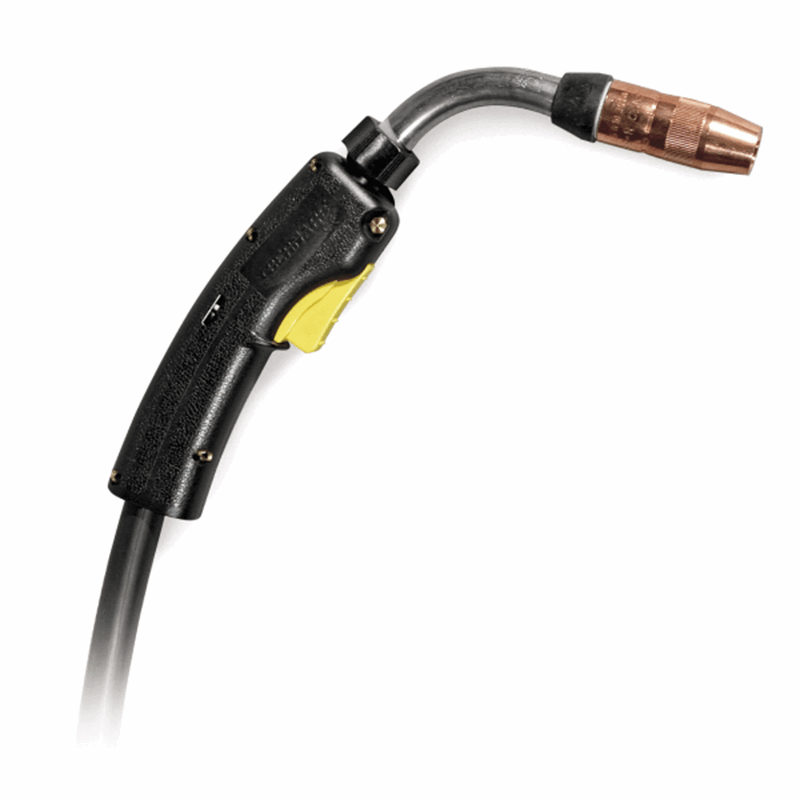

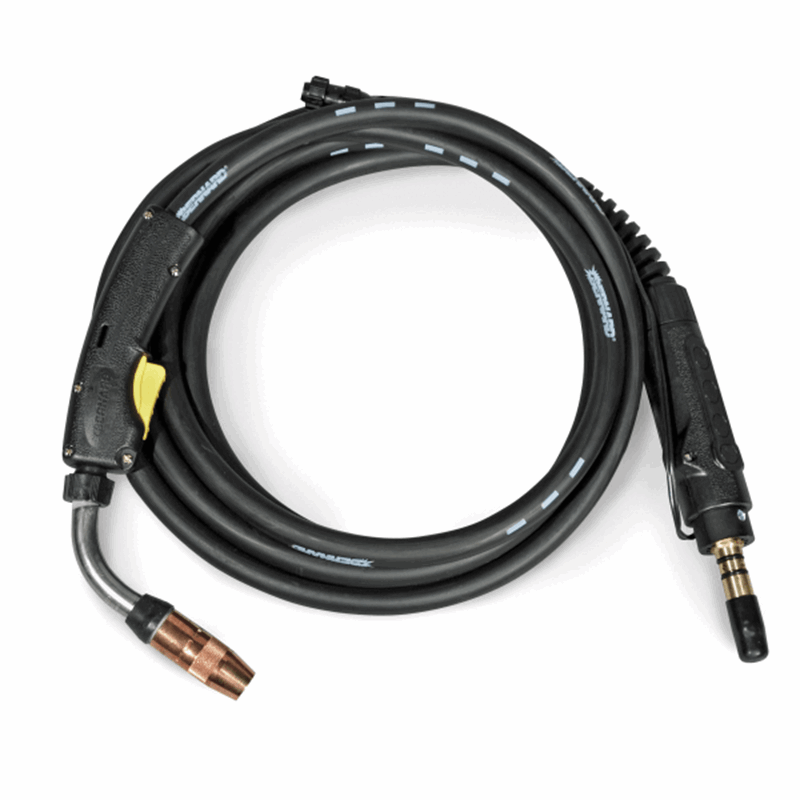

Miller PipeWorx 300 A 15 Ft MIG Gun #195400
Miller PipeWorx 300 A 15 Ft MIG Gun #195400

This Miller welding gun is designed for use with all PipeWorx Welding Systems. It provides quick neck exchangeability, typically during production processes. The Miller PipeWorx 300 is compatible with all Miller PipeWorx Welding Machines.
Can be used for MIG, Pulsed MIG, and Flux-Cored
Compact, lightweight gun with high-amperage capability reduces operator fatigue improving productivity.
The combination of tapered tips and nozzles and 60° neck provides excellent visibility on root passes in pipe joints.
Provides "drop-in" tip with no threads providing quick changeover. No tools are required.
Title | PipeWorx 300 A 15 Ft MIG Gun |
---|---|
Industries Interests | Construction High Purity Processing |
Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 3.00 Inches |
Width: | 16.00 Inches |
Length: | 16.00 Inches |
Weight: | 10 Lb(s) 0 Oz |
Make sure that your gun has the correctly matched parts.
Turn off all power before installation.
Fully extend gun and cable. Press liner fully into power pin. Safely expose about 2” of electrode beyond feeder.
Connect the power pin by sliding electrode into liner per manufacturer instructions. Attach all wires and hoses as needed.
Remove Nozzle from head assembly. Pull contact tip from head/gas diffuser.
Safely feed electrodes through the gun and about 1” beyond head. Reinstall contract tip and nozzle.
