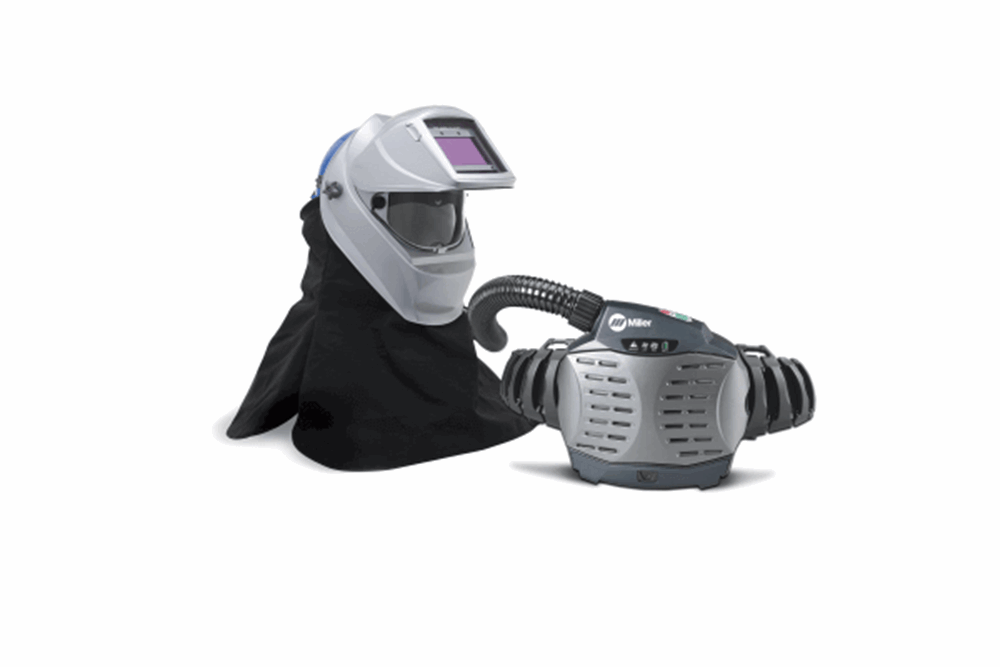

Miller PAPR with Hard Hat & Titanium 9400i Helmet #261659

Part Numbers: 261659

Included with your purchase ( ) :

Complete Miller Helmet System w/ Hard Hat, PAPr & Titanium 9400i
Miller PAPR with Hard Hat & Titanium 940...
Black Stallion Split Cowhide Gloves
Black Stallion Split Cowhide Stick Glove...
Welders Supply Stickers
2 x Welders Supply Stickers
$1,906.75 $2,603.80*
SAVE $697.05
$1,906.75 $2,603.80*
SAVE $697.05

Helmet Viewing Area:

Medium (6-9.9 in²)

  • Lightweight Design
  • True Blue Warranty

Miller PAPR with Hard Hat & Titanium 9400i Helmet #261659

What's included

  • Compact blower unit
  • (2) HEPA filters
  • Pre-filter
  • Spark guard
  • Breathing tube
  • Flame-resistant breathing tube cover
  • Padded belt
  • Shoulder straps
  • (2) Lithium ion batteries
  • Battery charger
  • Flowmeter
  • Tool bag
  • Titanium 9400i welding helmet
  • SAR Hard Hat Head Assembly

99.97% Filtration of Airborne Particles

HEPA filter provides filtration of airborne particulate including solid dust particles, metal fumes and mists. Prefilter extends life of the main HEPA filter. Integrated spark guard protects filter assembly from large pieces of debris.

Ideal Protection for Most Welding Applications

Filters provide protection from Hexavalent Chromium (Stainless Steel), Zinc Oxide (Galvanized Steel), Manganese, Aluminum, Nickel, Iron Oxide, Copper, Cadmium, Lead and Beryllium fumes.

SAR System Designed for Extended Wear

Lightweight, low-profile blower allows for unrestricted movement and provides all-day comfort, reducing fatigue. Integrated shoulder straps provide a secure fit and equally distribute weight, alleviating lower back strain.

Blower Unit Innovative Features

Dual air speeds allow users to adjust the volume of air to maximize comfort in varied work conditions. Audible and vibrating alarms notify users in noisy environments. Electronic control automatically adjusts fan speed to keep air flow constant. Quick-release belt for easy, one-handed don/doff.

Lightweight Lithium Ion Battery

Provides extended battery life with no memory retention from frequent charging: 4-6 hours on high speed, 6-8 hours on low speed, 500 charges, 3 hour charge time

Titanium 9400i Helmet

Titanium Series welding helmets are designed to perform in the most intense industrial applications. The 9400i features 9 sq. in. viewing area with four independent arc sensors and integrated grind shield with 180 degree field of view. Other features include: digital lens controls, four operating modes (weld, grind, cut, x-mode), Infotrack™ arc tracking technology, aluminum heat shield to protect the lens in high-amperage applications and premium headgear.

Hard Hat Head Assembly

Integrated hard hat with WeldX™ head seal and clear wideview lens. Note: integrated clear lens in hard hat head seal is not rated for grinding.

View our complete selection of Miller Auto Darkening Welding Helmets, SAR helmets, fume extractors and welding safety gear available online.


Title PAPR with Hard Hat & Titanium 9400i Helmet
Assigned Protection Factor 25
Filter HEPA
Hard Hat Certification ANSI Z89.1 2009 Certified, Type 1, Class C or G
NIOSH Certification 42 CFR part 84
OSHA Classification Loose-fitting Respirator
Warranty Miller's True Blue Warranty

Other Versions of T94™ Series Welding Helmets

View our complete selection of Miller Auto Darkening Welding Helmets, SAR helmets, fume extractors and welding safety gear available online.


Height: 11.00 Inches
Width: 13.50 Inches
Length: 22.50 Inches
Weight: 14 Lb(s) 2 Oz
View our complete selection of Miller Auto Darkening Welding Helmets, SAR helmets, fume extractors and welding safety gear available online.

Product Questions and Answers

Q - How long does it take to recharge the battery? A - 3 hours for a full recharge.
Q - How long does the battery last? A - The lithium ion battery in the respirator has a 6 to 8 hr life on low speed, and a 4 to 5 hour life on high speed. Particulate concentration, age of battery, altitude and the filter can all influence battery life.

How to attach breathing tube to welding helmet:

  1. Caution.

    Proper installation is critical or there is the risk of contaminated air entering the helmet.

  2. Connect breathing tube to helmet.

    Tube can only be connected to helmets with a tab connector. Push rectangular end of breathing tube connector into helmet air inlet until it locks in position. The locking tab should be on outside of helmet air inlet.

  3. Connect breathing tube to blower.

    Align pins on breathing tube connector (blower end) with channels in blower receptacle. Insert tube connector into blower receptacle until snug and then turn connector 1/8 turn clockwise.
