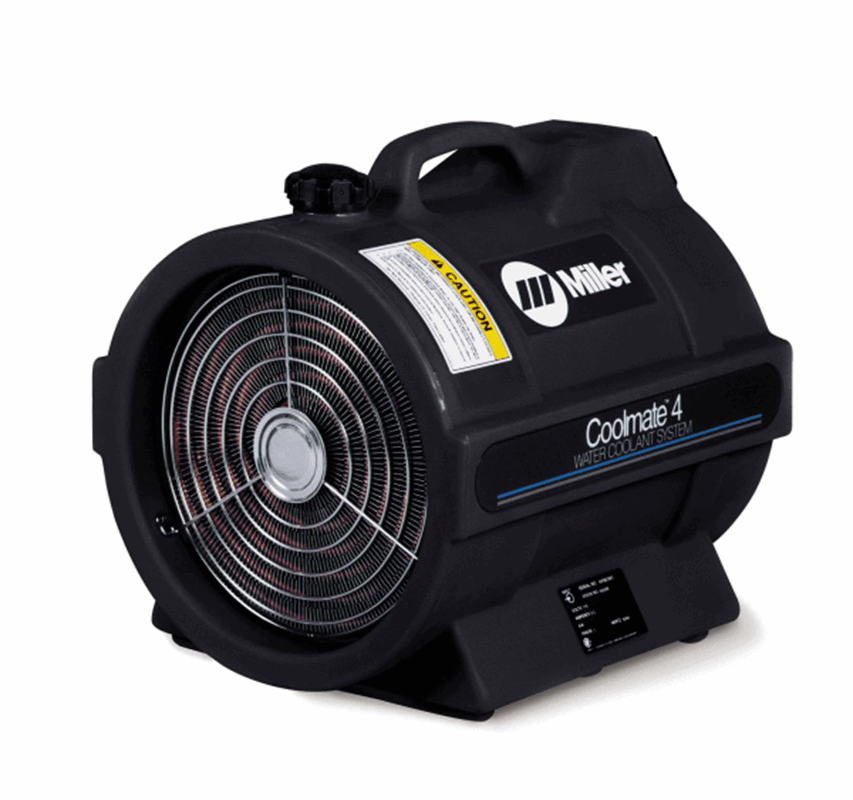

Miller Coolmate™ 4 115 V #042288

Part Number: 042288
UPC: 715959007498

Ships Free To Lower 48 States

Miller Coolmate™ 4 115 V #042288 Miller Coolmate™ 4 115 V #042288 Sideview Miller Coolmate 4 115 V #042288 70 series swingarc Miller Coolmate 4 115 V #042288 coolmate 4 specs Miller Coolmate 4 115 V #042288 MIG (GMAW) Connections Miller Coolmate 4 115 V #042288 TIG (GTAW) Connections
Miller Coolmate™ 4 115 V #042288

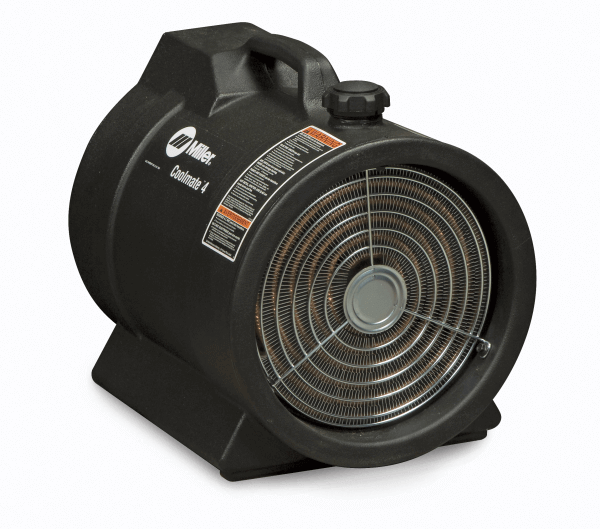

Miller Coolmate™ 4 115 V #042288 Sideview

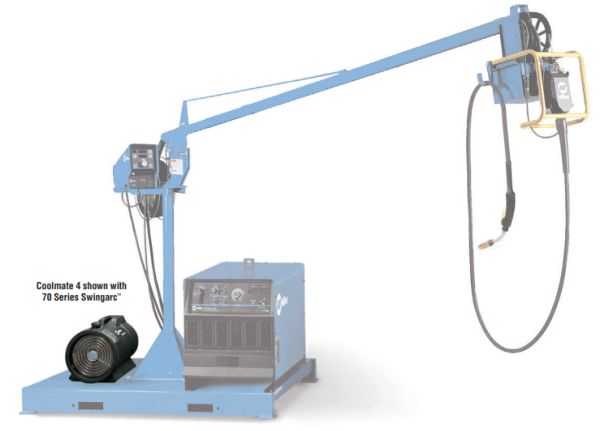

Miller Coolmate 4 115 V #042288 70 series swingarc

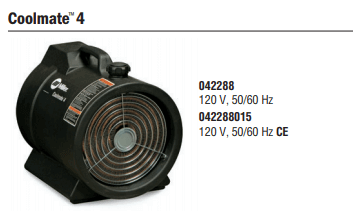

Miller Coolmate 4 115 V #042288 coolmate 4 specs

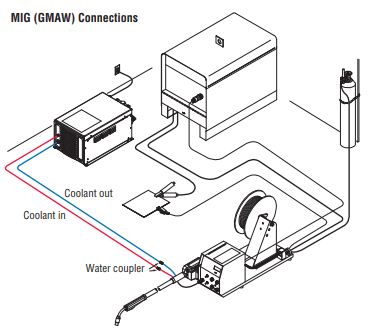

Miller Coolmate 4 115 V #042288 MIG (GMAW) Connections

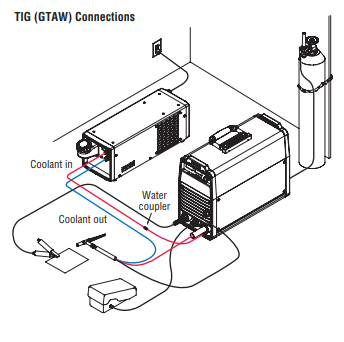

Miller Coolmate 4 115 V #042288 TIG (GTAW) Connections

Miller Coolmate™ 4 115 V #042288

Part Number: 042288
UPC: 715959007498
$2,487.00 + Free Shipping

Related Products

Miller Coolmate 3 (115 V, CE) Part#043007 Miller Electric Coolmate 3 (115 V, CE) #043007 76 purchased
$2,215.00
Free Shipping
Shop for the Miller XMT 350 CC/CV at great prices on Welders Supply #907161, #907161014
Cup Holder + Shirt
Miller Electric XMT 350 CC/CV, Dinse #907161 6 purchased
Save $1,244.00
$8,026.00
$9,270.00
Free Shipping

Miller Coolmate™ 4 115 V #042288

The best performer in its class — industrial 4-gallon cooler designed for water-cooled torches rated up to 600 amps.*

  • Weighs only 38 pounds (17 kg) dry
  • Tough one-piece case is portable and rustproof
  • Convenient carrying handle and filler spout are molded into case
  • Easily accessible coolant filter
  • Factory-set pressure-relief valve (60 psi) maintains consistent pressure during operation
  • Thermally protected 1/4 hp motor guards against overheating
  • Efficient fin-and-tube heat exchanger
  • Coolant system has a constant flow of coolant inside to keep the pump primed and to reduce algae buildup in the tank
  • Brass-body positive-displacement rotary vane pump provides consistent coolant flow and pressure rating with long pump-life expectancy
Browse all Miller welding accessories.

GENERAL SPECIFICATIONS

Title Coolmate™ 4 115 V
Industries Interests Aerospace
Construction
Shipbuilding
Boat / Yacht
High Purity Processing
Manufacturing
Max Cooling Capacity 5500
Max Current Draw 4.7 A
5.9 A
Rated Cooling Capacity 1780
Tank Capacity 4
15
Warranty Miller's True Blue Warranty

SHIPPING DIMENSIONS
Height: 16.00 Inches
Width: 18.00 Inches
Length: 20.00 Inches
Weight: 38 Lb(s) 0 Oz

Product Questions and Answers

Q - How often does the coolant need to be replaced? A - Miller recommends once a year, twice if you mix coolant with water.
Q - What size motor in this? A - 1/4 hp motor.

How to Oil the Motor:

  1. Remove Wire Form.

    Remove wire form from the radiator.

  2. Adjust Radiator.

    Pull radiator out far enough to turn it to the side to access it.

  3. Remove Plugs & Add Oil.

    Remove plugs on the motor and put about 15 drops of SAE 20 motor oil into each oil port.

  4. Reassmble.

    Replace plugs and reassemble the unit.
