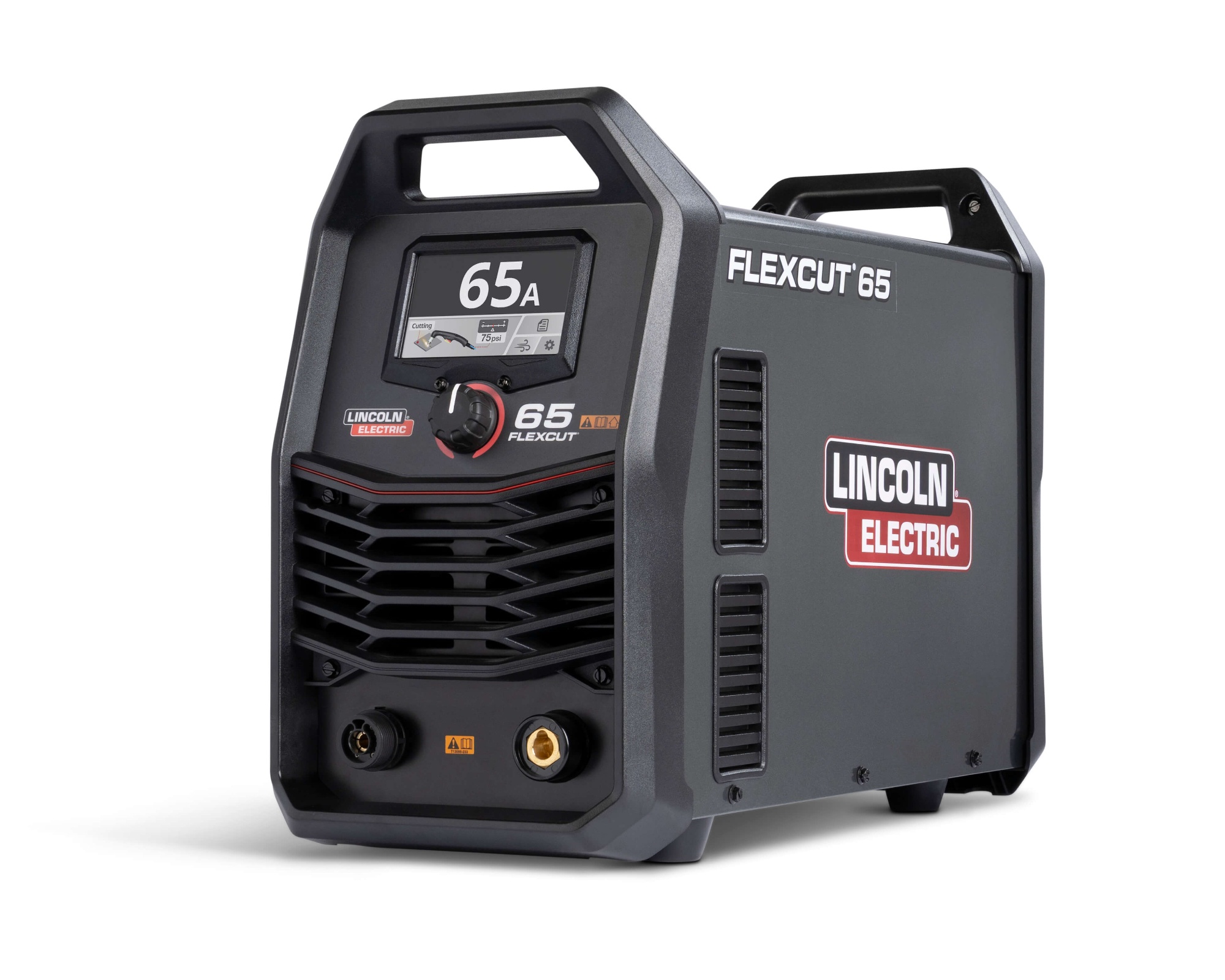

Lincoln FlexCut 65 Handheld Plasma Cutter, K5825-H

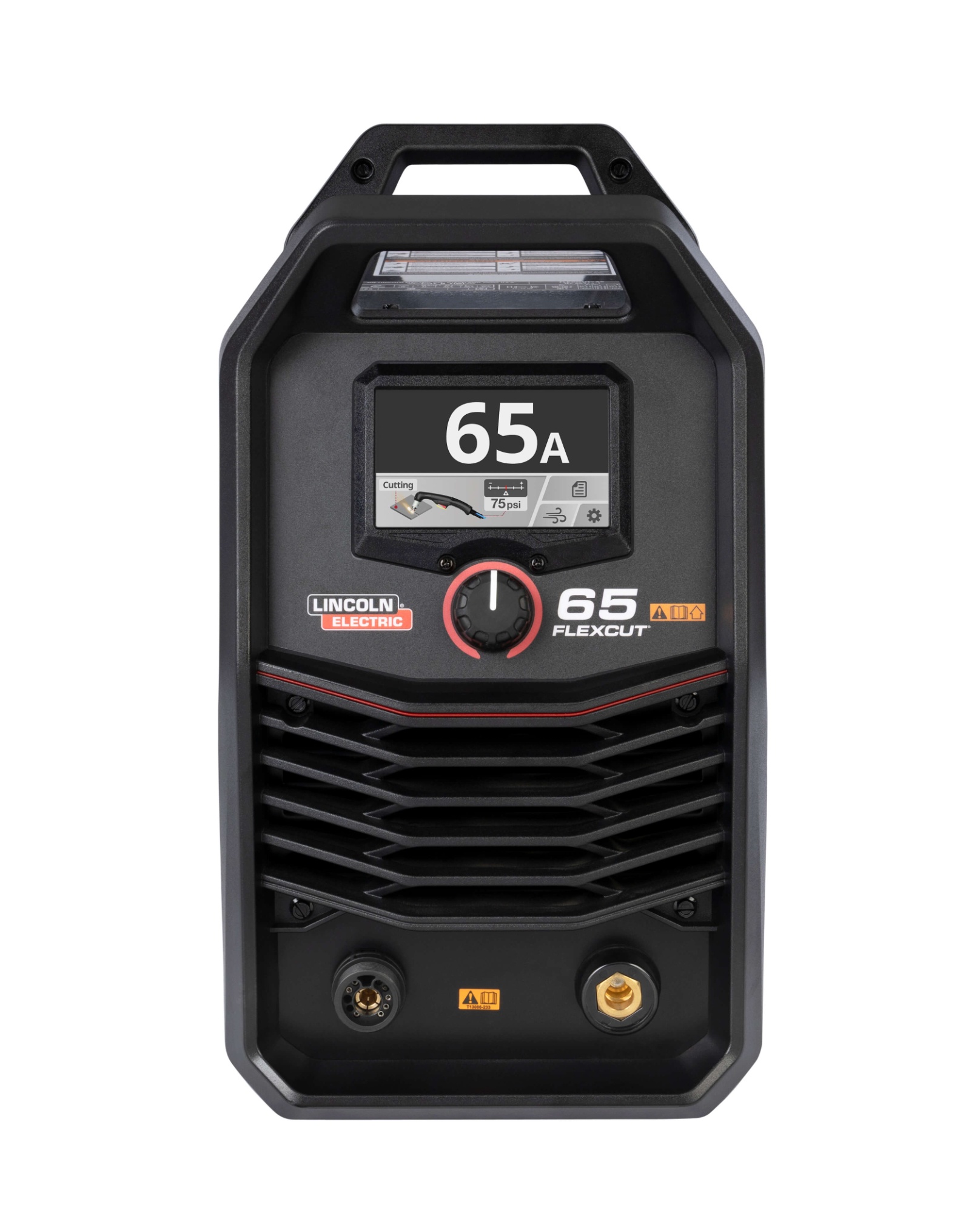

front side view of the Lincoln FlexCut 65 Handheld Plasma Cutter, K5825-H

front right view of the Lincoln FlexCut 65 Handheld Plasma Cutter, K5825-H

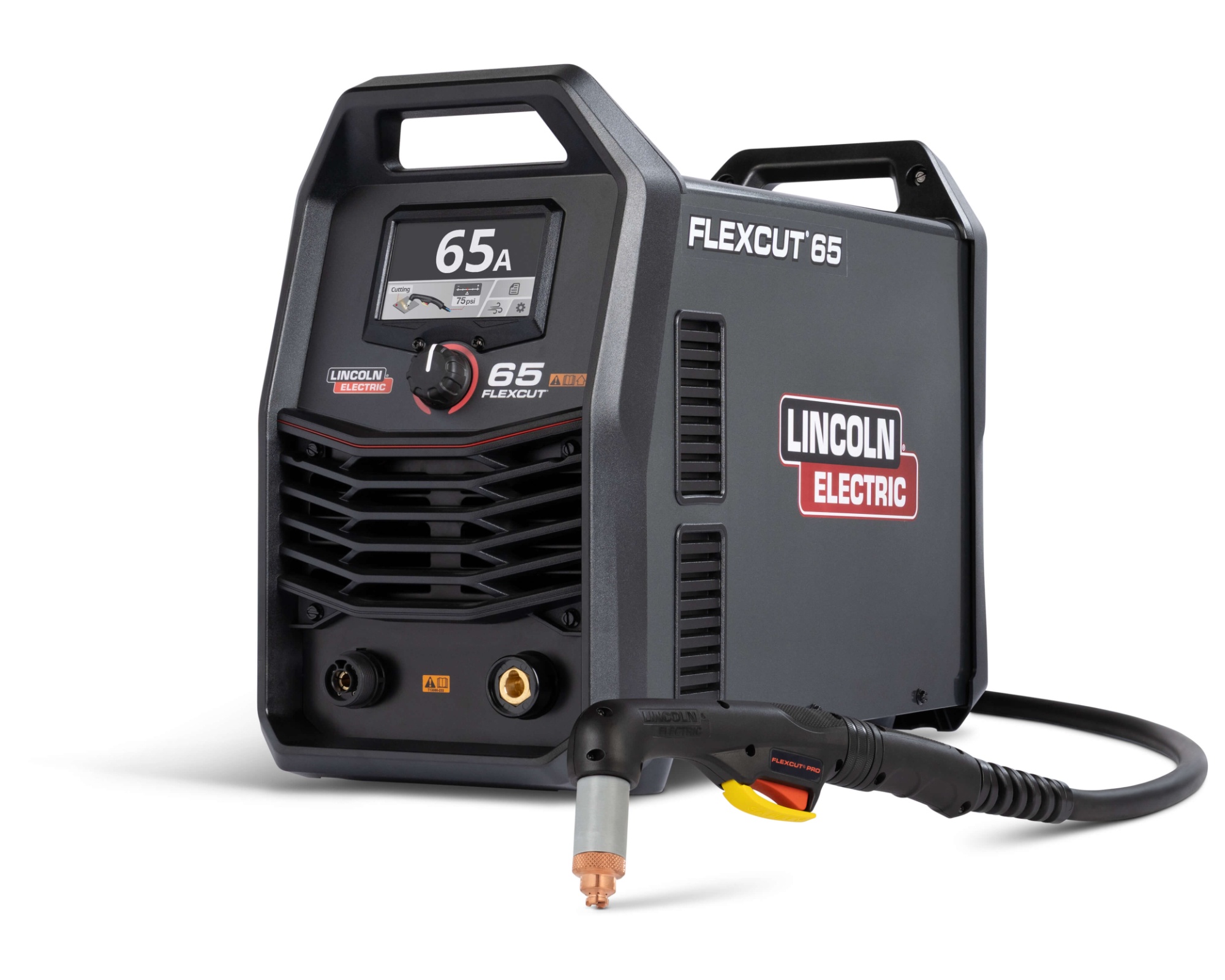

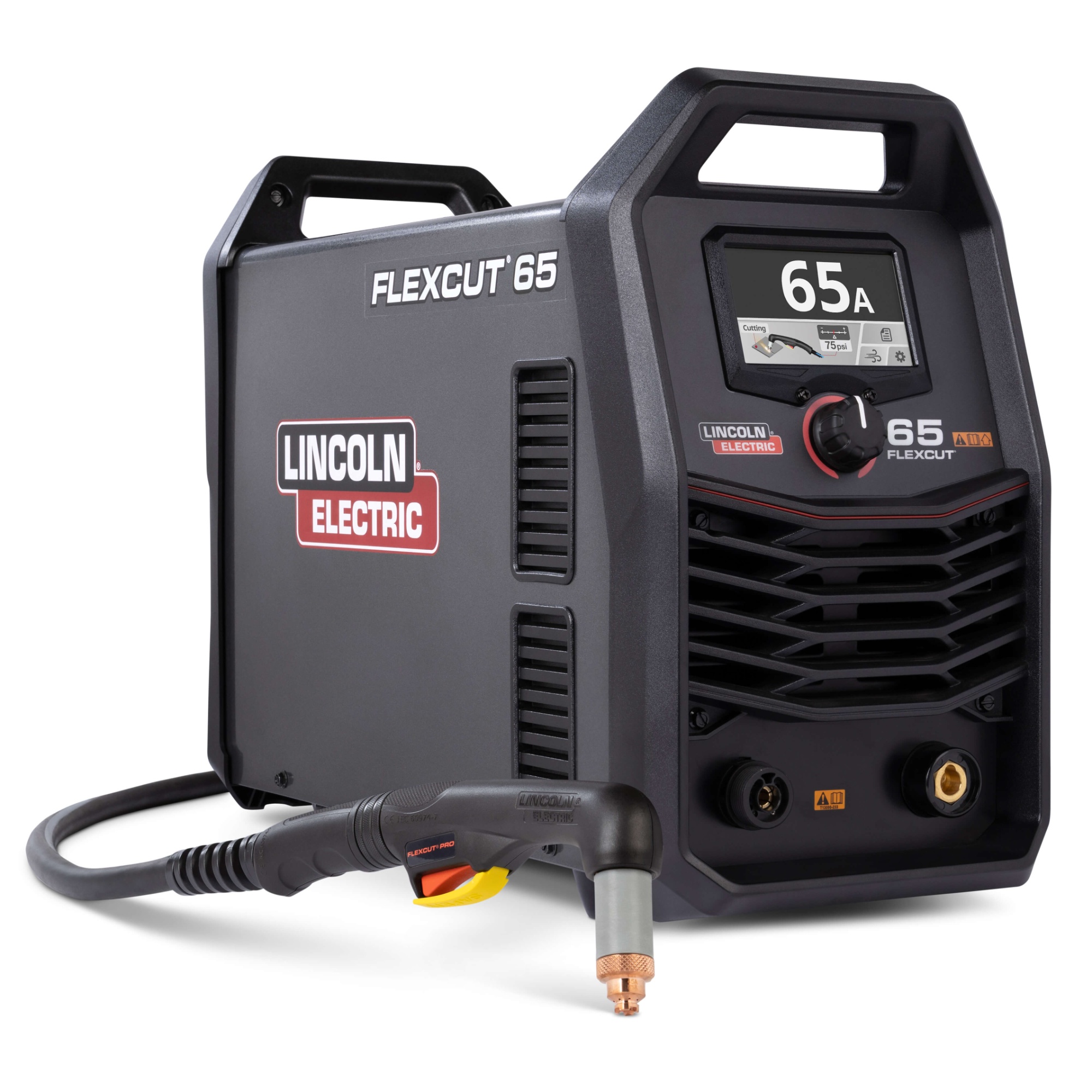

front side view of Lincoln FlexCut 65 Handheld Plasma Cutter, K5825-H with handheld torch

Lincoln FlexCut 65 Handheld Plasma Cutter, K5825-H

Part Number: K5825-H

$3,699.99 + Free Shipping

Features
Specs
Documents
Consumables
FAQS

Lincoln FlexCut 65 Plasma Cutter #K5825-H

The FlexCut™ 65 delivers powerful, reliable performance for both handheld and mechanized applications. With six plasma cutting processes, it’s built to handle a wide range of jobs with speed and precision. CNC integration features built-in ports for easy setup and automatic detection, while the large LCD display provides clear, intuitive controls. Compatible with our FlexConnect™ Torch System, giving you the flexibility to switch between torch heads or cables in seconds.

Highlights

65 Amps of Cutting Power: Tackle thicker materials with confidence and precision
High Duty Cycle: Built for demanding applications without overheating or slowing down
LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments
Input Power Flexibility: Compatible with both 1-phase and 3-phase power
Plug-and-Play CNC Integration: Built-in ports for easy setup - no extra kits required
Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machine for maximum versatility
Rugged by Design: Heavy-duty construction built for real-world conditions— hard to damage, and ready to withstand impact, dust, and daily wear
Industrial IP23 Protection: Resists dust and water spray for dependable performance in challenging conditions

What's Included:

FlexCut® 65 Plasma Cutter
FlexCut® PRO FlexConnect® Handheld Torch 25 ft
Air Filter
Work Clamp & Cable
Input Power Cord
Complete Consumable Kit - Handheld

Applications:

Construction
General Fabrication
Automation
Maintenance & Repair

FlexCut 65 Specifications
Product Numbers	K5825-H (Handheld) K5825-M (Mechanized) K5825-PS (Power Source Only)
Input Power	200-240/1/50/60 200-600/3/50/60
Rated Output / Duty Cycle	50% @ 65A (200-600V 1/3PH) 60% @ 60A (200-600V 1/3PH) 100% @ 46A (200-600V 1/3PH)
Recommended Circuit Breaker	80A (1-PH) 50A (3-PH)
Output Range	20-65A
Engine Drive / Aux Power Requirement	15kW for 65A
Gas Pressure Required	90-130 psi
Dimensions (HxWxD)	24.8 in [630 mm] x 10.3 in [262 mm] x 17.6 in [447 mm]
Net Weight	76.3 lb (35 kg)
