Miller SPECTRUM 625 X-TREME 20FT XT40 TORCH, X-CASE Part #907579001

Part Numbers: 907579001
1 Review
$2,535.00
$3,209.00* Save $674.00

Included with your purchase ( ) :

See Bundle Details!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Material type:

    Mild Steel

    Mild Steel

    Power supply:

    110V

    110V

    220V Single Phase

    220V Single Phase

    Cut capacity:

    1/2" Capacity

    1/2" Capacity

    • Lightweight and Portable
    • XT40 Torch
    • Miller Multi-Voltage Plug
    • 3-Year Power Warranty

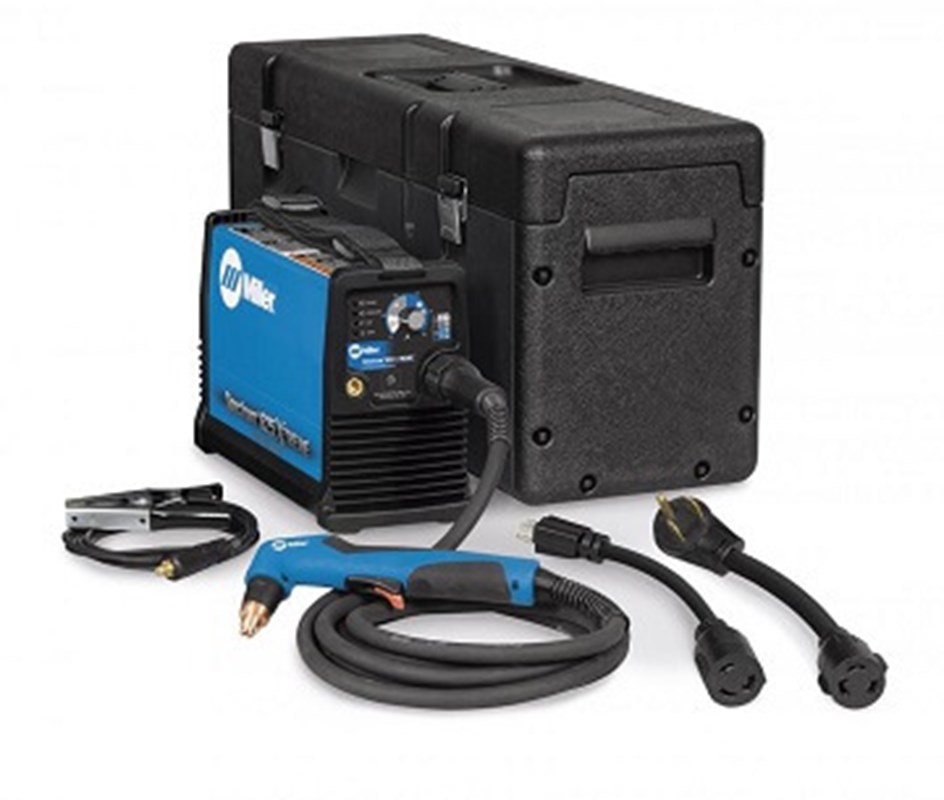

    Miller SPECTRUM 625 X-TREME #907579001

    FREE SHIPPING TO THE LOWER 48 STATES!

    Miller SPECTRUM 625 X-TREME (#907579001) delivers big cutting power in a small package! Portable and powerful, this top-quality plasma cutter severs 5/8 in. mild steel, a rating to meet or exceed most cutting requirements.


    Maximum Flexibility

    State-of-the-art flexibility allows the circuitry to automatically connect to 120–240 VAC, single-phase power, 60 Hz, without the need to remove the cover to switch over to the new power source. No tools required. Just choose the right plug fitting the receptacle and connect it to the power cord. For 120 V input, output amperage is automatically reduced to 27 A.

    Easy and Safe to use

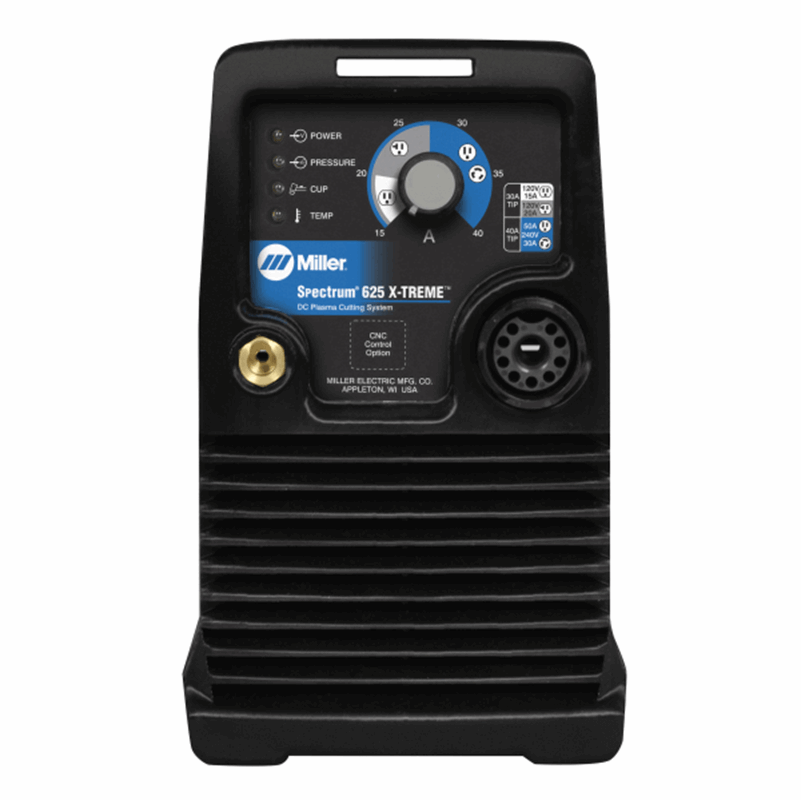

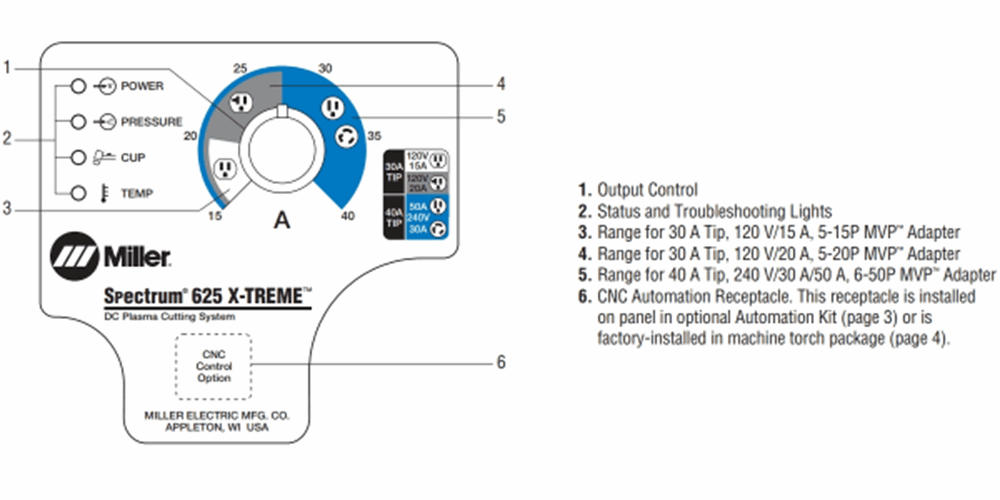

    Storage case provides solid protection for this cutting machine during transport, additional space ideal for adapters and consumable boxes, as well as gloves and eye protection. LED indicators for power, pressure, cup, and temperature make troubleshooting much easier and faster, avoiding unnecessary downtime.

    Superb technology

    State of the art technology automatically controls the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc switches in and out, providing maximum power for cutting thicker metal—all automatically! Also, the type of consumable is detected. Gas pressure is then automatically adjusted to optimize cutting performance, with no need for a manual regulator.

    The Miller SPECTRUM 625 X-TREME from Welders Supply has the power and ease of use to provide optimum cutting and gouging performance.

    Applications:

    • Farm and Ranch
    • Construction
    Choose from our selection of MIG, TIG, and Stick welding machines, tools, and accessories from Welders Supply.

    Features:

    Rated Cutting Capacity -

        The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.

    Auto-Line™ and MVP™ (multi-voltage plug) Adapters -

        Auto-Line provides state-of-the-art flexibility to the end-user. The Auto-Line circuitry automatically connects to 120–240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Miller’s multi-voltage plug (MVP™) Adapters allow connection to 120 or 240 V receptacles without tools—choose the adapter that fits the receptacle and connect it to the power cord.

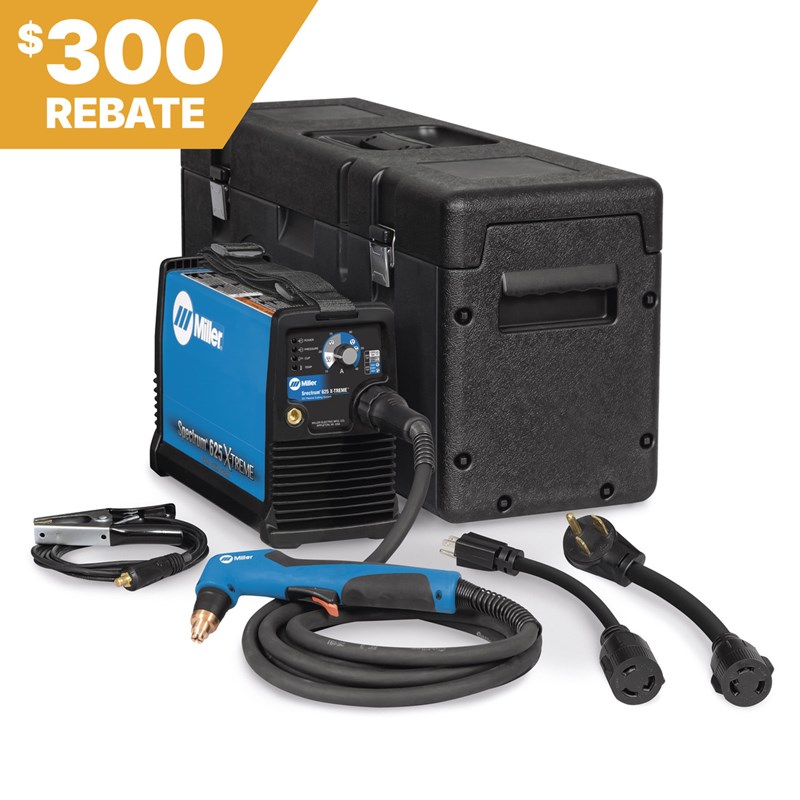

    Protective X-CASE™ -

        Miller's X-CASE provides ultimate protection during transport and storage. Additional space is ideal for MVP Plug Adapters, consumable box, as well as gloves, eye protection, etc.

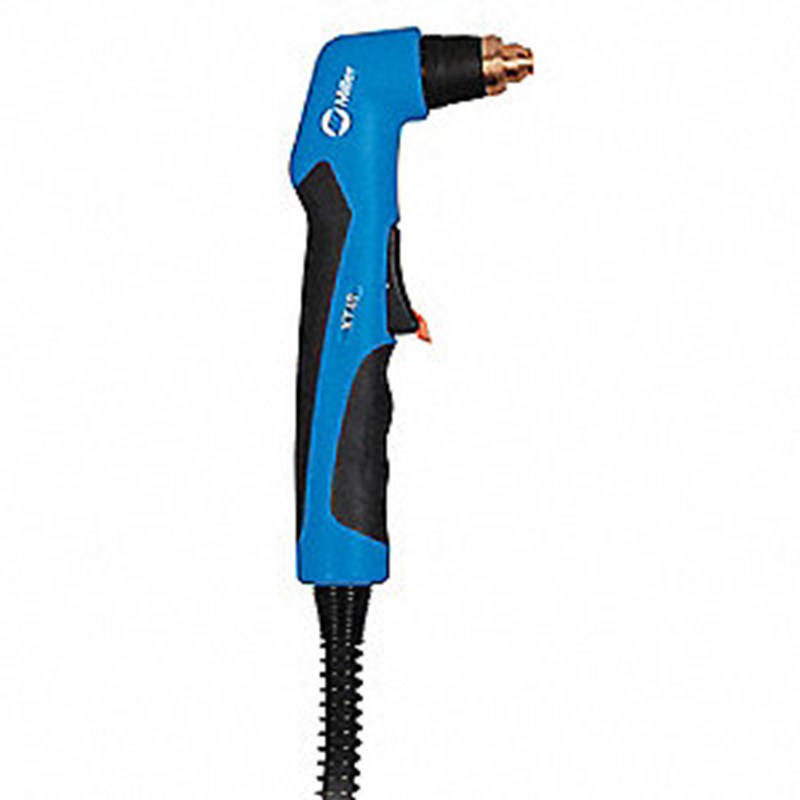

    XT40 Torch -

        Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy.

    Auto-Refire™ -

        Auto-Refire™ Technology provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically!

    Portability -

      Portable in the shop or at the job site—at 21 pounds the shoulder strap allows the end user to easily move from location to location.
    • Automatic Air Regulation - The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting and gouging performance.
    • Automatic Consumable Detection - Automatically detects consumable type installed and adjusts gas pressure to optimize performance eliminating the need for manual air regulation.

    Not sure which one is best for you? Check out or Miller Plasma Cutter Specs Guide
    Shop Plasma Cutting Machines from other top brands like ESAB and Miller from Welders Supply. View our work benches & accessories.

    Miller SubArc DC 650 Digital Portable Welding System Specifications

    Industrial Applications Maintenance
    Light construction
    Prototyping
    Body shops
    Fabrication
    Processes Air plasma cutting and gouging
    Weldable Metals Mild Steel
    Input Power 120 - 240 Volts, 1-Phase, 50/60 Hz
    Rated Output 40 Amps at 140 VDC, 50% duty cycle
    27 Amps at 91 VDC, 20% duty cycle
    20 Amps at 88 VDC, 35% duty cycle
    Output Voltage Range
    20 V - 44 V in sub-arc mode
    Welding Amperage Range 20 - 40 Amps
    Net Width 5.5 in. (140 mm)
    Net Height 9 in. (229 mm)
    Net Length 13.25 in. (337 mm)
    Net Weight 21 lb (9.5 kg)
    Pressure Flow 6 SCFM (170 L/min) at 90 PSI MIN (621 kPa) 120 PSI MAX (828 kPa)
    Cutting Capability  5/8 in. (16 mm)
    Current Type DC
    Warranty 3 Years - Miller's True Blue Warranty

    SHIPPING DIMENSIONS

    Height: 6.00 Inches
    Width: 9.00 Inches
    Length: 13.00 Inches
    Weight: 40 Lb(s) 0 Oz

    Manufacturer Reviews

    By: Vick
    THE 625X IS EASY TO CARRY AROUND AND STORE .I LOVE THE EXTRA ELECTRICAL CONNECTIONS FOR DIFFERENT JOB LOCATIONS AND THE 20 FT. GUN .MACHINE CUTS VERY FAST AND SMOOTH.

    Product Questions and Answers


    Q - What size generator is required to run this? A - You'll need a 6500 kilowatt generator at minimum. If you are going to run an air compressor off the same generator while also using the 625, you'll need a larger generator. You would need to know how much power the compressor needs to supply 6 scfm at 90
    Q - Does the Miller Spectrum 625 X-TREME plasma cutter come with an inline moisture air filter? A - A filter must be purchased separately for this product.
    Q - What size air compressor should be used with the Miller Spectrum 625 X-Treme? A - This machine requires 6.0 scfm at 90 psi, which is 2-3 hp.
    Q - Does the Miller Spectrum 625 X-TREME Plasma Cutter have an automatic setting? A - The Miller Spectrum 625 X-TREME Plasma Cutter can be upgraded to cut automatically with the Miller Automation Kit, part #301158.
    Q - How much does the Miller Spectrum 625 X-TREME weigh? A - The Miller Spectrum 625 X-TREME Plasma Cutter is 21lbs and can be transported over the shoulder with the shoulder strap.
    Q - Does the Miller SPECTRUM 625 cut mild steel? A - Yes. The Miller Spectrum 625 can sever 5/8” mild steel.
    Q - Does it run on gasoline? A - Yes.

    Have a question about this product? Submit your question using the form below

    Related Products

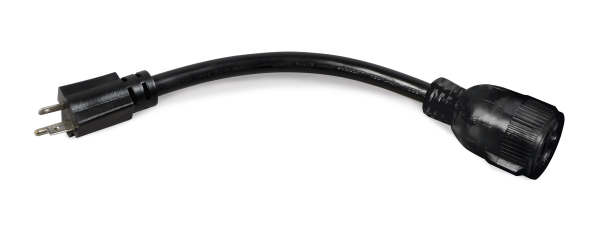

    Miller Spectrum 625 115 Volt/20 Amp Replacement Adapter
    Adapter, 5-20PLXL63OR #254331
    $32.85
    $35.68

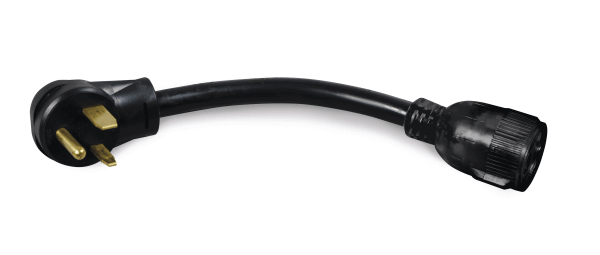

    230 Volt/50 Amp Replacement Adapter for Miller Spectrum 625 plasma cutter
    Adapter, 6-50PXL630R #254328
    $44.75
    $51.81
    Replacement Gouge Tip for Miller XT30 and XT40) Plasma Cutter Torches
    Gouge Tip (3 per pkg) #249934
    $13.70
    $16.95
    30 Amp Plasma Cutter Tip from Miller #249927
    Miller 30 Amp Tip (3 per pkg) #249927
    $11.20
    $13.86
    Replacement 40 Amp Tip for XT40 Plasma Cutter Torch
    Miller 40 Amp Tip (3 per pkg) #249928
    $12.85
    $15.96

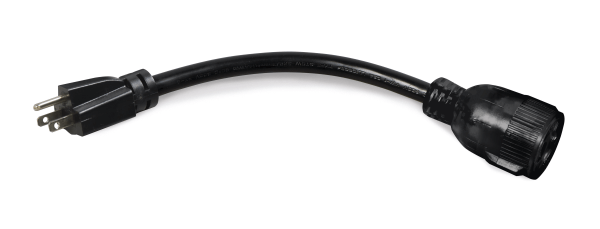

    Replacement Adapter for Miller Spectrum 625 plasma cutter #254330
    Miller Adapter, 5-15PXL630R #254330
    $30.75
    $35.09
    Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517
    Miller Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517
    $161.00
    Miller Circle Cutting Attachment #253055
    Miller Circle Cutting Attachment
    $222.65
    $254.40
    In-Line Air Filter Kit #228926
    Miller In-Line Air Filter Kit
    $171.15
    $197.95
    Miller Pivot Base for Plasma Cutting Guide #195979
    Miller Pivot Base for Plasma Cutting Guide
    $190.75
    $217.99
    Miller Plasma Standoff Roller Guide #253054
    Miller Plasma Standoff Roller Guide
    $101.45
    $116.24
    Replacement Air Filter for In-Line Filter Kit #228928
    Miller Replacement Air Filter for In-Line Filter Kit
    $26.90
    $30.84
    Miller Shade 3 Industrial Strength Face Shield
    $38.95
    $41.48
    Miller Shade 5 Industrial Strength Face Shield
    $44.40
    $46.57
    Miller Spectrum 375 X-Treme 907529 Build with Blue Holiday Promo Miller Spectrum 375 X-TREME 12FT XT30 Torch w/ X-case
    Miller Spectrum 375 X-TREME 12FT XT30 Torch w/ X-case
    $1,829.00
    $2,314.00
    Miller SPECTRUM 625 X-TREME #907579 Miller SPECTRUM 625 X-TREME 12FT XT40 TORCH, X-CASE
    Miller SPECTRUM 625 X-TREME 12FT XT40 TORCH, X-CASE
    $2,365.00
    $2,985.00
    Miller Torch Cable Cover – 25 ft #231867
    Miller Torch Cable Cover – 25 ft
    $327.60
    $362.65

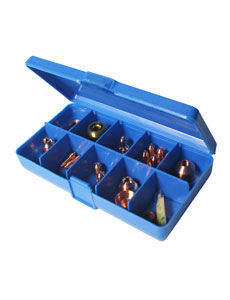

    Shop Miller XT40C Plasma Cutting Consumable Kit #253521
    Miller xt40C Plasma Consumable Kit
    $150.55
    $185.56
    Replacement 20 ft. Torch Cable Cutter for Miller Plasma Cutters #239642
    Torch Cable Cover (20 ft) #239642
    $336.75
    12ft 12 GA Cable w/ 200A Clamp & Plug
    Work Cable 12 ft 12 GA w/200A Clamp & Plug #263799
    $106.54
    20ft 12GA Work Cable w/ 200A Clamp & Plug
    Work Cable 20 FT 12 GA With 200A Clamp & Plug #263800
    $105.85
    $121.23
    Miller X-Case for Maxstar 150 & Spectrum 375/625 Welding Machines #300184
    X-Case Carrying Case #300184
    $151.75
    $168.00

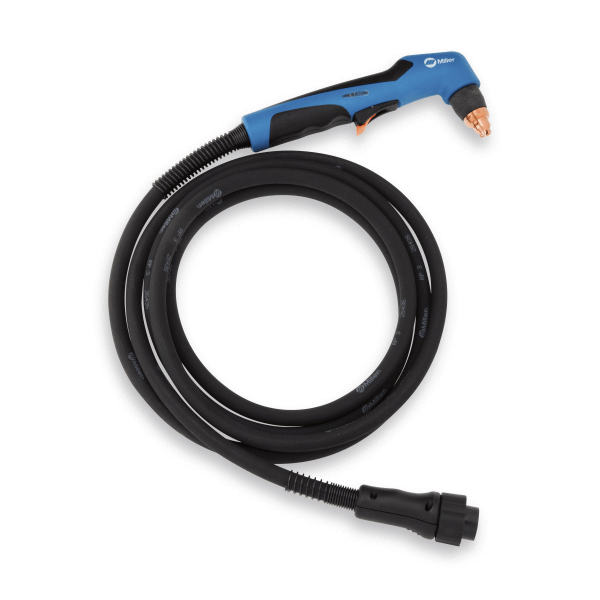

    Miller Spectrum 625 X-TREME replacement 12ft XT40 plasma cutting torch #260633
    XT40, 12FT HAND HELD TORCH W/DISCONNECT #260633
    $429.95
    $534.00

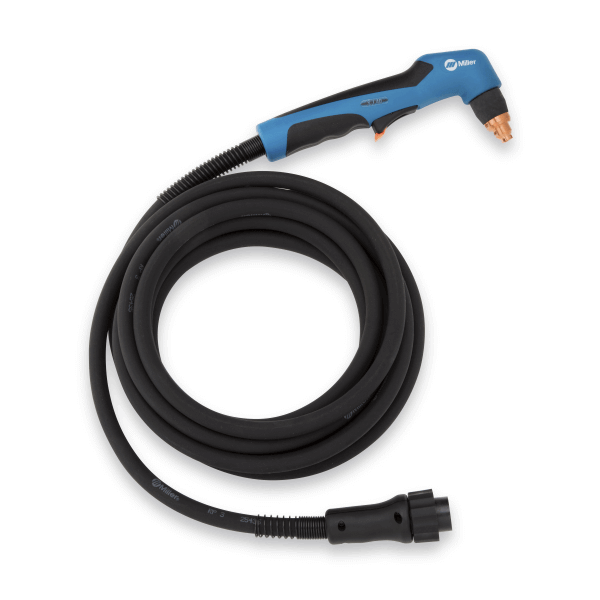

    Miller Spectrum 625 X-TREME Plasma Cutter XT40 Torch #260635
    XT40, 20FT HAND HELD TORCH W/DISCONNECT #260635
    $447.50
    $558.46

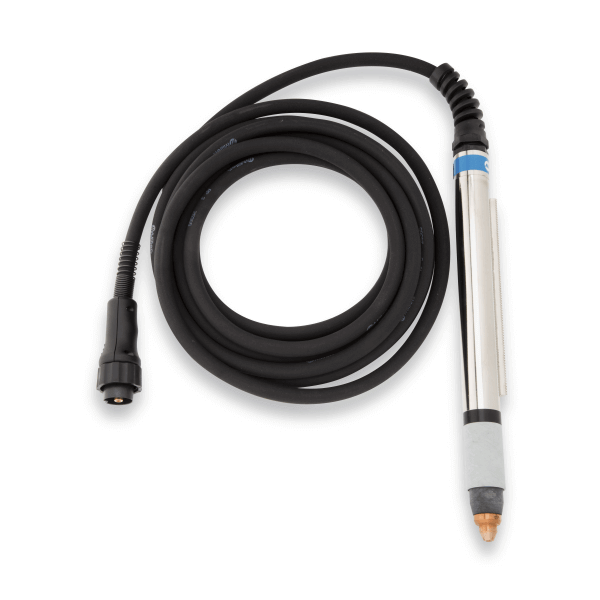

    Miller Spectrum 625 X-TREME XT40M Machine Torch #259305
    XT40M, 25FT LNG BDY MACHINE TORCH W/DISCON #259305
    $730.15
    $935.39

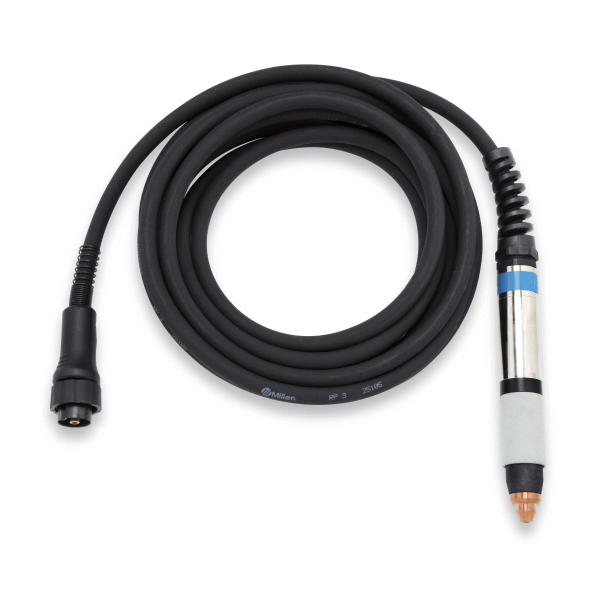

    Miller Spectrum 625 Replacement XTM40 Machine Torch #257462
