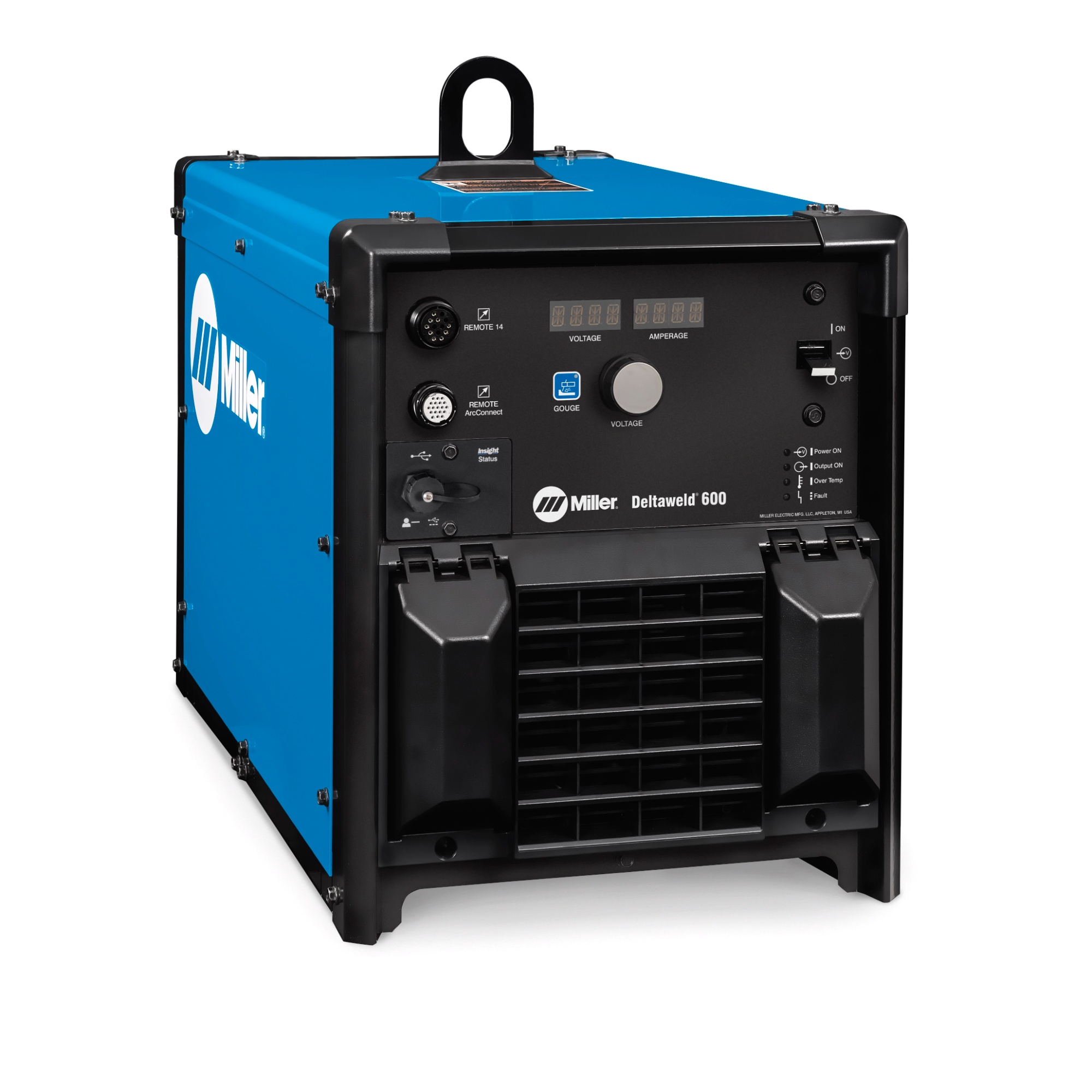

Miller® Deltaweld® 600 MIG Welder – 208/230/460 V #907941003

The Miller® Deltaweld® 600 is a heavy-duty MIG welder delivering 600 amps at 100% duty cycle — the standard in manufacturing for welders of all skill levels. Compatible with the full lineup of Intellx™ wire feeders (Basic, Pro, and Elite), it supports MIG, flux-cored, Accu-Pulse®, Versa-Pulse™, High-Deposition MIG, and RMD® processes depending on feeder. Features include ArcConnect™ next-generation feeder communication, a dedicated constant-current carbon arc gouge mode rated for up to 3/8-inch carbons, Wind Tunnel Technology™ for superior component protection, Fan-On-Demand™ cooling, standard 115-volt auxiliary power, and built-in Insight Welding Intelligence™ for weld monitoring and productivity reporting.

Highlights

• ArcConnect™ Communication: Next-generation high-speed signaling between the power source and feeder improves weld performance
• Dedicated Gouge Mode: Built-in constant-current carbon arc gouge mode handles up to 3/8-inch carbons for cutting, gouging, and weld preparation
• Intellx™ Feeder Compatible: Works with Intellx Basic, Pro, and Elite wire feeders
• 600 A at 100% Duty Cycle: Delivers full rated output continuously — no downtime waiting for the machine to cool
• Wind Tunnel Technology™: Channeled internal airflow shields electrical components and PC boards from dirt, dust, and debris for long-term reliability
• Fan-On-Demand™ Cooling: Cooling fan runs only when needed, reducing noise, energy consumption, and the amount of contaminants pulled through the machine
• 115 V Auxiliary Power: Standard 15-amp circuit-breaker-protected auxiliary outlet powers grinders, lights, and other tools directly from the welder
• Insight Welding Intelligence™: Built-in Insight board enables weld monitoring, arc-on time tracking, and productivity reporting via Centerpoint software
• 14-Pin & ArcConnect Receptacles: Dual receptacles provide backwards compatibility with older Miller® wire feeders
• EZ-Set Parameter Setup: Simplifies weld setup by automatically selecting parameters based on material thickness

What’s Included:

• Deltaweld® 600 MIG welder with ArcConnect™, meters, 14-pin receptacle, and Insight

Applications:

• General manufacturing
• General fabrication
• Structural steel fabrication
• Transportation
• Sheet metal fabrication
• Light-gauge tube and sheet

Compatible Wire Feeders (sold separately):

• Intellx™ Basic — MIG, flux-cored, arc control
• Intellx™ Pro — Adds EZ-Set, Accu-Pulse®, memory buttons, steel & stainless programs
• Intellx™ Elite — Adds Versa-Pulse™, HD MIG, RMD®, full-color LCD, 8 memory slots, XR™ push-pull gun support

Deltaweld® 600 Specifications

Processes (vary by Intellx™ feeder model):
MIG (GMAW) — all feeders • Flux-Cored (FCAW) — all feeders • Accu-Pulse® GMAW-P — Intellx Pro & Elite • Versa-Pulse™ GMAW-P — Elite only • High-Deposition MIG — Elite only • RMD® — Elite only • Air Carbon Arc Gouge (CAC-A) rated 5/16-inch carbons standard; up to 3/8-inch dedicated gouge mode

Power source warrantied 3 years, parts & labor. Original main power rectifier parts warrantied 5 years. Certified by Canadian Standards Association to both Canadian and U.S. Standards.

• Deltaweld 600 Spec Sheet
