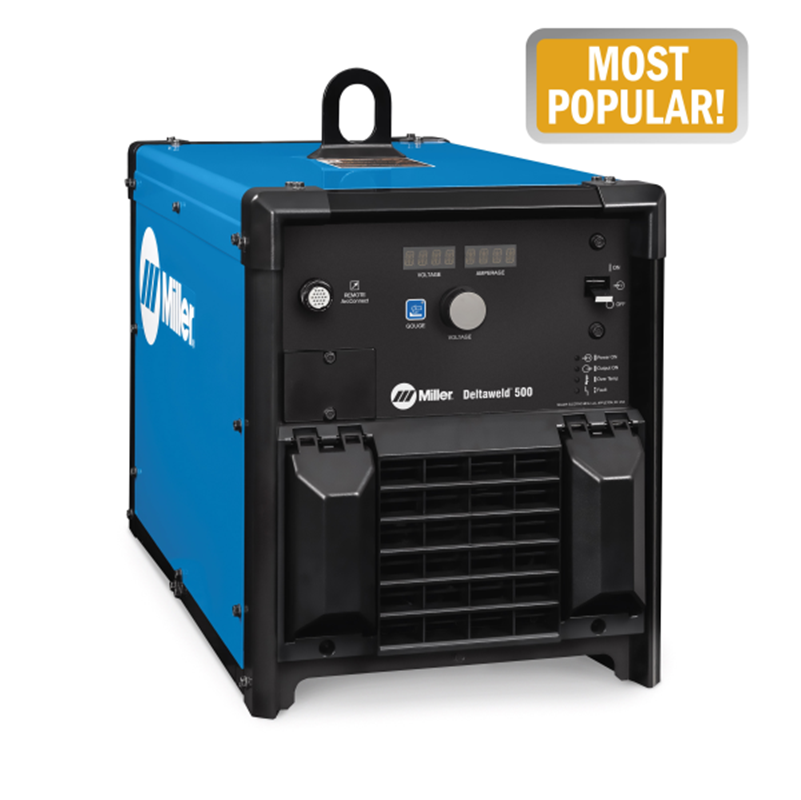

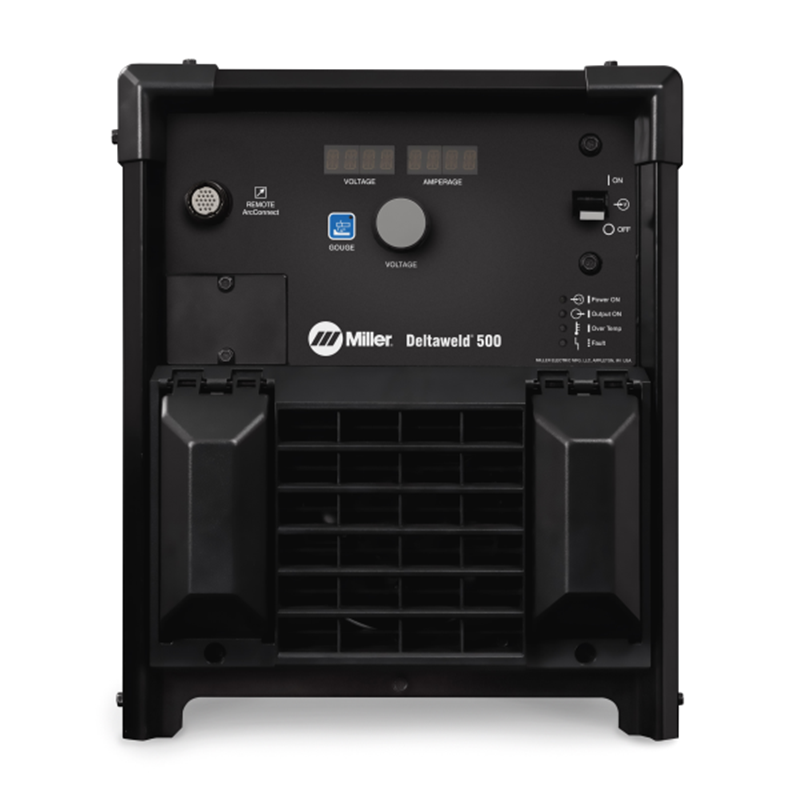

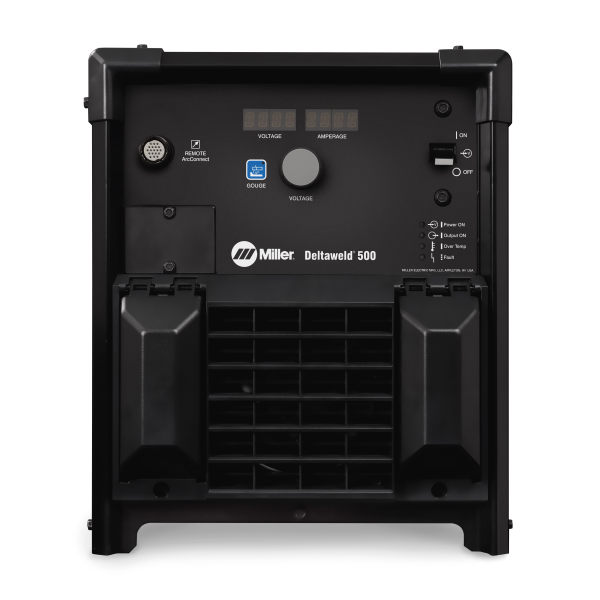

Miller Deltaweld 500 230/460 907785
The manufacturing solution for welders of all skill levels, now offering pulse capabilities in an integrated package.
What's Included:
- Deltaweld 500 With ArcConnect™
Features:
Easy to Use
- EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
Legacy Meets Pulse
- Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker. Make your move.
ArcConnect™
- Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
Fan-On-Demand™
- Operates only when needed reducing noise, power consumption, and the amount of airborne contaminants going through the machine.
Dedicated Wire Feeder Options
- Intellx feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments.
- Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
Gouge Mode
- Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8" carbons.
Backwards Compatibility
- A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
Wind Tunnel Technology
- Internal air flow that protects electrical components and PC boards from dirt, dust, debris— greatly improving reliability.
Ready to Weld
- The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
Check out the entire selection of MIG, TIG, Stick, and Gas welders available at Welders Supply company.
Processes
- Flux Cored (FCAW)
- MIG (GMAW)
- Accu-pulse MIG (GMAW-P)
- Air Carbon Arc (CAC-A)
Miller Deltaweld 500 Specifications: |
|
Industries Interests | Manufacturing Heavy Equipment Manufacturing Railcar Commercial Truck and Trailer |
Carbon Diameter | 3/8 in (9.525 mm) |
Current Type | DC |
Input Voltage | 208/230/460 V or 575 V |
Input Phase | 3-Phase |
Input Hz | 60 Hz |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
Net Height | 22.34 in |
Net Length | 31.65 in |
Net Weight | 145 lbs |
Weldable Metals | Stainless Steel Steel |
Net Width | 15.35 in |
Max Open Circuit Voltage |
90 VDC |
Weld Ouput | CC / CV |
Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 22.34 Inches |
Width: | 15.35 Inches |
Length: | 31.65 Inches |
Weight: | 145 Lb(s) 0 Oz |
