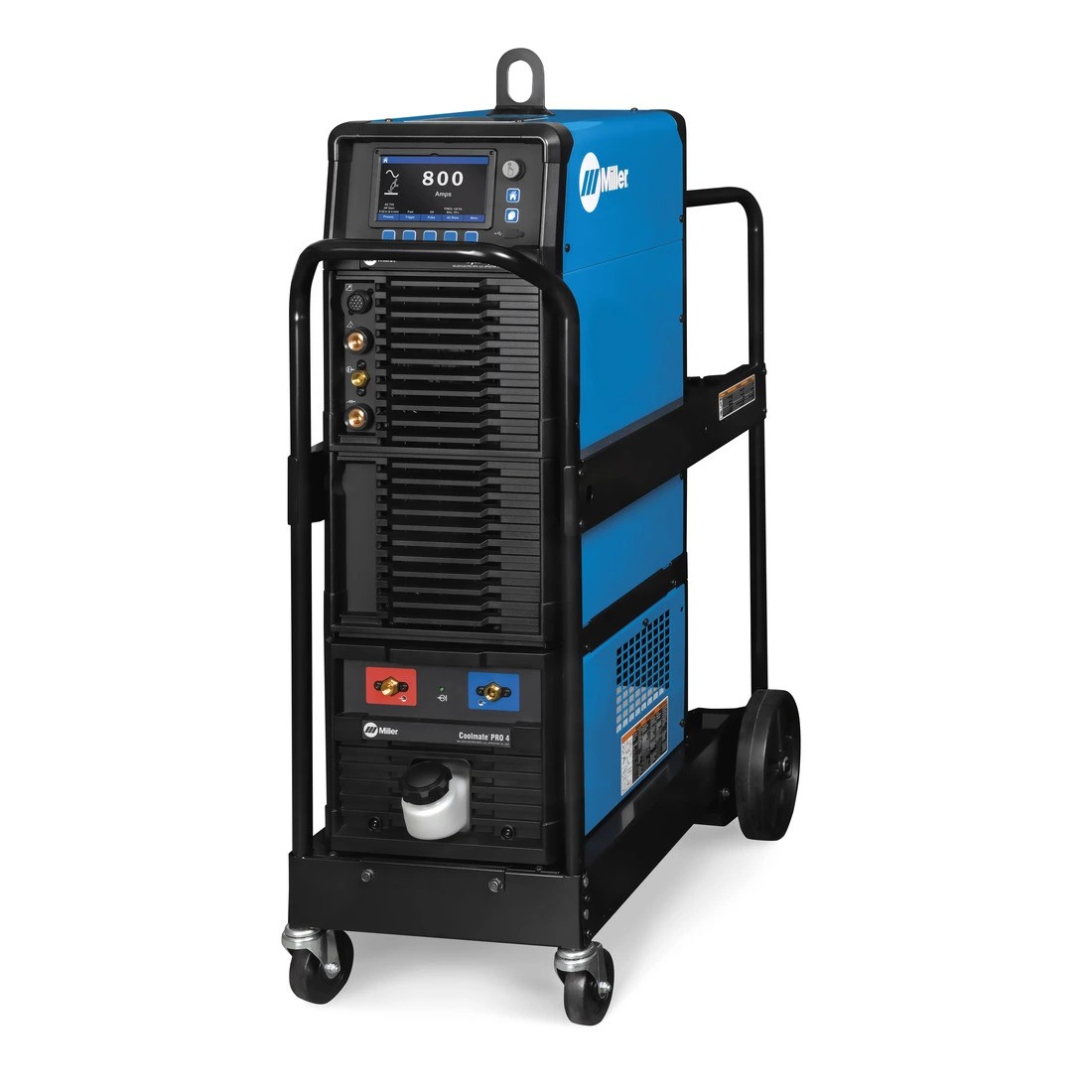

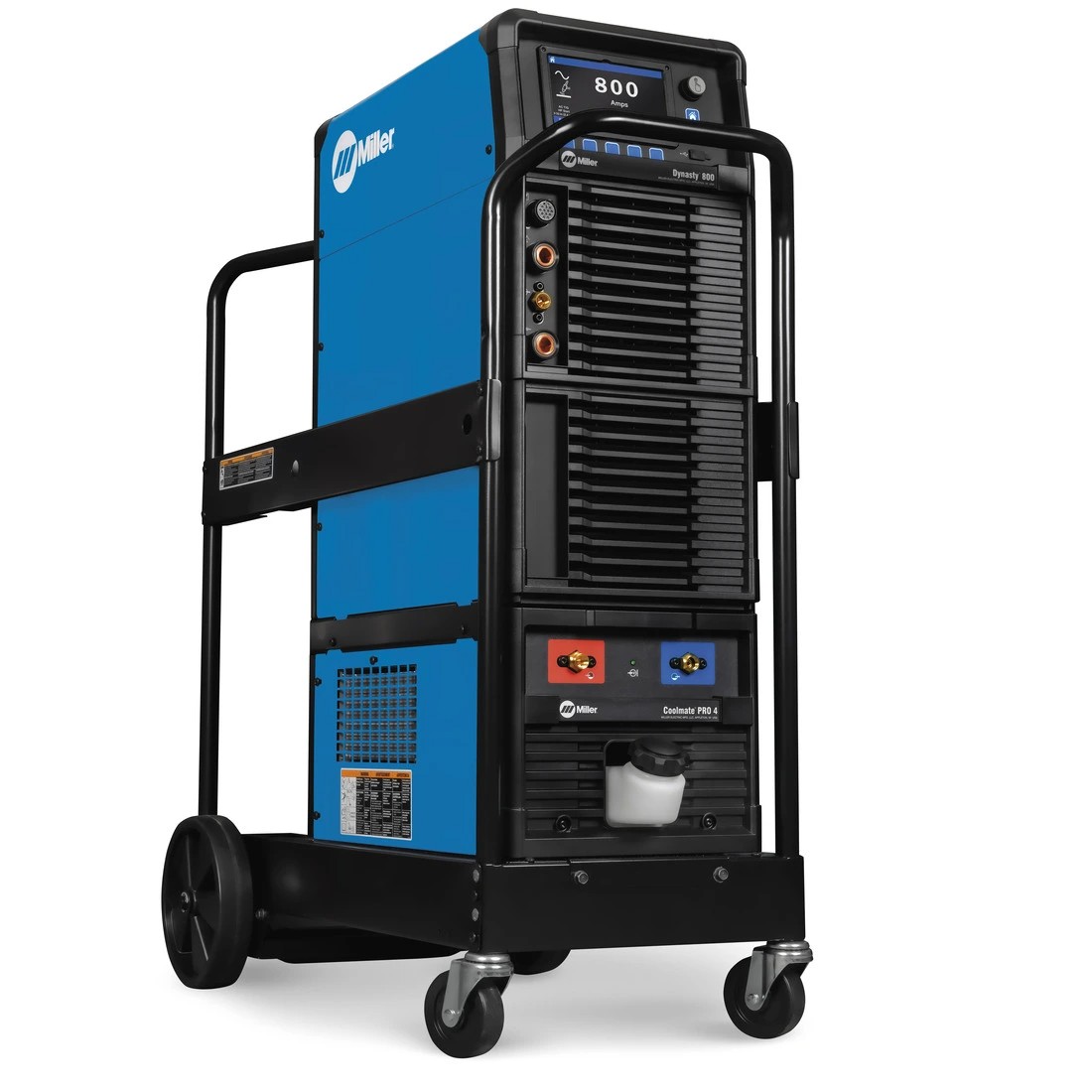

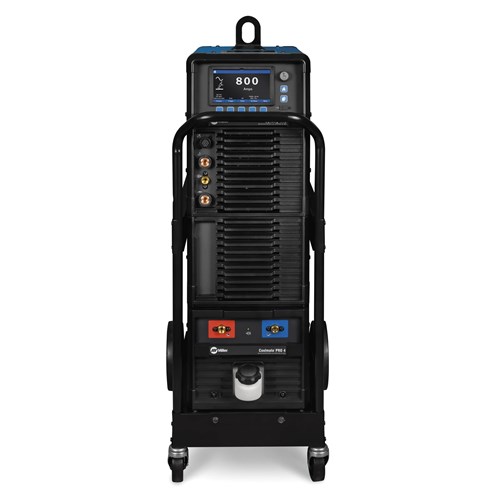

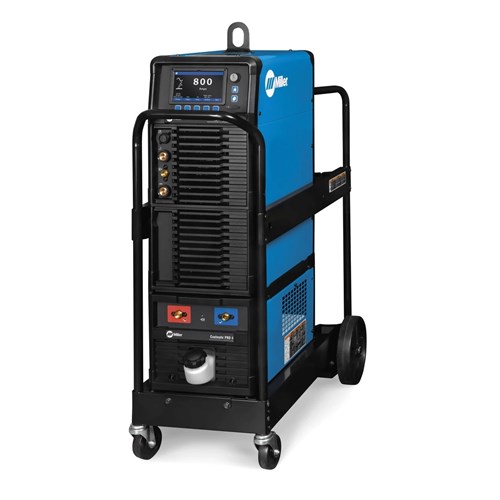

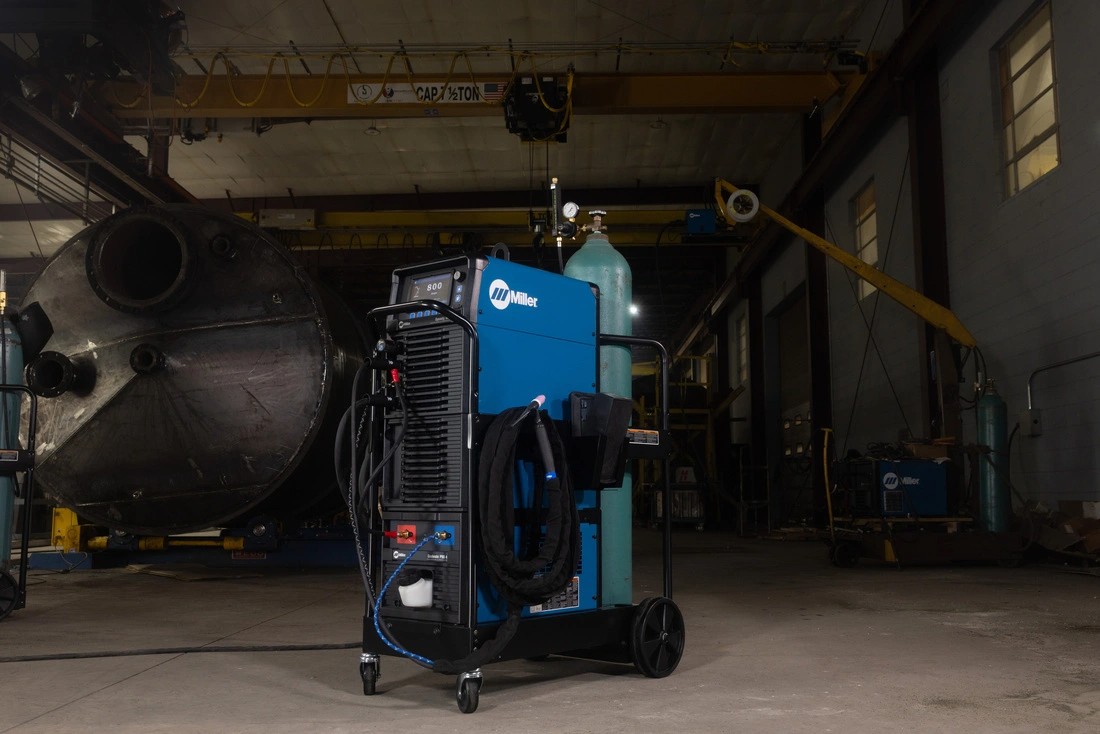

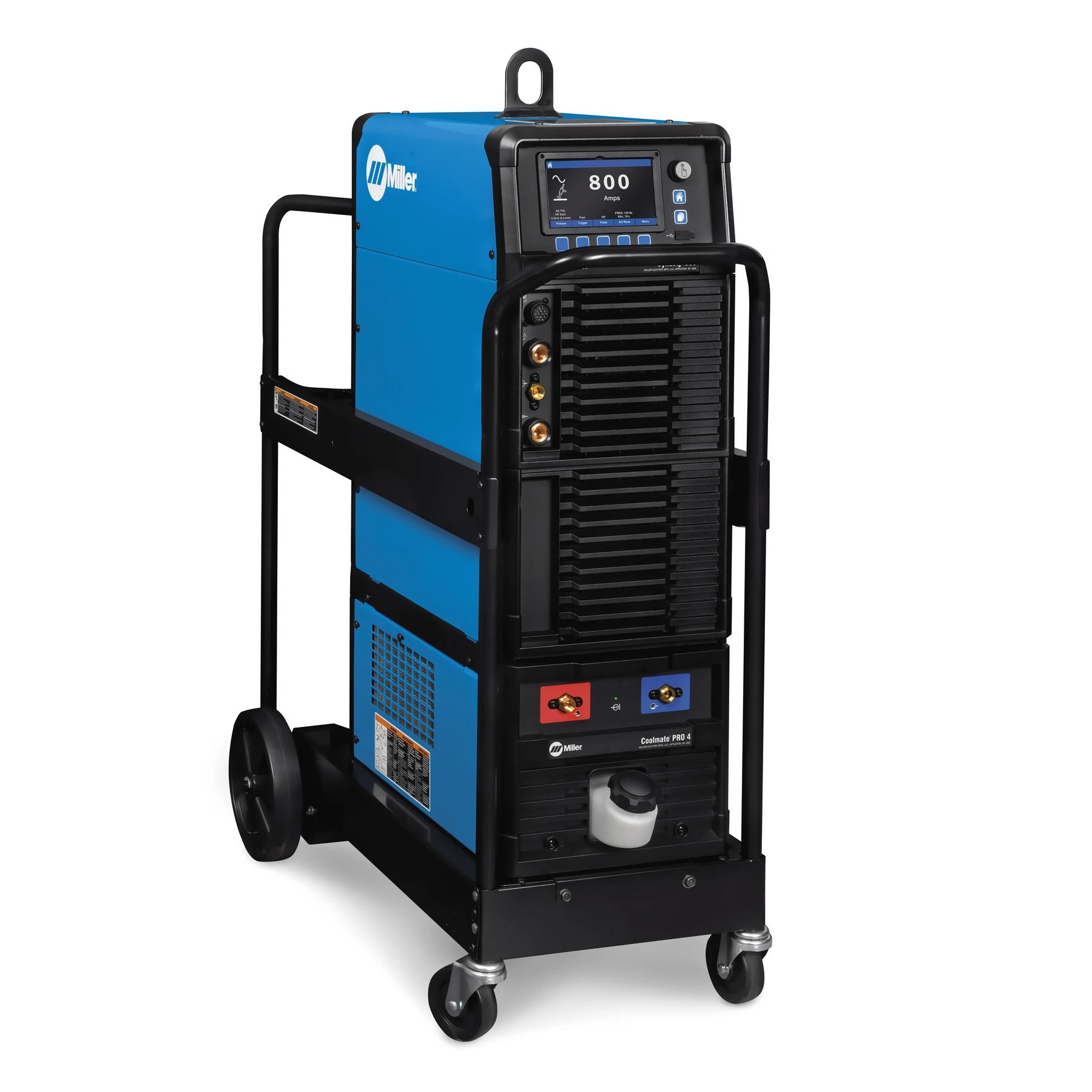

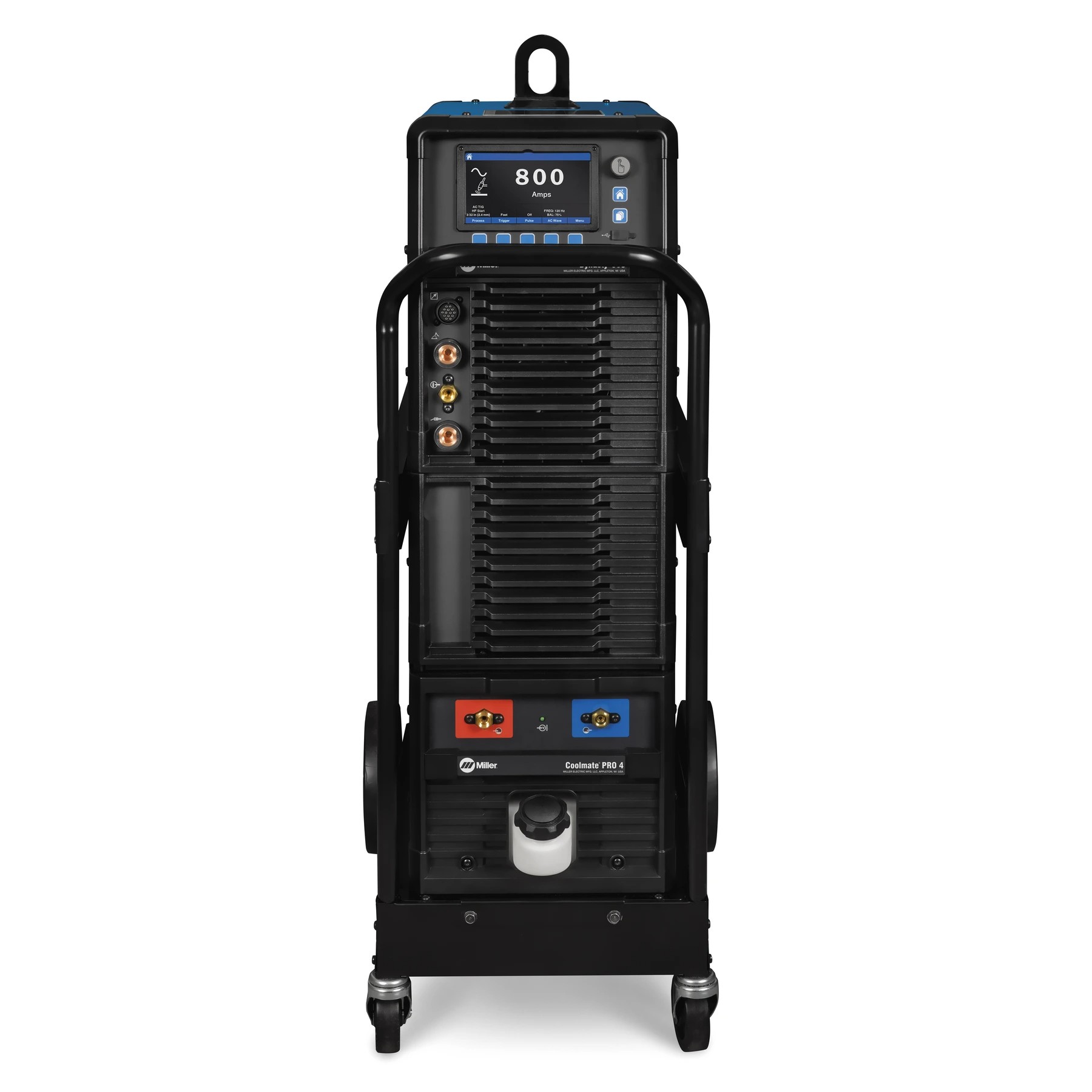

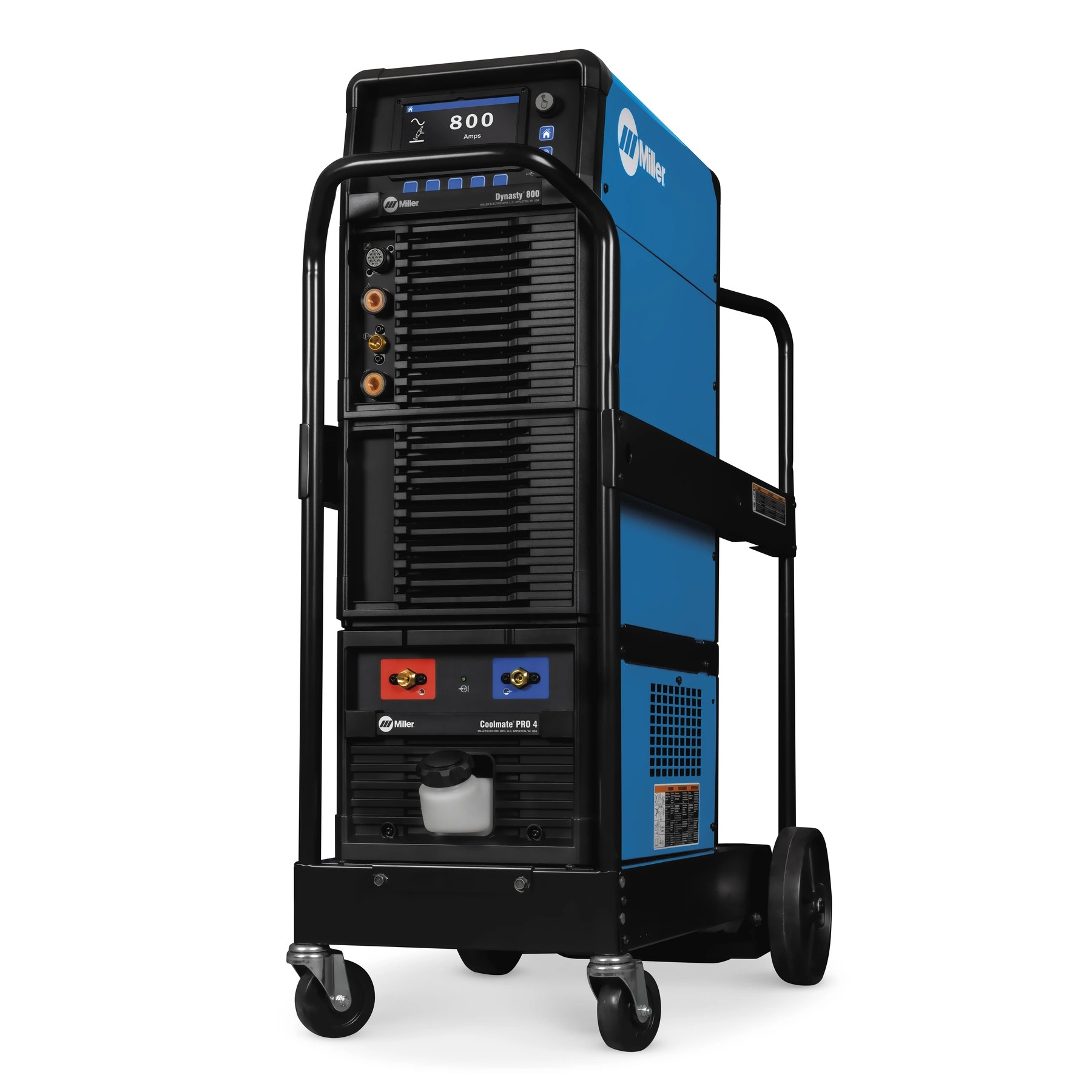

Miller Dynasty® 800 TIGRunner AC/DC TIG Welder, 208-600 V #907951001

The Dynasty® 800 TIGRunner mounts the 800-amp Dynasty 800 and a Coolmate™ PRO 4 water cooler on a four-wheel Runner cart. It welds aluminum and steel up to 1 inch thick and is rated at 600 amps at 60% duty cycle. Add coolant and a water-cooled torch to complete a high-amperage TIG station that moves around the shop as one unit.

Highlights

• Water-Cooled System on One Cart: Welder and cooler ride together on the Runner cart for easy moves between work areas.
• Cooler Power Supply (CPS): The Dynasty 800 powers the Coolmate PRO 4 from a dedicated receptacle. No separate outlet is needed for the cooler.
• 800-Amp Output: 5 to 800 A range with a 600 A rating at 60% duty cycle.
• Auto-Line™ Technology: Connects to single-phase or three-phase power from 208 to 600 V with no manual linking.
• Advanced AC TIG Controls: Independent EP and EN amperage, extended AC balance, and 20 to 400 Hz AC frequency for precise aluminum work.
• Four AC Waveforms: Advanced Squarewave, Soft Squarewave, Sine, and Triangular.
• High-Speed DC Pulse and QuietPulse™: Up to 5,000 pulses per second, with Sine or Triangular waveshapes for a quieter pulsed arc.
• Program Memory and Locks/Limits: 99 named programs with USB transfer and locked parameter ranges to keep operators inside the WPS.
• Pro-Set™: One-press presets for balance, frequency, pulse, and DIG.
• Blue Lightning™ HF Arc Starter: Reliable non-contact arc starts.
• Stick and Gouging: Adjustable DIG and Hot Start™ for 7018 and 6010 electrodes, plus carbon arc gouging up to 3/8 inch.

What's Included

• Dynasty® 800 power source
• (1) Water-cooled thread-lock torch adapter #225028 for #18 or #20 torches
• Coolmate™ PRO 4 water cooler
• Runner cart

Coolant and torch are sold separately. Miller recommends Low-Conductivity Antifreeze/Coolant #043810.

Applications

• Heavy aluminum fabrication
• Aerospace manufacturing
• Shipbuilding
• Process pipe
• High-amperage production welding
