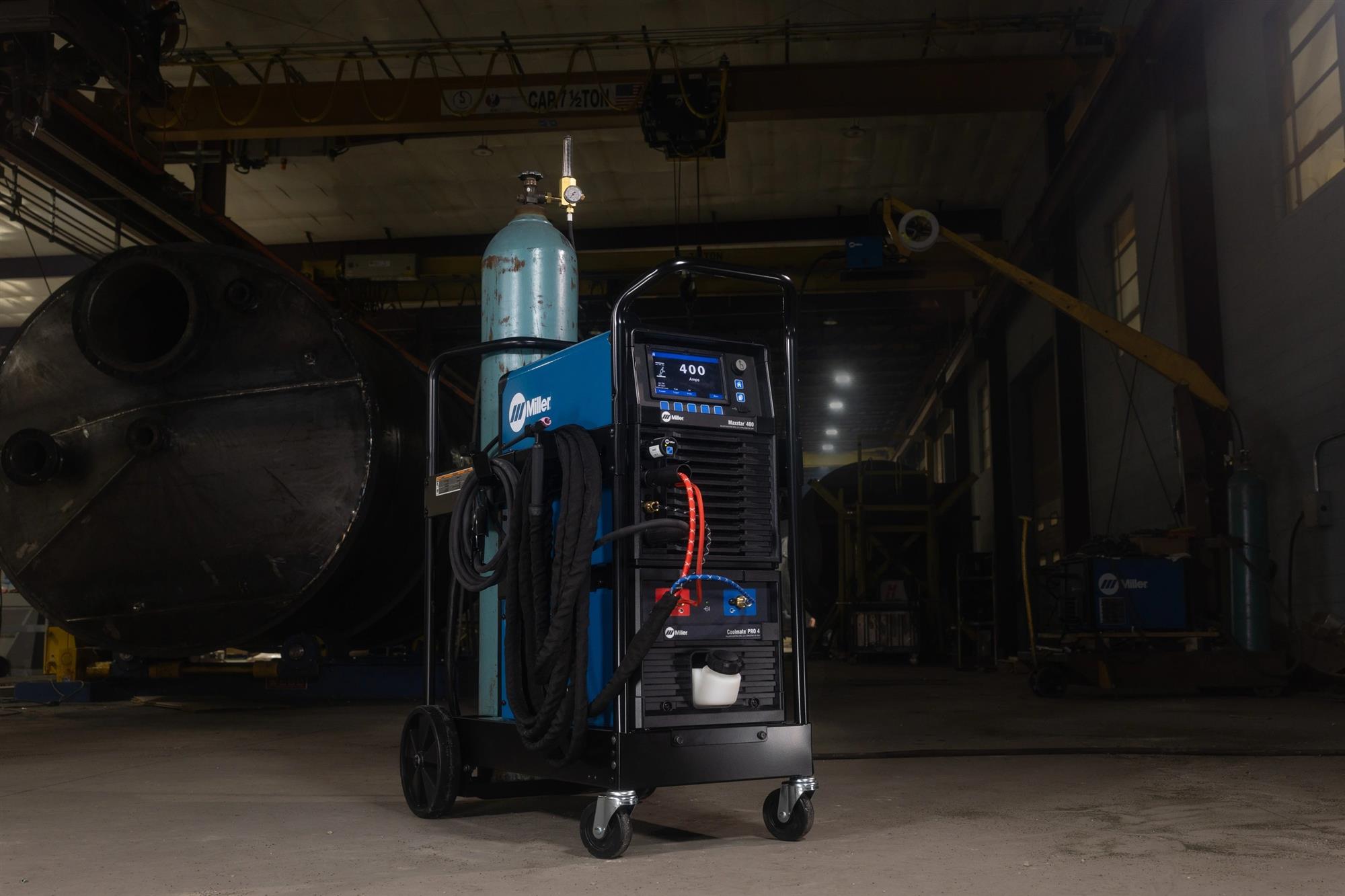

Miller Maxstar® 400 Wireless Foot Control Complete #951000265

The Maxstar® 400 Wireless Foot Control Complete is a ready-to-weld water-cooled DC TIG system in a single package. It pairs the Maxstar 400 inverter with a Coolmate™ PRO 4 cooler, Runner cart, coolant, a water-cooled torch kit, and Miller's wireless foot control. The welder delivers 3 to 400 amps for steel and stainless up to 5/8 inch thick.

Highlights

• Complete Water-Cooled TIG System: Power source, cooler, coolant, torch, cart, and foot control arrive together as matched components.
• Wireless Foot Control: Takes the pedal cable off the floor. Miller rates it for a 90 ft range and up to 1,500 hours of battery life.
• Coolmate™ PRO 4 with CPS: The 4-gallon cooler runs off the welder's dedicated Cooler Power Supply receptacle.
• Auto-Line™ Technology: Connects to single-phase or three-phase power from 208 to 600 V with no manual linking.
• High-Speed DC Pulse and QuietPulse™: Up to 5,000 pulses per second, with Sine or Triangular waveshapes for a quieter pulsed arc.
• Program Memory and Locks/Limits: 99 named programs with USB transfer and locked parameter ranges to hold operators to the WPS.
• Pro-Set™: One-press presets for pulse and DIG.
• Blue Lightning™ HF Arc Starter: Reliable non-contact arc starts.
• Stick Capability: Adjustable DIG and Hot Start™ for 7018 and 6010 electrodes.

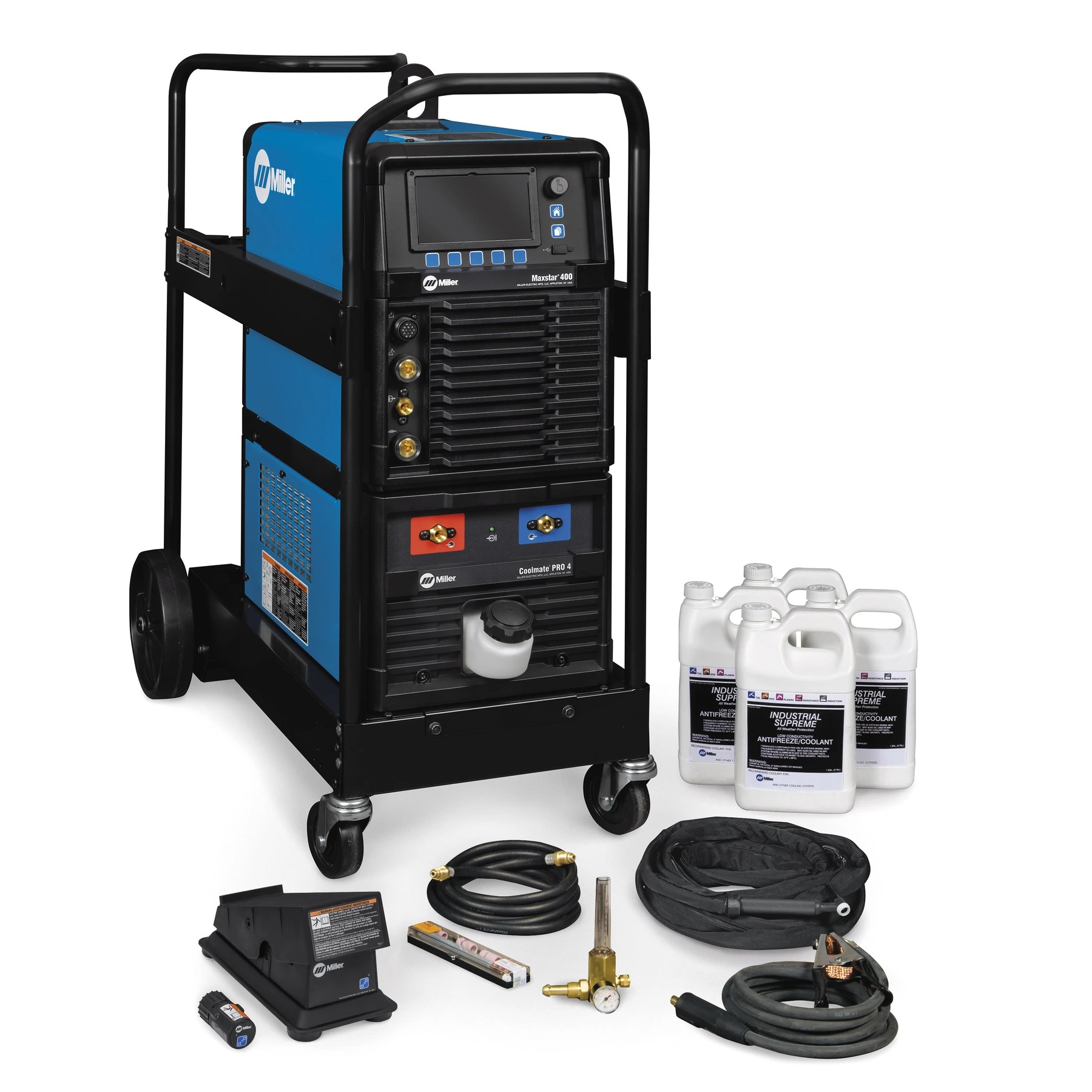

What's Included

• Maxstar® 400 power source
• 8 ft. (2.4 m) primary power cord
• Coolmate™ PRO 4 water cooler
• Runner cart
• Low-Conductivity Antifreeze/Coolant #043810 [confirm quantity with Miller]
• Weldcraft™ water-cooled torch kit [confirm model with Miller]
• Wireless Foot Control System #301580

Applications

• Process pipe
• Tube and pipe fabrication
• Pressure vessels
• Stainless steel fabrication
• Production TIG welding
