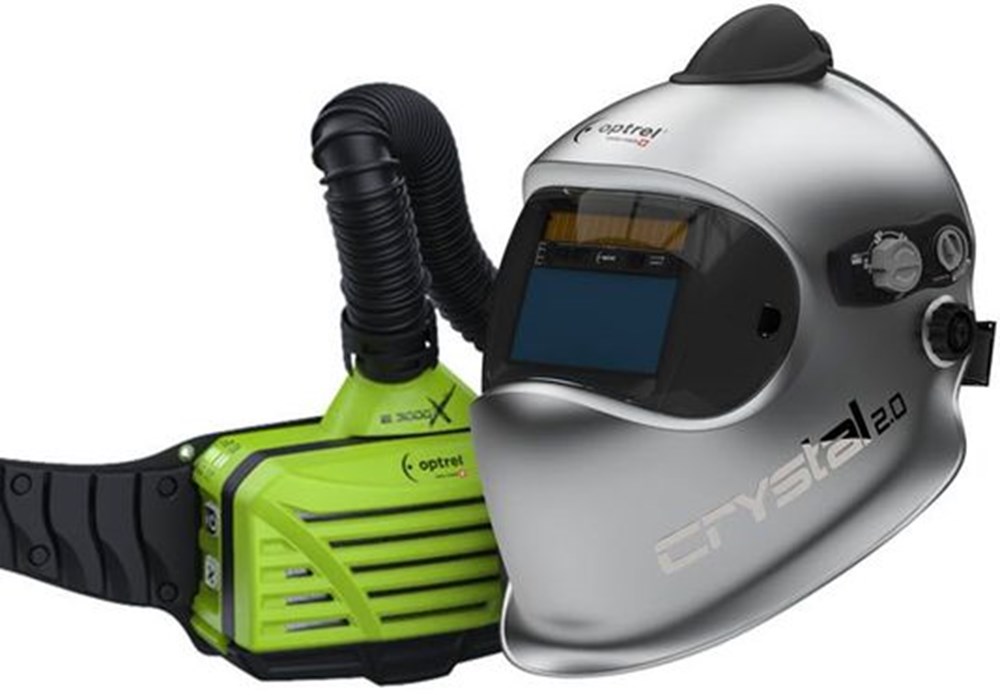

Optrel e3000X PAPR w/ Crystal 2.0 Welding Helmet 4530.051

Part Numbers: 4530.051

Included with your purchase ( ) :

$1,573.70 $2,023.00*
SAVE $449.30
$1,573.70 $2,023.00*
SAVE $449.30

Optrel

Optrel e3000X PAPR w/ Crystal 2.0 Welding Helmet 4530.051

You won’t believe your eyes.

With a light transmission of 31% in bright condition (protection level 2!) welders have for the first time a practically unclouded and clear view of their working environment. This in combination with the almost perfect color spectrum of the CLT2.0 for the first time allows welders to see what is really going on in the weld pool, and with a clarity that equates to insights into a new dimension. This is why welders describe this as enlightenment.

  • Crystal Lens Technology
  • Brightness level of 2.0
  • Shade levels 4 to 12

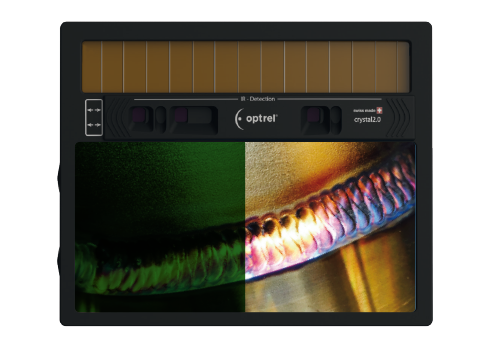

True color vision – directly when welding.

For the first time in the history of welding, you as a welder see the joining process as it actually takes place. How the weld pool melts, how the weld seam is created. You can see how the filler material is immersed in the welding pool and gain complete control over your work.

CLT offers you brilliant vision, like through a windowpane. Crystal clear. And thanks to Optrel Autopilot always with the right protection level.

True color means not the same as true color

As far as always the distinction can be seen upon taking a closer look. With the crystal lens technology, you will recognize the difference immediately when putting it on.

The color perception in light state is almost like looking through clear window glass and in dark mode, you enjoy a detailed and high-contrast view of the welding pool with a never-seen-before clearness.

For Maximum of Comfort at Welding:

  • Integrated Particle Filter of the highest Safety Class (TH3)
  • Protects reliably from Smoke, Aerosols, and Dust
Check out more Optrel welding equipment or contact Welders Supply to find the right welding helmet.

Fields of Application:

  • Elektrode Welding (Stick Welding, SMAW)
  • MIG/MAG (GMAW)
  • GMAW High melting rate process
  • Flux Cored Wire Welding
  • TIG Welding (GTAW)
  • Plasma Arc Welding
  • Micro Plasma Arc Welding
  • Plasma Cutting
  • Grind Mode

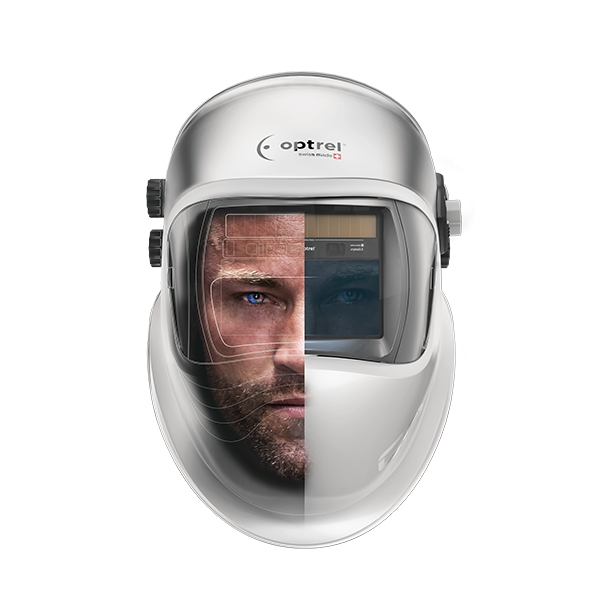

Optrel Crystal 2.0 Welding Helmet

Shade levels
inactive: shade level 2.0
active, manual: shade level 4-12
Autopilot Automatic protection level regulation across a range from 4-12 with individual calibration option of ± 2
Power Supply
Solar cells, 2 lithium batteries (CR2032)
Sensors
Three Sensors
Sensitivity
Infinitely adjustable, now with “super high” sensitivity
Switching time
bright to dark: 0.100 ms at room temperature at 55°C
0.070 ms at 55°C
dark to bright: 0.1 s to 2.0 s (with dimming function)
EN379 classification
Optical class: 1
Scattered light: 1
Homogeneity: 1
Angular dependence: 2
Shape stability
Welding mask: up to 220 °C / 428 °F
Front cover lens: up to 137 °C / 279 °F
Eye protection Ultraviolet / Infrared Protection
maximum protection at any shade level
Operating temperature
Welding mask: up to 220 °C / 428 °F
Front cover lens: up to 137 °C / 279 °F
Eye protection
Ultraviolet / Infrared Protection: maximum protection at any shade level
Operating temperature
-10°C to + 70°C / 14°F to 158°F
Storage temperature
-20°C to + 80°C / -4°F to 176°F
Weight
460 g / 18,7 oz
Scope of delivery
Welding helmet, manual
Warranty
2 years
1-year warranty extension (except batteries) for online product registration within the first 6 months.

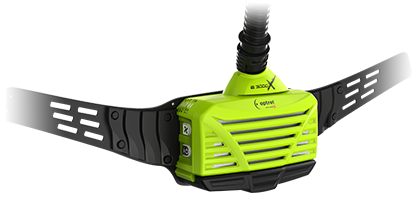

Optrel e3000X PAPR

Protection level
TH3 (EN 12941)
Air flow levels
Level 1: min. 170 l/min
Level 2: min. 210 l/min
Level 3: min. 240 l/min
Fuse
Electronic fuse
Sound level
max. 70dbA
Dimensions
222 x 213 x 92,6 mm (LxWxH)
Sensitivity
Infinitely adjustable, now with “super high” sensitivity
Weight
1560 g (incl. filter, belt and battery)
Color
green
Filter type
TH3P R SL filter for TH3P System (EU)
Hose length
0.7 m (extensible up to 1.3 m)
Scope of delivery
PAPR system with hose, battery, TH3P R SL filter, belt, charger, parking buddy, transport bag, manual
Warranty
2 years on production and material, 6 months on battery
