Miller Dimension™ 650 ArcReach™, 4-Pack Rack, fused 460 Vac 907701

Part Numbers: 907701
$50,617.00
$58,458.00* Save $7,841.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Power supply:

    460V

    460V

    • 460/480V
    • 3 Phase
    • Multi-Process
    • 3-Year Warranty

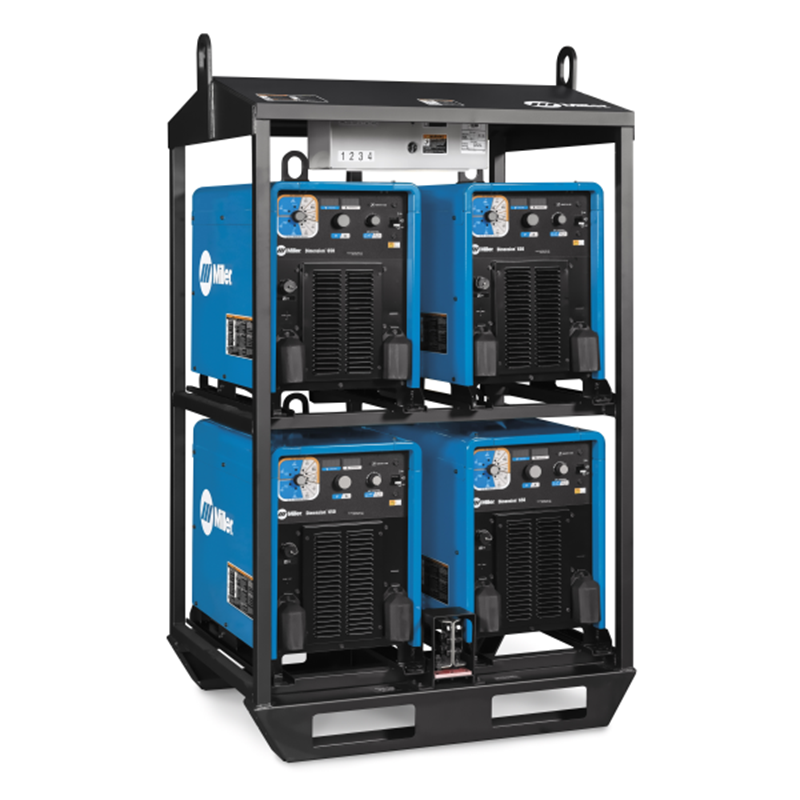

    Miller Dimension™ 650 ArcReach™, 4-Pack Rack, fused 460 Vac #907701

    Miller Dimention 650 ArcReach #907701 Features

    ArcReach Technology Exclusive ArcReach technology uses the existing weld cables to communicate changes in voltage settings. With an ArcReach system, voltage and wire-feed-speed controls are conveniently located at the operator’s fingertips – not back at the power source.

    Increased Productivity More arc-on time and reduced exposure to workplace hazards for operators can be realized using ArcReach because less time is spent going back to the welding power supply to set process and arc voltage.

    Auto-Process Select™ System automatically returns to Dimension setting when ArcReach communication is terminated. For example, if the Dimension is set to gouging at 650 amps and an ArcReach feeder is connected, the Dimension will go to a MIG/FCAW process. If the feeder is disconnected, the Dimension will go back to its previous setting (gouging at 650 amps).

    Primary Power Connection One easy connection allows six welders to be connected with one primary power drop.

    Environmental Protection Meets IP23, which is more stringent than IP23S or IP23M ratings, providing the most reliable outdoor package.

    Protected from the elements The electrical junction box is located well under the galvanized roof panel. Rack roof panel and power source shelves are fabricated from galvanized steel and painted for added protection in harsh environments.

    Protected Electrical Connections Liquid-tight strain reliefs provided on both welding power source and electrical junction box. Strain relief is designed to resist salt water, alcohol, oil, grease and common solvents.

    Easy to move Lifting eyes simplify transportation using crane or overhead lifting device. Lift truck side and end fork pockets in base to enable loading and worksite repositioning with fork lift

    Work Terminal Isolated work terminal provides a convenient connection point for common workpiece construction.

    Running Gear (Optional) This racks can be equipped with optional running gear. The large five-inch diameter wheels enables the rack to be moved over grating and driveway gravel.

    ROI Calculator See how upgrading to ArcReach technology can increase your productivity and profits.

    Shop all of our top quality Miller welding equipment and welding machines online!

    Specifications

    PROCESSES

    Air Carbon Arc Cutting and Gouging (CAC-A)
    Flux Cored (FCAW)
    MIG (GMAW)
    Stick (SMAW)
    Submerged Arc (SAW)
    Aluminum Welding
    TIG DC (GTAW-DC)

    GENERAL SPECIFICATIONS

    Title Dimension™ 650 ArcReach™, 4-Pack Rack, fused 460 Vac
    Industries Interests Construction
    Fabrication
    Infrastructure
    Maintenance and Repair - Field Operations
    Shipbuilding
    Connector Style 1/2 inch studs
    Weldable Metals Specialty Metals
    Stainless Steel
    Steel
    Input Voltage 380/400 V
    460/480 V
    Rated Carbon Diameter 3/8 in (9.5 mm)
    Input Phase 3-Phase
    Input Hz 50/60 Hz
    Current Type DC
    Max Open Circuit Voltage 87 VDC
    Rack Capacity 4
    Weld Output CC / CV
    Net Width 34 in
    Net Height 76 in
    Net Length 44.5 in
    Net Weight 950 lbs
    Warranty 3 Years
    Miller's True Blue Warranty
