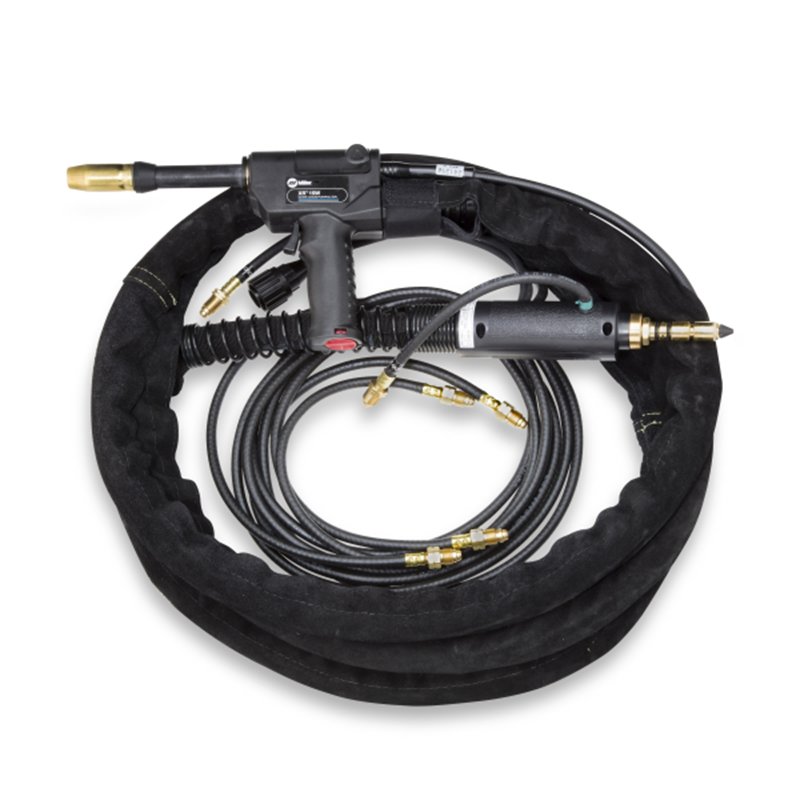

Miller XR-15W 198129
Part Number: 198129
UPC: 715959244701
$3,127.00
$3,127.00*
SAVE $0.00
Starts at $521.17/month with
DocumentsMiller XR-15W 198129
Reliable, cost-effective gun for light- to medium industrial applications.
Features:
Heavy-duty Construction
- All internal components are designed to provide long lasting performance and feeding precision.
Replaceable Feed Cable Liner
- Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.
Trigger Hold
- Reduce fatigue by allowing operators to weld without holding gun trigger. (Feature available when paired with XR-Control.)
Contact Tips
- Accepts single-turn, quick-change FasTip™ and Bernard® Centerfire™ contact tips.
Multiple Configurations
- Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.
Complete Your System
- XR-Pistol guns work in conjunction with XR-Control wire feeders to provide the best solution for push-pull applications.
View our large selection of welding machine accessories for the greatest values online.
| Welding Output Rating | 200 A at 100% Duty Cycle |
| Wire Diameter Capacity | .030 - 1/16 in (0.8 - 1.6 mm) aluminum wire and hard wire up .045 in (1.1 mm) |
| Wire Speed | 70 - 875 IPM (1.8 - 22.2 m/min) |
| Max Spool Size Capacity | 4 in (102 mm) |
| Cable Length | 15 ft (4.572 m) |
| Net Height | 7.375 in. (187 mm) |
| Net Length | 10.625 in. (269 mm) |
| Net Width | 1.875 in. (47 mm) |
| Net Weight | 2.4 lb (1.08 kg) |
| Processes | MIG (GMAW) with aluminum wire and other soft alloys Pulsed MIG (GMAW-P) with pulsing power source |
| Heavy Industrial Applications | High Purity Precessing Manufacturing Railcar Shipbuilding |
| Warranty | 1 year - Miller's True Blue Warranty |
