Razorweld RWX7000 Automatic Welding Helmet
Part Number:
RWX7000
Razorweld RWX7000 Automatic Welding Helmet
Part Number:
RWX7000
DocumentsRWX7000 Welding Helmet

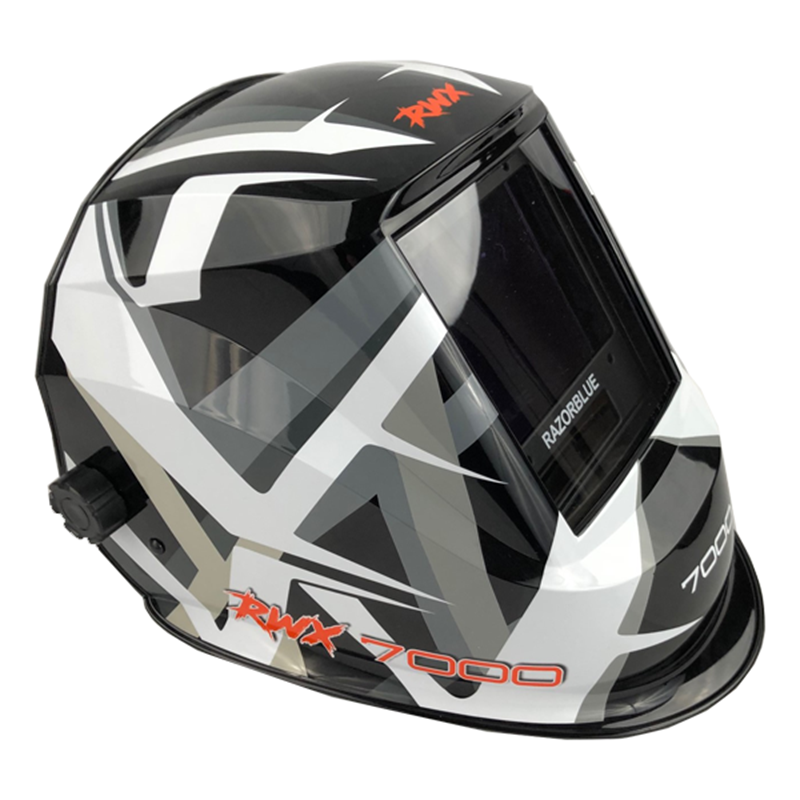

The RAZORWELD RWX7000 ADF DIGITAL welding helmet combines premium RAZORBLUE lens technology with fully digital controls for shade, delay, sensitivity, and grind mode. It features a large 3.94" x 3.28" viewing area, 4 arc sensors, memory function, and solar + battery power. With CSA, ANSI, and CE certification, it’s the perfect blend of style, safety, and high-end performance — all backed by a 2-year warranty.
Highlights
- Wide Digital Viewing Area: 3.94" x 3.28" lens provides a spacious, clear view of the weld area
- RAZORBLUE Lens Technology: Enhances visibility with high-clarity, true-color optics
- Fully Digital Operation: Digital control of shade, delay, sensitivity, and grind mode for precision and ease of use
- Custom Memory Settings: Save your favorite settings for quick recall across multiple jobs
- Reliable Arc Detection: 4 arc sensors for fast and accurate auto-darkening response
- Advanced Eye Protection: Optical classification 1/1/1/1 with variable shade 5–9/9–13 and DIN 15 UV/IR protection
- Safety & Convenience Features: Includes grind mode, low battery indicator, and grind flash warning
- Dual Power Source: Solar-powered with replaceable battery backup for consistent performance
- Durable & Comfortable: Lightweight with full head and neck coverage and a 2-year warranty
| Feature | Specification |
|---|---|
| Filter Dimensions | 4.5" x 5.2" |
| View Size | 3.94" x 3.28" |
| Classification | 1/1/1/1 |
| Arc Sensors | 4 |
| Light State | DIN 4 |
| Dark Shade Range | DIN 5–9 / 9–13 |
| Power Control | Fully Automatic |
| Switching Time | 0.04 ms |
| Sensitivity Control | Adjustable (Internal) |
| Delay Time Control | Adjustable (Internal) |
| Time from Dark to Light | Adjustable |
| Grinding Function | Yes |
| Grind Warning Flash | Yes |
| Low Battery Indicator | Yes |
| Operating Temperature | 14°F – 149°F |
| Storage Temperature | -4°F – 185°F |
| Power Supply | Solar + Replaceable Battery |
| RazorBlue Lens | Yes |
| Memory Function | Yes |
| Certifications | CSA / CAN, ANSI, CE |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 1 Lb(s) 0 Oz |
