Razorweld RazorTig 200 AC/DC TIG/Stick Welder #JRW200PAC/DCdi
Part Number: JRW200PAC/DCdi
Welding type:
TIG
DocumentsRazorTig 200 #JRW200PAC/DCdi

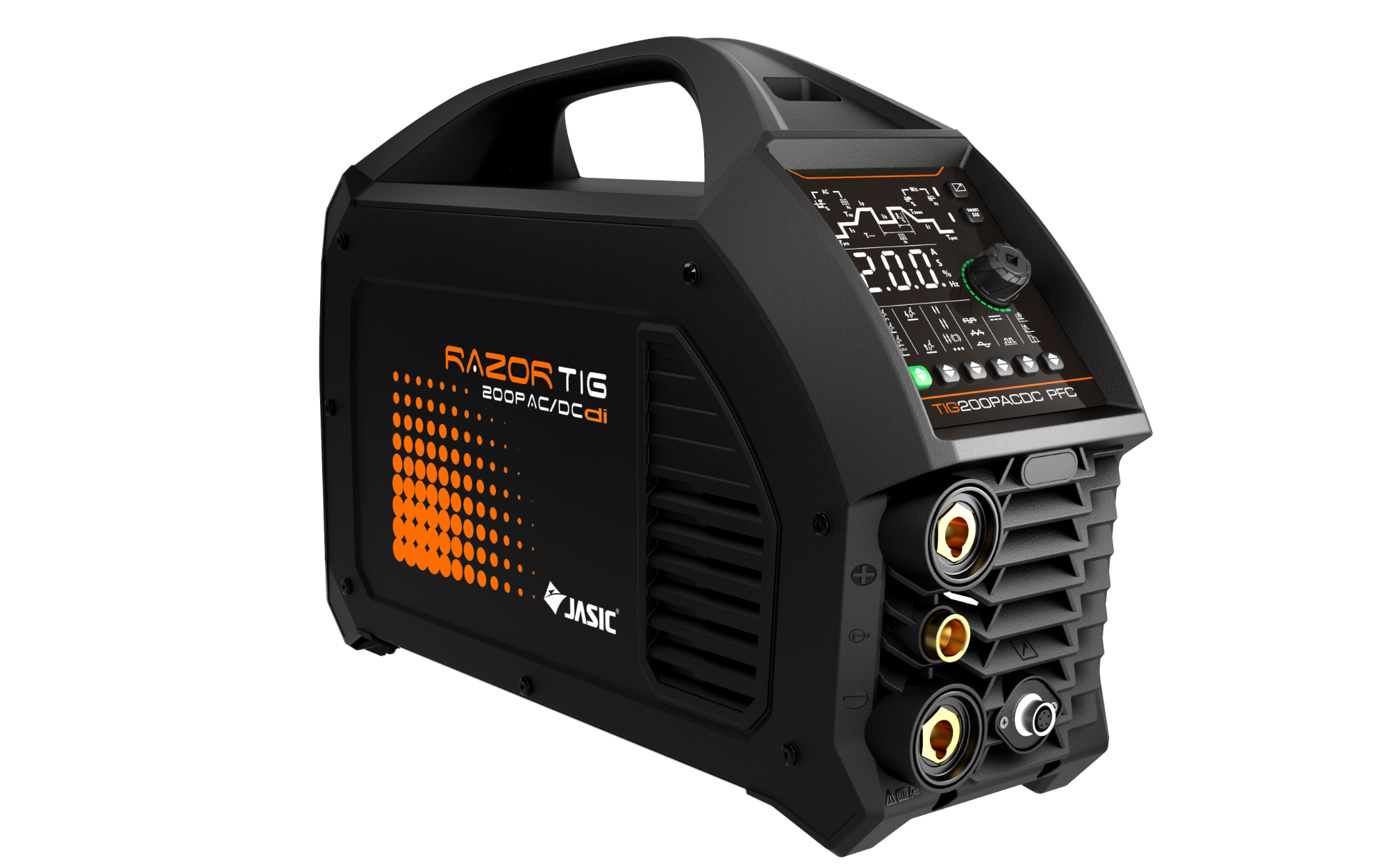

The RAZORTIG 200 AC/DC is a versatile, professional TIG welding machine built for serious welders. With full AC/DC capabilities, high-frequency start, Smart Lift TIG, multiple AC waveform options, and pulse TIG controls, it delivers premium performance on aluminum, steel, and more. Packed with advanced technologies like ClearVision, Dash-Arc, ABAP, and Smart Gas, the RAZORTIG 200 is engineered for clean, precise welding in a compact 26 lb package.
Highlights
- AC/DC TIG & Stick Capability: Weld a wide range of materials including aluminum and stainless using both AC and DC output modes

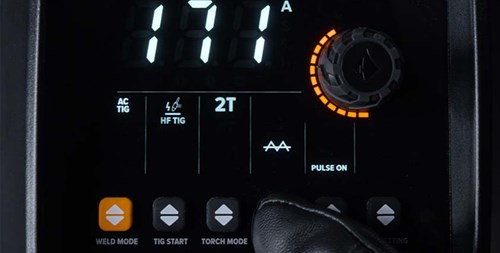

- Advanced TIG Controls: Full pulse TIG features including waveform shaping, frequency control, and Smart Lift TIG
- HF Arc Start & Dash-Arc: High-frequency start for arc stability and Dash-Arc for quick, consistent arc ignition
- ClearVision Technology: Enhanced visibility during the weld for greater control and precision
- Smart Gas Efficiency: Automatically optimizes shielding gas use for better economy and performance
- Generator-Ready PFC System: Power factor correction for stable use with generators and long cable runs
- Rugged Portability: Industrial-grade build in a compact 26 lb body with 19.5" x 6.5" x 13.5" footprint

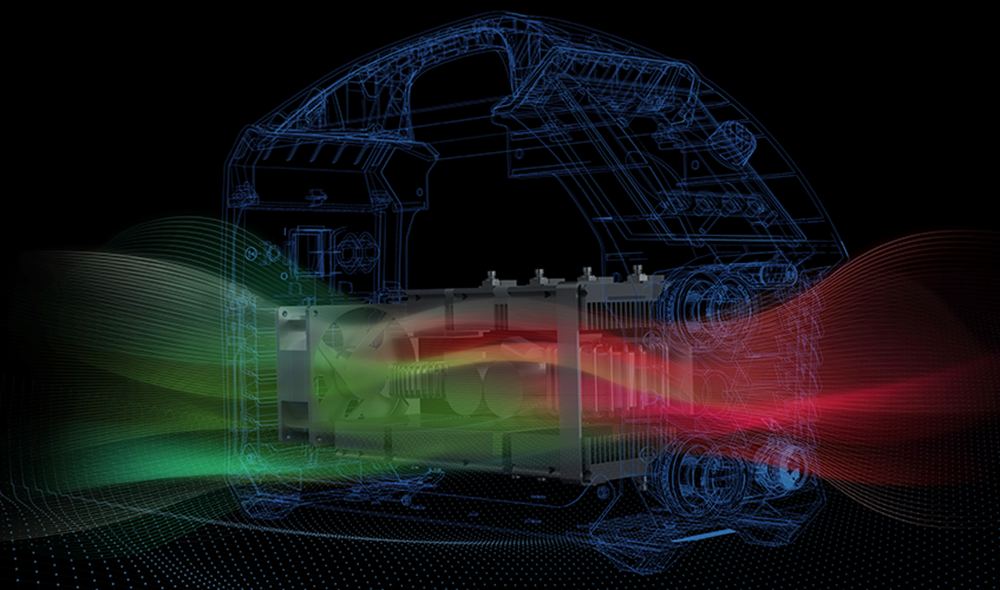

- ABAP Cooling System: Active Balancing Air Passage and on-demand fan for thermal regulation
- Remote & Water-Cooling Ready: Supports flexible remote options and optional water-cooled torch configuration
- Comprehensive Protection: Built-in overcurrent, overheat, VRD, and power circuit protection ensures lasting durability
What's Included:
- RAZORTIG 200 AC/DC Welder
- Arc Lead Set
- Ground Cable
- Power Adaptor
- Foot Pedal
- Tig Torch
- Regulator
- Operating Manual
| RAZORTIG 200 AC/DC Specifications | |
|---|---|
| Input Power | AC 95–265V, 50/60 Hz |
| Open Circuit Voltage | 65V |
| TIG Output Range (DC / AC) | 5–160A / 20–160A (115V), 5–200A / 20–200A (230V) |
| TIG Rated Duty Cycle | 25% |
| ARC Output Range | 10–120A (115V), 10–160A (230V) |
| ARC Rated Duty Cycle | 30% |
| Efficiency | 80% |
| Power Factor | 0.95 |
| Idle State Power | <50W |
| Protection Class | IP23S |
| Insulation Class | H |
| Dimensions (L x W x H) | 19.5" x 6.5" x 13.5" |
| Net Weight | 26 lbs |
SHIPPING DIMENSIONS |
|
| Height: | 13.50 Inches |
| Width: | 6.50 Inches |
| Length: | 19.50 Inches |
| Weight: | 26 Lb(s) 0 Oz |
- RAZORTIG 200 User Manual
- RAZORTIG 200 Brochure
