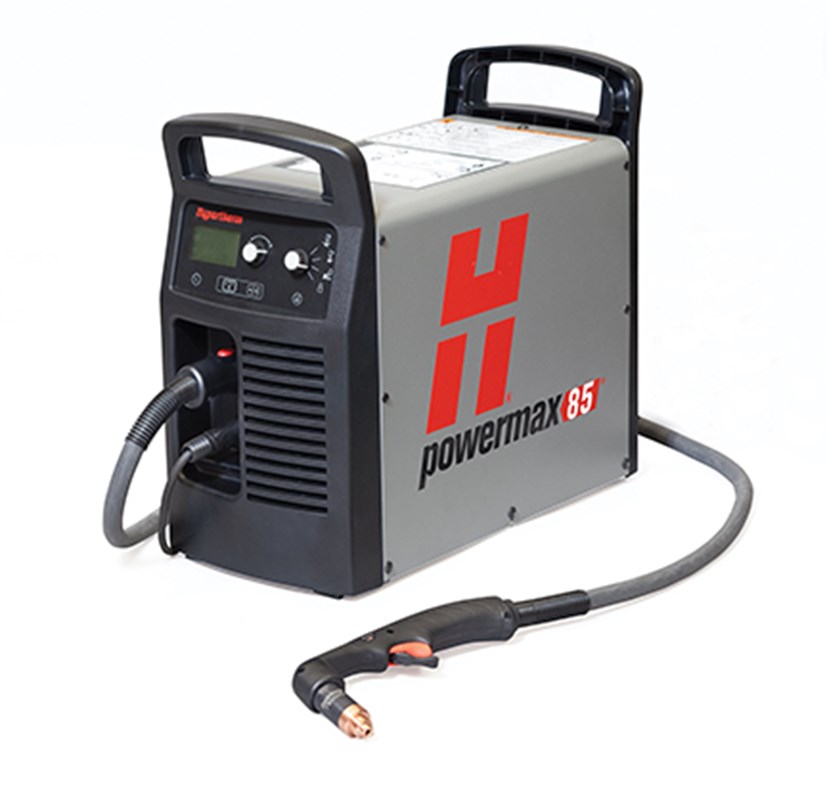

HYPERTHERM POWERMAX 85 W/CPC 25FT 75° AND 15° HAND TORCH PKG (087144)

Part Number: 087144

DISCONTINUED - Replaced by Powermax85 SYNC

Out of Stock
$4,850.00

Cut capacity:

1" and Higher Capacity

1" and Higher Capacity

Hypertherm Powermax85 Air/Nitrogen Plasma Cutter has 200 - 600 V input voltage, 143 VDC output voltage and output current rating of 25 - 85 A. Plasma cutter with 1" recommended cutting capacity offering maximum pierce of 3/4" is used in hand cutting, gouging, automated cutting in X-Y table, track systems, pipe systems and robotic systems. Plasma cutter with 1 1/2" maximum severance includes 75 and 15 hand torches and 25' lead. It offers optimum productivity and features a Smart Sense technology that sets the correct air pressure depending upon the torch length and operating mode. The straighter machine as well as the robotic torches offer great versatility, provide exceptional cut and gouge quality. It takes less time for grinding and edge preparation and wide voltage tolerance enhances the performance on motor generators and in-line low conditions. The Duramax torch renders high impact and heat-resistance and decreases the energy consumption with its high power efficiency. The SpringStart technology delivers uniform starting and produces fast cut speeds. It endures harsh working conditions and stimulates low maintenance, low operating cost for longevity. A gas inlet flow rate/pressure of 189 l/min at 5.6 bar is recommended for cutting and a gas inlet flow rate/pressure of 212 l/min at 0.8 bar is recommended for gouging. Cutter measuring 19.7" X 9.2" X 17.9" offers a duty cycle of 100% at 66 A, 230 - 600 V, 1/3 PH, 40% at 85 A, 200 - 208 V, 1 PH, 50% at 85 A, 200 - 208 V, 3 PH, 50% at 85 A, 240 V, 1 PH, 60% at 85 A, 230 - 600 V, 3 PH, 60% at 85 A, 480 V, 1 PH. Features Maximum productivity and superior cut and gouge quality means less time spent on grinding and edge preparation Easy-to-use for cutting and gouging Smart Sense technology automatically sets correct air pressure based on torch length and operating mode Handheld, straight machine and robotic torches for greater versatility and ease-of-use Wide voltage tolerance improves performance on motor generators and in low-line conditions Built and tested to withstand the harshest conditions Duramax torches are designed for high impact and heat-resistance SpringStart technology ensures consistent starting and a more reliable torch Low maintenance for maximum uptime- it keeps on going! Low operating cost Long consumable life for lower cost and more uptime High power efficiency lowers energy consumption Fast cut speeds: 250% faster than oxyfuel on 12 mm (1/2") mild steel Improved shield reduces dross buildup and enables smoother drag cutting for a better cut Includes 75 and 15 hand torches 25' Lead Applications Hand cutting Gouging Automated cutting: X-Y table, track systems, pipe systems, robotic systems This listing is for Each.

• Rated cut - 1" | Sever cut - 1-1/2"
• Operating voltage - 200-480V 1-phase | 200-600V 3-phase
• Output current - 25-85A
• Duty cycle - 60% @ 85A on 3-phase | 100% @ 66A on 1 or 3 phase
• Dims - 19.7" L x 9.2" W x 17.9" H
• Weight with 25' torch - 71 lbs
• Required pressure - 6.7 scfm @ 5.9 Bar (85 PSI)
• Power cord length - 10' (no plug)
• Engine drive requirements - 20kW for full 85A output | 8kW for 30A full 30A output
