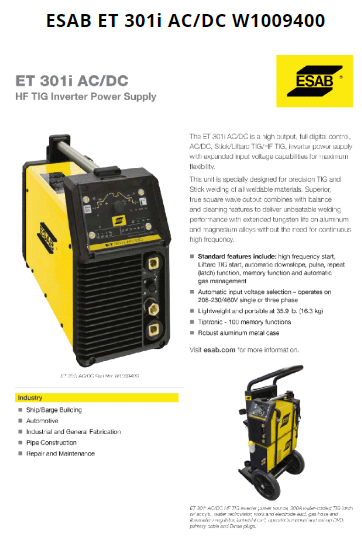

ESAB ET 301i AC/DC W1009400

$6,115.00 $6,962.00 Reduced Price You Save $847.00
Product Number: W1009400
QTY:
Financing AVAILABLE!

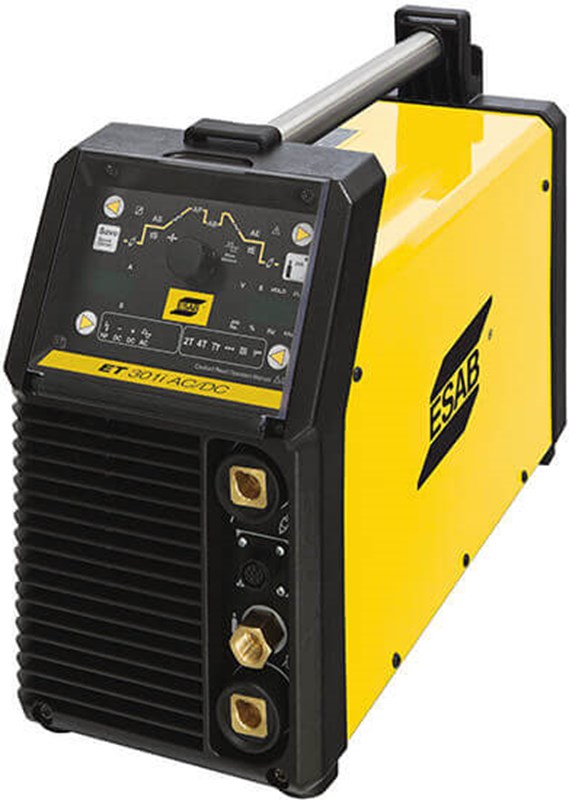

ESAB ET 301i AC/DC W1009400

The ET 301i AC/DC is a

  • high output,
  • full digital control,
  • AC/DC
  • Stick/Liftarc TIG/HF TIG
  • Inverter power supply with expanded input voltage

This unit is specially designed for precision TIG and Stick welding of all weldable materials. Superior, true square wave output combines with balance and cleaning features to deliver unbeatable welding performance with extended tungsten life on aluminum and magnesium alloys without the need for continuous high frequency.

Power source weight without power cable, lb. (kg) 35.9 (16.3)
Power source dimensions, L x W x H, in. (mm) 19 x 7.25 x 13 (483 x 185 x 326)
Standards CSA E60974-1, ANSI/IEC 60974-1
Number of phases 1/3
Supply voltage, VAC – 1/3 ph 208-230/460 +/-15%
Supply frequency, Hz 50/60
Welding current range (Stick), A – 1 ph 10 – 150
Welding current range (Stick), A – 3 ph 10 – 200
Welding current range (TIG), A – 1 ph 5 – 200
Welding current range (TIG), A – 3 ph 5 – 300
Effective input current (I1eff), A (V) – 1 ph 37.3 (208) 33.7 (230) 18.1 (460)
Effective input current (I1eff), A (V) – 3 ph 23.8 (208) 21.6 (230) 11.6 (460)
Maximum input current (I1max), A (V) – 1 ph 37.3 (208) 33.7 (230) 18.1 (460)
Maximum input current (I1max), A (V) – 3 ph 35.4 (208) 32.0 (230) 17.2 (460)
Generator requirement, kW (kVA @ PF) 13 (16 @ 0.8)
Stick (SMAW), A @ V (phase) 150 @ 100% 26 (1) 200 @ 60% 28 (3
Welding output 40ºC (104ºF), 10 min, A @ V (phase) 165 @ 100% 26.6V (3)
TIG (GTAW), A @ V (phase) 200 @ 60% 18 (1) 300 @ 30% 22 (3)
Welding output 40ºC (104ºF), 10 min, A @ V (phase) 170 @ 100% 16.8 (1/3)
Open circuit voltage (VRD active), V <113

ESAB ET 301i AC/DC HD TIG PKG #W1009400 Inverter Power Supply Review



ESAB ET 301i AC/DC HD TIG PKG #W1009400 Inverter Power Supply TIG Welding Tips



ESAB ET 301i AC/DC #W1009400 Inverter Power Supply TIG Welding Basics

Product Questions and Answers


Q - Does this include the TIG torch? A - No, the torch and the foot control are not included. This is for the power source by itself.
Q - Can this be used outdoors? A - Yes, it's an IP23S approved design, so it can be used outdoors.
