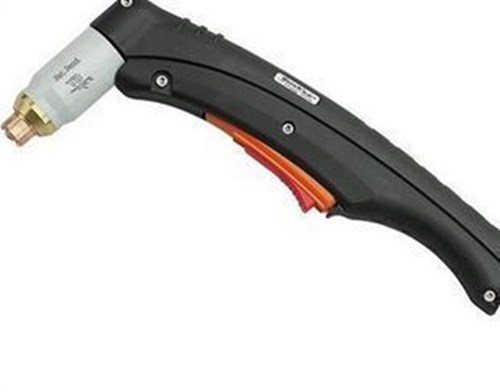

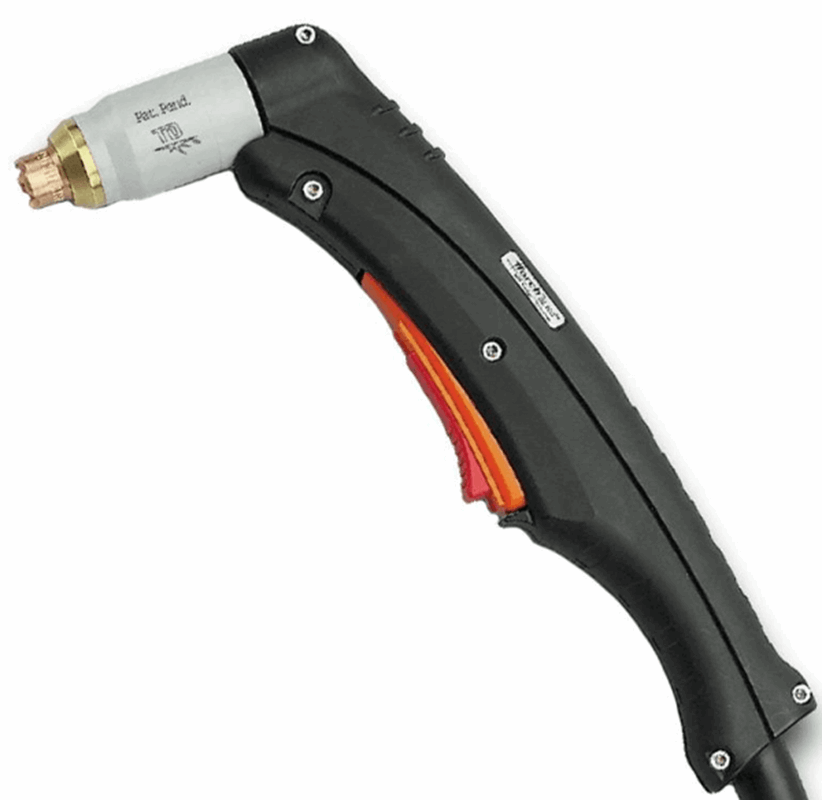

Thermal Dynamics SL-100 #7-5202 (NO QUICK DISCONNECT)
The Thermal Dynamics SL-100 #7-5202 from Welders Supply provides an excellent torch and leads. You’ll be able to use almost all plasma cutting power supplies with the 1Torch™ RPT torch. It’s the first plasma cutting torch which performs with virtually all plasma cutting power supplies. It’s actually universal, working with CD start systems, high frequency start systems, blow back start systems and touch start systems. Use this torch on your plasma power supply and be awed at the flexibility, accuracy and quality. Every performance aspect is extremely impressive. You’ll enjoy all the benefits of the latest technological breakthroughs in the industry. This is truly a high performance torch. The precision-engineered consumables are specially designed for different cutting. All you need to do is change the shield cup. The extended tip gives you excellent visibility so you can do precision drag cutting. A protected tip is perfect for drag cutting (on the plate) at powers as high as 100 amps.
THERMAL DYNAMICS SL-100 #7-5202 Features Cutting-Edge Design
The consumables technology is a completely new breakthrough, providing the best combination of effectiveness and affordability in the entire industry. You may need less than two dozen consumable parts to replace hundreds of others. The Thermal Dynamics SL-100 #7-5202 From Welders Supply has many other benefits, including improved leads, ergonomic torch handle for great comfort and less workplace fatigue, phenolic position tube, ATC lead extension (20 feet) and ATC quick disconnect option. The Thermal Dynamics SL-100 #7-5202 with the 1Torch™ RPT torch is a tremendous offer from Welders Supply. The torch and leads are both covered by a one-year manufacturer’s warranty.
Torch and Leads, SL100, 75 Deg Head, 20 ft Leads, O2B Connection
The 1Torch™ RPT torch is the first plasma cutting torch that performs with virtually all plasma cutting power supplies. The 1Torch works with high frequency start systems, CD start systems, touch start systems and moving parts (blow back) start systems. Install the 1Torch on your current plasma power supply and you immediately benefit from the latest in high performance torch technology available today. Look for the Thermal Dynamics mark on your plasma consumable parts for genuine Thermal Dynamics consumables.
- Ergonomic Torch Handle
- New Phenolic Position Tube
- Extended or Protected Consumable Parts
- Lower Consumable Parts Inventoried and Costs
- Precision Engineered Torch Consumable Parts
- Improved Leads
- ATC Lead Extensions
- One Year Torch & Leads Warranty

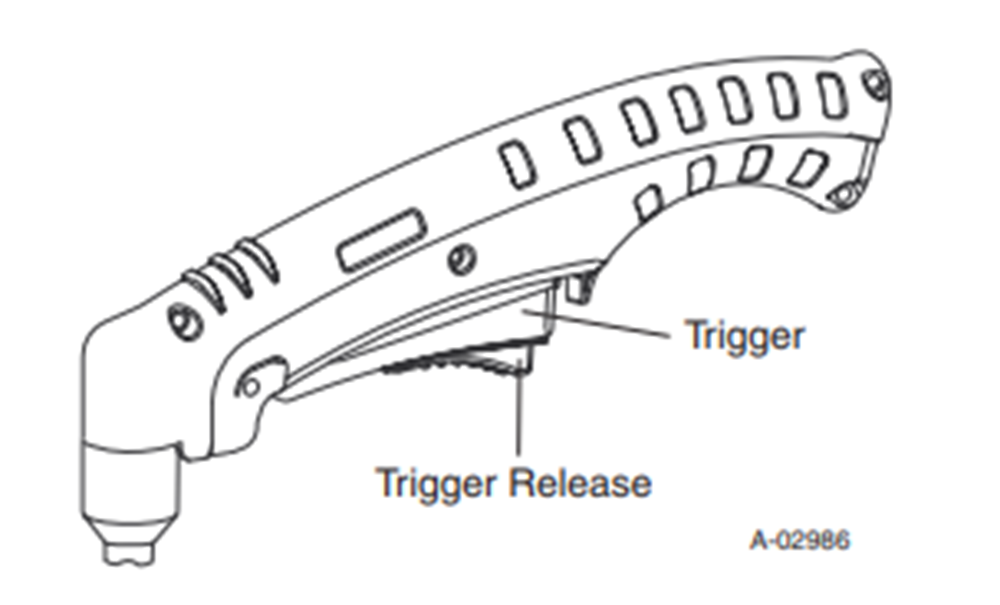

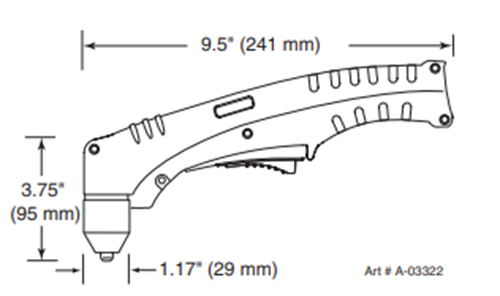

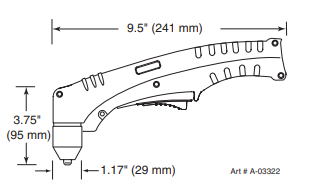

Ergonomic Torch Handle
Hand Torches offer ergonomic handles with easy-to-use trigger release that provides comfort during prolonged use. 75° and 90° heads offer operators a choice of positions.

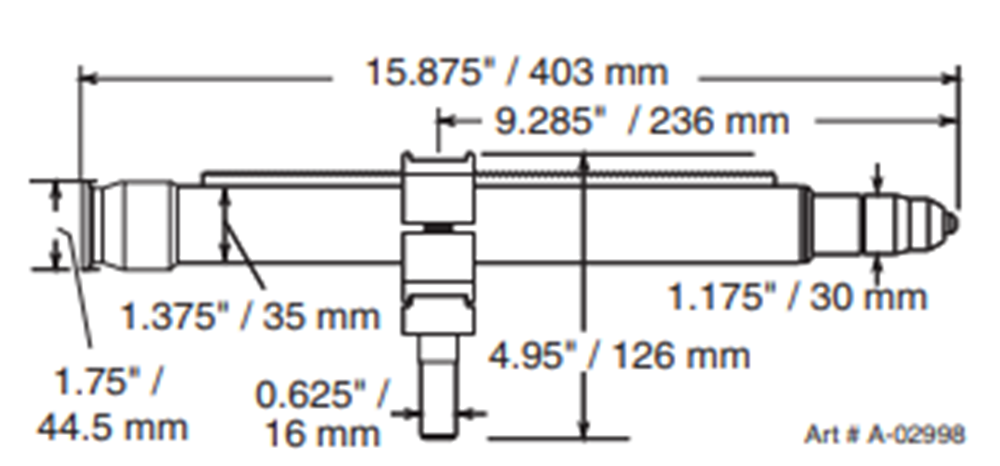

New Phenolic Position Tube
With a new, innovative, easy-to-remove 32 pitch gear rack, the phenolic positioning tube can easily be adapted to any 13/8" (35 mm) torch holder. If manual torch position is required, the use of the gear rack will complete the task. Simply remove the gear rack from the positioning tube if not needed.

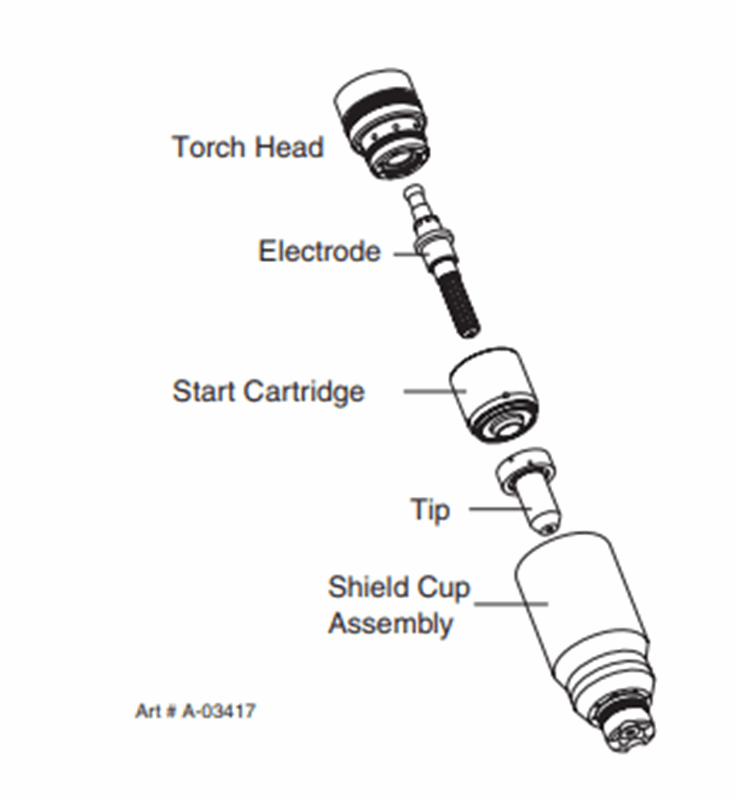

Extended or Protected Consumable Parts
We designed our consumable parts to adapt to your cutting style.
By simply changing the shield cup, you can either have:
- An extended tip for greater visibility and control and precision drag cutting at low power.
- A protected tip for on the plate drag cutting at high power up to 120 Amps.
Lower Consumable Parts Inventoried and Costs
Only 34 consumable parts cover the full range of cutting and gouging up to 120 Amps. Inventorying parts for a fleet of plasma units can be simplified using the 1Torch.
1Torch leads are lightweight, extremely flexible, and rugged enough to withstand years of use.
ATC® (Advanced Torch Connector) Quick Disconnect Option
The ATC quick disconnect design brings extra flexibility to almost any plasma system. Switching to a machine torch, swapping out a damaged unit, or simply changing lead lengths is done quickly and requires no tools.
ATC Lead Extensions
ATC Lead extensions offer the flexibility of working up to 100' (30.4 m) away from the power supply. Extensions are offered in 15' (4.5 m), 25' (7.6 m), and 50' (15.2 m) lengths. The ATC makes it easy to add or subtract as requirements change.
One Year Torch & Leads Warranty
Precision Engineered Torch Consumable Parts
- Available 60A drag tip - industry first.
- Less than 30 parts can replace over 575 different consumables used over a broad range of plasma systems.
- Bend relief protection at exit of torch handle for improved torch lead durability.
- An extended Tip for greater visibility and control.
- One Torch for Virtually Any Plasma Cutting System.
To view literature of this product:
Shop Plasma Cutters Accessories for BEST Pricing Online.
(NO QUICK DISCONNECT)
If quick disconnect needed please find part number 7-5206
|Process(es)||Replacement Torch-Manual Air Plasma Cutting|
|Gas Pressure||65-75 PSI|
|Gas Flow||400 SCFH|
|Industrial Applications||HVAC, Trailer Mfg, Fabrications Shops, Ship Building, Home Shop, Plumbing, Auto Body Repair, Metal Stud/Building Construction|
|Amperage Range||20-120 Amps|
|Duty Cycle||120A @ 60%, 100A @100%|
