Miller TIG Kit for the Multimatic 215
Miller Multimatic 215 TIG Kit #301337

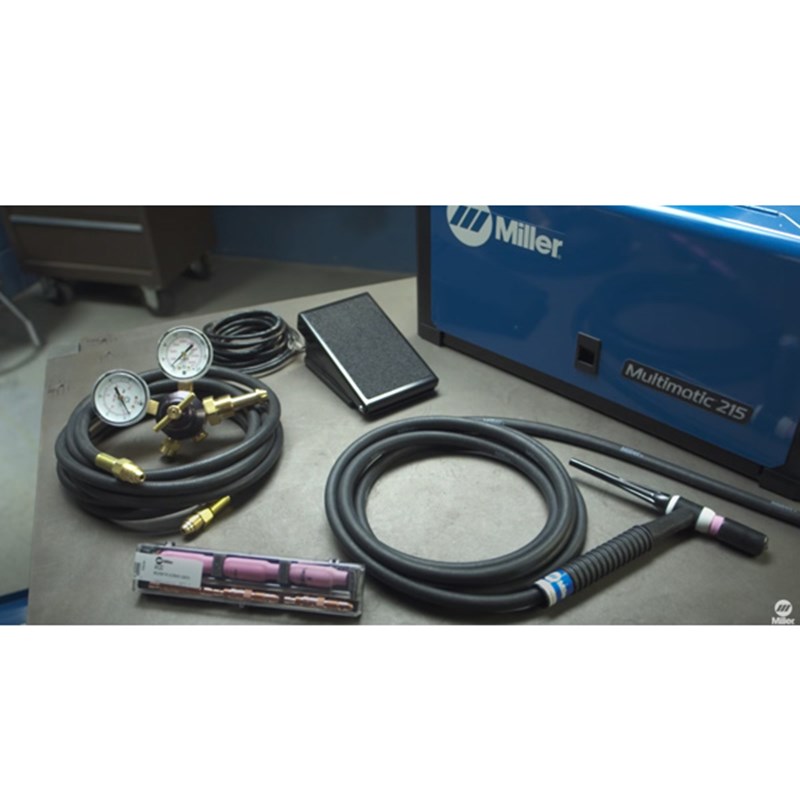

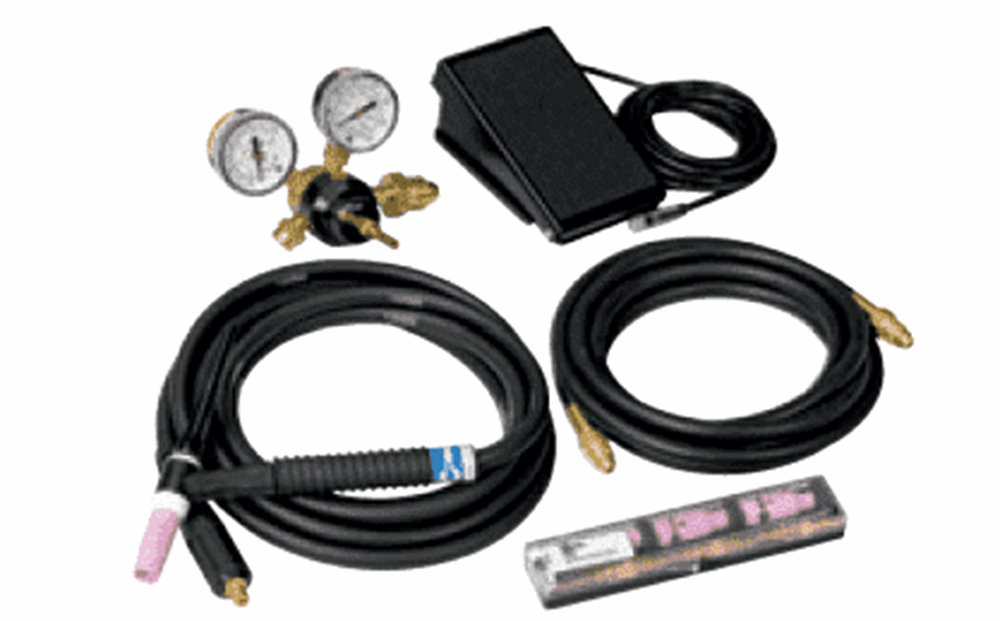

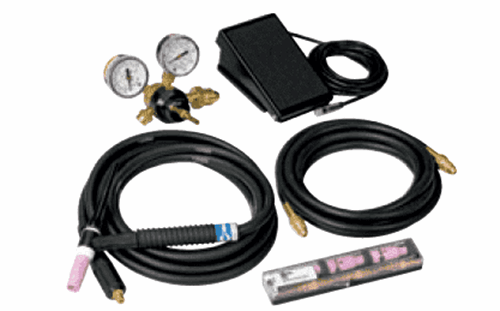

If you buy a Miller Multimatic 215 MIG/stick welder and later want to add TIG welding capability, the Multimatic 215 TIG Kit is all you need. This kit bundles the Weldcraft A-150 TIG torch with a flow-through Dinse connector, flow regulator and gas hose, a foot control (RFCS-RJ45) and an AK2C torch accessory kit.
This Kit includes:

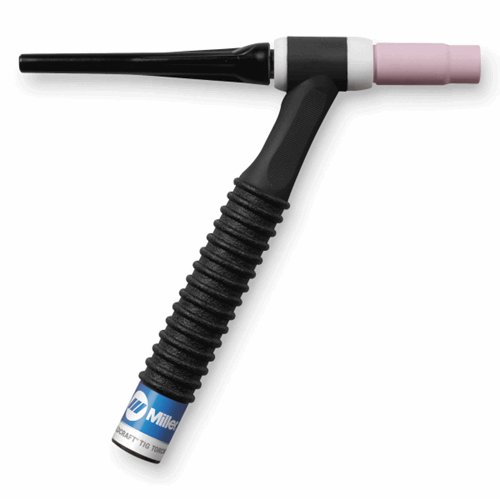

- Weldcrat A-150 TIG torch

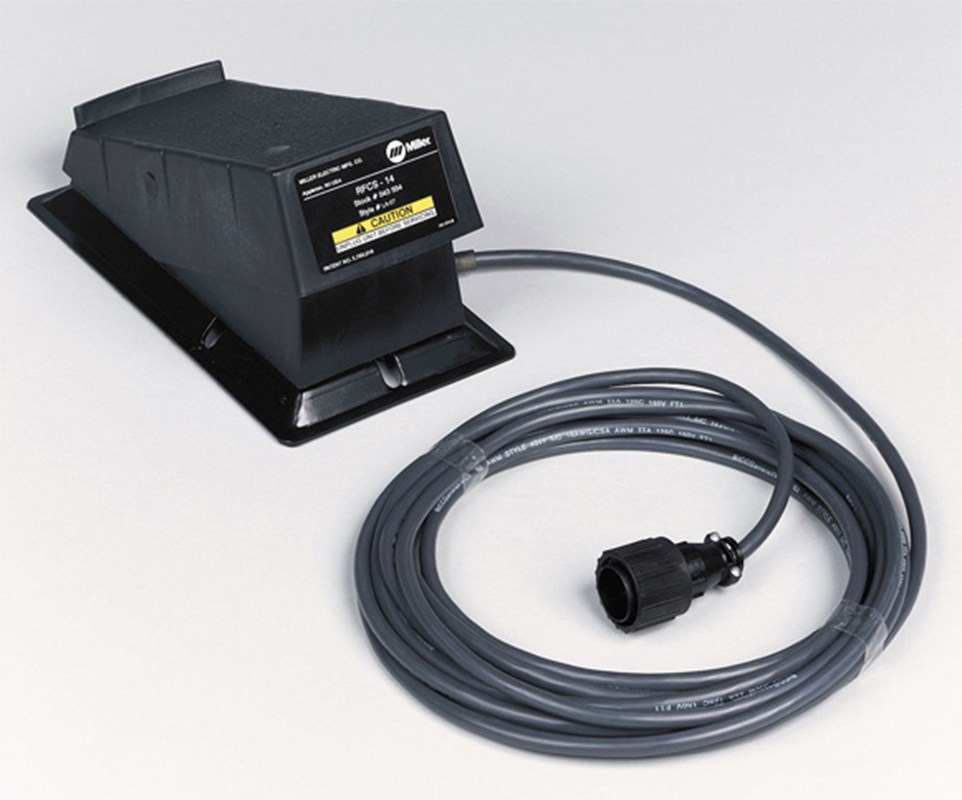

- 14 foot RFCS-RJ45 Wired Foot Control

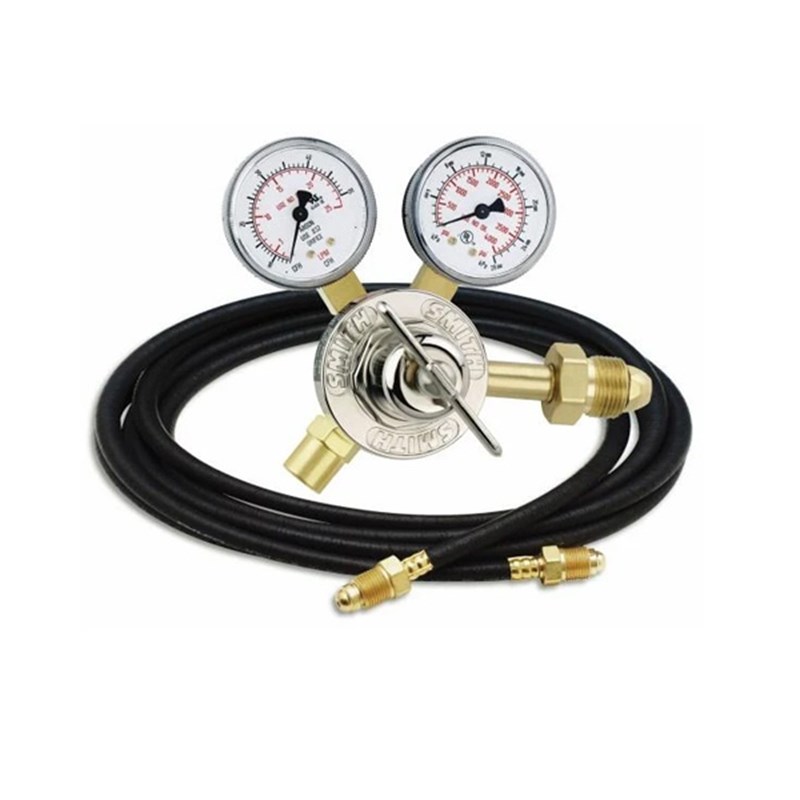

- Smith Regulator/Flowmeter and 12 foot gas hose

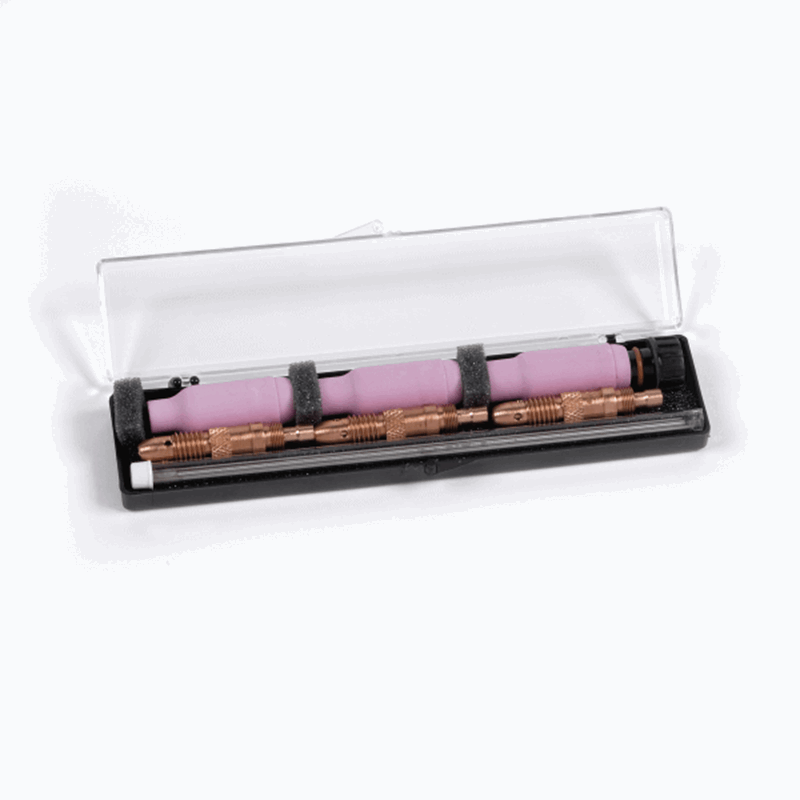

- Miller AK2C TIG Torch Accessory kit
If you don’t own a Multimatic 215 welder yet and are just gathering information, consider this: Miller offers the Multimatic 215 with a TIG Kit package at a savings of $99 over the cost of buying the welder and the TIG kit separately. Anyone with definite plans to add TIG work to their repertoire should just go ahead and order the 215 with the TIG package.
About the Miller Multimatic 215 Multiprocess Welder
The Miller Multimatic 215 is the newest of Miller’s new generation of portable machines. With the versatility of MIG, TIG and stick welding capability, a compact design and plenty of power, it’s perfect for a wide range of light industrial uses. The standard Multimatic 215 package (MIG and stick welding) includes the power source, wire feeder and M-100 gun.
What Sets The Multimatic 215 Welder Apart?
Small footprint. Big muscle.
Although it weighs in at just 38 pounds and is surprisingly compact, the Multimatic 215 packs some serious welding power. With 230 amps on hand, you can easily weld up to 3/8” mild steel in a single pass (MIG weld capacity).
Versatile, easy to set up, and lays a beautiful weld.
Miller designed this multiprocess welder for ease of use and great results. Their Smooth-Start™ design enables consistently smooth, spatter-free MIG starts. Angled wire drive with Quick Select drive roll makes for smooth feeds and quick wire changes, and a user-friendly color LCD interface with Miller’s Auto-Set™ Elite makes adjusting parameters quick and easy.
SAVE $99 when you buy the Multimatic 215 with TIG Kit Package
Miller offers the Multimatic 215 with the TIG Kit Package for $1,809, a savings of $99 over the cost of buying the Multimatic MIG/Stick unit and adding the TIG Kit later. If you’re even thinking about expanding into TIG welding, ordering the Multimatic with the TIG Kit Package is a no-brainer.
Multimatic 215 Multiprocess Welder Features
The Multimatic 215 handles MIG, flux-cored, DC TIG and DC stick welding with ease.
User Friendly Interface
A color LCD control panel with intuitive controls makes quick adjustments easy.
Miller’s Smooth-Start™ technology delivers consistently smooth, spatter-free MIG starts.
Angled Wire Drive
Smooth feeding and quick wire changes courtesy of an angled wire drive and Miller’s Quick Select™ drive roll.
Auto Spool Gun Detect™
No need to change any settings on your power source, the Multimatic 215 automatically detects when a MIG gun or a spool gun is plugged in.
Miller’s multi-voltage plug (MVP) lets you plug into either 120 or 240 volt power receptacles. Simply choose the plug that fits the receptacle, connect it to your power cord, and plug it in.
Thermal Overload Automatic Shutdown
Protects against overheating by automatically shutting down power if airflow through the unit is blocked or duty cycle is exceeded.
Miller’s power source cooling system only runs when it’s needed, so noise and energy use is reduced, as well as the amount of airborne contaminates pulled into the machine.
Miller True Blue 3-Year Warranty
Miller warrantees the Multimatic 215 for three years (parts and labor) and the gun for 90 days (parts and labor).
Light Industrial WorkMiller Multimatic 215 Welder Applications
- Farm and Ranch
- Field Maintenance and Repair
- Metal Art/Sculpture
- Motorsports (car, truck, cycles, etc.)
- Vocational Schools/Training
Included with the Multimatic 215:
- Power source
- 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V
- 10 ft. (3 m) M-100 MIG gun and cable assembly
- 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
- 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
- Flow gauge regulator and gas hose for argon and AR/CO2 mix
- Hobart® spool of .030 in. (0.8 mm) solid wire
- Two contact tips for .030 in. (0.8 mm) wire
- Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
- Material thickness gauge 229895
- Hook-and-loop cord wraps
Note: Shielding, gas and safety equipment not included.
Browse our welding machine accessories and buy the best products form the best online welding supply store: Welders Supply Company.
Miller MULTIMATIC 215 Welder General Specifications:
|Input Power||120 V- 240V|
|Rated Output||CV: MIG/Flux-cored
200 A @ 24 VDC, 20% Duty Cycle (240 V)
150 A @ 21.5 VDC, 40% Duty Cylcle (240 V)
110 A @ 19.5 VDC, 60% Duty Cycle (120 V)
190 A @ 17.6 VDC, 20% Duty Cycle (240V)
140 A @ 15.6 VDC, 40% Duty Cycle (120 V)
190 A @27.6 VDC, 20% Duty Cycle (240 V)
90 A @ 23.6 VDC, 40% Duty Cycle (120 V)
|Welding Amperage Range||20 - 230|
|Wire Speed||60- 600 IPM (1.5 - 15.2 m/min)|
24 ga. - 3/8 in. (0.8 - 9.5 mm) steel
18 ga. - 3/8in. (1.2 - 9.5 mm) aluminum
24 ga. - 1/4 in. (0.8 - 6.4 mm) steek
16 ga. - 3/8 in. (1.6 - 9.5 mm) steel
|Wire Diameter Capacity||.023 - .035 in (0.6 - 0.9 mm) Solid Steel
.023 - .035 in (0.6 - 0.9 mm) Stainless
.030 - .045 in (0.8 - 1.1 mm) Flux Cored
|Spool Gun Compatibility||Spoolmate™ 100, Spoolmate 150|
|Weight||38 lbs. (17.2 kg)|
|Dimensions||H: 12.5 in (318 mm)
W: 11.25 in (286 mm)
D: 20.5.0 in (521 mm)
|Weight:||11 Lb(s) 0 Oz|
