Multimatic 215 with TIG Kit Package #951674

Part Numbers: 951674
1 Review
$3,009.00
$3,806.00* Save $797.00
Rebate Forms:
$250 Rebate - Build with Blue Holiday Savings

Included with your purchase ( ) :

See Bundle Details!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    110V

    110V

    220V Single Phase

    220V Single Phase

    • Multi-Process
    • Multi-Voltage
    • Lightweight and Portable
    • Torch Included
    • Consumables Included
    • 3-Year Warranty

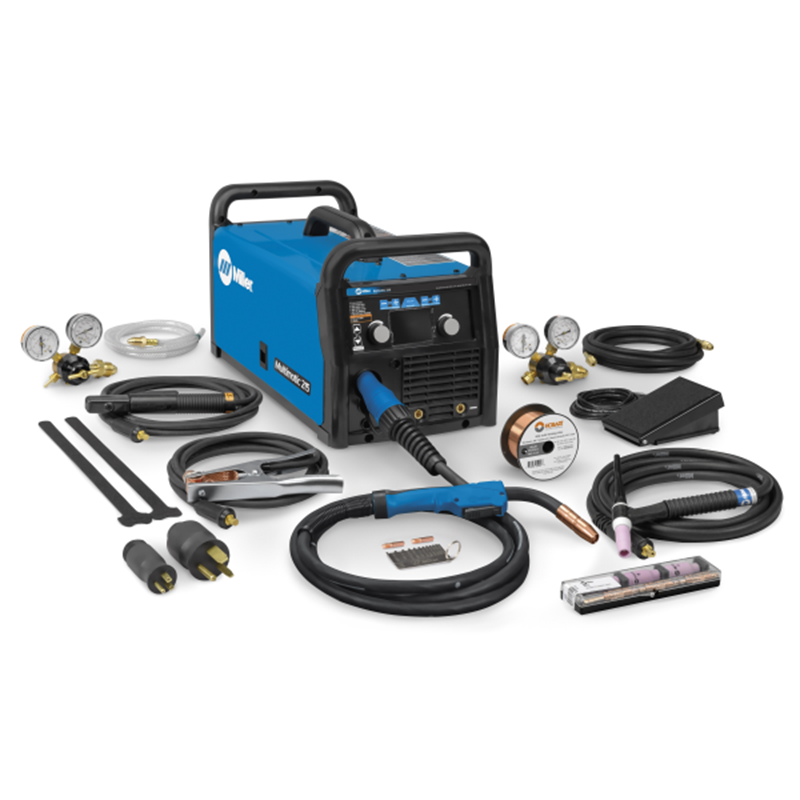

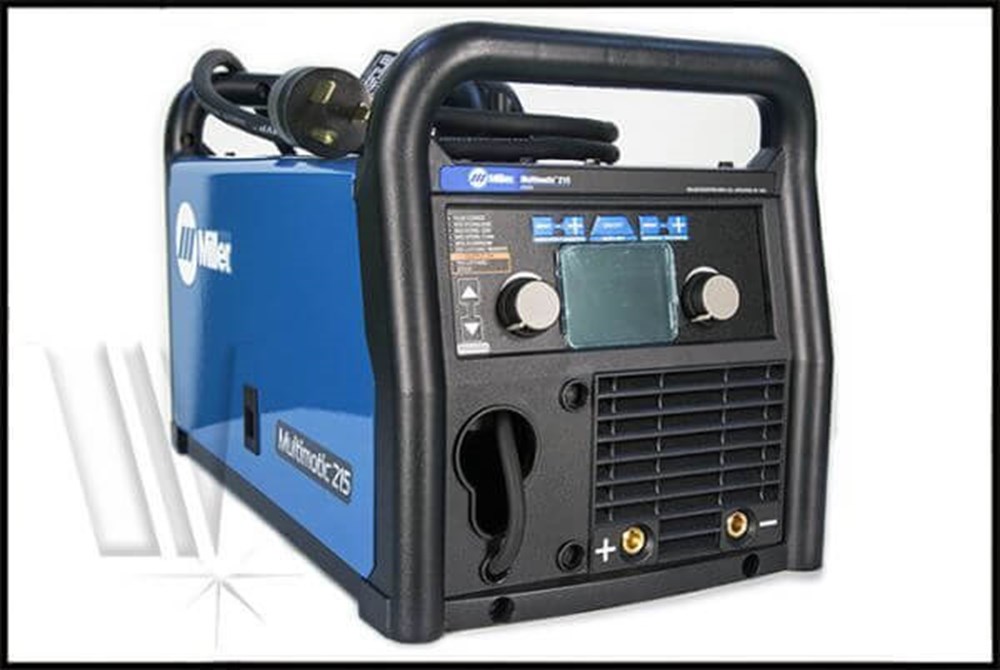

    Miller Multimatic 215 with TIG Kit #951674

    This Miller Multimatic 215 package is a portable 230 amp welder with the versatility of MIG, TIG and stick welding capability.

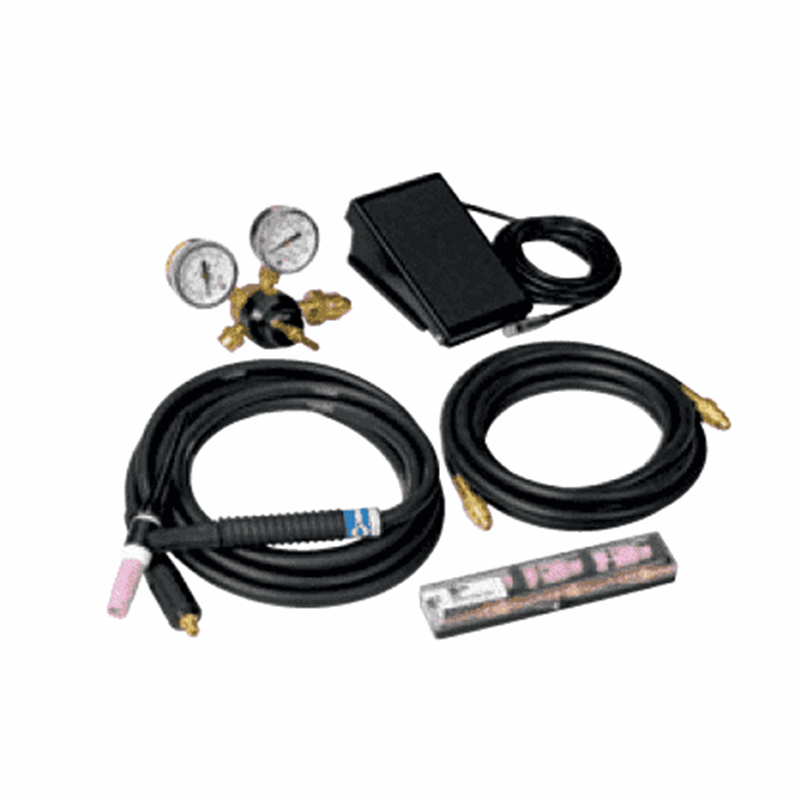

    This Kit Includes:

    • Weldcraft A-150 TIG torch with a flow-through Dinse connector
    • flow regulator & gas hose

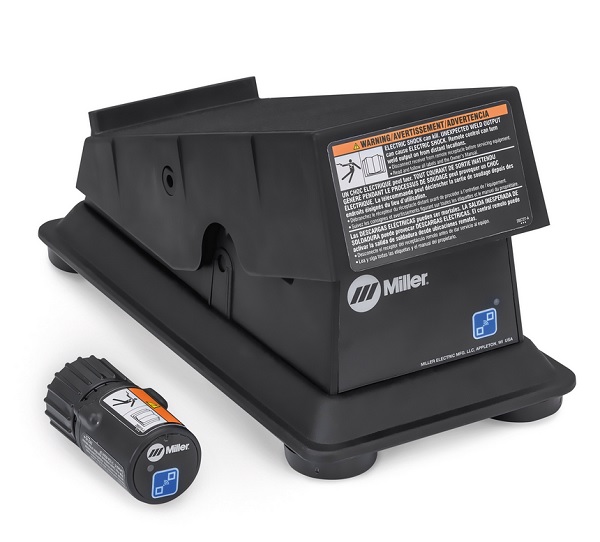

    • afoot control (RFCS-RJ45)
    • AK2C torch accessory kit.

    With its compact design and plenty of power, it's perfect for a wide range of light industrial uses, around the farm, or for serious hobbyists.

    If you anticipate getting into TIG welding (or if you already are), buying the Multimatic 215 with the TIG Kit will save you $99 over the cost of buying the welder and the TIG Kit separately.


    What Sets The Multimatic 215 Welder Apart?

    Small footprint, big muscle

    Although it weighs in at just 38 pounds and is surprisingly compact, the Multimatic 215 packs some serious welding power. With 230 amps on hand, you can easily weld up to 3/8” mild steel in a single pass (MIG weld capacity).

    Versatile, easy to set up, and lays a beautiful weld

    Miller designed this multiprocess welder for ease of use and great results. Their Smooth-Start™ design enables consistently smooth, spatter-free MIG starts. Angled wire drive with Quick Select drive roll makes for smooth feeds and quick wire changes, and a user-friendly color LCD interface with Miller’s Auto-Set™ Elite makes adjusting parameters quick and easy.

    SAVE $99 when you buy the Multimatic 215 with TIG Kit Package

    Miller offers the Multimatic 215 with the TIG Kit Package at a savings of $99 over the cost of buying the Multimatic MIG/Stick unit and adding the TIG Kit later. If you’re even thinking about expanding into TIG welding, ordering the Multimatic with the TIG Kit Package is a no-brainer.


    Features of the Multimatic 215 Multiprocess Welder:

    • Multiprocess Capability - The Multimatic 215 handles MIG, flux-cored, DC TIG and DC stick welding with ease.

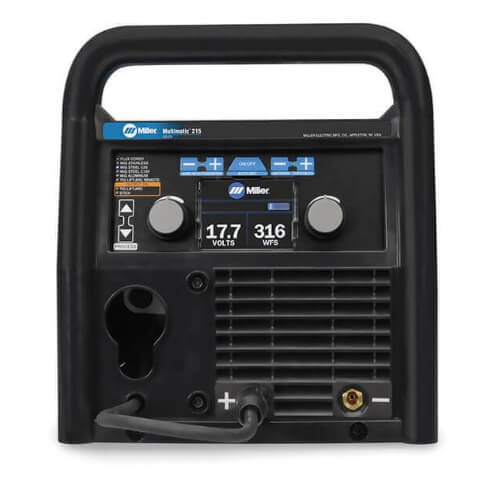

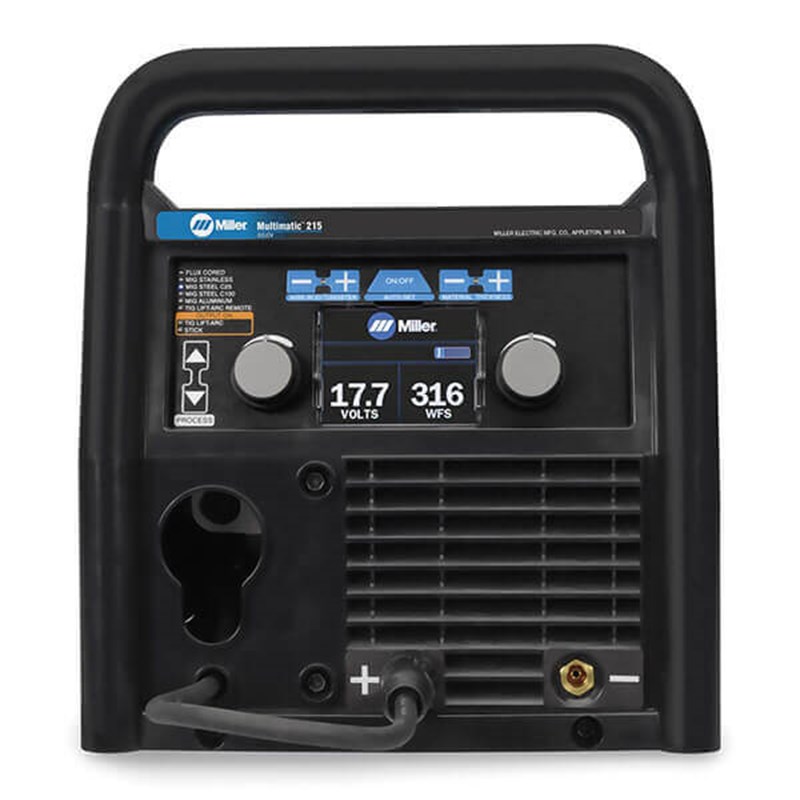

    • User-Friendly Interface - A color LCD control panel with intuitive controls makes quick adjustments easy.
    • Smooth-Start™ - Miller’s Smooth-Start™ technology delivers consistently smooth, spatter-free MIG starts.

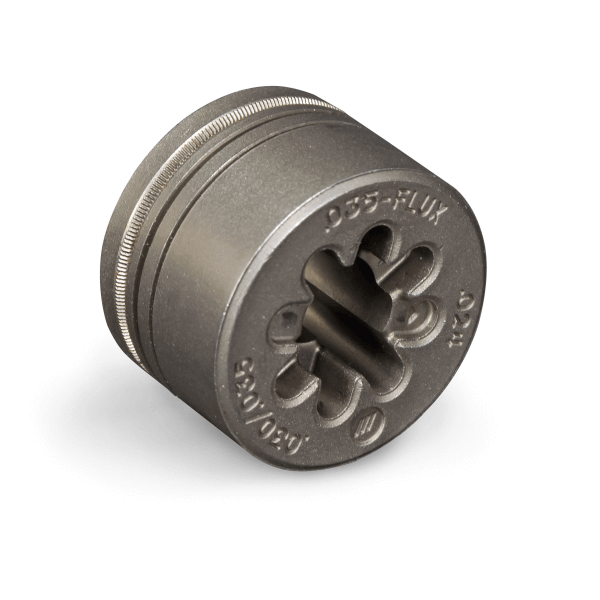

    • Angled Wire Drive - Smooth feeding and quick wire changes courtesy of an angled wire drive and Miller’s Quick Select™ drive roll.
    • Auto Spool Gun Detect™ - No need to change any settings on your power source, the Multimatic 215 automatically detects when a MIG gun or Miller Spoolmate 100 is plugged in.
    • Multi-voltage Plug - Miller’s multi-voltage plug (MVP) lets you plug into either 120 or 240-volt power receptacles. Simply choose the plug that fits the receptacle, connect it to your power cord, and plug it in.
    • Thermal Overload Automatic Shutdown - Protects against overheating by automatically shutting down power if airflow through the unit is blocked or the duty cycle is exceeded.
    • Fan-On-Demand - Miller’s power source cooling system only runs when it’s needed, so noise and energy use is reduced, as well as the amount of airborne contaminants pulled into the machine.
    • Miller True Blue 3-Year Warranty - Miller warrantees the Multimatic 215 for three years (parts and labor) and the gun for 90 days (parts and labor).

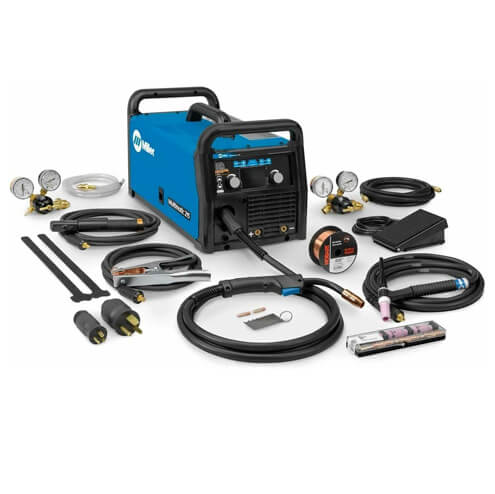

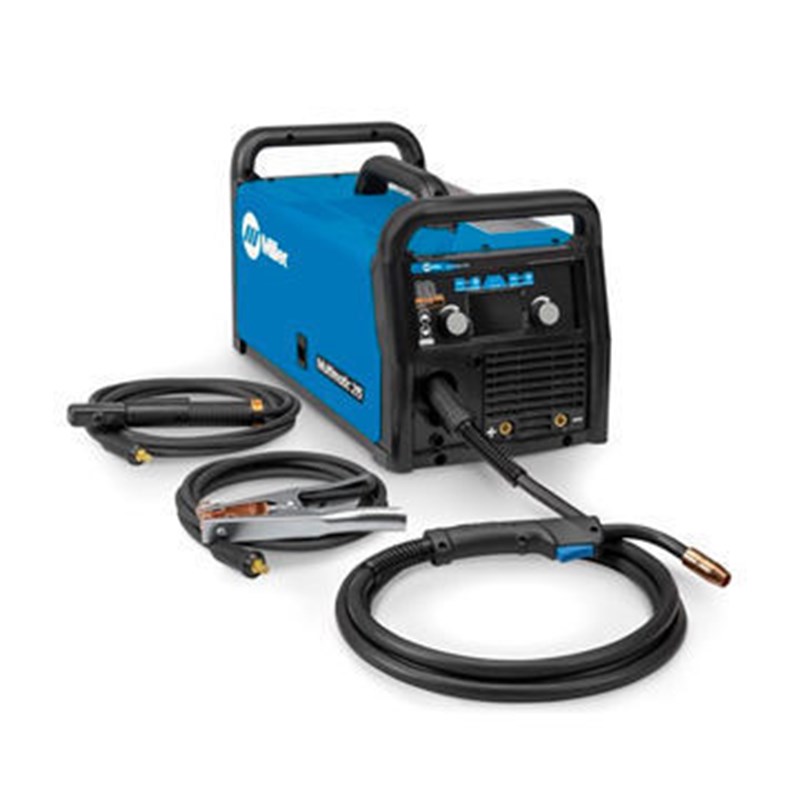

    This Kit Includes:

    • Power source
    • 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V

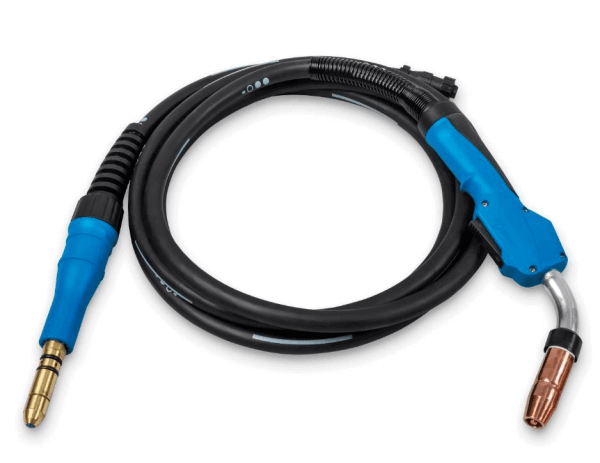

    • 10 ft (3 m) MDX™-100 MIG gun
    • 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
    • 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
    • Flow gauge regulator and gas hose for argon and AR/CO2 mix
    • Hobart® spool of .030 in. (0.8 mm) solid wire

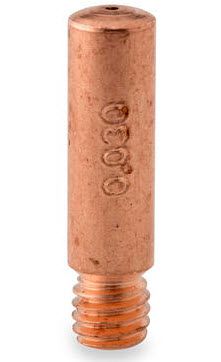

    • Two contact tips for .030 in. (0.8 mm) wire

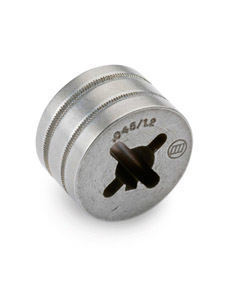

    • Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
    • Material thickness gauge 229895
    • Hook-and-loop cord wraps
    • TIG Kit for the Multimatic 215

    Note: Shielding, gas and safety equipment not included.


    Applications:

    • Farm and Ranch
    • Field Maintenance and Repair
    • Metal Art/Sculpture
    • Motorsports (car, truck, cycles, etc.)
    • Vocational Schools/Training

    View all MIG, TIG and Stick Welders available at Welders Supply Company. Also browse our welding helmets and plasma cutting machines.

    OTHER VERSIONS:

    • 951693 Multimatic 215 without TIG Kit



    Miller Multimatic 215 Specifications:

    Input Power 120 V- 240V
    Rated Output CV: MIG/Flux-cored
    200 A @ 24 VDC, 20% Duty Cycle (240 V)
    150 A @ 21.5 VDC, 40% Duty Cylcle (240 V)
    110 A @ 19.5 VDC, 60% Duty Cycle (120 V)
    CC: TIG
    190 A @ 17.6 VDC, 20%  Duty Cycle (240V)
    140 A @ 15.6 VDC, 40% Duty Cycle (120 V)
    CC: Stick
    190 A @27.6 VDC, 20% Duty Cycle (240 V)
    90 A @ 23.6 VDC, 40% Duty Cycle (120 V)
    Welding Amperage Range 20 - 230
    Wire Speed 60- 600 IPM (1.5 - 15.2 m/min)
    Metal Thickness MIG
    24 ga. - 3/8 in. (0.8 - 9.5 mm) steel
    18 ga. - 3/8in. (1.2 - 9.5 mm) aluminum
    TIG
    24 ga. - 1/4 in. (0.8 - 6.4 mm) steek
    STICK
    16 ga. - 3/8 in. (1.6 - 9.5 mm) steel
    Wire Diameter
    Capacity
    .023 - .035 in (0.6 - 0.9 mm) Solid Steel
    .023 - .035 in (0.6 - 0.9 mm) Stainless
    .030 - .045 in (0.8 - 1.1 mm) Flux Cored
    Spool Gun Compatibility Spoolmate™ 100, Spoolmate 150
    Weight 38 lbs. (17.2 kg)
    Dimensions H: 12.5 in (318 mm)
    W: 11.25 in (286 mm)
    D: 20.5.0 in (521 mm)

    SHIPPING DIMENSIONS

    Height: 11.00 Inches
    Width: 13.00 Inches
    Length: 21.00 Inches
    Weight: 65 Lb(s) 13 Oz

    Manufacturer Reviews

    By: S Hicks ARR Inc
    This is a well built machine. I use it mainly for tig stainless in the restaurant industry. But I do use it for all processes on many different materials. I absoloutly love it and highly reccomend it. Its 110/220 capability is awesome!!!! It has very few negatives but I will state those for my purposes. 1. Minimum tig amp is 20A, would rather it was 10A for 22ga stainless welding. 2. Does not have pulse for tig, more of a convience than a need. 3. Tig pedal cable is stiff and basicly network cable, dont think the cable jacket will last.

    Product Questions and Answers


    Q - Does the Multimatic 215 with TIG Kit Package have finger control? A - Finger control can be added with purchase of Miller RCCS-RJ45 Remote Fingertip Control #301146.
    Q - How thick of steel can the Multimatic 215 with TIG Kit Package weld? A - The Multimatic 215 with TIG Kit Package can Stick and MIG weld 3/8", and TIG weld up to 1/4".
    Q - Can the Multimatic 215 tig weld aluminum? A - No, the Multimatic 215 with TIG Kit Package can only TIG weld steel.

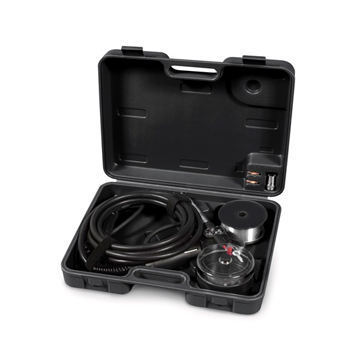

    Q - What spool gun does the Multimatic 215 with TIG Kit Package need to mig weld aluminum? A - You would need the Miller Spoolmate 100 MIG Spoolgun 300371 or Miller Spoolmate 150 MIG Spoolgun, part #301272
    Q - What's the largest spool that can be used with the Multimatic 215? A - The Multimatic 215 has an available spool adapter that allows for easy use of a larger 10-pound spool.
    Q - How long is the cord? A - The power cord is 6.5 feet (2 meters) long.

    Have a question about this product? Submit your question using the form below

    Related Products

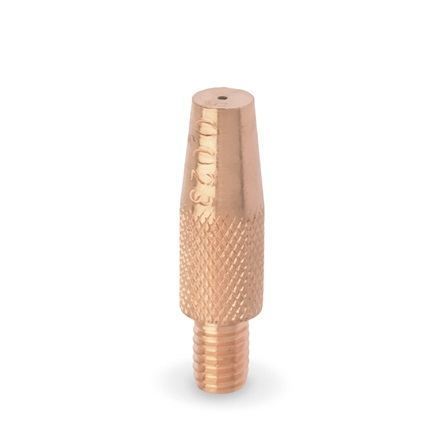

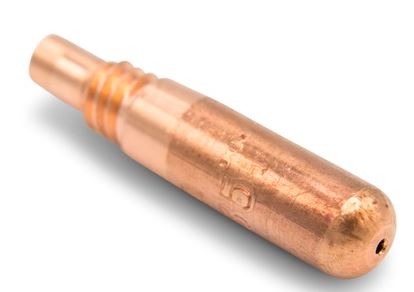

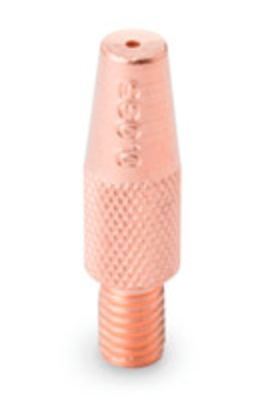

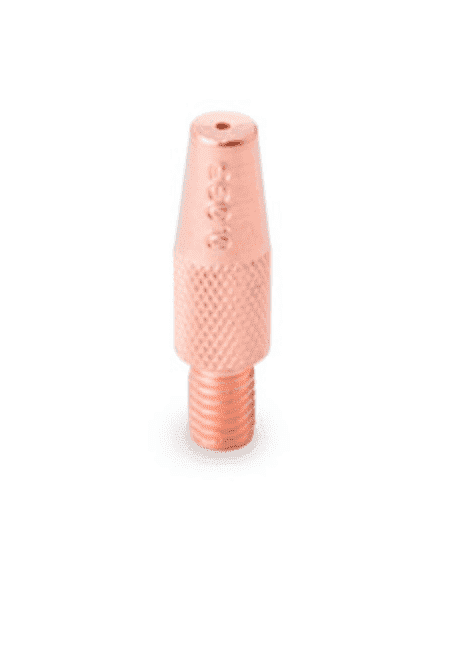

    Miller AccuLock MDX-100 Contact Tips (10 PER PACKAGE)
    $15.00
    $22.40
    Miller AccuLock MDX Consumables Kit 1880272 for use with MDX-100 MIG guns
    Miller AccuLock™ MDX™ Consumables Kit, .023" (0.6mm) wire 1880272
    $47.65
    $51.18

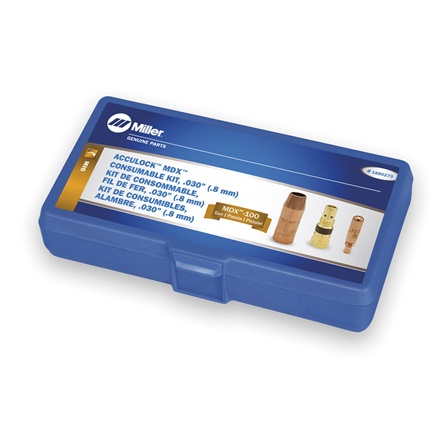

    Miller AccuLock MDX Consumables Kit 1880273 for use with MDX-100 MIG guns
    Miller AccuLock™ MDX™ Consumables Kit, .030" (0.8mm) wire 1880273
    $47.80
    $51.18
    Miller AccuLock Consumables Kit for use with MDX-100 MIG guns
    Miller AccuLock™ MDX™ Consumables Kit, .035" (0.9mm) wire 1880274
    $47.80
    $51.18

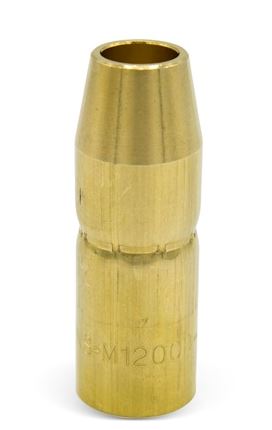

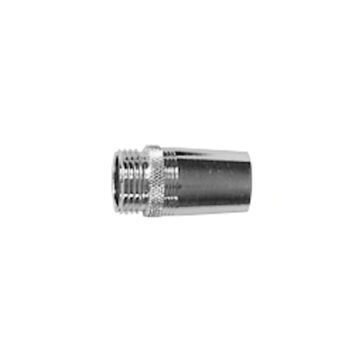

    Miller AccuLock™ MDX™ Small Thread-On Nozzle, 1/2" Orifice, Flush Tip, Brass (2 …
    $32.20
    $34.52

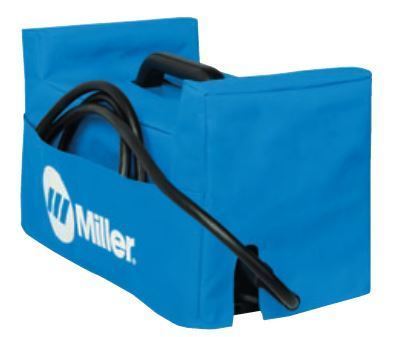

    Miller Protective Cover #301262
    Miller Cover Millermatic 141, Millermatic 190, MillerMatic 211, and MultiMatic 2…
    $74.55
    $88.00
    Miller MDX™-100 MIG Welding Gun, 10ft, .030-.035 wire, AccuLock™ MDX Consumables…
    $191.80
    $306.80
    Weldcote Tig Filler Metal #er4043
    Weldcote Tig Filler Metal - Aluminum 1 LB #er4043
    $9.99
    $12.95
    Weldcote

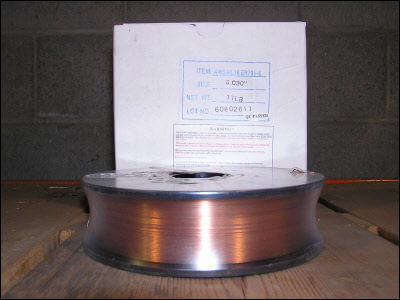

    Weldcote's Carbon Steel 11 LB Spool #E70S6023X11SP
    $33.00
    $50.86
    Weldcote
    Weldcote's Carbon Steel 11 LB Spool #E70S6030X11SP
    $33.00
    $36.47
    WeldPorn Premium OG Welding Sleeves
    $24.95
    Weldporn Standard Mig/Stick Gloves
    $15.00
    WELDPORN® OG TIG Gloves
    $22.20
    WELDPORN® PinUp Light Duty Tig Gloves
    $19.00
    $24.54
    WELDPORN® WEDD Heavy Duty Tig Gloves – Black & White
    $15.00

    Competitive Products

    ESAB Fabricator 141i  Mig/Tig/Stick Welder W1003141 FAST FREE Shipping Lower 48 States
    ESAB Fabricator 141i - 110 Volt MIG/TIG/Stick Machine
    $1,005.75
    $1,181.40
    Miller diversion 180 ac/dc Miller Diversion 180AC/DC Tig Welding Package
    Miller Diversion 180AC/DC Tig Welding Package
    $2,825.00
    $3,568.00

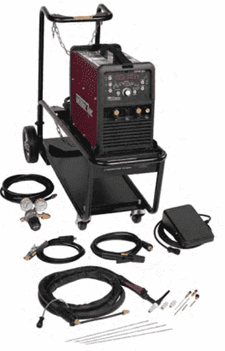

    Thermal Arc 186 AC/DC Package w/Foot Control & Utility Cart
