Miller WC-24 Weld Control #137549

$347.20 $421.00 Reduced Price You Save $73.80
Product Number: 137549

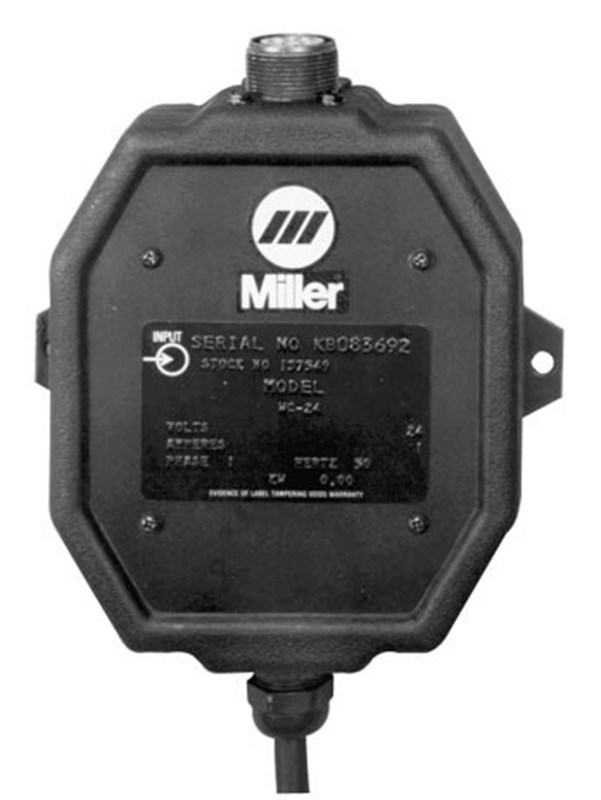

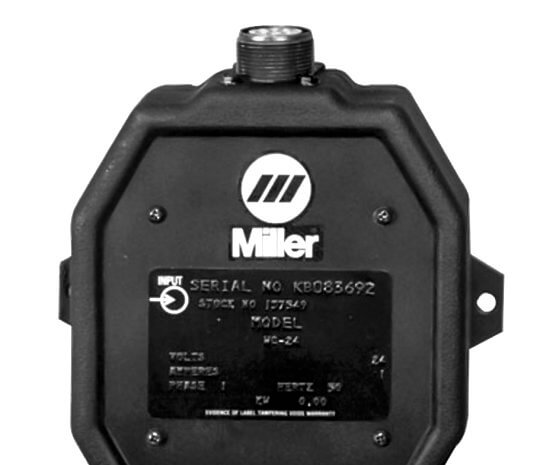

WC-24 Weld Control #137549

The Miller WC-24 is packaged in a compact, lightweight, non-metallic enclosure that mounts directly on the power source. The WC-24 is designed for use with Miller CV power sources supplying 24 VAC and 14 pin receptacles. The control includes a board-mounted potentiometer, which can alter the drive motor acceleration rate to optimize arc starting performance. The WC-24 control box is also used in conjunction with several Miller power sources that allow the welder to properly communicate with a spoolgun. Welders Supply is the best in welding equipment and accessories for sale online; shop now for fast shipping and low prices on our entire selection of welding products.

Miller WC-24 Compatible Power Sources

  • Dimension Series
  • Invision MPa
  • Trailblazer 275, 302, 302 Air Pak, 325
  • Deltaweld Series
  • Regency 250
  • AlumaPower MPa
  • Shopmaster
  • XMT Series
  • PipePro 304
  • CP Series

Additional Information for the Miller WC-24

Brand Miller
MPN MIL137549
Warranty? Yes
Process MIG
View weld control units and welding machine accessories for sale at Welders Supply

Product Specs

Power Source 24 VAC

SHIPPING DIMENSIONS

Height: 12.00 Inches
Width: 12.00 Inches
Length: 3.00 Inches
Weight: 3 Lb(s) 0 Oz

Miller WC-24 Weld Control Box #137549 with Spoolmate 30A

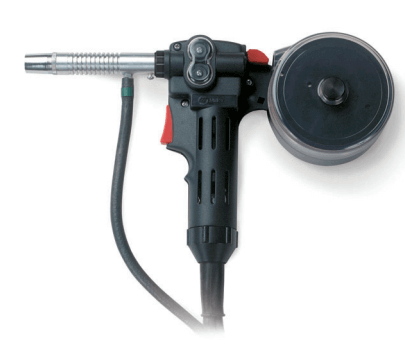

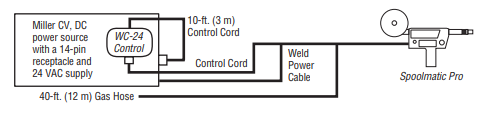

Miller WC-24 Weld Control Box #137549 Spool Gun Set Up

Product Questions and Answers


Q - Is this what I need to run a Spoolmatic 30a off a Millermatic 185? A - No, if you want to run a spoolgun on your 185 you need the Miller Spoolmate 3035 MIG Spoolgun (#195016). If the serial number on your 185 is prior to KH376829 you need the diverter valve kit (#207642) and the hook up kit (#186871). If it's a later serial
Q - Will this let me run a 30 A Pro spool gin on a Miller Trailblazer 325 EFI? A - Yes, the SC-24 will run a 30A Pro off your Trailblazer 325 EFI

Have a question about this product? Submit your question using the form below

* required
