Ships Free To Lower 48 States

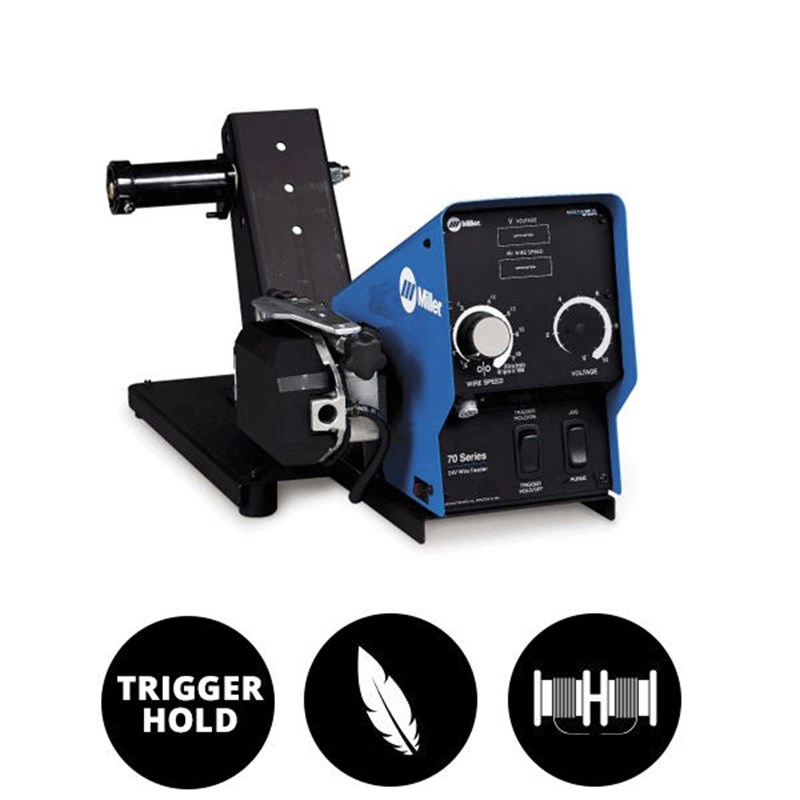

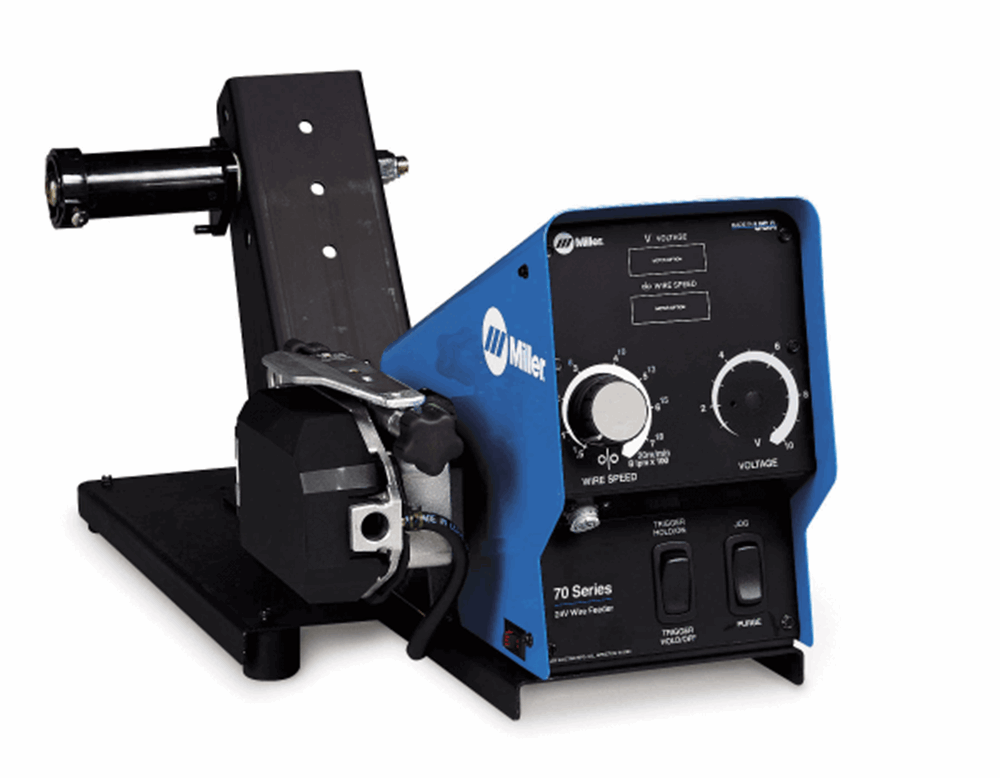

Miller S-74S (Single) #951196
Part Number: 951196
UPC: 715959575652
$3,526.00
$4,069.00*
SAVE $543.00
Documents
VideosMiller S-74S (Single) #951196
Designed for heavy industrial applications, our popular bench feeders are available in multiple models to fit your needs.
WHAT'S INCLUDED
- S-74S (Single)

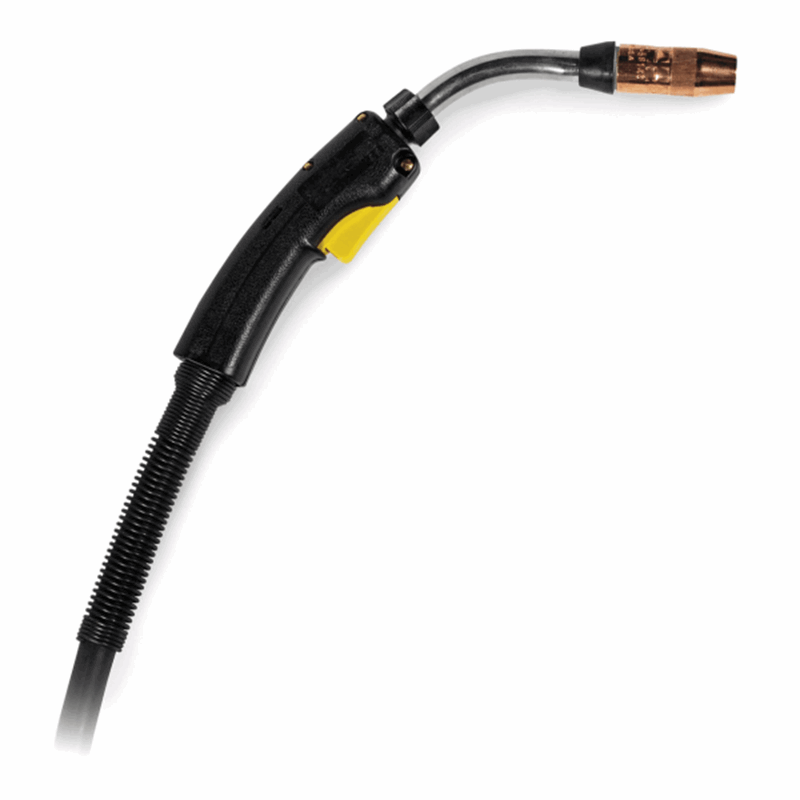

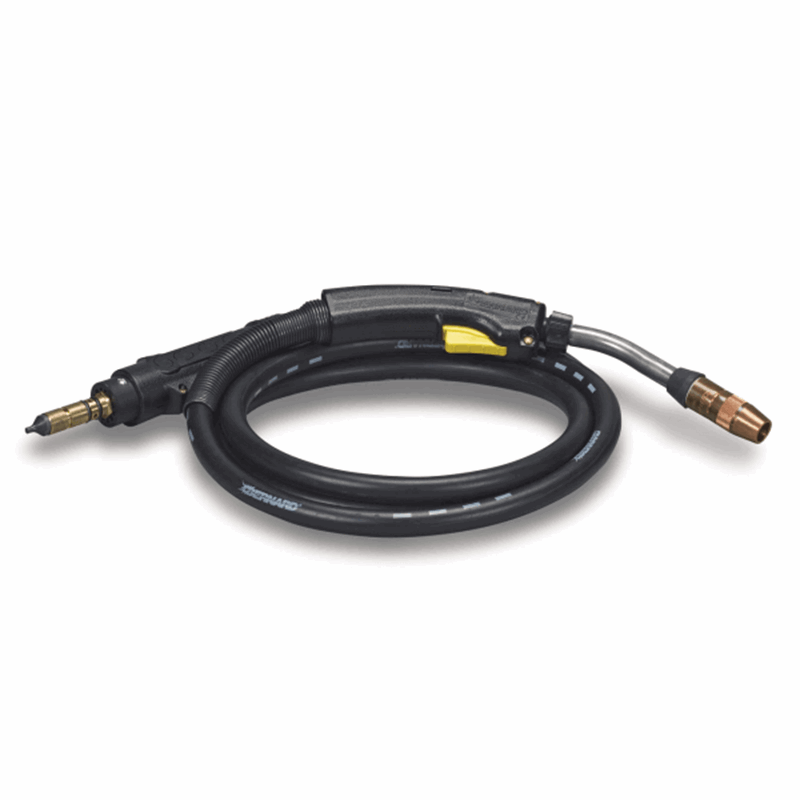

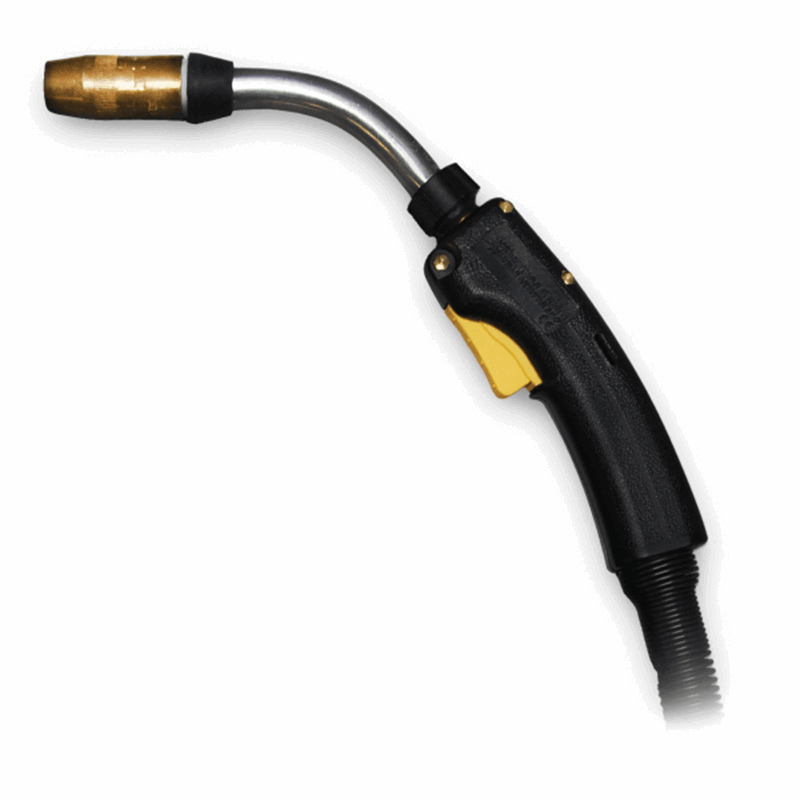

- BTB 400A Gun
- Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)

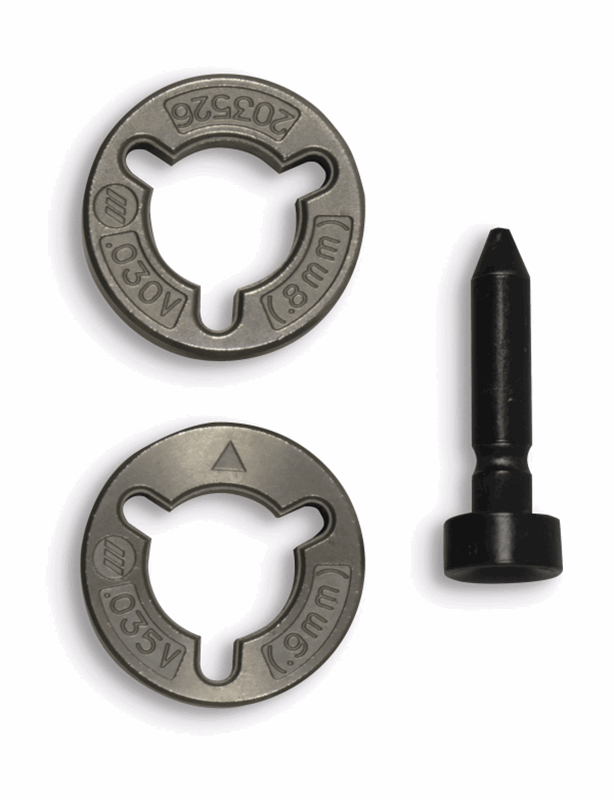

- .035-.045 reversible dual V drive rolls
Available in Dual-Wire Models
Allows two different wire types to be available on one feeder, avoiding downtime from changing spools and drive rolls.
Toolless Rotatable Drive Assembly
Allows operator to rotate the drive housing, allowing a straight path for wire flow.
Reduced Maintenance
High-torque permanent-magnet motor, sealed ball bearing gear drive and solid-state speed and brake control are maintenance free for long life.

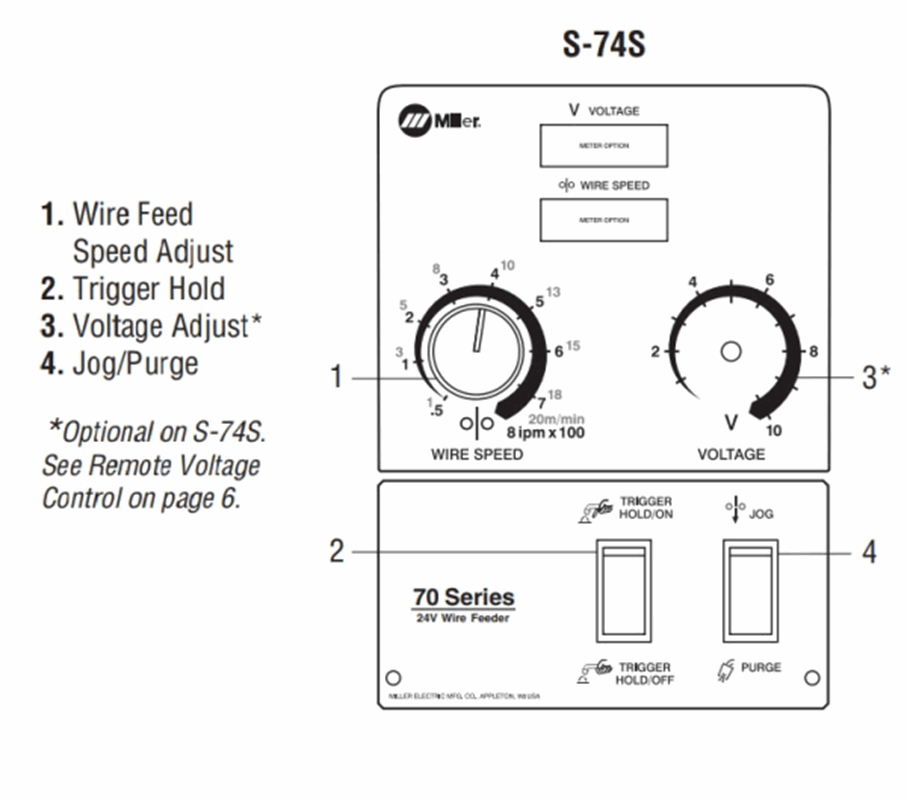

Trigger Hold
Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.
Quick-Change Drive Rolls
Save time with standard, quick-change drive rolls.
Remote Configurations
Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.
Save money when you shop welding equipment online.
GENERAL SPECIFICATIONS
| Title | S-74S (Single) |
|---|---|
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Input Circuit Welding Rating | 750A at 100% duty cycle |
| Power Source Compatibility | CV |
| Welding Power Source Type | CV |
| Wire Feeder Type | Bench |
| Wire Feed Speed | 50 IPM - 780 IPM |
| Wire Diameter | Solid Wire 0.023 in 0.094 in Flux Cored 0.023 in 0.094 in |
| Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 16.00 Inches |
| Width: | 16.00 Inches |
| Length: | 29.00 Inches |
| Weight: | 66 Lb(s) 0 Oz |
Consumables
Product Questions and Answers
Q - Will this work with a Syncrowave 210?
A - No, Miller advises it cannot be run off a Syncrowave.
Q - Does this have a 3-year Miller warranty?
A - Yes, it's covered by Miller's True Blue 3-year warranty.
How to Install and Thread Welding Wire:
- Install Wire Spool.
Install wire spool and adjust tension nut, so the wire is taut when wire feed stops.
- Install Wire Guides.
Install the wire guides and anti-wear guide.
- Install Drive Rolls.
Install drive rolls next to the end of the liner.
- Thread Wire.
Push the wire through guides up to drive rolls and continue to hold the wire.
- Press Jog Button.
Press jog button to feed wire out of the gun. Adjust if necessary.
