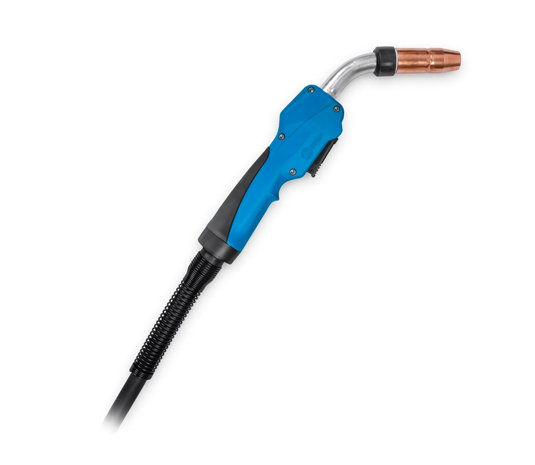

Miller MDX™-250 MIG Welding Gun .035-.045 wire, AccuLock™ MDX Consumables
The best welding gun is the one you never have to think about because it’s comfortable, it’s durable and it gets the job done. MDX Series MIG guns have been designed to be exactly that. The new ergonomic handle features overmolding for improved grip and a rear swivel strain relief for reduced welder fatigue. The gun’s AccuLock™ consumables with dual-locked, front-loading liner ensures smooth, consistent wire feeding for reliable operation.
Durable, Comfortable Handle
Durable handle features rubber overmolding for improved grip and comfort. Ball-and-socket rear swivel provides a freer range of motion to reduce welder fatigue.
Superior Wire Feeding

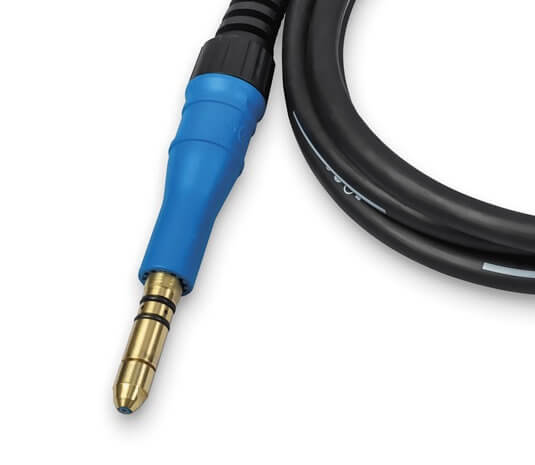

Wire delivery is optimized because the front-loading AccuLock liner is locked and concentrically aligned with the contact tip and power pin. Reduces downtime and troubleshooting.
Error-Proof Liner Trimming
No measuring required! Simplifies welder training and prevents downtime and weld quality issues caused by improperly trimmed liners.
Pulse Welding Capable
Increased copper in the gun cable ensures reliable performance with CV and pulse waveforms.
Fewer Parts, More Accuracy
Stock a single line of consumables. AccuLock™ S Consumables can be shared across all of your Miller MDX-250 MIG guns, Bernard® BTB MIG guns and Clean Air™ Fume Extraction MIG guns reducing inventory and decreasing replacement errors.

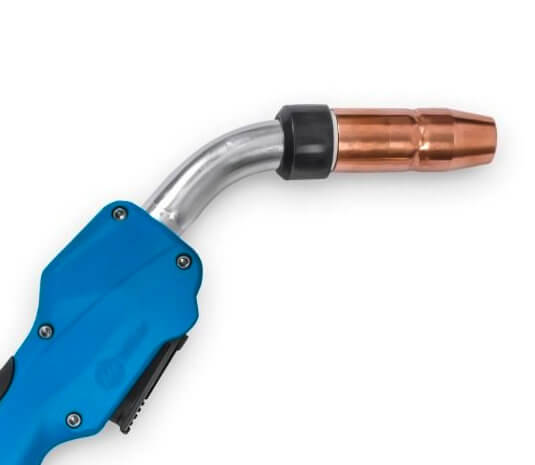

Tapered mating surfaces between the AccuLock contact tip and diffuser locks the tip in place for maximized electrical conductivity and lower heat.
MDX-250: Millermatic® 212 Auto-Set™ 252 and 255 Multimatic® 200 and 255
Tapered mating surfaces between the AccuLock contact tip and gas diffuser lock tips in place for maximized electrical conductivity and longer tip life.
Superior AccuLock wire feeding
The front-loading liner is centered and locked at both ends of the gun (without the use of set screws) to ensure smooth wire delivery to the contact tip. Plus, error-proof liner trimming ensures accurate replacement every time for reduced burnbacks, birdnests and erratic arc/wire chatter — no measuring required!
Durable, ergonomic handle
Durable handle features rubber overmolding for improved grip and rear swivel to reduce welder fatigue.
Pulse welding capable
(MDX-250/MDX-250 EZ-Select only)
Increased copper in gun cable ensures reliable performance with CV and pulse waveforms.

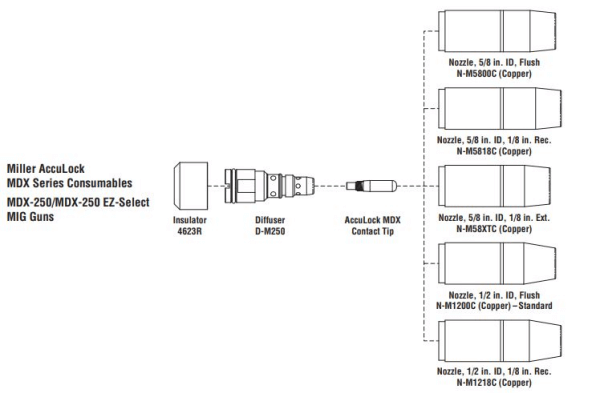

Miller AccuLock MDX Series: Designed to maximize wire feedability and simplify consumables replacement.
|Weight:||8 Lb(s) 0 Oz|
Product Questions and Answers
How to Reinstall a Trimmed Liner in a MDX MIG Gun:
- Turn OFF.
Turn off welding power source/wire feeder and disconnect gun.
- Remove Cap.
Remove the power pin cap. The liner may retract.
- Adjust Liner length.
Rotate the back end of the gun right or left to cause the liner to extend or retract.
- Lock Cap in Place.
Place the power pin cap over the liner. Rotate the cable to adjust the length of the liner.
- Tighten Cap.
Note that required torque specifications for the model and tighten the cap as necessary.
