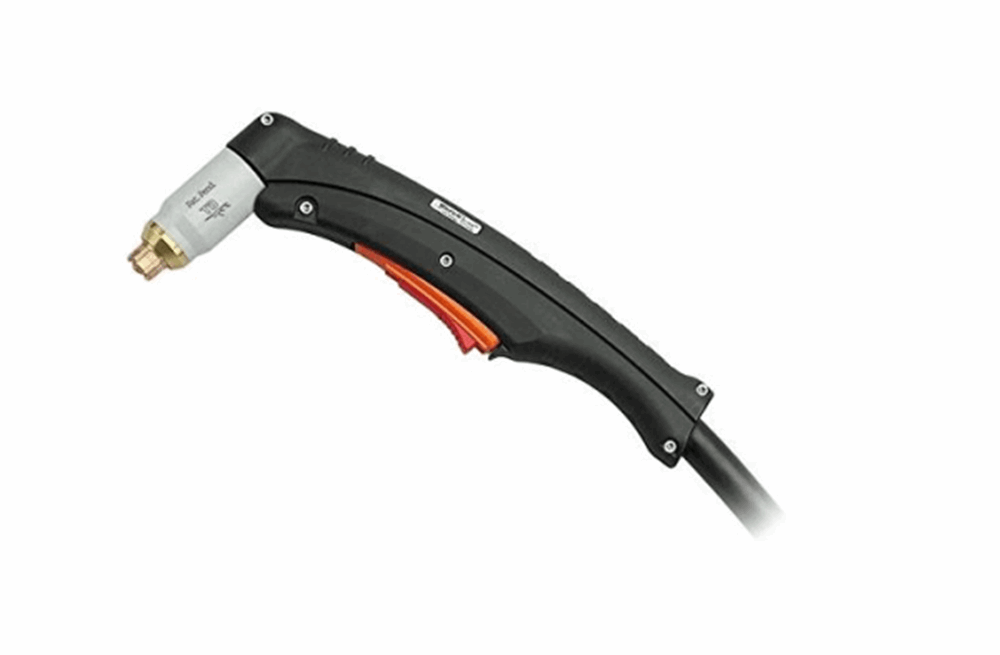

Thermal Dynamics Torch & Leads, SL100, 75-Degree Head, ATC Connection Product #7-5206
Part Number: 7-5206
UPC: 699488755610
$799.67
$956.87*
SAVE $157.20
Documents
VideosThermal Dynamics #7-5206 Torch and Leads, SL100, 75-Degree Head, 20 ft Leads, ATC Connection

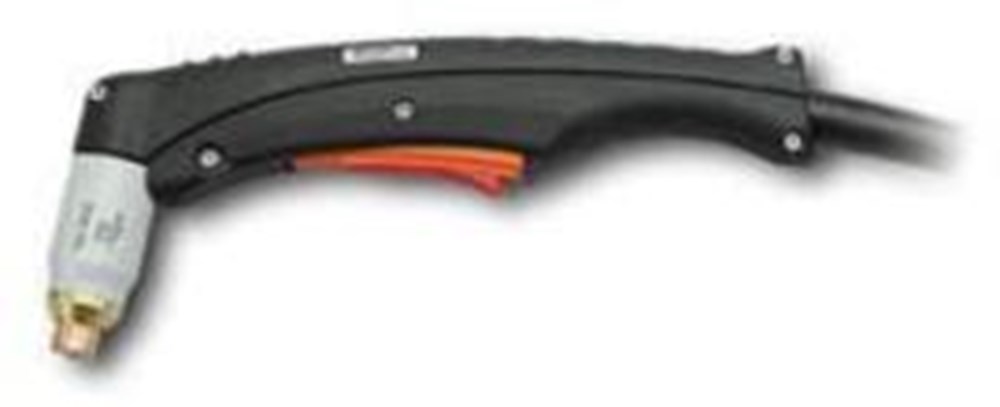

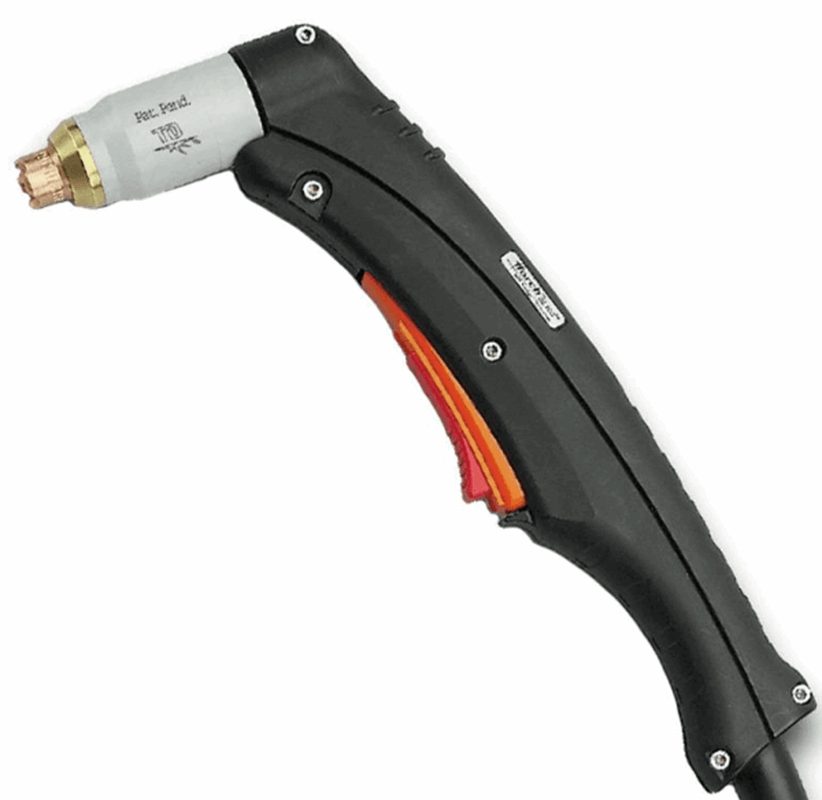

The Thermal Dynamics SL100 torch (7-5206) is a complete SL100 1Torch replacement plasma cutter with 20 ft leads, 75 degree head and an ATC connection. The 1Torch™ replacement torch is the first plasma cutting torch of it's kind that performs with virtually all plasma cutting power supplies. Install the Thermal Dynamics SL100 torch on your current plasma power supply and you will immediately benefit from the latest in high performance plasma torch technology.
The Thermal Dynamics SL100 (7-5206) torch is compatible with:
- Thermal Dynamics Cutmaster 82 plasma system
- Thermal Dynamics Cutmaster 102 plasma system
- Thermal Dynamics Cutmaster 152 plasma system
Thermal Dynamics SL100 (7-5206) features:
- Ergonomic Torch Handle
- New Phenolic Position Tube
- Extended or Protected Consumable Parts
- Lower Consumable Parts Inventoried & Costs
- Improved Leads
- ATC (Advanced Torch Connector) Quick Disconnect Option
- One Year Torch & Leads Warranty
General Specifications |
|
| Gas Pressure | 65-75 PSI |
| Gas Flow | 400 SCFH |
| Torch | SL100-RPT |
| Certifications | IP23S |
| Amperage Range | 20-120 Amps |
| Duty Cycle | 120A @ 60%, 100A @ 100% |
SHIPPING DIMENSIONS |
|
| Height: | 6.00 Inches |
| Width: | 15.00 Inches |
| Length: | 15.00 Inches |
| Weight: | 10 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - What is the amperage range on this?
A - 30 to 100 amps.
Q - Will this work with a Cutmaster 102?
A - Yes, it will work fine with the Cutmaster 102.
How to Change Torch Parts:
- Remove Shield Cup.
Unscrew and remove shield cup from the torch head.
- Remove Tip.
Tilt the torch head to remove the tip and starter cartridge.
- Fit Consumables.
Fit the desired cartridge and tip onto the electrode. Refer to a consumables guide fo the proper combinations of parts.
- Tighten Torch Head.
Hand tighten the shield cup until it is seated on the torch head. Do not use tools to tighten the cup. Check threads if there are problems.
- Ready for Use.
Your torch is now ready for use. There may still be a small amount of gas that vents between the shield cup and the torch handle. Do not overtighten.
