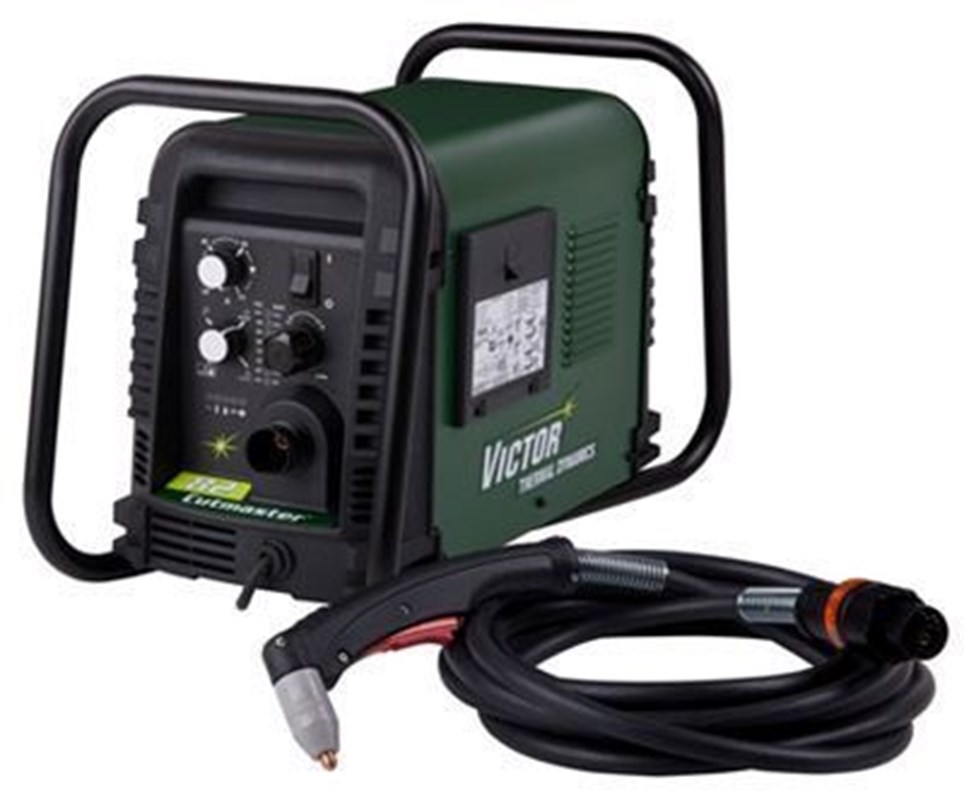

Thermal Dynamics Cutmaster 82 230V Plasma System Part #1-1130-1

Part Number: 1-1130-1
$3,149.00 + Free Shipping
$3,949.00* Save $800.00

Victor Technologies

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Cut capacity:

3/4" Capacity

3/4" Capacity

  •  Multi-Phase
  •  Multi-Voltage
  •  3/4" Cut
  •  Torch Included (SL60, 75 Deg Head)
  •  20' Leads (6.1m)
  •  Lightweight

Victor Thermal Dynamics Cutmaster 82 #1-1130-1

Cutmaster 82 Plasma System Overview:
80 Amp
SL60 Torch, 75 Deg Head
20 ft Leads
208-230V
1/3 ph
50/60Hz.

The CUTMASTER 82 Plasma Cutter weighs in at a mere 43 lbs. (19.5 kg), almost 50% less than its leading competitor, while still offering superior cutting power.

Don’t let the size of this unit fool you, it’s more than capable of cutting 3/4" (20 mm) with a maximum capability of 1½" (40 mm). The Thermal Dynamics Cutmaster 82,  like all other TRUE CUTMASTER cutters, is equipped with the 1Torch.




Choose unmatched quality and value by shopping Welders Supply for plasma cutters, plasma cutting accessories, and plasma cutting tables.

Other Versions:
1-1131-5 600V 50 Ft. Hand Torch
1-1131-1 208/230V 50 Ft. Hand Torch
1-1130-5 600V 20 Ft. Hand Torch
1-1131-2 460V 50 Ft. Hand Torch

General Specifications

Process(es)

Manual Air Plasma Cutting

Torch

SL60 with ATC (hand), SL100 (mechanized)

Certifications

IP23S

Industrial Applications

Heavy Fabrication
Manufacturing
Contractors

Cut Capacity

3/4 in. (20mm) Recommended Cut
1.50 in. (40mm) Maximum Cut

Rated Output

80A

Amperage Range

20-80 Amps

Output Power

9.0kW

Input Volts

Multi-Voltage/Phase Capable
208-230/460V, 1/3Ph, 50/60 Hz, Configured for 208-230V 1Ph
400V, 3Ph, 50Hz
600V, 3Ph, 50/60Hz

Input Amps @ Rated Output

72A @230V, 1Ph
39A @230V, 3Ph
21A @460V, 3Ph

Weight

43 lbs (19.5kg)

Duty Cycle

40% @ 80A, 60% @ 65A, 100% @ 55A

Plasma Gas

Air @ 70psi (4.8 bar)

Gas Flow

6.7 cfm (190 lpm)

Pilot

Start Cartridge

Control

Hand Torch Switch or Hand Pendant Control

Product Questions and Answers


Q - Can this be converted to 3-phase? A - Yes, the owner's manual has instructions on how to do this.
Q - What cutting tip do you need to cut 1/8" metal? A - Thermal Dynamics recommends their Plasma Drag Tip 40 amp tip (#9-8207)
