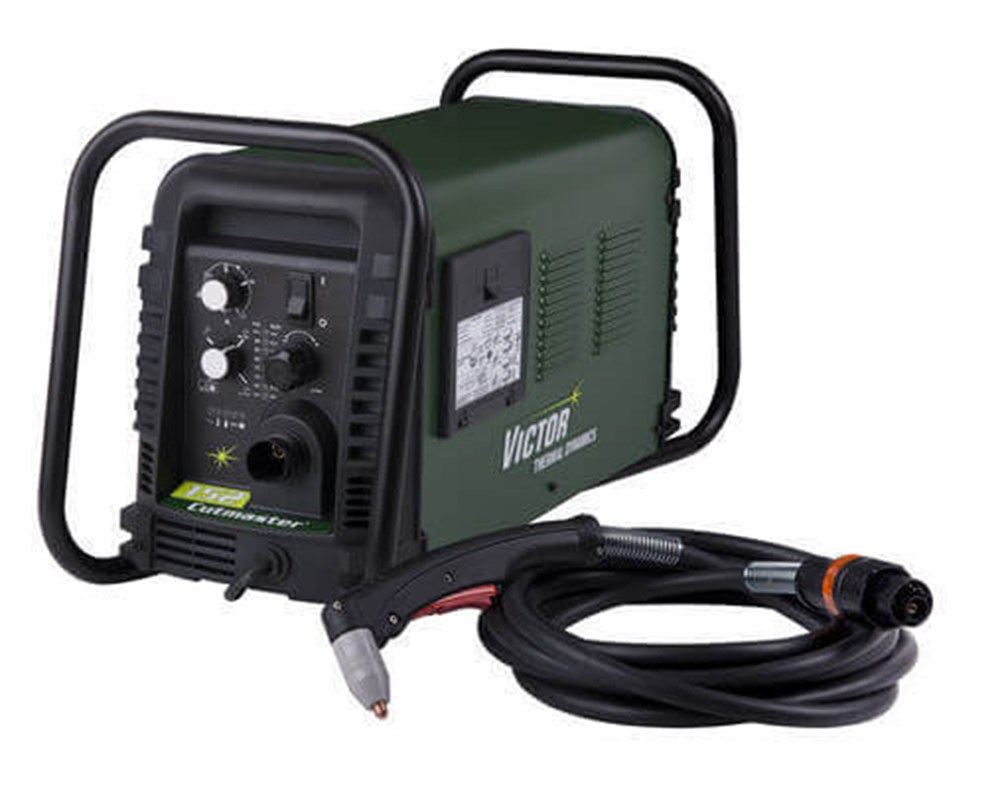

Thermal Dynamics Cutmaster 152 Plasma System, 120 Amp, SL100, 75 Deg Head, 50 ft Leads, 460V, 3Ph, 50/60Hz Ready, Multi-Voltage/Phase Capable #1-1731-2

Part Numbers: 1-1731-2
UPCs: 0699488003964

Included with your purchase ( ) :

Cutmaster 1-1731-2
Thermal Dynamics Cutmaster 152 Plasma Sy...
Welders Supply cup holder
Welders Supply Magnetic Cup Holder
Welders Supply Stickers
2 x Welders Supply Stickers
Choose Size
Welders Supply T-Shirt
Welders Supply T-Shirt
$5,649.00 $7,049.00*
SAVE $1,400.00
$5,649.00 $7,049.00*
SAVE $1,400.00

Plasma torch:



Cut capacity:

1" and Higher Capacity

1" and Higher Capacity

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel



Power supply:



  • 1 1/4" Cut Capacity
  • 460V
  • Multiphase
  • 50 ft leads
  • Hand torch included

Thermal Dynamics Cutmaster 152 Plasma System #1-1731-2

CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 152 is the heavyweight of handheld cutting systems. This unit comes in a compact, light-weight package, but don’t let that fool you. It offers enough cutting power to cut 2.

Included Features:

  • TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
  • Color-Coded LED’s indicate pressure status and setup errors
  • All user controls are conveniently located on the front panel
  • Lightweight design improves portability (Reduced nearly 50%)
  • Trigger latch feature prevents hand fatigue during long cuts. AutoPilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Multiple Torch Capability (Hand, Mechanized, Automation)
  • The Industry’s only 60 Amp Drag Tip
  • Convenient storage compartment for spare and consumable parts
  • Universal selectable input power from 208 to 460 VAC + 10%, single or three-phase, 50 or 60 Hz.
  • Power Supply
  • 50 ft. (15.2m) Lead
  • 1Torch SL100, 75 deg. Head
  • 10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
  • Spare Parts Kit
  • Operating Manual

Other Features

  • Front Panel LEDs indicate status conditions for maximum efficiency
  • Storage compartment for convenient access to spare parts and consumables
  • Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
  • True Guard roll bar provides easy transportation and protection for unmatched durability
  • Multi-voltage allows operation from 208 to 480 Volts in a single power supply
  • AutoPilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Lighter weight design for maximum portability
Shop other Plasma Cutting MachinesPlasma Cutting Consumable Parts and Accessories, and Plasma Cutting Tables.

General Specifications


Manual Air Plasma Cutting

Industrial Applications

Heavy Fabrication





Amperage Range

20-120 Amps

Maximum Amperage Output


Output Power

15.4 kW

Recommended Cut

1 1/4" (30 mm)

Maximum Cut

2" (50 mm)

Pierce Rating

1" (25 mm)

Input Voltage

460V 1/3 Phase 50/60 Hz

Duty Cycle (@ 40 deg C)

60% @ 120A

Amperage Draw

37A @ 460V, 3 ph


Start Cartridge

Dimensions (H x W x D)

15" (381 mm) x 12" (305 mm) x 30" (762 mm)


62 lbs (28.1kg)

Warranty (Parts & Labor)

4 Years




Torch Specifications

Hand, Automated & Mechanized


Air Pressure

70 psi (4.8 bar)


7.5 cfm (212 l/m)

Warranty (Parts & Labor)

1 Year


Height: 15.00 Inches
Width: 12.00 Inches
Length: 30.00 Inches
Weight: 62 Lb(s) 0 Oz

Product Questions and Answers

Q - What torch comes with this? A - Thermal Dynamics SL 100 torch.
Q - Can this be used for CNC work? A - You would have to add a PCB to interface with a CNC setup.
