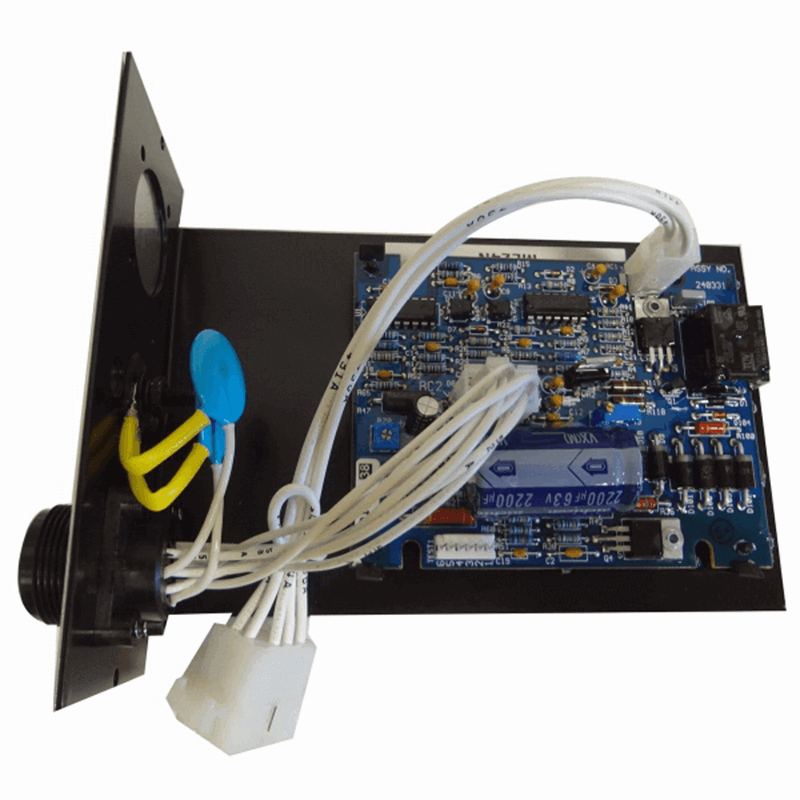

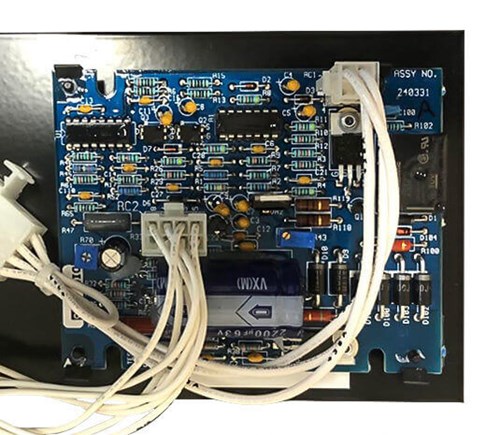

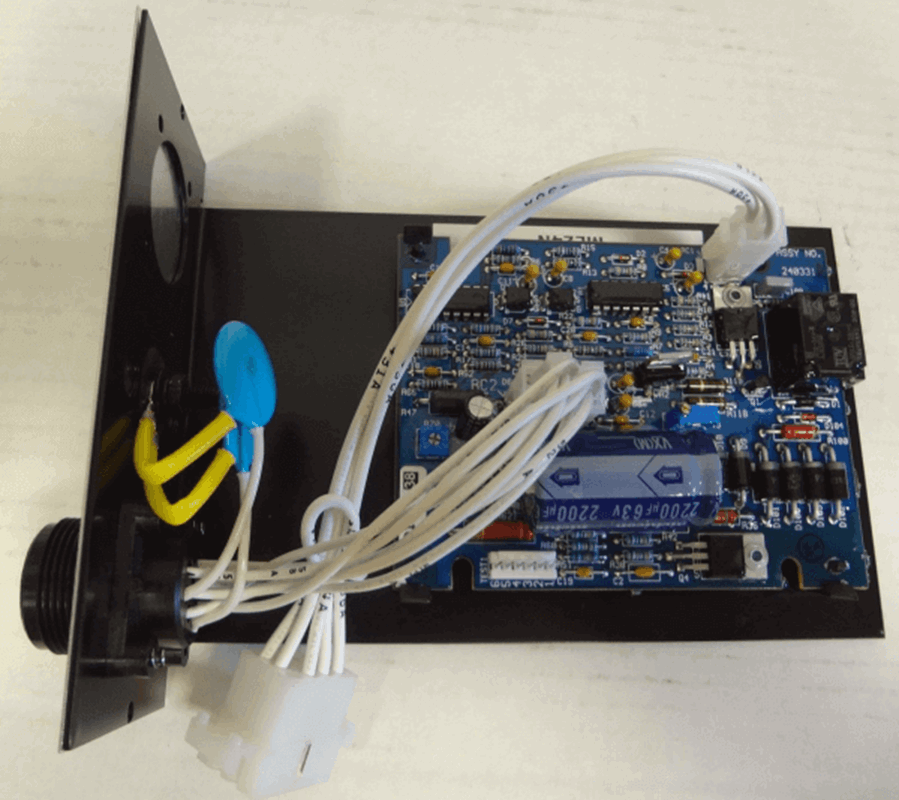

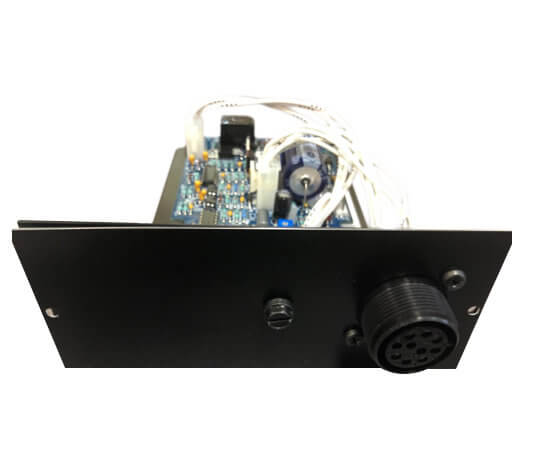

Miller® Millermatic® 250/Vintage Spool Gun Module With 10-Pin Plug #043084
Part Number: 043084
Documents
VideosMiller® Millermatic® 250/Vintage Spool Gun Module With 10-Pin Plug #043084
The Miller® Millermatic® 250/Vintage (043084) Spool gun Module is required for aluminum welding with 10 pin Spool Gun Hookup. The 250 Vintage Millermatic spool gun module uses Flux Core (FCAW) and MIG (GMAW) Welding processes.
Miller Millermatic® 250 Vintage 10-Pin Spool Gun Module (043084) spool gun compatibility:
- Spoolmatic® 15A
- Spoolmatic® 30A
- Spoolmate™ 200 Series
Miller® 250 Amp Millermatic® 250/Vintage Spool Gun Module With 10-Pin Plug Wire Application |
|
|
Wire size and type |
.030" - .035" Flux Cored/Aluminum |
|
.023" - .045" Solid Steel/Stainless Steel Wire |
|
We carry top brands like Miller & Hypertherm. View our huge selection of welding machines.
Miller® Millermatic® 250/Vintage Spool Gun Module With 10-Pin Plug #043084 Specs
- 10 pin connector
- Used in flux core and MIG welding
- Does not come with warranty
SHIPPING DIMENSIONS |
|
| Height: | 6.00 Inches |
| Width: | 6.00 Inches |
| Length: | 6.00 Inches |
| Weight: | 5 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
How to install module for use with a spool gun:
- Remove options panel.
Remove existing options panel.
- Connect PLG9.
Connect PLG9 to PLG7.
- Slide module into place.
Slide module into upper front panel where options panel was removed. Secure with screws.
