Miller Spoolmatic 15A MIG Welding Gun #195156

Part Number: 195156
$1,660.00 + Free Shipping
$1,919.00* Save $259.00

Miller Spoolmatic 15A MIG Welding Gun #195156

MIG welding can be cumbersome. Having to feed the wire while focusing on laying down a good weld isn't easy. That's where the Miller Somatic 15A welding gun (#195156) can help.

Designed for the Millermatic 252 welding machine, this gun has been designed for comfort and ease of use. The grip has an ergonomic design with finger grooves for better grip.  An interchangeable barrel for either Roughneck or Bernard Centerfire allow the length of the gun to be easily changed, depending upon need, a built-in gas valve minimizes the hassle of purging gas lines, and the spool canister rotates 180 degrees so you can get the gun into tight spots. Wire speed can be completely adjusted with a simple turn of a dial on the handle, and the drive roll itself is completely reversible to retract wire if the need arises.

For the best prices on welding machine accessories, shop Welders Supply online.
Welding Output Rating 200 A at 100% Duty Cycle
Wire Diameter Capacity .030 - 1/16 in (0.8 - 1.6 mm) aluminum wire and hard wire up .045 in (1.1 mm)
Wire Speed 70 - 875 IPM (1.8 - 22.2 m/min)
Max Spool Size Capacity 4 in (102 mm)
Net Weight 14 lb (6.4 kg) with cable assembly

SHIPPING DIMENSIONS

Height: 4.00 Inches
Width: 16.00 Inches
Length: 16.00 Inches
Weight: 11 Lb(s) 0 Oz

Product Questions and Answers

How to Open Top Cover:

  1. Locate Cover.

    Find the top cover. Locate at the typo of the gun.

  2. Open Panel.

    Push up on triangular boss to open door.

  3. Click in Position.

    Open the door until it clicks into position.

  4. Close door.

    Push the door back down until it is back in the original position.

Have a question about this product? Submit your question using the form below

Related Products

Dimension 650 #907617
Dimension 650 #907617
$8,653.00
$9,993.00

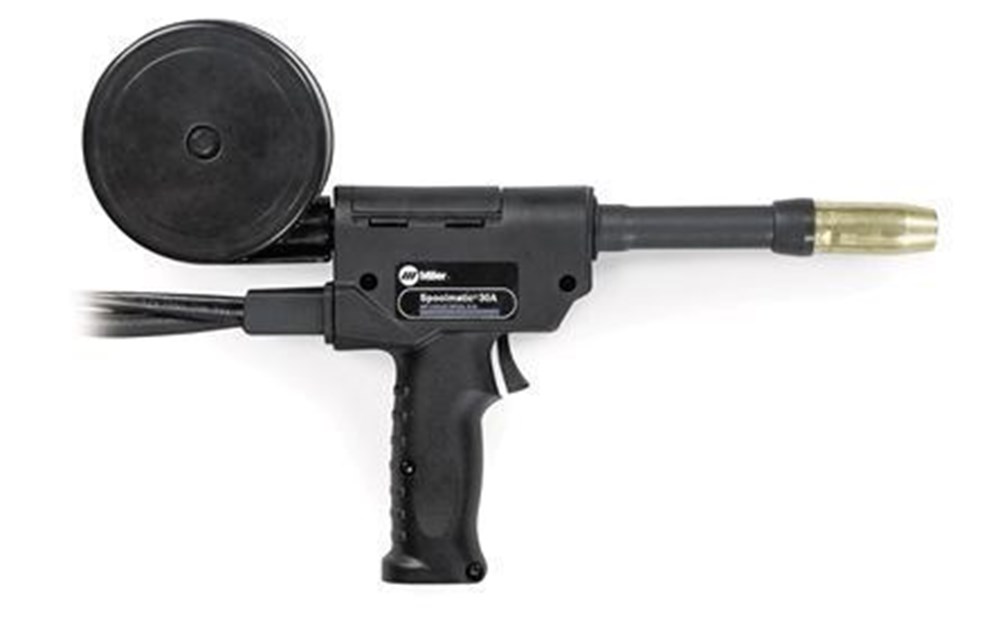

Miller Spoolmatic 30A Part#130831
