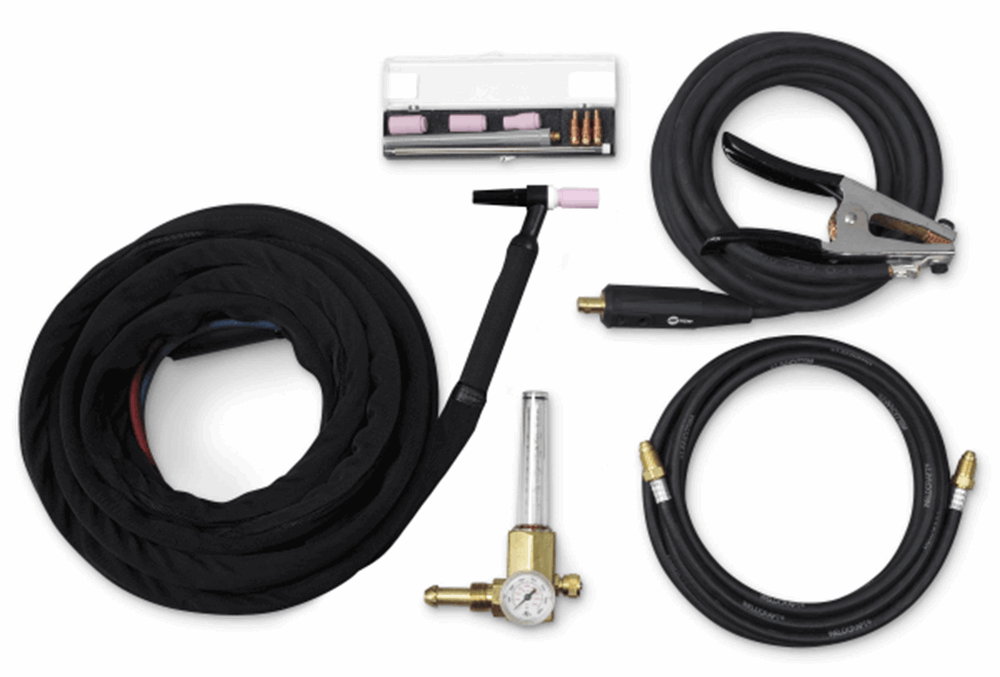

Weldcraft™ W-375 Torch Kit

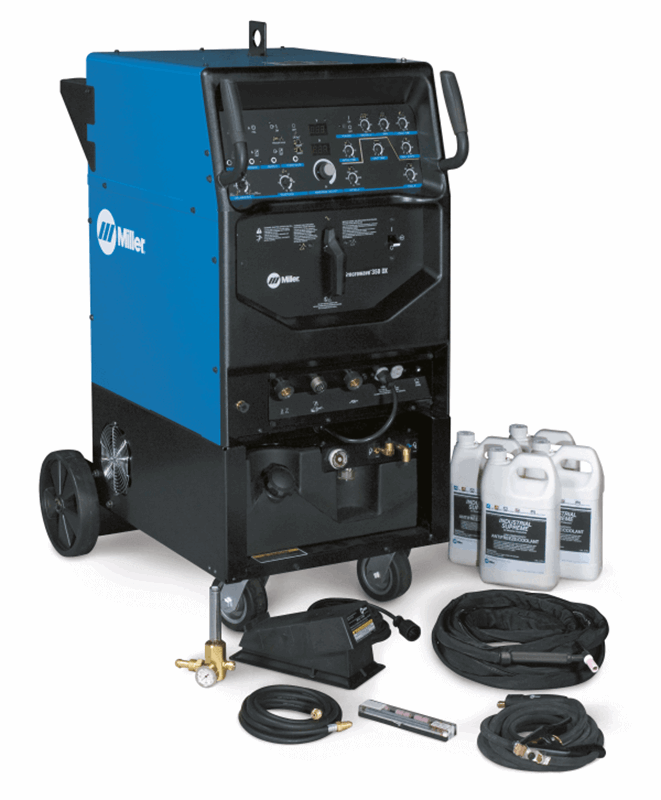

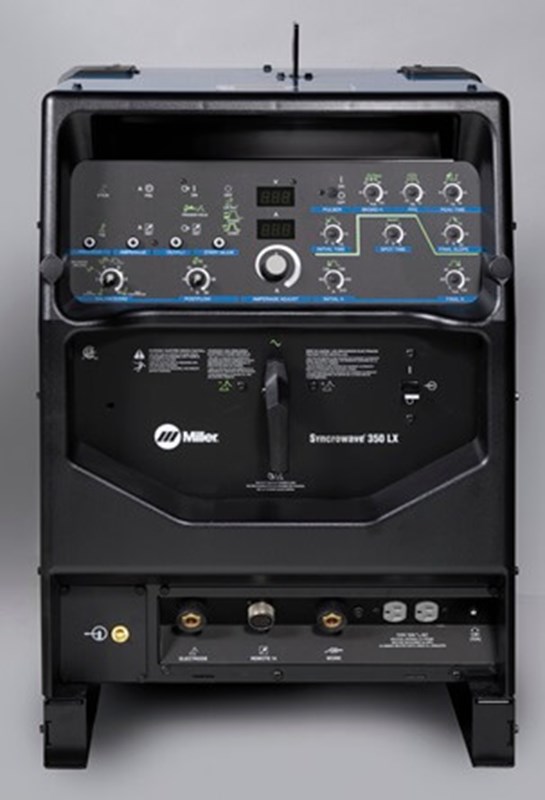

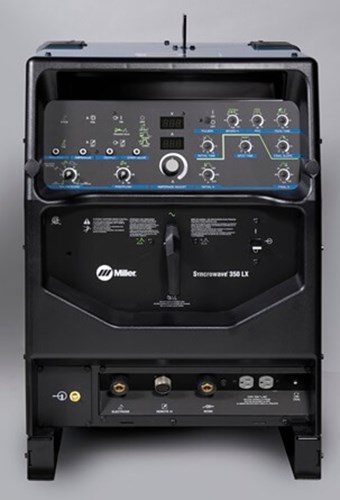

3-Year Miller WarrantySyncrowave 350 LX provides a stable low-end output for intricate applications and the capability to ensure you have enough power for those heavy demands.
Miller Syncrowave 350LX #951622 Specifications: | |
|---|---|
| Input Voltage Options | 200/230/460 V |
| Input Hz Range | 50 / 60 Hz |
| Input Phase | 1-phase |
| Current Type | AC / DC |

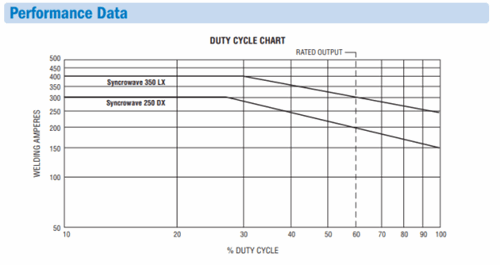

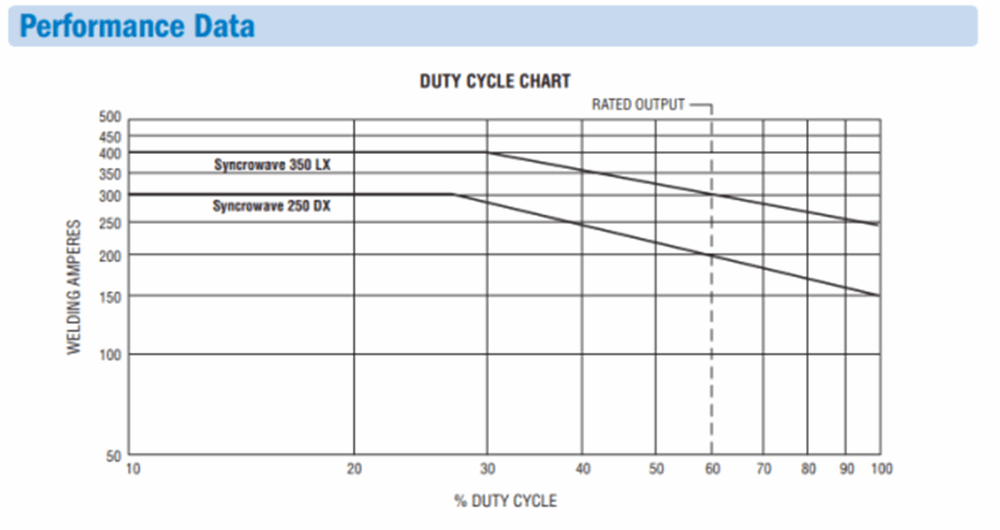

| Rated Output | 350 A at 34 VAC, 40% Duty Cycle 300 A at 32 VAC, 60% Duty Cycle |
| Weld Output | CC |
| Amperage Range | 3–400 A |
| Maximum Open Current Voltage | 80 VDC |
| Material Thickness | Steel: 0.012 in. (0.3 mm) - 5/8 in. (15.9 mm) Aluminum: 0.015 in. (0.4 mm) - 1/2 in (12.7 mm) |
| Weldable Metals | Aluminum Steel Stainless Steel |
| Processes | Stick (SMAW) TIG (GTAW) TIG AC (GTAW-AC) TIG DC (GTAW-DC) Pulsed TIG (GTAW-P, optional) Air Carbon Arc (CAC-A) |
| Industrial Applications | Precision Metal Fabrication Maintenance and Repair Aerospace Tube and Pipe Racing / Customizing / Restoring Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Metal Art / Sculptures Boat / Yacht High Purity Processing |
| Net Width | 28.5 in. (724 mm) |
| Net Height | 46 in. (1168 mm) |
| Net Length | 40.5 in. (1029 mm) |
| Net Weight | 596 lb. (270 kg) |
| Portability | Lift Eye (Standard) Running Gear / Cart (Standard) |
| Warranty | 3 years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 29.00 Inches |
| Width: | 41.00 Inches |
| Length: | 51.00 Inches |
| Weight: | 701 Lb(s) 0 Oz |
Turn off power and unplug machine before making connections.
Connect gas hose from gas supply to the gas-in connection on back of machine.
For TIG HF Impulse DCEN (direct current electrode negative) welding, select DCEN position.
For TIG AC welding, select AC position.
Connect work lead to work weld output terminal.
Connect remote foot control to Remote 14 receptacle.
Connect TIG torch to electrode weld output terminal.
Connect torch gas hose to gas-out fitting.
