Multiprocess Compatible
Single Phase Input

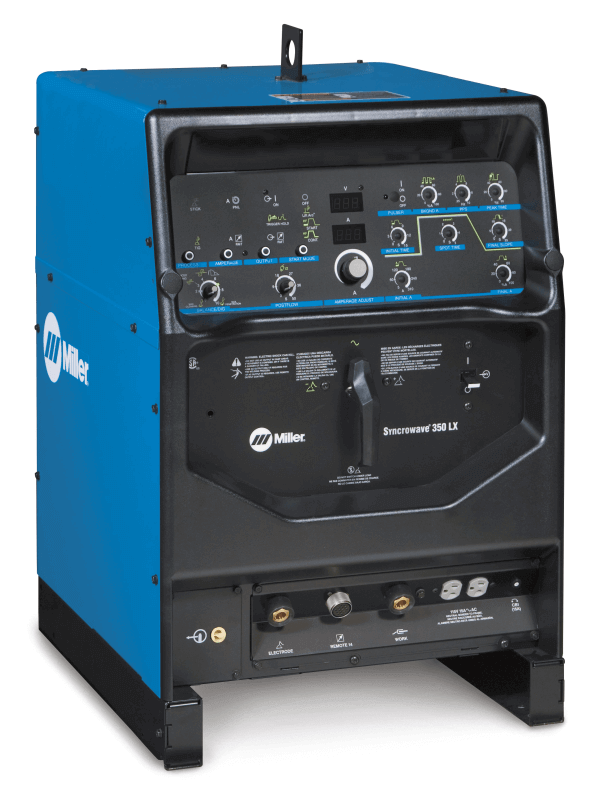

Syncrowave® 350 LX

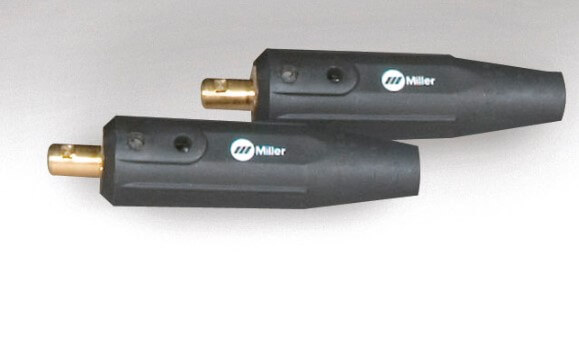

50mm Dinse Connectors

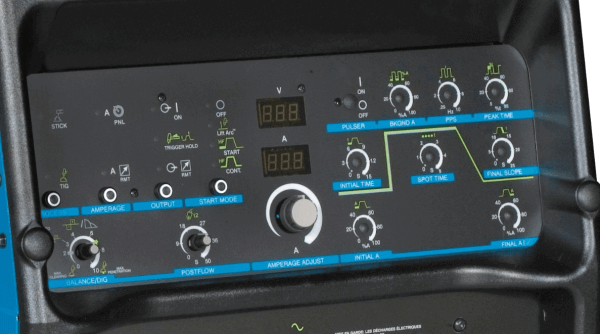

Digital Welding Meters
3-Year Miller WarrantySyncrowave 350 LX provides a stable low-end output for intricate applications and the capability to ensure you have enough power for those heavy demands.
Miller Syncrowave 350LX #907199 Specifications: | |
|---|---|
| Input Voltage Options | 230/460/575 V |
| Input Hz Range | 50 / 60 Hz |
| Input Phase | 1-phase |
| Current Type | AC / DC |
| Rated Output | 350 A at 34 VAC, 40% Duty Cycle 300 A at 32 VAC, 60% Duty Cycle |
| Weld Output | CC |
| Amperage Range | 3–400 A |
| Maximum Open Current Voltage | 80 VDC |
| Material Thickness | Steel: 0.012 in. (0.3 mm) - 5/8 in. (15.9 mm) Aluminum: 0.015 in. (0.4 mm) - 1/2 in (12.7 mm) |
| Weldable Metals | Aluminum Steel Stainless Steel |
| Processes | Stick (SMAW) TIG (GTAW) TIG AC (GTAW-AC) TIG DC (GTAW-DC) Pulsed TIG (GTAW-P, optional) Air Carbon Arc (CAC-A) |
| Industrial Applications | Precision Metal Fabrication Maintenance and Repair Aerospace Tube and Pipe Racing / Customizing / Restoring Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Metal Art / Sculptures Boat / Yacht High Purity Processing |
| Net Width | 33.25 in. (845 mm) |
| Net Height | 22.5 in. (572 mm) |
| Net Length | 25 in. (635 mm) |
| Net Weight | 496 lb. (225 kg) |
| Portability | Lift Eye (Standard) Running Gear / Cart (Standard) |
| Warranty | 3 years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 26.00 Inches |
| Width: | 26.00 Inches |
| Length: | 40.00 Inches |
| Weight: | 517 Lb(s) 0 Oz |
