Hypertherm Duramax Lock Machine Torch Assembly 180 deg - 25' #088167

$562.00 $660.00 Reduced Price You Save $98.00
Product Number: 088167

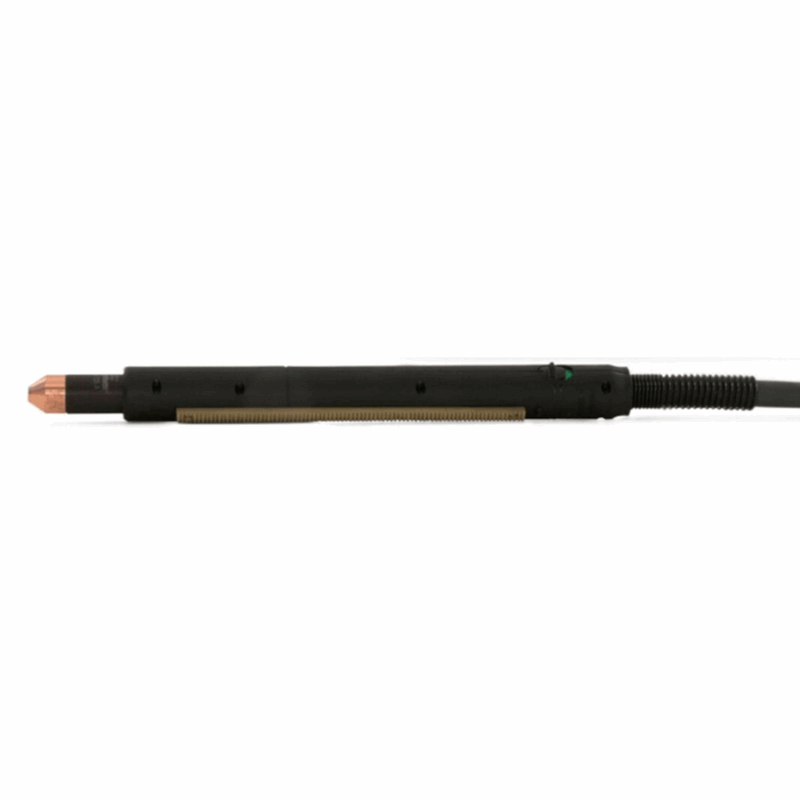

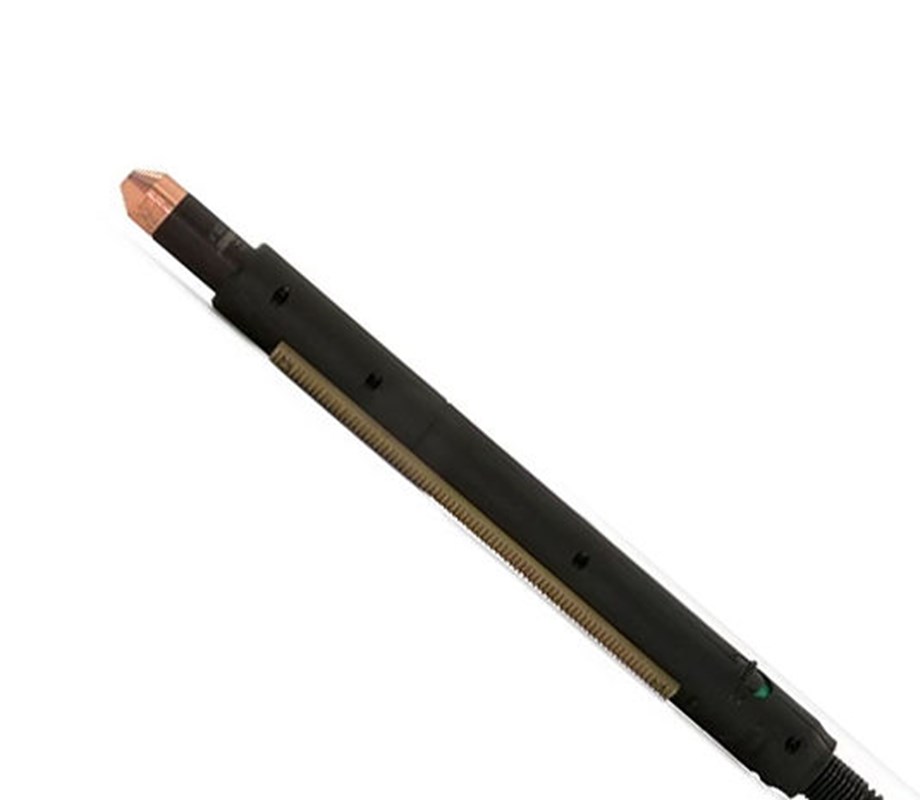

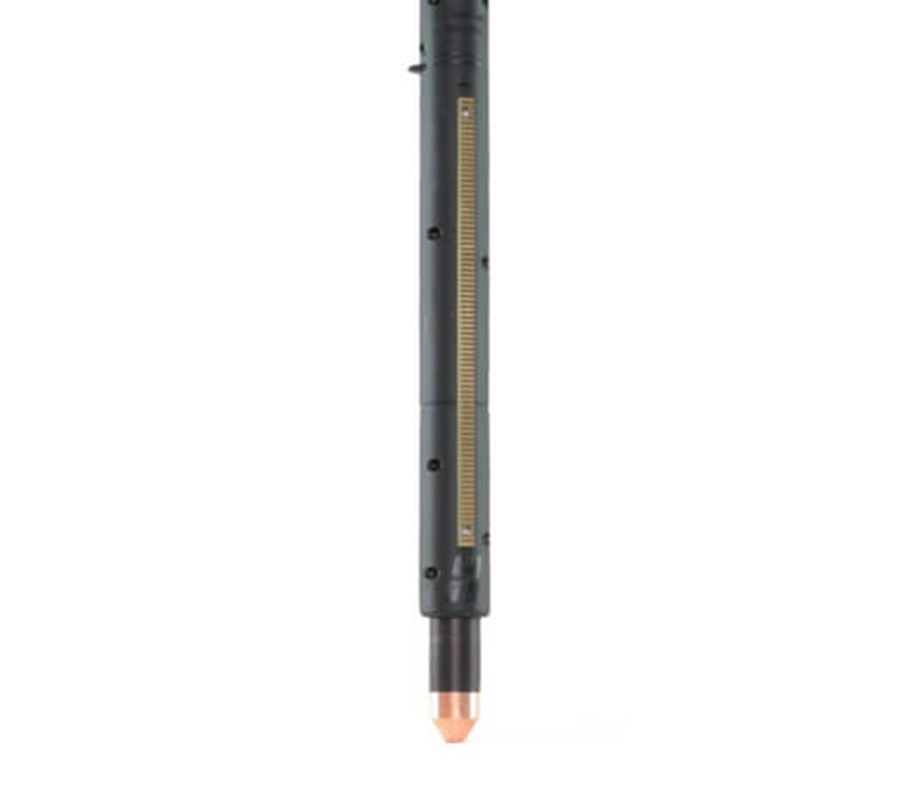

Hypertherm Duramax Lock Machine Torch Assembly 180 deg - 25' #088167

Staying true to the roots of the original Duramax cutters, the upgraded Duramax Lock torches are as rugged and durable as ever. Compatible with Powermax 45 XP units, the 180-degree Hypertherm Duramax Lock Machine Torch 088167 now cuts a wider range of metals and has superior gouging and marking capabilities. It is suitable for use with the full range of Powermax 45 XP consumables to make sure it is ready for any job you come across. The trigger lockout prevents accidental firing and the torch disable switch makes changing between consumables safe and easy. It features a 25-foot lead.

Applications of the 180-Degree Duramax Lock Machine Torch 088167

With the trigger lockout feature and torch disable switch to make changing between application-specific consumables safe an easy, this torch is ready to take on any task you give it. It excels at:

  • Drag cutting
  • Extended reach cutting
  • Extended reach gouging
  • Fine feature cutting
  • Flush cutting
  • Marking
  • Max control gouging
  • Max removal gouging
  • Mechanized cutting
  • Precision gouging

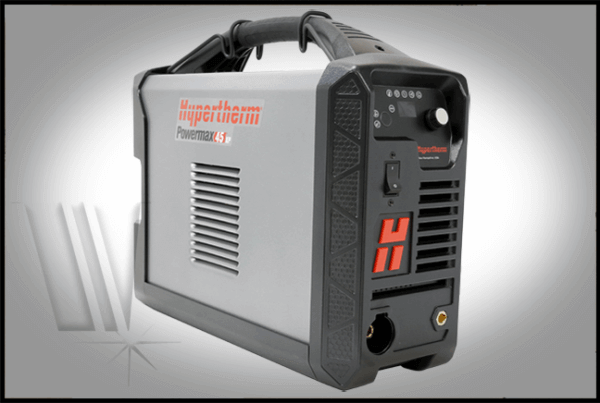

What does the 180-Degree Duramax Lock Machine Torch 088167 work with?

This plasma cutter was designed and built for machining. It is a dependable workhorse that can be used with:

Spring Electrode Starting

The SpringStart electrode technology eliminates moving parts to improve arc-starting and give you a torch that starts more reliably than ever. With the Hypertherm Duramax Lock Machine Torch 088167, it's always go-time.

Hypertherm Duramax Lock Machine Torch Assembly 180 deg - 25' - 088167 video

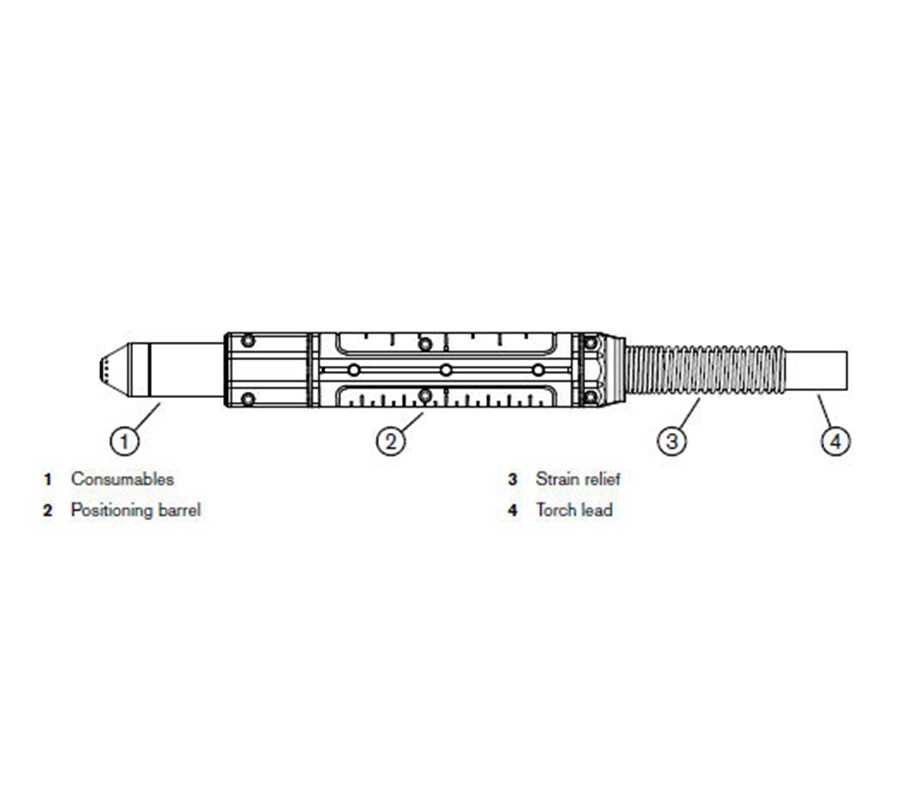

Operating range: 15 A - 45 - A

35mm (1 3/8") diameter barrel

39.6 cm (15.6") long,  32 pitch gear rack



Shield:

Part #220817

Ohmic, Part #220948

Unshielded deflector, Part #220955



Retaining Cap:

Part #220854

Ohmic, Part #220953



Nozzle:

Part #220941



Electrode:

Part #220842

CopperPlus long life upgrade, Part #220777



Swirl Ring:

Part #220857





SHIPPING DIMENSIONS

Height: 4.00 Inches
Width: 4.00 Inches
Length: 12.00 Inches
Weight: 5 Lb(s) 0 Oz

Hypertherm 180° Duramax Lock Machine Torch Assembly - 25' #088167 Demo

Hypertherm 180° Duramax Lock Machine Torch Maintenance

Product Questions and Answers


Q - What is the operating range? A - 15 A to 45 A
Q - I need a replacement retaining cap. What is the part number? A - Part #220854

How to How to Install a Line-Disconnect Switch:

  1. Disconnect Switch Needs.

    Make sure that you use a line disconnect switch for each plasma power supply.

  2. Placement.

    Place the switch so that it is easily accessible to the operator. Installation must be conducted by a licensed electrician.

  3. Check Interrupt Level.

    The interrupt level of the switch must equal or exceed the continuous rating of the fuses/breakers.

  4. Other Requirements.

    Clearly mark the on and off positions. Contain an emergency stop. Have all other necessary fuse precautions.
