Millermatic® 255 MIG/Pulsed MIG Welder w/ EZ-Latch™ Running Gear

Millermatic® 255 MIG/Pulsed MIG Welder 951766 w/ EZ-Latch™ Running Gear

Part Numbers: 951766
1 Review
$4,349.00
$5,499.00* Save $1,150.00
Rebate Forms:
$250 Rebate - Build with Blue Holiday Savings

Included with your purchase ( ) :

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    • 220/230/240V
    • Single Phase
    • MIG Welder
    • 10 ft power cord
    • 3-Year Warranty

    Millermatic® 255 MIG/Pulsed MIG Welder #951766 w/ EZ-Latch™ Running Gear- 208/240V

    Miller designed the Millermatic 255 for ease of use, efficiency, and productivity--perfect for light manufacturing and fabrication users. A large LCD screen featuring Miller's Auto-Set™ Elite simplifies setting up parameters and allows for custom settings to be programmed into the memory. This 250 amp all-in-one welder connects to 208 or 240-volt input power and welds up to 1/2” aluminum, stainless and mild steel.

    Built for professionals in the light manufacturing or fabrication segment who want a smaller, versatile welder with intuitive setup to increase productivity, the Millermatic 255 is a great choice for both novice welders and pros.

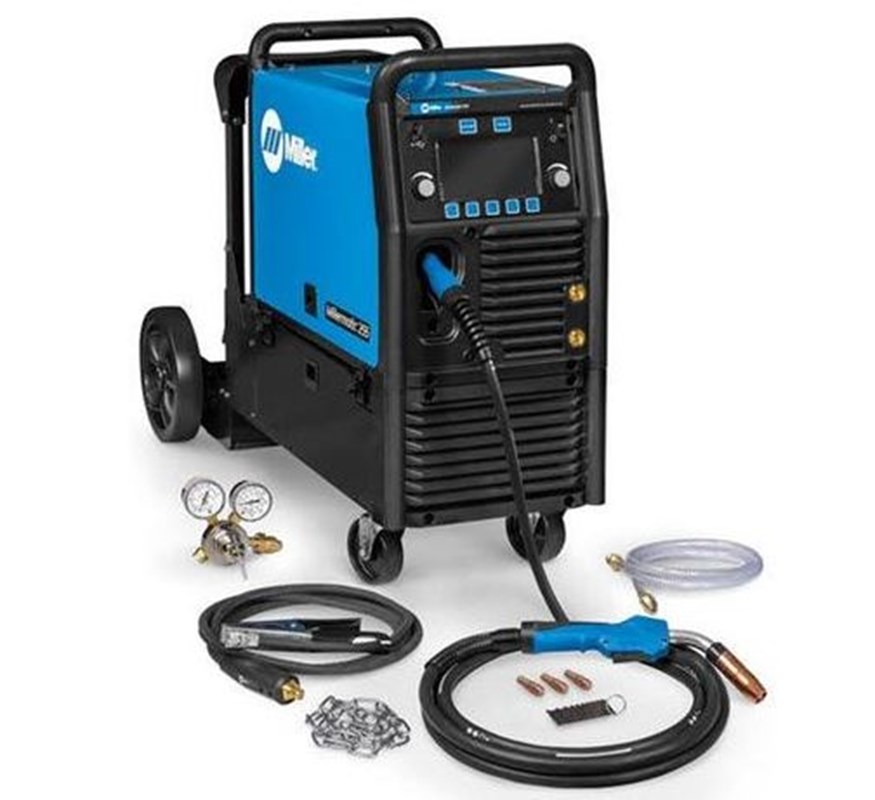

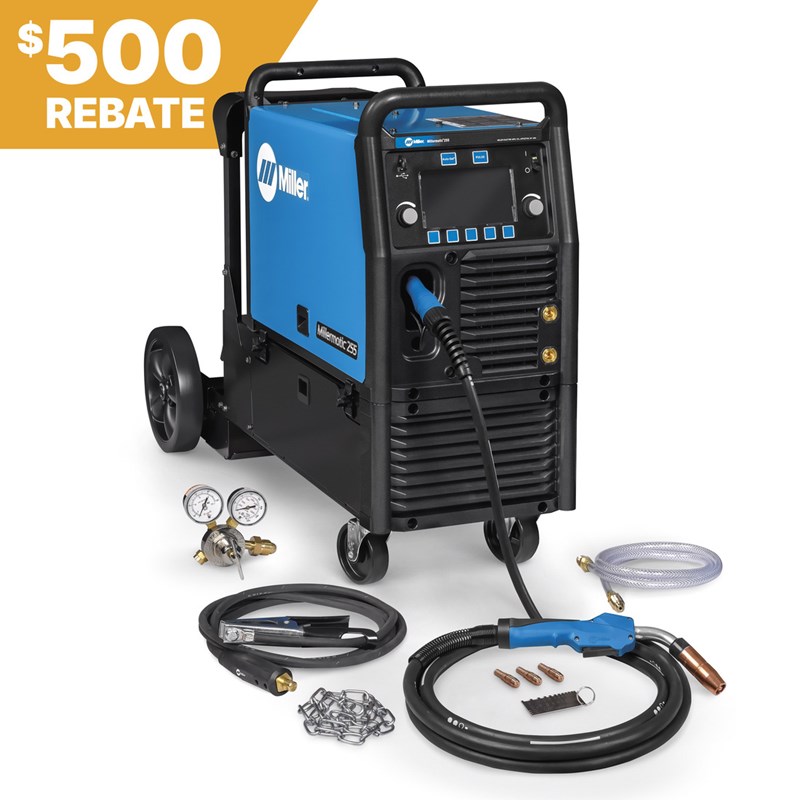

    What's Included:

    • Millermatic 255 with 10 ft. (3 m) power cord
    • 15 ft. (4.5 m) 300-amp Bernard™ BTB MIG Gun for .035/.045 in. (0.9/1.2 mm) wire
    • 10 ft. (3 m) work cable and clamp and 50mm Dinse-style connector
    • Flow gauge regulator and gas hose for argon or AR/CO2 mix
    • Extra Contact tips
    • .035/.045 in. (0.9/1.2 mm) reversible drive rolls
    • Chain to secure gas cylinder
    • Material Thickness Gauge
    • EZ-Latch™ Running Gear

    Features:

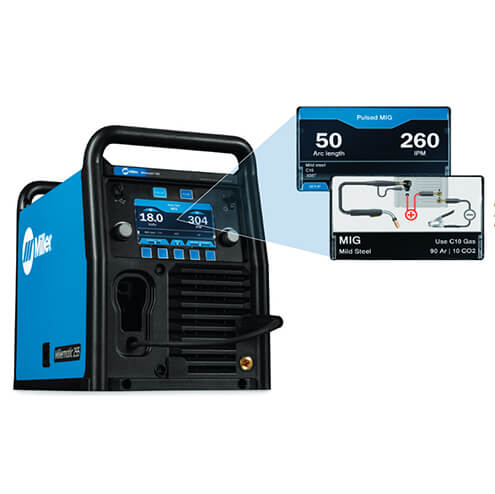

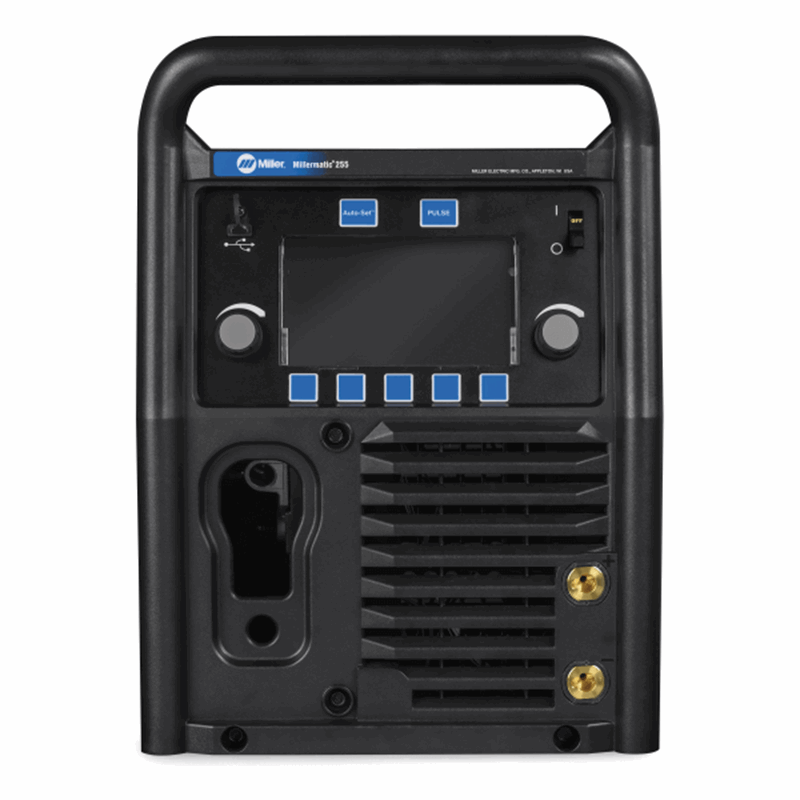

    • Easy-to-understand interface - A 7-inch color LCD display further guarantees proper machine setup and parameter selection. Welders can spend more time welding than wasting time setting up their machine.
    • Pulsed MIG welding delivers higher quality - The lower heat input of this Millermatic causes less distortion on thin materials. Less spatter will minimize post-weld grinding and rework again, allowing more time for welding.

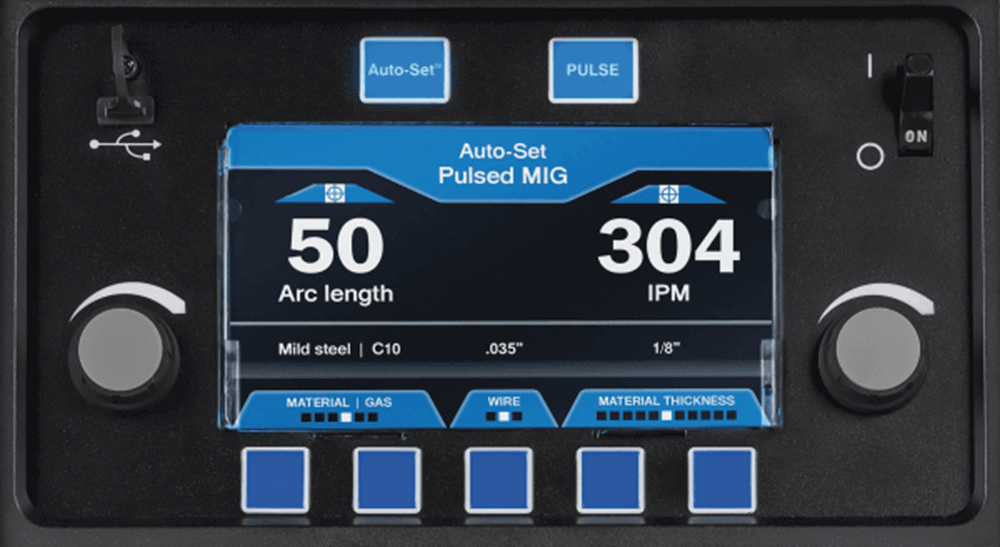

    • Auto-Set™ Elite - This feature offers predefined weld settings with the ability to fine-tune and set weld parameters by wire and gas type, wire diameter and material thickness. Program mode allows easy save and recall of favorite weld settings, eliminating the need to manually set parameters and ensuring consistent quality by welders of all skill levels.
    • Program mode allows easy save and recall of favorite weld settings - Welders of all levels can cut their setup time in half by having their preferred weld settings ready at the touch of a button.
    • Auto-Line™ Technology - Allows single-phase input voltage hookup (208-240 V) with no manual linking -- ideal for dirty or unreliable power.
    • Portability - Machine only weighs 84 lb. - Take advantage of better mobility and easier access to hard-to-reach spots. The Millermatic 255 weighs 50% less than the Millermatic 255.

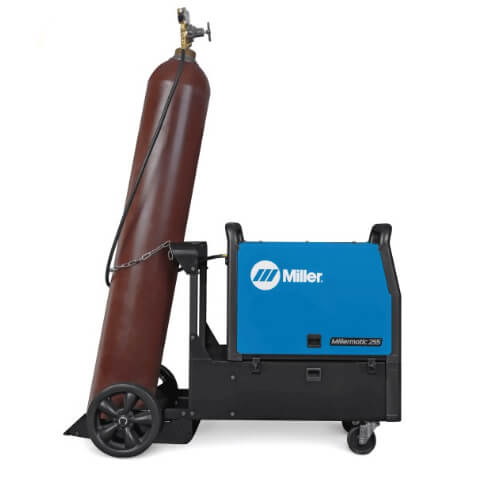

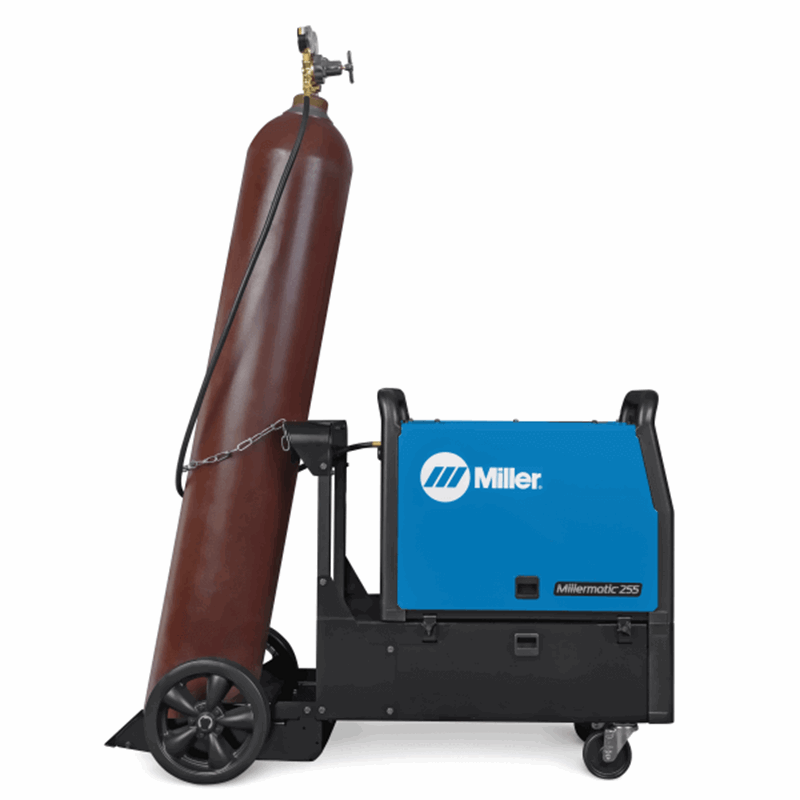

    • EZ-Latch™ running gear - Operators don't need a lift truck to load the welding machine and running gear into a truck. The EZ-Latch™ running gear uses latches to secure the machine to the running gear. To disengage the machine simply loosen the latch retaining knob and rotate the latches.
    View all MIG, TIG and Stick Welders available at Welders Supply Company. Check out our welding helmets and plasma cutting machines.

    General Specifications Millermatic® 255 MIG/Pulsed MIG Welder w/ EZ-Latch™ Running Gear

    Weldable Metals
    Steel
    Stainless Steel
    Aluminum
    Input Voltage
    208 V
    220/230/240 V
    Current Type DC
    Input Phase 1 Phase
    Input Hz 60 Hz
    Input Amperage
    20-350
    Wire Diameter
    Aluminum 0.035 in 0.047 in
    Flux Cored 0.03 in 0.045 in
    Stainless 0.023 in 0.045 in
    Solid Steel 0.023 in 0.045 in
    Spool Size 12 in (305 mm)
    Wire Feed Speed 50 IPM - 800 IPM
    Net Width 13.75 in
    Rated Output 230 A at 25.5 V, 60% duty cycle
    Max Open Circuit Voltage 87 VDC
    Amperage Range 20 A - 350 A
    Weld Output CV
    Warranty 3 Years
    Miller's True Blue Warranty

    SHIPPING DIMENSIONS

    Height: 42.00 Inches
    Width: 19.00 Inches
    Length: 40.00 Inches
    Weight: 180 Lb(s) 0 Oz

    Manufacturer Reviews

    By: Ronald
    The Miller 255 Millermatic is a great welder. So easy to use for various thickness metals. I was welding very thin metal with .030" wire that I did not think it would be possible. But there was a setting in the machine that got it right. I am very happy with my purchase. This is my second Miller welder, the first was a 250 Sycrowave 250 DX. Not sure what my third is going to be.

    Product Questions and Answers


    Q - Is there an inductance setting on this? A - Yes, it has an inductance setting of 0-99 with a default of 50.
    Q - What gas should you use on the pulse program? A - 90/10 to pulse weld mild steel and a mix of 65% argon, 33% helium and 2% CO2 for stainless steel.
    Q - What push pull guns will work with this? A - The Miller XR-Aluma Pro A Gun (#300000), Miller XR-Aluma Pro Lite Gun (#300948) will both work fine with the Millermatic 255.
    Q - Which spool guns can I run with this? A - The Miller Spoolmatic 15A (#195156), Miller Spoolmatic 30A (#130831) and Miller Spoolmatic 200 MIG Spoolgun (#300497) will all work with the Millermatic 225.
    Q - Is there a difference between the 255 and 252? A - Compared to the previous model (Millermatic 252), the 255 is 84 lbs lighter (50% lighter) and features a EZ-Latch cart capability which doesn’t require any other tools. The 255 also comes with the latest MDX gun and pulsed MIG welding technology.
