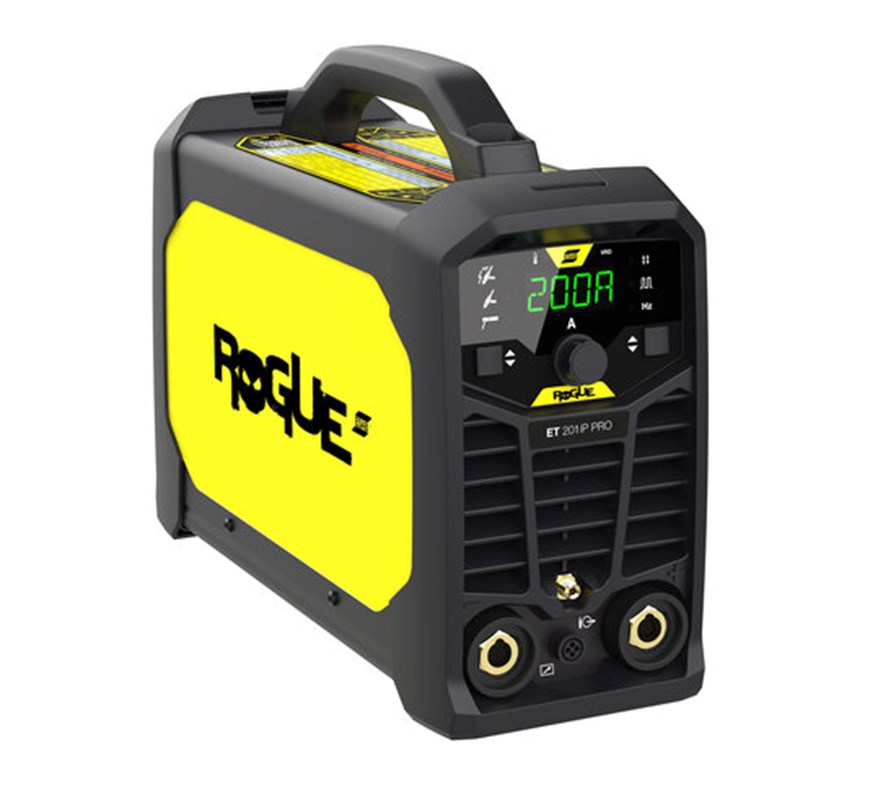

ESAB Rogue ET 201iP PRO TIG/Stick Welder (0705002023)
ESAB Rogue ET 201iP PRO TIG/Stick Welder (0705002023)

Ships Free To Lower 48 States

Ships Free To Lower 48 States
The Rogue ET 201iP PRO is a professional-grade TIG and Stick welder engineered for precision, portability, and durability. Featuring high-frequency TIG start, pulse functionality in both TIG and Stick modes, and a robust housing rated for tough jobsite conditions, Rogue ET delivers unmatched performance. Programmable arc controls, PFC stability, and remote compatibility make this compact 21.2 lb machine ideal for field and shop use. Break away from limits—Go Rogue.
Specification | Value |
---|---|
Input Voltage | 115–230V ±15%, 1-Phase, 50/60Hz |
Stick Output @ 230V | 200A / 28.0V @ 25% 129A / 25.2V @ 60% 100A / 24.0V @ 100% |
Stick Output @ 120V | 110A / 24.4V @ 25% 70A / 22.8V @ 60% 55A / 22.2V @ 100% |
TIG Output @ 230V | 200A / 18.0V @ 25% 129A / 15.2V @ 60% 100A / 14.0V @ 100% |
TIG Output @ 120V | 140A / 15.6V @ 25% 90A / 13.6V @ 60% 70A / 12.8V @ 100% |
Welding Current Range | 10–200A |
Open Circuit Voltage | 78 VDC |
Energy Save Mode | 50W |
Operating Temperature | 14°F to 104°F |
Rated Power | 7 kVA |
Enclosure Rating | IP23S |
Certification | CSA |
Dimensions (L × W × H) | 15.8” × 6” × 10.4” |
Weight | 21.2 lbs |
SHIPPING DIMENSIONS |
|
Height: | 10.40 Inches |
Width: | 6.00 Inches |
Length: | 15.70 Inches |
Weight: | 21 Lb(s) 3 Oz |
