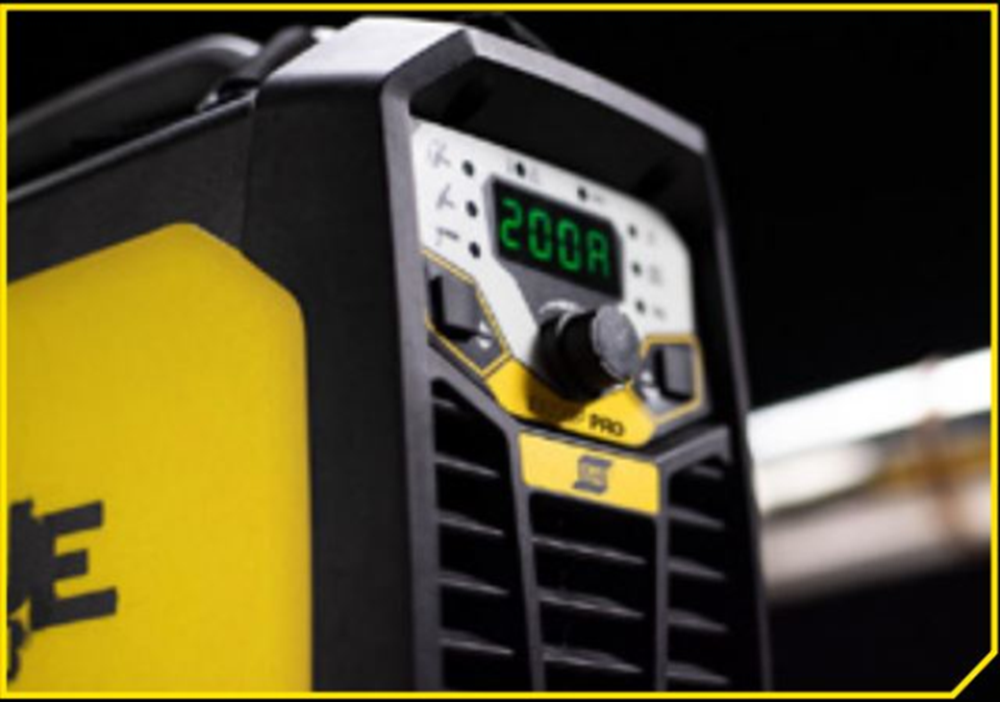

Rogue ET is powerful and easy to handle entry level high frequency start TIG machine. It has been designed with ESAB DNA code which give them great robustness locked in very compact housing. Lightweight, ergonomic handle, carry strap and long extension cables make Rogue ET the ideal solution for field applications. Rogue ET performs with exceptional arc characteristics, both in TIG and Stick mode. There is a broad number of advanced parameters that can be adjusted in TIG: gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of these can be worked with 2 or 4 stroke mode. Additionally this version has a pulsing feature with frequency up to 500 Hz for better heat input control. In Stick the user can adjust Hot Start or Arc Force, to match his best welding preferences or application. All of this can be quickly adjusted by simple and intuitive user interface. |

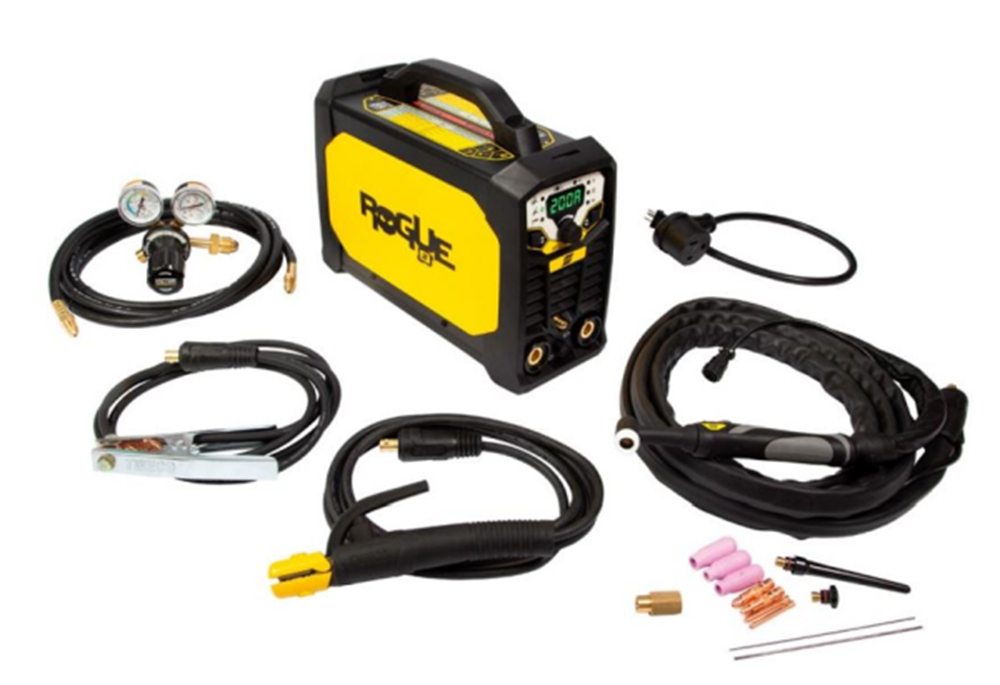

INCLUDES:
Features | |
---|---|
Primary Voltage 1 ph |
115/230 VAC ± 15%, 1ph, 50/60 Hz |
Maximum Output |
200 A |
Rated kVA |
7 kVA |
Energy Save Mode |
50 W |
Open Circuit Voltage |
78 V DC |
Stick Welding Output at 25% Duty Cycle at 60% Duty Cycle at 100% Duty Cycle |
200 A / 28.0 V 129 A / 25.2 V 100 A / 14.0 V |
TIG Welding Output at 25% Duty Cycle at 60% Duty Cycle at 100% Duty Cycle |
200 A / 18.0 V 129 A / 15.2 V 100 A / 14.0 V |
Current Range |
10 - 200 A |
Operating Temperature |
-10 to 40°C (+14 to +104°F) |
Enclosure Class | IP23S |
Certification Mark | CSA |
Dimensions | 403 x 153 x 264 mm (15.7 x 6 x 10.4 in) |
Weight | 9.6 kg (21.2 lbs) |
SHIPPING DIMENSIONS |
|
Height: | 10.00 Inches |
Width: | 10.00 Inches |
Length: | 16.00 Inches |
Weight: | 22 Lb(s) 0 Oz |
