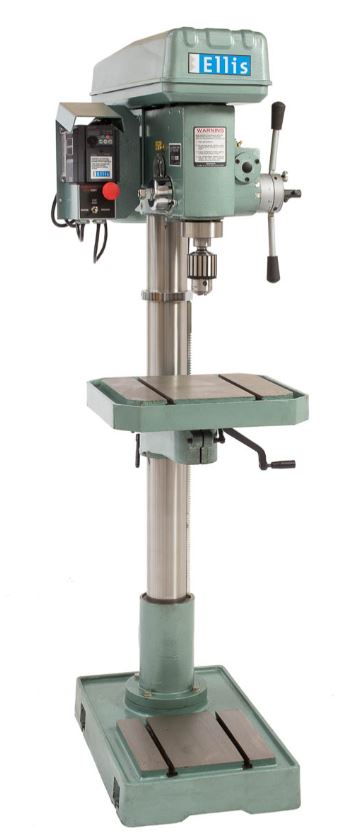

Ellis Drill Press 9400

$3,999.99 $4,295.00 Reduced Price You Save $295.01
Product Number: 9400
QTY:
Financing AVAILABLE!

Ellis Drill Press 9400

Features:

  • Variable speed from 0 to 1200 RPM
  • Adjust speeds while operating in the material
  • High torque at low RPM speeds
  • Electronic reversing for tapping
  • Tapping head is not needed
  • Taps left or right handed threads
  • Drill table rotates 360° around column
  • Smooth operating table crank
  • Fully enclosed spindle
  • Quill lock and depth control
  • Speed control
  • Continuous speed adjustment while in operation
  • Electronic reversing for tapping
  • One turn on knob for adjusting speed (0 to 1200 RPM)

MOTOR 2HP A.C. Single Phase
Choose 110V or 220V

CONTROL BOX
Infinitely variable speed by turning the dial
Electronic reversing
Full torque at low speeds
All solid state circuitry
Continuous speed adjustment while in operation

STANDARD Power down feed

SPINDLE SPEEDS 0 – 1200 RPM

DRILLS TO CENTER 18-1/8″

DRILLING CAPACITY Steel 1-1/16″
Cast iron 1-1/4″

TAPPING CAPACITY 3/4″

MORSE TAPER No. 3

QUILL DIAMETER 3″

COLUMN DIAMETER 4″

SPINDLE TRAVEL 5-3/8″

SPINDLE TO TABLE (MAX.) 27-1/4″

SPINDLE TO BASE 46-1/4″

SHIPPING WEIGHT 675 lbs

TABLE Production type:
T- slotted 15-7/8″ X 17-7/8″
2 Slots for 1/2″ t-bolts
Ground working surface
Coolant trough

BASE T- slotted
16-3/8″ x 26-5/8″
2 slots for 1/2″ t-bolts
Ground working surface

SIZE

Height 69-1/2″
Width 20″
Depth 29″

SHIPPING DIMENSIONS

Height: 30.00 Inches
Width: 24.00 Inches
Length: 70.00 Inches
Weight: 675 Lb(s) 0 Oz
