Lincoln Electric Power MIG 220 AC/DC Multi-Process Welder #K5379-1

Part Number: K5379-1
UPC: 015082558738

PREORDER ONLY - AVAILABLE MID-AUGUST

$3,749.99 + Free Shipping

WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Power supply:

110V

110V

220V Single Phase

220V Single Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Multi-process welderMulti-Process Welding
  • 10ft push gun for aluminum MIG welding10' Magnum® PRO 175L Gun
  • AC & Pulsed TIG
  • Multi-voltage input welder120-240 V
  • Single phase welding machineSingle Phase
  • Lincoln Electric hassle-free warranty3-Year Warranty

⚠ PREORDER ONLY - PURCHASE NOW FOR THE SOONEST DELIVERY DATE (OFFICIAL LAUNCH DATE MID-AUGUST)

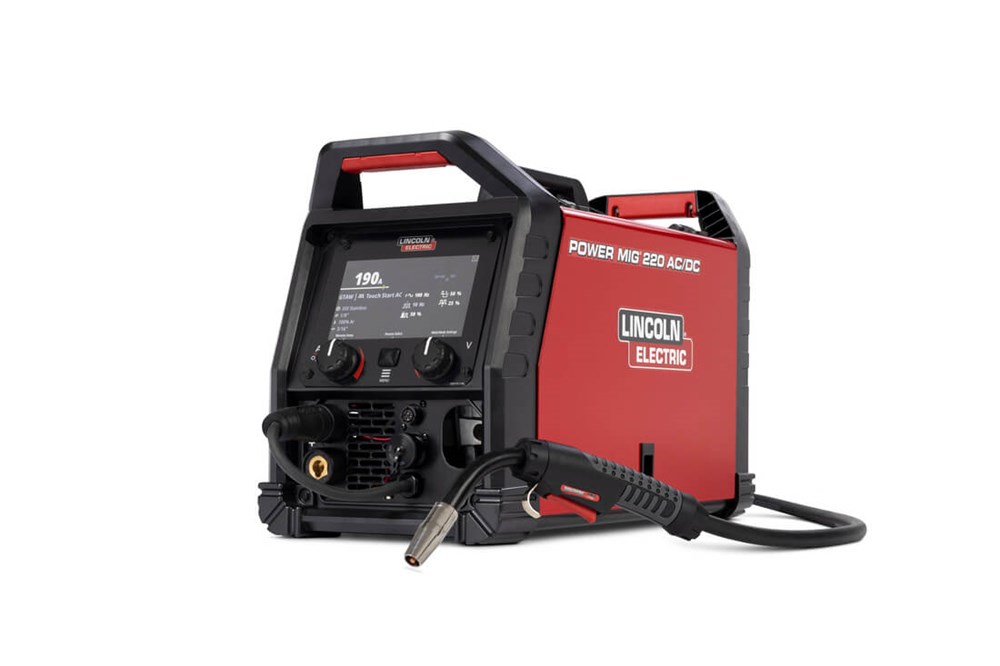

Lincoln Electric Power MIG 220 AC/DC Multi-Process Welding Machine #K5379-1

The Lincoln Electric POWER MIG 220 AC/DC multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor, or repair personnel. The sleek, rugged, and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process & selection of weld settings incredibly simple. Take on any job with pulsed MIG, AC/DC TIG, Stick, or Flux-Cored; with the versatile POWER MIG 220 AC/DC welder.

Highlights

  • Multi-Process Capable: Welds pulsed MIG, Flux-Cored, Stick, and AC/DC TIG.
  • Dual Input Voltage: 120V and 230V inputs so you can plug into any common power supply.
  • Ergonomic Case: Sleek and robust case design with multiple lift points for ease of mobility around the shop.
  • Built-in TIG Solenoid and Foot Pedal Adapter: The POWER MIG 220 AC/DC welder is designed to accept a TIG torch, so no installation is required.
  • Robust and Reliable Wire Drive: Ensures proper and consistent feeding for optimal welding experience.
  • Ready.Set.Weld® Technology: Simplifies setup by recommending optimal welding parameters for each welding procedure.
  • ArcFX® Technology: Provides instant visual feedback on how settings affect the weld outcome.
  • Memory Capability: Easily recall saved settings to get welding faster.
  • Lightweight and Portable: Only 51 lbs.

What's Included

  • (1) POWER MIG® 220 AC/DC Multi-Process Welder
  • (1) K4529-1 Magnum® PRO 175L Gun 10 ft. (3.0 m)
  • (1) K5339-17F-1 Caliber 17 Series 150 Amp Air-cooled TIG Torch with Flexible Head and Ultra-Flex™ Cable Assembly
  • (1) KP4760-MD 17/18/26 Series Medium Duty TIG Torch Parts Kit
  • (1) 230V to 120V Power Cord Adapter
  • (1) Work Cable and Clamp
  • (1) Electrode Holder and Lead Assembly
  • (1) Adjustable Gas Regulators and Hose
  • (1) Gasless Nozzle
  • (1) Gun Cable Liner (pre-installed in gun)
  • (1) Spindle Adapter
  • (1) ED030631 Sample 2 lb. (0.91 kg) Spool of SuperArc® L-56® MIG Wire
  • (2) Contact Tips 0.025 in. (0.6 mm)
  • (2) Contact Tips 0.030 in. (0.8 mm)
  • (2) Contact Tips 0.035 in. (0.9 mm)
  • (1) Drive Rolls 0.025 - 0.030 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) (Installed)
  • (1) Knurled Drive Roll 0.030 - 0.045 in. (0.8 - 1.1 mm)
  • (1) Wire Guide 0.045 in. (1.1 mm) and 0.025 - 0.035 in. (0.6 - 0.9 mm) (Installed)
  • Caliber® 17/18/26 Series TIG Torch Expendables Kit - 0.040"-3/32" | KP4760-MD
  • Model 601-Ar5-30-580 Single-Stage Flowgauge Regulator | 3000369
  • SuperArc® L-56® MIG (GMAW) Wire | ED030631
  • Caliber® 17 Series TIG Torch Ready Pak - Rigid, 12.5 ft. (3.8 m) | K5339-17-1
  • Magnum® PRO 175L Welding Guns - POWER MIG® 210 MP, 10 ft. (3 m) | K4529-1
Shop all Lincoln welding products and welding safety equipment available online from Welders Supply.

PREORDER ONLY - AVAILABLE MID-AUGUST

Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 120V
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) 125A/15/40%
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) 85A/23.4V/40%
Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) 95A/18.8V/40%
Phase 1: Input Current at Max Rated Ouput #1 (Current) 21.4A
Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) 230V
Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) 210A/18.4V/20%
Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) 200A/28V/15%
Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) 230A/25.5V/15%
Phase 1: Input Current at MAX Rated Output #2 (Current) 32.5A

General Specification

Machines Processes Stick (SMAW)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
Number of Operators per Machine 1
Input Voltage 120V/230V
Input Current 14.3
Input Hertz 60
Input Phase 1
Output Range 20A-230A

Machine Technologies & Connections

Machines Communication Technology digital
Work Lead Connector Type Dinse
Spool Gun Compatible (Duty) Light

Wire Feeding Specifications

Number of driven rolls 1 roll
Configuration Single
UI type TFT - Graphic
Feedhead Configuration Single
Wire Configuration Single
CoredWireSizeRange .035 - .045 in (0.9 - 1.2 mm)
SolidWireSize .035 - .045 in (0.9 - 1.2 mm)
Wire Feed Speed Range (IPM) 50-700

Application

Typical Application Automotive
Brewery
Distillery
General Fabrication
Maintenance & Repair
Repair Welding

Warranty

Warranty 3 Years



SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 11.00 Inches
Length: 24.00 Inches
Weight: 51 Lb(s) 0 Oz
