Miller XR-25A Pistol Pro 300783

Part Number: 300783
UPC: 715959556668
$3,502.00 + Free Shipping $3,502.00*
SAVE $0.00
Starts at $583.67/month with

Call 844-682-0205 or CHAT for more options

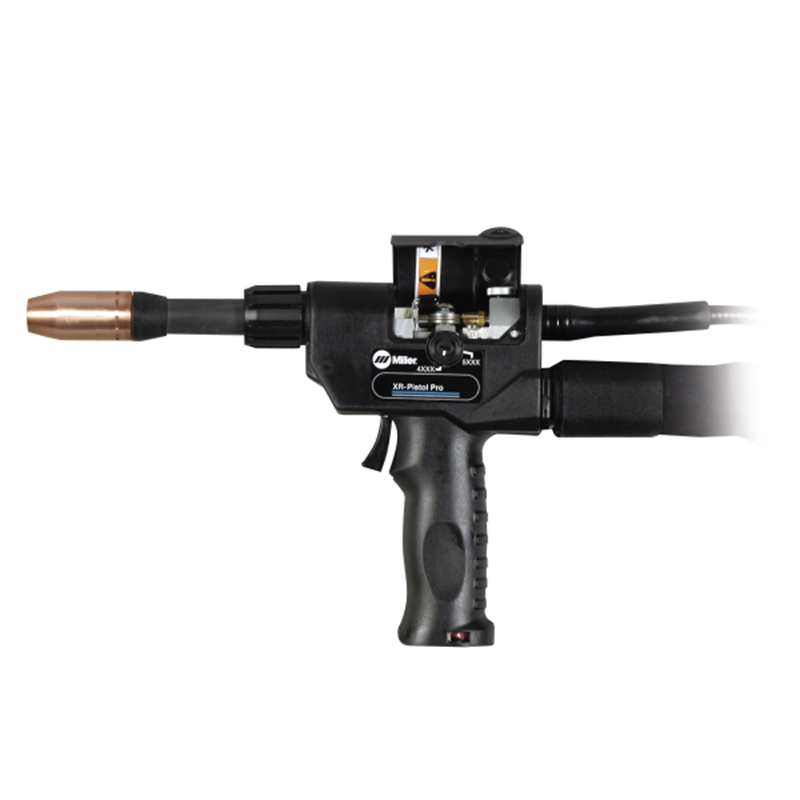

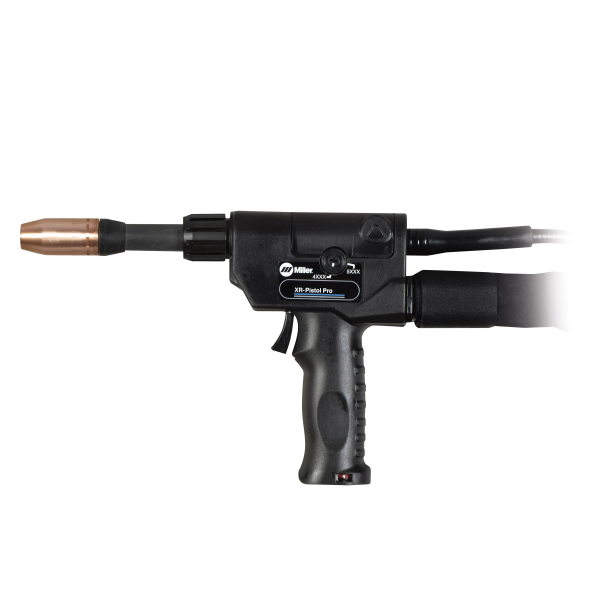

Miller XR-25A Pistol Pro 300783

Exceptional aluminum welding results for heavy-industrial applications.


Most Durable Design

  • Durable motor and drive design improves feedability and arc consistency while helping reduce downtime and maintenance costs. All internal components are designed to provide long lasting performance and feeding precision.

Reduce Service Time

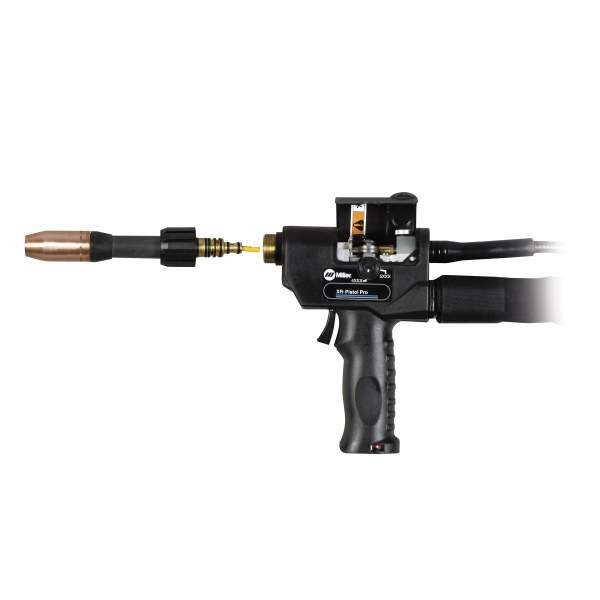

  • Easy access to drive assembly and removable toolless head tube reduce service time, by allowing a simple means of changing drive rolls and head tube — or performing routine maintenance without disassembling the gun.

Best Feeding Performance

  • Dual wire tension settings for 4000- or 5000 series aluminum to ensure the very best wire feeding performance and arc consistency.

Replaceable Feed Cable Liner

  • Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.

Multiple Configurations

  • Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.

Complete Your System

  • XR-Pistol-Plus guns work in conjunction with 74 MPa Plus wire feeders.
View our large selection of welding machine accessories for the greatest values online.
Welding Output Rating 200 A at 100% Duty Cycle
Wire Diameter Capacity .030 - 1/16 in (0.8 - 1.6 mm) aluminum wire and hard wire up .045 in (1.1 mm)
Wire Speed 70 - 900 IPM (1.8 - 23 m/min)
Max Spool Size Capacity 4 in (102 mm)
Cable Length 25 ft (7.62 m)
Net Height 3.375 in. (86 mm)
Net Length 10.625 in. (269 mm)
Net Width 1.875 in. (47 mm)
Net Weight 2.2 lb (1 kg)
Processes MIG (GMAW) with aluminum wire and other soft alloys
Pulsed MIG (GMAW-P) with pulsing power source
Heavy Industrial Applications Aerospace
Heavy Equipment-Manufacturing
Warranty 1 year - Miller's True Blue Warranty
