ESAB Warrior 300i MIG Multi-Process Welding Package #0558102559

Product Number: 0558102559

NEW PRODUCT

$10,564.00 + Free Shipping

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • Power Consumption Reduced 25%
  • Lightweight & Portable
  • MIG Welding
  • Stick Welding
  • TIG Welding
  • 3-Year ESAB Warranty

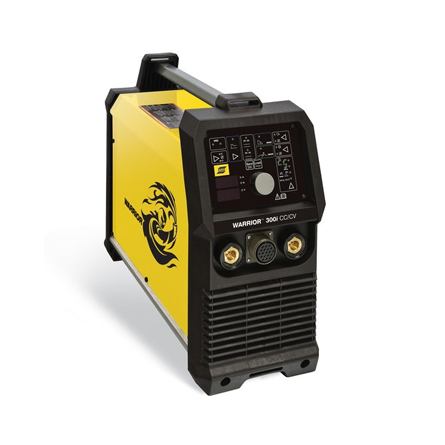

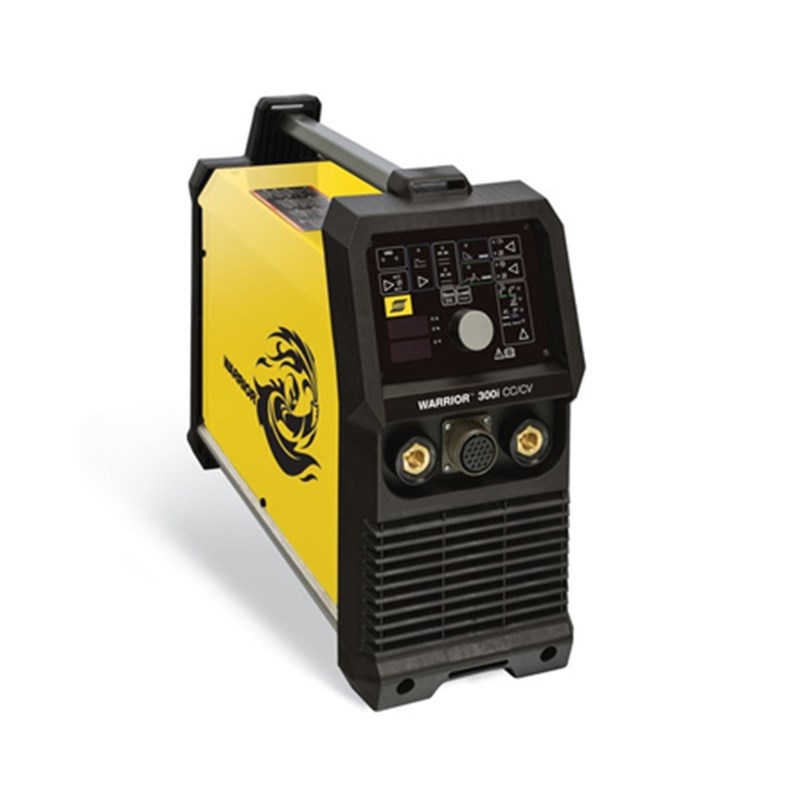

ESAB Warrior 300i MIG Multi-Process Welding Package #0558102559

The ESAB Warrior 300i is a lightweight, portable welding machine that packs maximum power for that extra boost. Leading MiCOR Inverter Technology enables use of longer primary cables and reduces power consumption up to 25%. Adjustable inductance control offers greater arc stability for MIG welding while adjustable hot start control and force control allow for optimum stick welding.

Package Includes:

  • 10 ft. (3 m) input lead
  • Two male Dinse connectors 50 mm

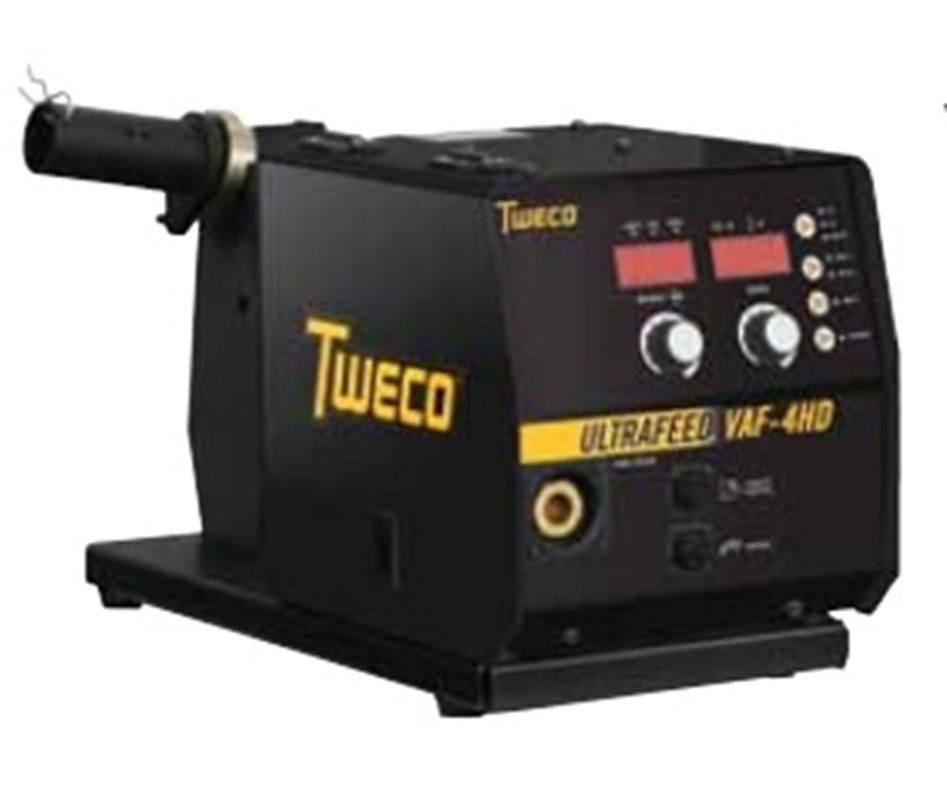

  • Ultrafeed 4HD wire feeder
  • Interconnect and power cable

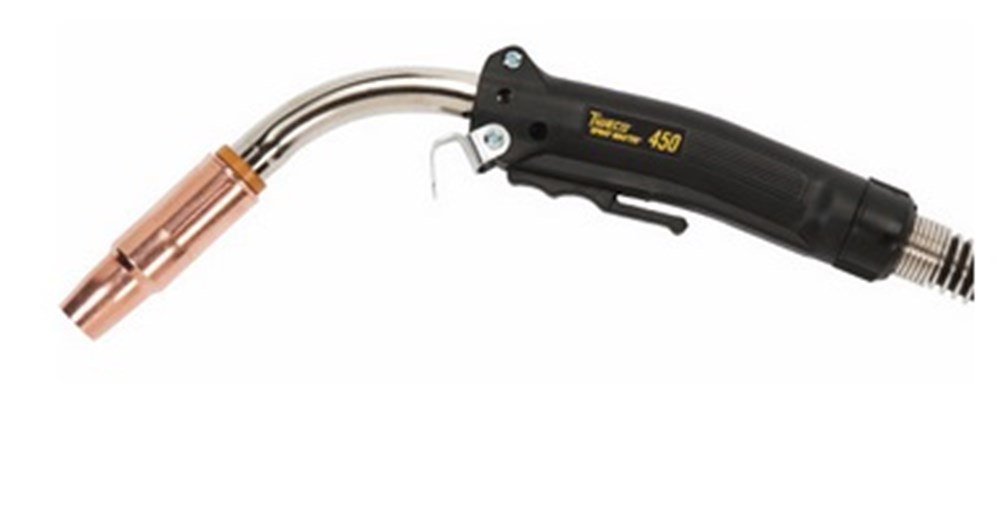

  • 15 ft. (4.6 m) Spray Master 450 MIG gun
  • Ground clamp with 10 ft. (3 m) lead
  • Victor ESS3-FG-580 argon flowgauge regulator
  • 12.5 ft. (3.8 m) gas hose
  • Industrial cart

Welding Process

  • Welding-GMAW (MIG/MAG - Metal Inert Gas / Metal Active Gas)
  • Welding-GTAW (TIG - Tungsten Inert Gas)
  • Welding-SMAW/MMA (Stick)
Shop welding machines, fume extractors and welding helmets available at Welders Supply.

Specifications

Input Voltage 208-230/400/460 VAC, 1/3 ph, 50/60 Hz
Supply Voltage Range 177-529 VAC
Current Range 10-300 A (1 ph)
10-400 A (3 ph)
Maximum Input Current 53.2 A (280 V/3 ph)
49.1 A (230 V/3 ph)
28.6 A (460 V/3 ph)
Maximum Output 400 A
Rated kVA 14.4 kW @ 400 A
Maximum Open Circuit Voltage 80 VDC
Maximum Welding Output MIG (GMAW) @ 104°F (40°C) 300 A/29 V @ 25% duty cycle, 1 ph
230 A/25.5 V @ 60% duty cycle, 1 ph
180 A/23 V @ 100% duty cycle, 1 ph
400 A/34 V @ 25% duty cycle, 3 ph
300 A/29 V @ 60% duty cycle, 3 ph
220 A/25 V @ 100% duty cycle, 3 ph
Maximum Welding Output Stick (SMAW) @ 104°F (40°C) 300 A/32 V @ 25% duty cycle, 1 ph
230 A/29.2 V @ 60% duty cycle, 1 ph
180 A/27.2 V @ 100% duty cycle, 1 ph
400 A/32 V @ 60% duty cycle, 3 ph
300 A/28.8 V @ 60% duty cycle, 3 ph
Maximum Welding Output TIG (GTAW) @ 104°F (40°C) 300 A/2 V @ 25% duty cycle, 1 ph
230 A/19.2 V @ 60% duty cycle, 1 ph
180 A/17.2 V @ 100% duty cycle, 1 ph
400 A/26 V @ 25% duty cycle, 3 ph
300 A/22 V @ 60% duty cycle, 3 ph
220 A/18.8 V @ 100% duty cycle, 3 ph
Approvals IEC 60974-1 CSA E60974-1, UL 60974-1
Protection Class IP23S
Dimensions, L x W x H 17.7 x 8.2 x 16.5 In. (450 x 210x 420 mm)
Weight 54 lbs. (24.5 kg)
