Hypertherm Powermax 30 Air #088096

Hypertherm Powermax 30 Air Plasma Cutter #088096 with Building America Decal

Built-in air compressor—no need for shop air! Just plug it in and start cutting.

The Powermax 30 AIR is a plasma arc cutting system with an integrated air compressor. It will cut electrically conductive metals—such as mild steel, stainless steel, or aluminum—up to 10 mm (3/8 inches) thick. It will also pierce thicknesses up to 6 mm (1/4 inch).

Generally, mechanized plasma torches create thermal plasma by harnessing direct current (DC) discharge. Although thermal plasma is most commonly generated using DC discharge, it can also be generated using alternating current (AC) or radio frequency.

Plasma cutters are an effective and efficient way to cut electrically conductive metals, and the addition of a compressor makes them even more versatile. With the Powermax 30 Air, you're not limited to using shop air. You can take this lightweight, portable machine just about anywhere with a 120 or 240 plug and cut using the internal air compressor.

Benefits of the Powermax 30 AIR

Portable operation

• Internal air compressor lets you operate anywhere—maximum portability and ease of use
• Plugs into either a 120-volt or 240-volt outlet with the included plug adapters
• Lightweight, ergonomic hand torch reduces cramping and soreness
• Adding to its portability, it’s the lightest and smallest system in its class

Faster, more versatile

• High efficiency: fast cutting speeds and amazing cut quality reduces secondary operations
• Continuous pilot arc feature lets you quickly and easily cut rusted metal or metal grate without retriggering
• Only one tool is needed for a variety of cutting functions - large-range of metal thicknesses and types

Reliable, robust, and cost-effective

• Internal air compressor eliminates the unnecessary costs of with external air compressors
• Rugged design withstands the elements
• High performance from Hypertherm, a trusted brand

Powermax 30 AIR Kit – What comes in the box?

The Hypertherm Powermax 30 Air comes with everything you need to get started. A complete set of consumables are pre-installed on the AIR T30 torch, including:

• Electrode (#420132)
• Swirl ring (#420133)
• Nozzle (#420134)
• Retaining cap (#420135)
• Deflector (#420399)

Other things included in the box are:

• Extra nozzle (#420134)
• Extra electrode (#420132)
• Carrying strap
• Quick setup card
• Operator’s, safety, and compliance manuals

With a 15-foot lead, the AIR T30 also includes a work clamp (with a 15-foot lead) and a 10-foot power cord, plus adapters for both 120-volt & 240-volt outlets. With all of this included with your Hypertherm Powermax 30 AIR, you can quickly get to work on your next project.

Try these accessories with your new Hypertherm Powermax 30 Air:

+

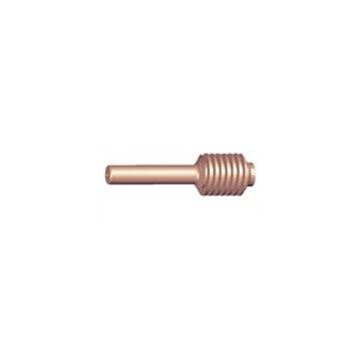

Parts Kit

View Product

+

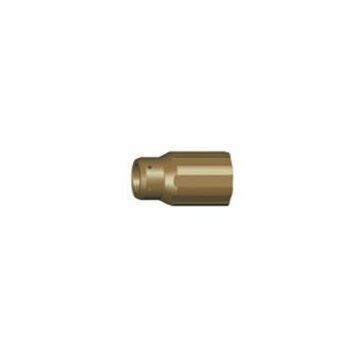

Swirl Ring

View Product

+

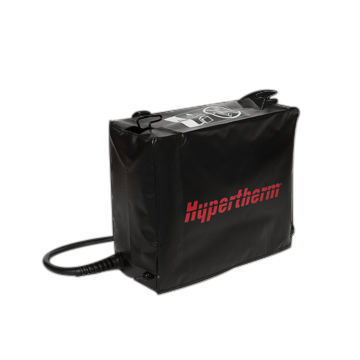

Protective Cover

View Product

Oxy-fuel welding and cutting for CNC efficiency

Oxy-fuel welding and cutting (also referred as oxyacetylene welding, oxy welding, or gas-welding) are processes that use fuel gases to burn pure oxygen to achieve high temperatures—allowing the user to weld and cut metals.

Plasma cutting and welding vs. oxy-fuel welding and cutting

The average cost of using a plasma torch is about 37% cheaper per foot, which, over time can save you a big chunk of change. In regions with high labor rates, such as the US, Canada, Europe, etc., it’s extremely important to achieve the highest efficiency possible to maximize your profit. Due to its ability to obtain a high-capacity and high-speed in fabrication operations, plasma torches are the clear-cut preference over oxy-fuel torches.

Why choose the Powermax 30 AIR plasma cutter?

Compare the Hypertherm Powermax 30 Air vs. 30 XP
Compare the Hypertherm Powermax 30 Air vs. Thermal Dynamics Cutmaster

Shop our entire selection of plasma cutting machines, other Hypertherm products, Powermax plasma cutters and welding machines available at Welders Supply.

• Input Voltages: 120-240 V, 1-PH, 50/60 Hz
• Input current @ 2.5 kW: 120-240 V, 1-PH, 29-15 A
• Output current: 15-30 A
• Rated output voltage: 83 VDC
• Duty cycle @ 104°F (40°C): 35%, 240 V, 20%, 120 V
• Open circuit voltage (OCV): 256 VDC
• Input power cable length: 10-feet
• Power supply type: inverter – insulated-gate bipolar transistor (IGBT) – 13.1’’H x 7.7’’W x 16.5’’D
• Engine drive requirement: 5.5 kW for full 30A output
• Warranty: power supplies - 3-year warranty; torches - 1-year warranty
