Hypertherm Serial Interface Port (RS-485) Upgrade Kit #228539
Product Number: 228539
$207.00
$229.00
You Save $22.00
Documents
VideosHypertherm Serial Interface Port (RS-485) Upgrade Kit #228539
Hypertherm® RS-485 Serial Interface Port Kit is designed to provide automated applications for:
Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.
Hypertherm Serial Interface Port (RS-485) Upgrade Kit #228539

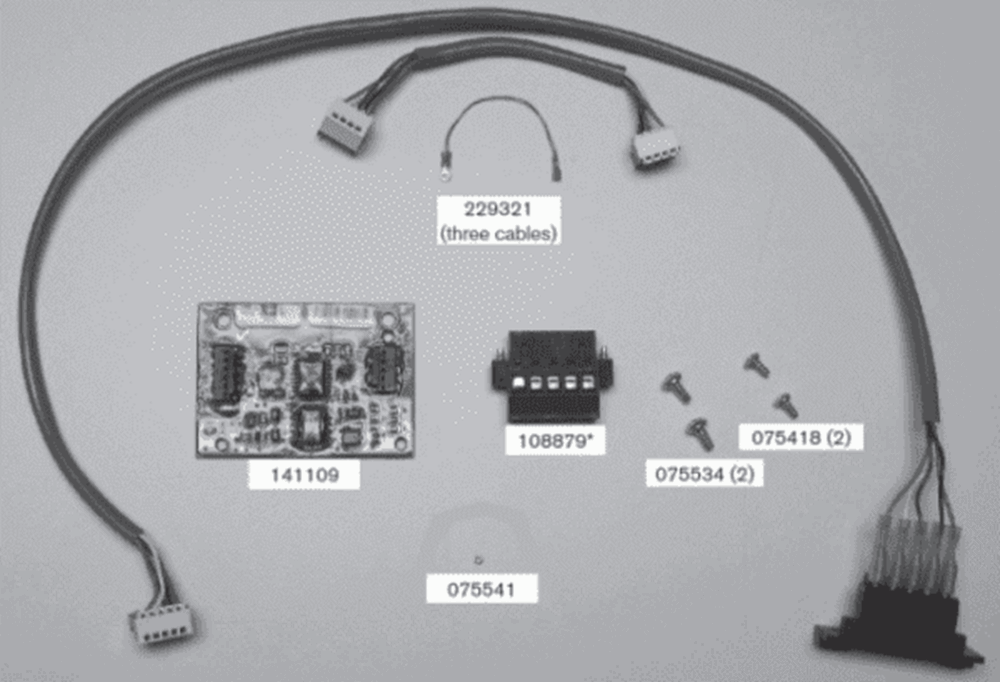

| Kit Contents | ||
|---|---|---|
| Part Number | Description | Quantity |
| 075418 | Screws | 2 |
| 075534 | Screws | 2 |
| 108879* | Terminal: Plug 24-12 AWG 5-position 250V 1 2A screw connector block | 1 |
| 141109 | RS-485 board | 1 |
| 229321 | RS-485 wire group (two cables) | 1 |
| 075541** | M4 kepnut | 1 |
|
* This is the external connector which mates with the power supply RS-485 connector. It is provided as an option for interfacing between the power supply and the customer's CNC. |
||
| ** Only used on Powermax 105/125 systems. | ||
Connecting the RS-485 option to the RS-485 Serial Port

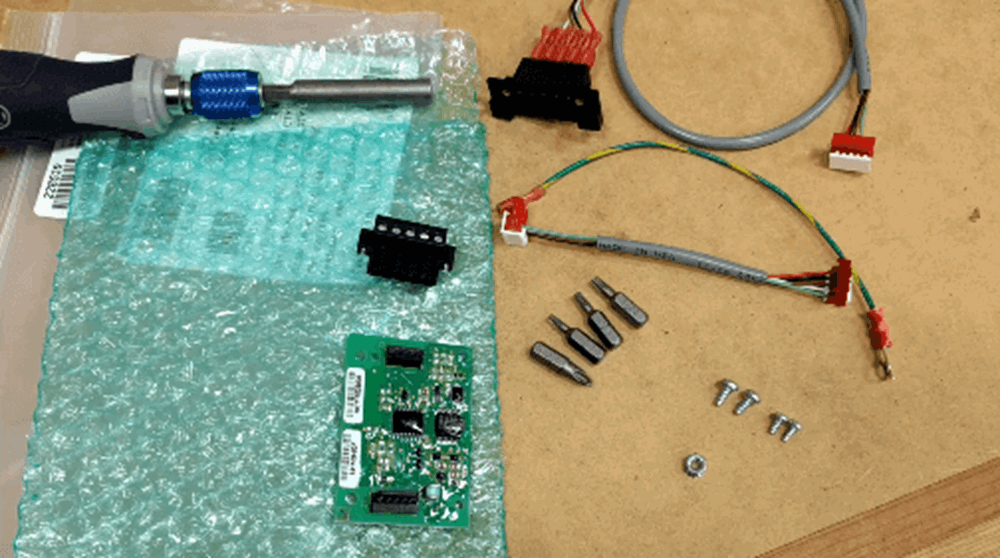

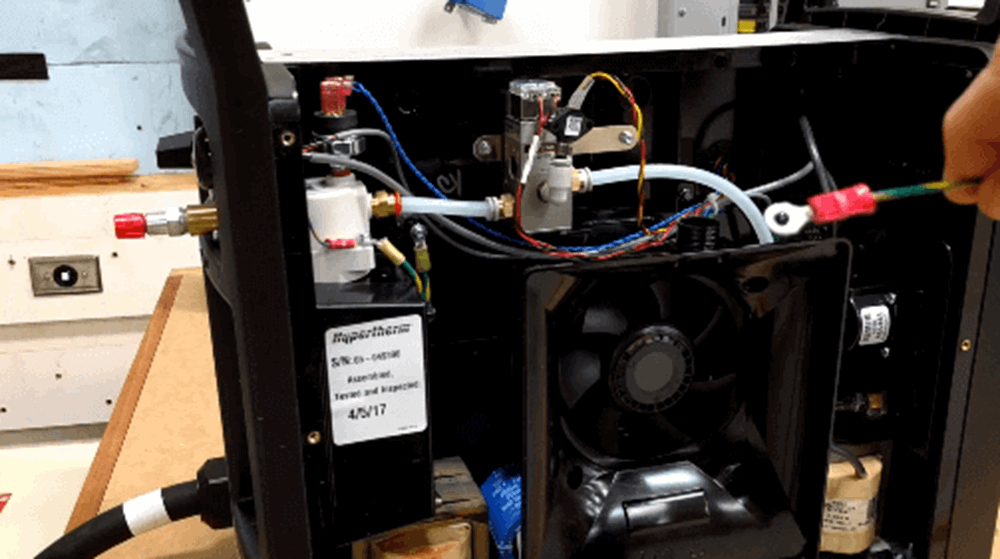

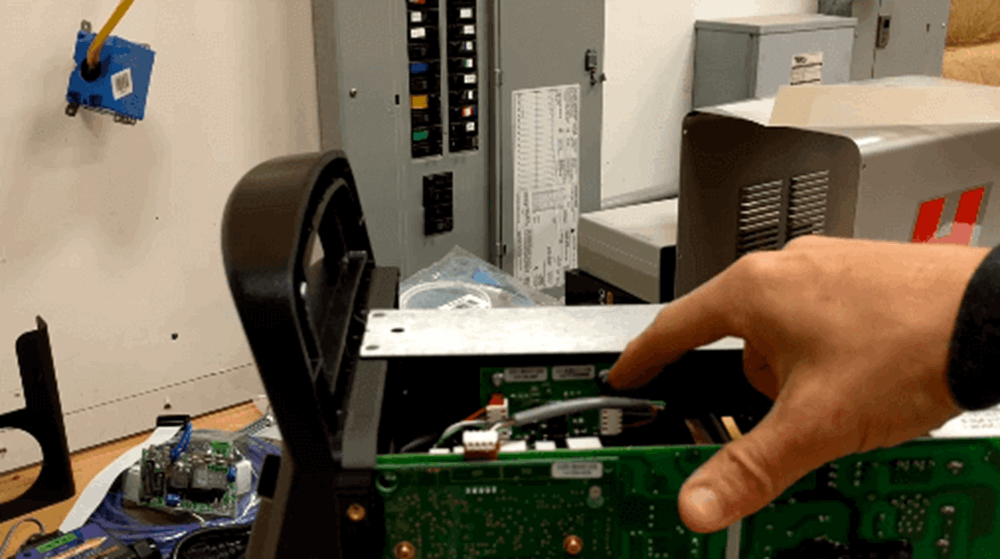

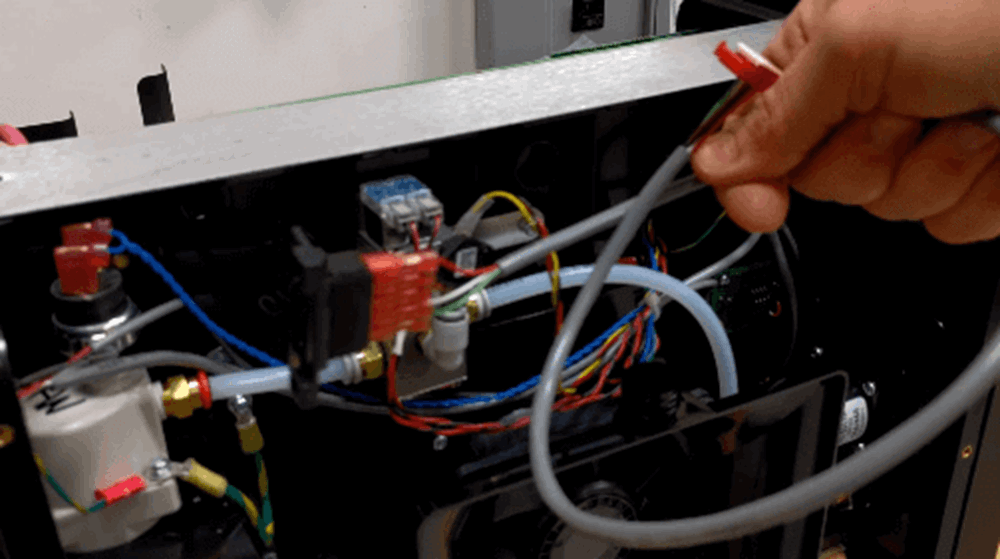

Hypertherm Powermax65/85 RS-485 Serial Card Kit Field Install
Product Questions and Answers
Q - What is the RS-485 Serial port?
A - It is a 5 pin connector that allows direct interfacing with your CNC machine, simplifying your process.
Q - Is this similar to a CPC port?
A - No, a CPC port allows communication from the plasma cutter and the machine torch, but the Serial port allows communication with your CNC machine directly.
Q - Is this easy to install?
A - It does require some mechanical aptitude, but following the how-to video in the video tab will certainly help.
